Rittal 3174120 Pleated filter IP54 for roof fan
|
-10% 61,30 EUR 68,37 EUR |
|
|
( 72,95 EUR incl. VAT ) ≈ £51.31 | ≈ $67.37 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101874 |
| Mfg Part No: | 3174120 |
| UPC/EAN: | 4028177969070 |
| Weight: | 0.4 kg |
| Type: | SK 3174120 |
Product information for Rittal 3174120:
Applications
The filter is specifically designed for mounting in filter and roof fans used in industrial enclosures. It is integrated into the outlet filter section to clean the exhausted air from fine particles. The application is in environments where continuous air purification is required to maintain the functionality of electronic components in the enclosure. The filter class according to DIN EN 779 corresponds to M5, indicating medium particle separation, and according to DIN EN ISO 16890, the class ISO ePM10 50 % is specified, describing the separation of particles with a diameter of 10 µm and larger by at least 50 %.
Functions and Equipment in Detail
The pleated filter technology enables a significantly higher airflow compared to conventional nonwoven filters, increasing the performance of fan units and reducing energy consumption. The filter mats are designed to allow longer service life, thereby extending maintenance intervals and reducing service costs. The filters are manufactured in dimensions of 265 mm width, 100 mm height and 18 mm depth, ensuring a precise fit for the specified roof fan models.
Technology Explained Simply
The pleated structure substantially increases the effective filter surface area without increasing the filter dimensions. This allows more air to be filtered per unit of time, improving climate control efficiency. The material made of polyester and meltblown polycarbonate offers a good combination of mechanical stability and filtration performance. The protection class IP 54 according to IEC 60 529 is achieved when mounted in filter and roof fans, meaning the filter is protected against dust and splashing water and can therefore also be used in outdoor or damp environments.
Compatibility and Accessories
The filter is specifically designed for roof fan models with article numbers 3138.xxx, 3139.xxx and 3140.xxx. The performance data, protection class and approvals of the devices are only guaranteed when used with original Rittal filter mats.
Mounting and Installation

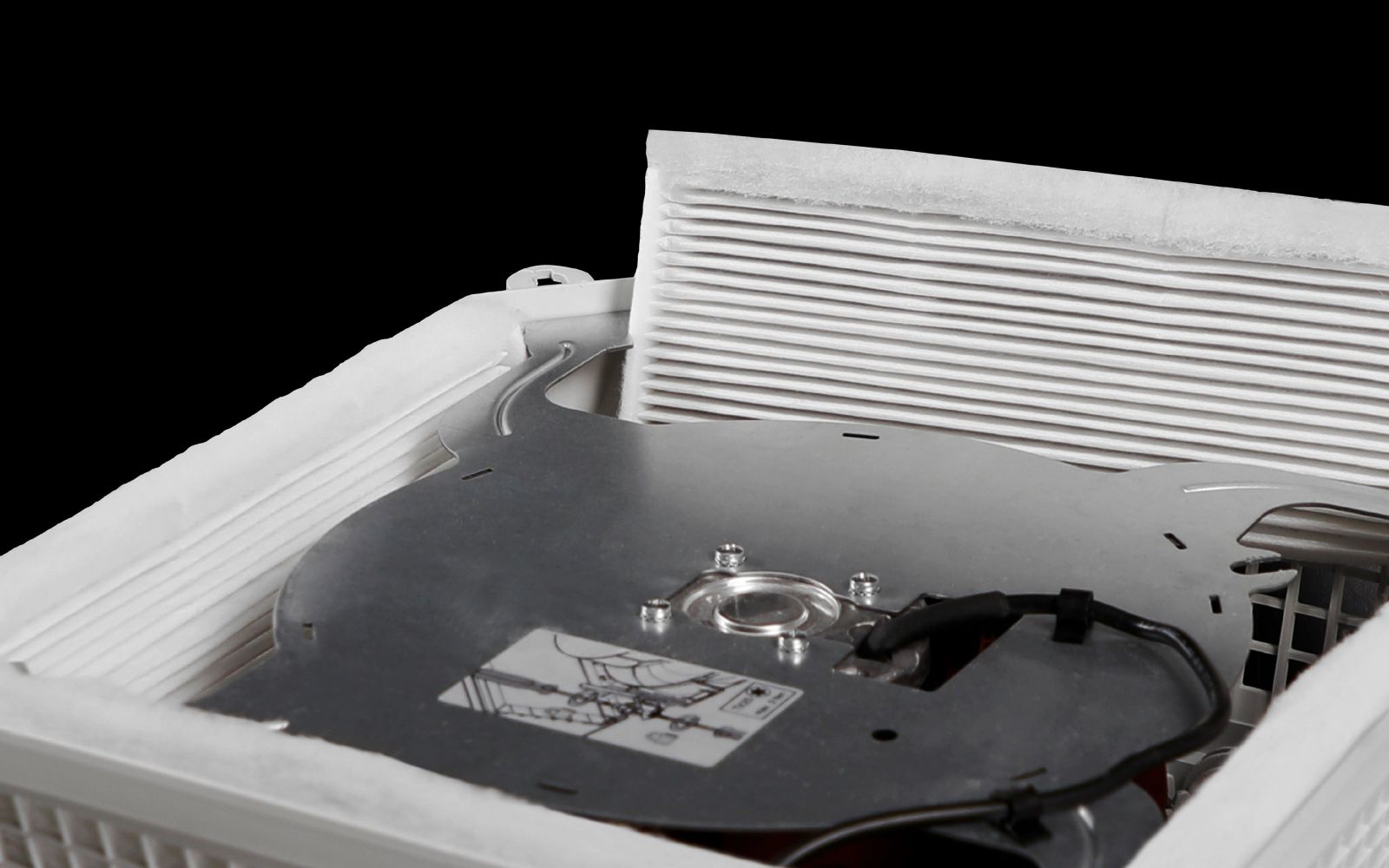

Installation is carried out directly into the designated filter compartment of the roof fans. The filters are designed to be inserted into the fan unit without additional tools or mounting aids.
Operational Advantages
The improved filtration performance keeps the air in the enclosure cleaner, increasing the service life of electronic components. The longer service life of the filter mats reduces maintenance frequency and lowers operating costs. The IP 54 protection class ensures reliable operation even under harsh operating conditions. The use of original Rittal filter mats guarantees compliance with the specified performance and protection criteria of the fan units.
| General | |
| Model | for roof ventilators |
| Material | Folding filter: base polyester, meltblown polycarbonate |
| Note | The performance data, degree of protection and approvals of the devices are only guaranteed in combination with original Rittal filter mats. |
| Suitable for part no. | 3138.xxx, 3139.xxx, 3140.xxx |
| Width | 265 mm |
| Height | 100 mm |
| Depth | 18 mm |
| Filter class | According to DIN EN 779: M5, according to DIN EN ISO 16890: ISO ePM10 50 % |
| Degree of protection IP according to IEC 60 529 | IP 54 when mounted in filter & roof fan/exhaust filter |
Questions & answers
What is the delivery time of Rittal 3174120 Pleated filter IP54 for roof fan?
The article Rittal 3174120 Pleated filter IP54 for roof fan is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3174120 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3174120 Pleated filter IP54 for roof fan always at the best possible price. We can give you a discount of 2% on Rittal 3174120 Pleated filter IP54 for roof fan if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
