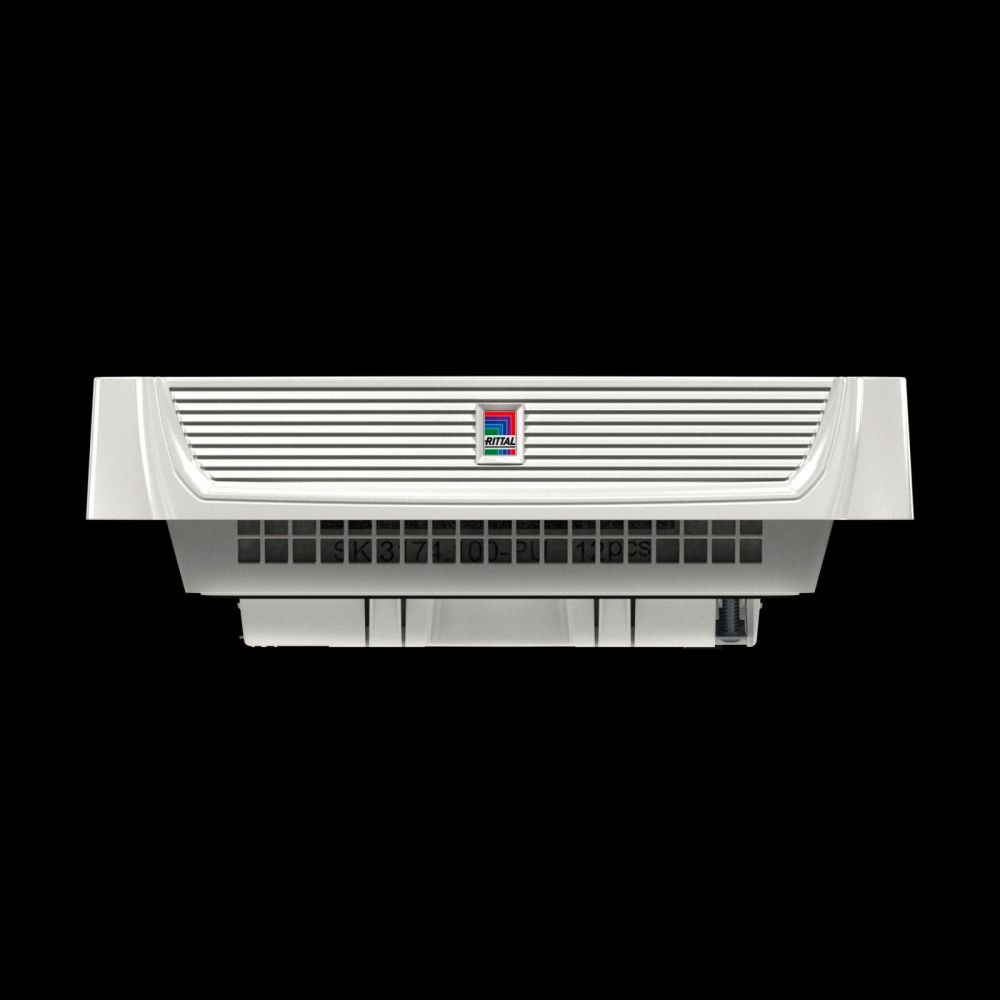

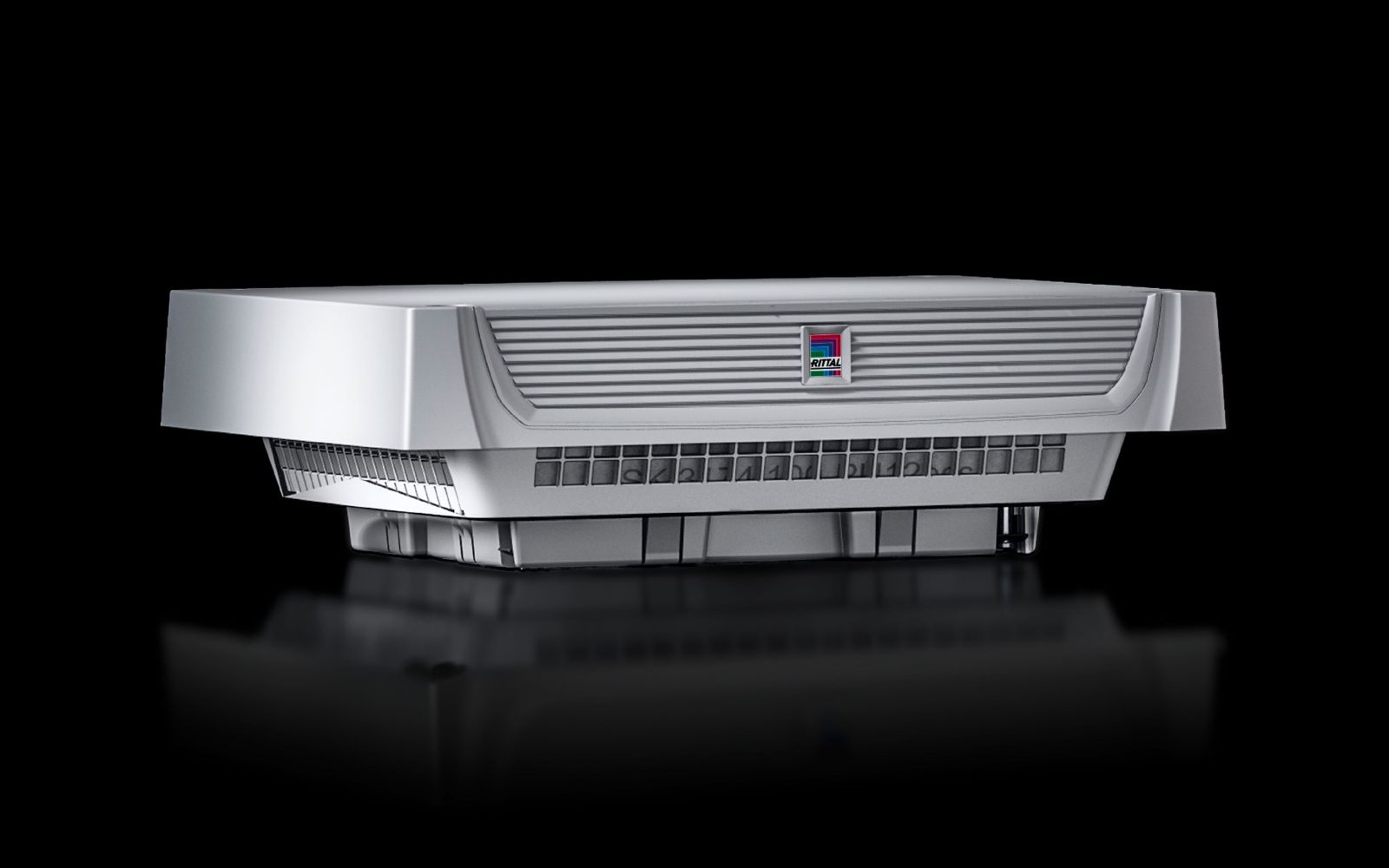

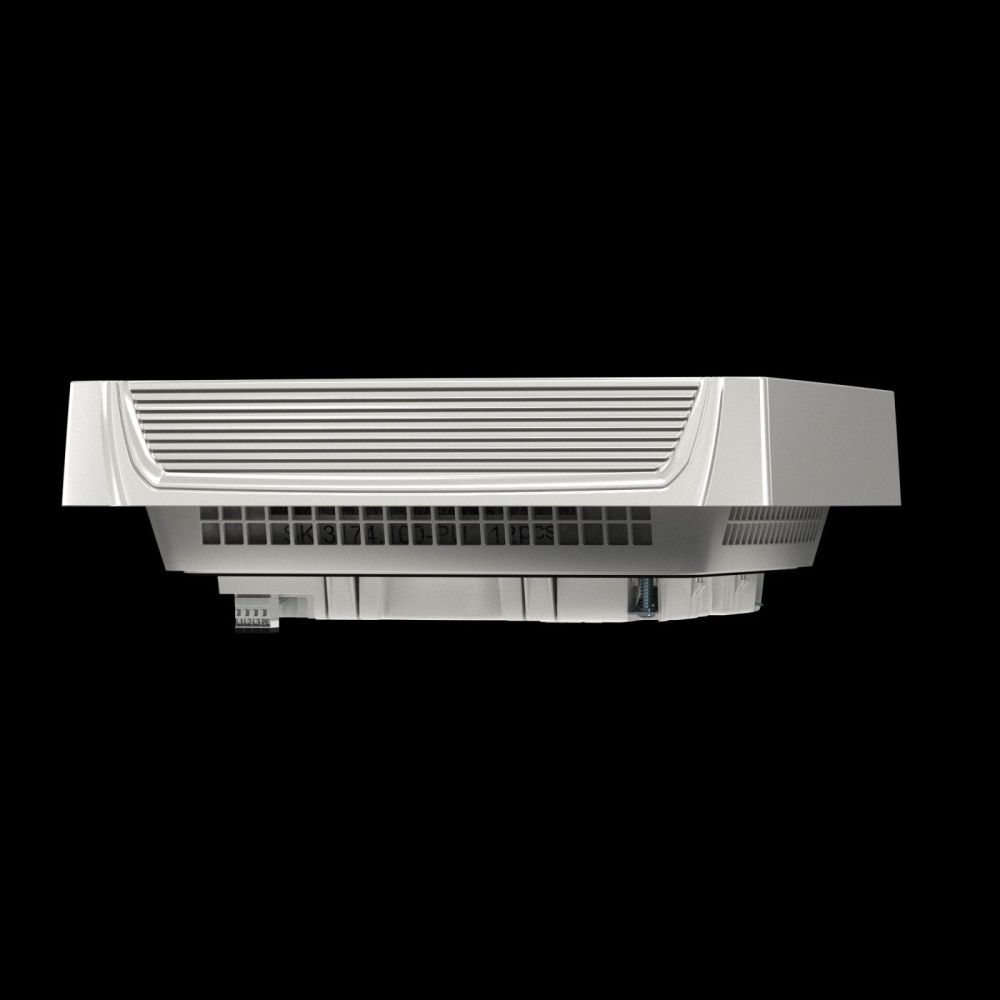

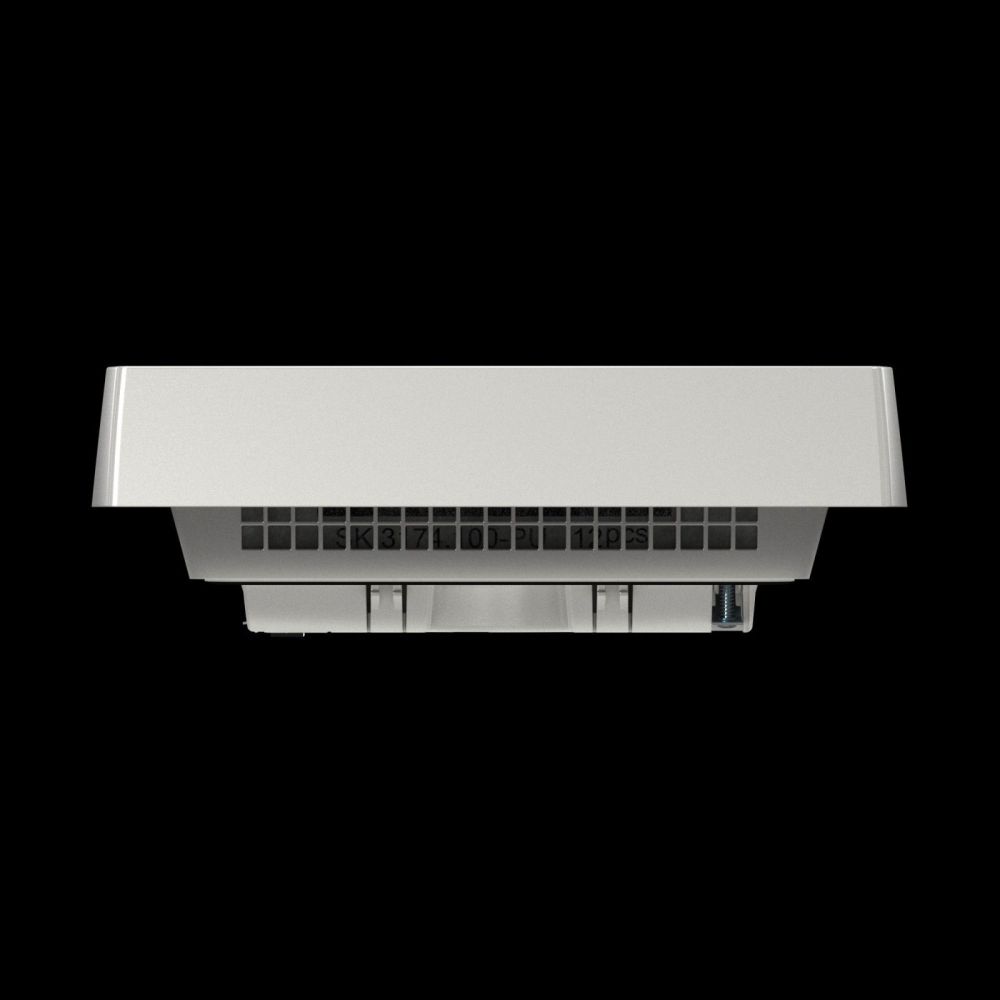

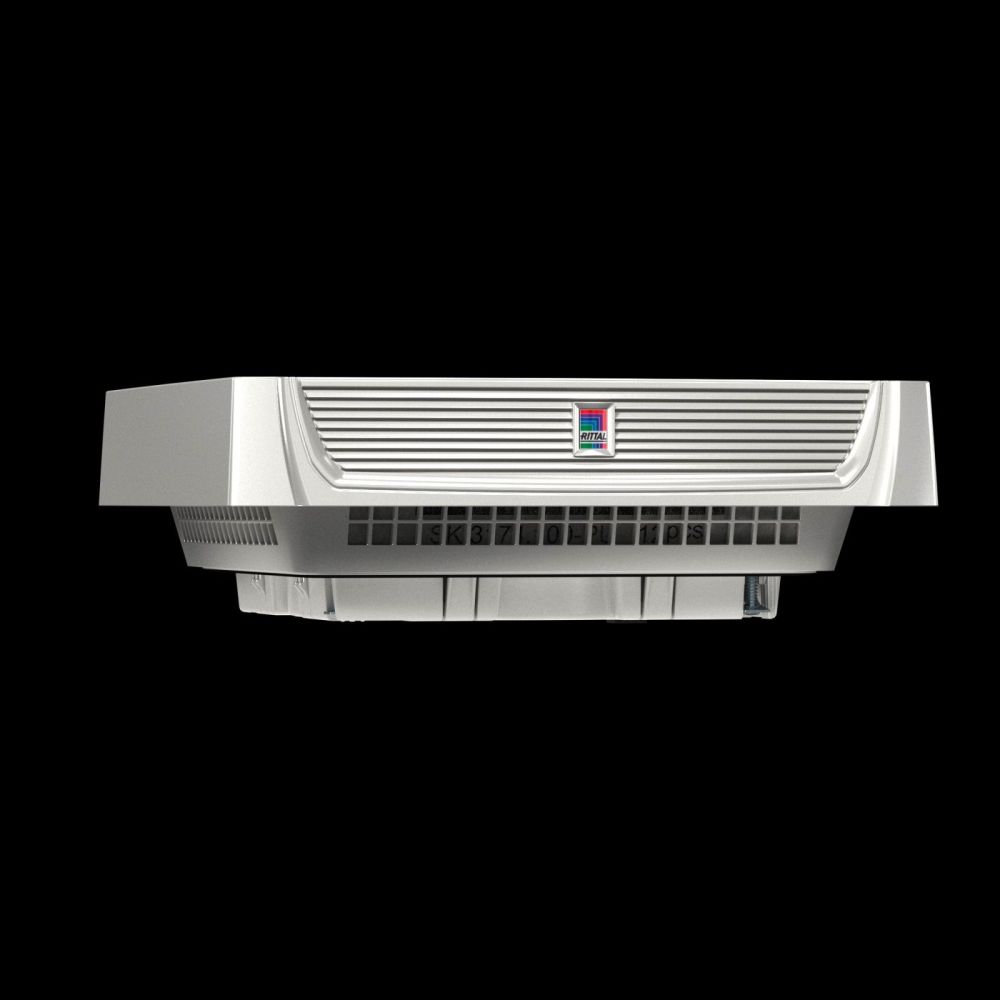

Rittal 3139110 SK roof fan 525 m³/h
|
323,04 EUR |
|
|
( 384,42 EUR incl. VAT ) ≈ £270.38 | ≈ $355.02 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1131009 |
| Mfg Part No: | 3139110 |
| UPC/EAN: | 4028177709164 |
| Weight: | 5.865 kg |
| Type: | SK 3139110 |
Product information for Rittal 3139110:
Applications
This roof fan is intended for use in industrial environments where continuous air circulation and cooling of electronic components are required. It is particularly suitable for enclosures in production plants, automation systems, or power supply technology. The IP 54 protection rating safeguards against dust and splashing water, making it suitable for outdoor use or humid indoor environments. The operating temperature range of -20 °C to +55 °C allows use in environments with varying climatic conditions.
Functions and Equipment in Detail
The fan features a radial fan with capacitor motor, achieving an air flow rate of 525 m³/h free blowing (without filter mats) at 50 Hz. With pleated filter and outlet filter including a non-woven filter mat, the air flow rate is 360/382 m³/h for one unit (1 x 3243300) and 410/440 m³/h for two units (2 x 3243300). The air flow design minimizes pressure loss, increasing efficiency. The unit is equipped with a 3 A fuse for safe operation.
Technology Explained Simply
The rated operating voltage is 115 V, 1~, 60 Hz, indicating suitability for regions with this power supply. The rated power is 65 W, with a rated current of up to 0.56 A. The sound pressure level is 54 dB(A) at 60 Hz, representing an acoustically acceptable operating noise level. The fan's service life (L10, 40 °C) is 68,000 hours, indicating high reliability and long operational life. The installation depth of 34.6 mm and mounting cutout of 258 mm (width and depth) allow standardized installation in various enclosure sizes.
Compatibility and Accessories
The roof fan is standard-equipped with a pleated filter, ensuring IP 54 protection. Optionally, a non-woven filter can be used to increase protection to IP 54. Compatible accessories include thermostats, speed controllers, digital temperature displays, hygrostats, and replacement filter mats. These components enable precise temperature control and optimized energy efficiency. The use of temperature controllers or displays is recommended to extend device lifespan and reduce energy consumption.
Installation and Mounting
Installation is performed via a standardized mounting cutout of 258 mm width and depth. The unit can be mounted either from inside or outside onto the enclosure roof. The installation depth of 34.6 mm ensures seamless integration into enclosure construction. The unit dimensions are 400 mm width, 133 mm height, and 400 mm depth, representing a compact design.
Operational Advantages
The roof fan offers high air flow at low energy consumption and an acceptable noise level. The integrated IP 54 protection (with pleated filter) safeguards against environmental contamination and moisture. Flexible mounting and standardized mounting cutout simplify installation. The long service life and the option to improve air quality with additional filters enhance operational safety and ease of maintenance. The recommendation to use temperature controllers supports energy-efficient and reliable operation.
| General | |
| Model | Roof structure |
| Material | Plastic ABS |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including pleated filter |
| Fan | Radial, capacitor motor |
| Airflow (without filter in roof fan) with exhaust filter including felt filter mat | 1 x 3243300: 360/373 m³/h |
| Airflow (with pleated filter in roof fan) with outlet filter including non-woven filter mat | 1 x 3243300: 360/382 m³/h, 2 x 3243300: 410/440 m³/h |
| Air performance free blowing (without filter mats) | At 50 Hz: 525 m³/h |
| Rated operating voltage | 115 V, 1~, 60 Hz |
| Rated power Pel | At 60 Hz: 65 W |
| Rated current max. | At 60 Hz: 0.56 A |
| Width | 400 mm |
| Height | 133 mm |
| Depth | 400 mm |
| Built-in depth | 34,6 mm |
| Mounting cutout | Cutout width: 258 mm, Cutout depth: 258 mm |
| Degree of protection IP according to IEC 60 529 | IP 21 without filter mat, IP 54 including pleated filter |
| NEMA degree of protection | NEMA 12 |
| Fuse | Circuit breaker/fuse: 3 A |
| Note | To increase the degree of protection to IP 55, a felt filter can be optionally used (see accessories). To improve energy efficiency and increase device lifespan, the use of temperature controllers or indicators is recommended. |
| Fan life (L10, 40 °C) | At 60 Hz: 68,000 h |
| Operating temperature range | -20 °C...55 °C |
| Storage temperature range | -40 °C...70 °C |
| Sound pressure level | At 60 Hz: 54 dB(A) |
