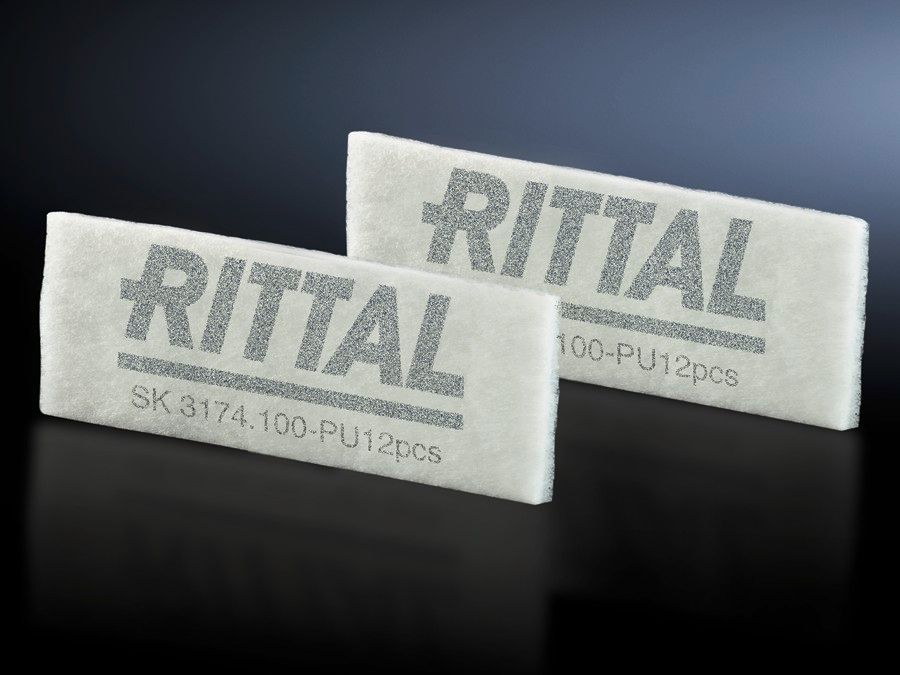

Rittal 3174100 Replacement filter mat for SK 3138/39

Your rating:
Average rating
product review for Rittal 3174100 Replacement filter mat for SK 3138/39
( 4.5 / 5 ) 20 ratings
Rittal 3174100
This image may differ from the desired article.
Rittal 3174100Rittal 3174100
27,49 EUR 28,35 EUR
( 32,71 EUR incl. VAT )
≈ £23.01  |  ≈ $30.21
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3174100 Replacement filter mat for SK 3138/39
Datasheet:file_download Download
Lieske Part No.:1086555
Mfg Part No: 3174100
UPC/EAN: 4028177709218
Weight:0.1 kg
Type:SK 3174100

Product information for Rittal 3174100:

The Rittal replacement filter mat type SK 3174100 is a filter element specifically developed for roof fans, serving to protect enclosure components from dirt, dust, and water. The product is made of chemical fiber and features a structured, progressively built nonwoven fiber web structure, enabling efficient filtration. The filter mat is intended for use in roof fans with article numbers 3138...., 3139...., and 3140.... and is supplied in a packaging unit of 12 pieces. Dimensions are 264 mm (width) × 95 mm (height) × 17 mm (depth). The filter class corresponds to G3 according to DIN EN 779, ensuring reliable filtration of dust particles with a grain size of 10 µm and above. When installed in the roof fan, the device achieves a protection rating of IP 55 according to IEC 60 529, ensuring dust-tight and water-tight conditions under normal operating conditions.

Applications

The replacement filter mat is primarily intended for use in roof fans, filter fans, or thermoelectric coolers installed in enclosures. It serves continuous air purification and protects sensitive electronic components from contamination, which can lead to malfunctions or premature wear. The application is in industrial environments where high air cleanliness and operational reliability are required. The filter mat is suitable for use in indoor and outdoor areas, particularly in installations exposed to continuous dust, fine particles, or humid air.

Functions and Equipment in Detail

The filter mat consists of a nonwoven fiber web, featuring an open structure on the dusty air side and a closed structure on the clean air side. This design ensures that larger particles are captured on the surface, while finer dust particles are retained within the material. The material is heat-resistant up to 100 °C and self-extinguishing in class F1 according to DIN 53 438, providing enhanced safety at elevated temperatures or in case of fire. The filtration performance is designed for particle separation from 10 µm, which is sufficient for protection against industrial dust and general contamination risks.

Technology Explained Simply

The progressive structure of the nonwoven fiber web means that fibers are arranged in varying densities, controlling airflow and optimizing filtration performance. The open structure on the inlet side reduces air resistance, while the closed structure on the outlet side increases particle retention. The protection rating IP 55, achieved when installed in the roof fan, means the device is protected against dust and splashing water, which is important for outdoor use or in humid environments. The filter class G3 according to DIN EN 779 is a standard class for coarse particle separation and is used in many industrial applications.

Compatibility and Accessories

The replacement filter mat is specifically designed for roof fan models with article numbers 3138...., 3139...., and 3140.... The exact fit is ensured by the dimensions of 264 mm × 95 mm × 17 mm. The use of original Rittal filter mats is necessary to ensure the performance data, protection rating, and approvals of the devices.

Installation and Mounting

Mounting is done directly into the designated roof fan, where the filter mat is inserted into the provided holder. Installation requires no special tools or additional components. The filter mat is typically replaced during maintenance or when changing the filter. The packaging unit contains 12 pieces, enabling cost-effective procurement for regular maintenance intervals.

Operational Advantages

Using the Rittal replacement filter mat ensures consistent air quality within the enclosure, extending the lifespan of electronic components and increasing operational reliability. The heat-resistant and self-extinguishing material properties enhance operational safety, especially in environments with increased thermal loads. The IP 55 protection rating ensures reliable function even under harsh environmental conditions. Simple mounting and standardized replacement simplify maintenance and reduce plant downtime.

General
Modelfor roof ventilators
MaterialChemical fibre
NoteThe performance data, degree of protection and approvals of the devices are only guaranteed in combination with original Rittal filter mats.
Suitable for part no.3138...., 3139...., 3140....
Width264 mm
Height95 mm
Depth17 mm
Filter classaccording to DIN EN 779: G3
Degree of protection IP according to IEC 60 529IP 55 when mounted in roof ventilator


Product data sheet
Datasheet for Rittal 3174100, EAN: 4028177709218

Questions & answers

What is the delivery time of Rittal 3174100 Replacement filter mat for SK 3138/39?

The article Rittal 3174100 Replacement filter mat for SK 3138/39 is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3174100 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3174100 Replacement filter mat for SK 3138/39 always at the best possible price. We can give you a discount of 2% on Rittal 3174100 Replacement filter mat for SK 3138/39 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
