Rittal 3140510 SK EC roof fan 1069 m³/h

Your rating:
Average rating
product review for Rittal 3140510 SK EC roof fan 1069 m³/h
( 4 / 5 ) 1 ratings
Rittal 3140510
This image may differ from the desired article.
Rittal 3140510Rittal 3140510Rittal 3140510
-8% 531,30 EUR 575,41 EUR
( 632,25 EUR incl. VAT )
≈ £444.70  |  ≈ $583.90
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3140510 SK EC roof fan 1069 m³/h
Datasheet:file_download Download
Lieske Part No.:1872438
Mfg Part No: 3140510
UPC/EAN: 4028177805767
Weight:6 kg
Type:SK 3140510

Product information for Rittal 3140510:

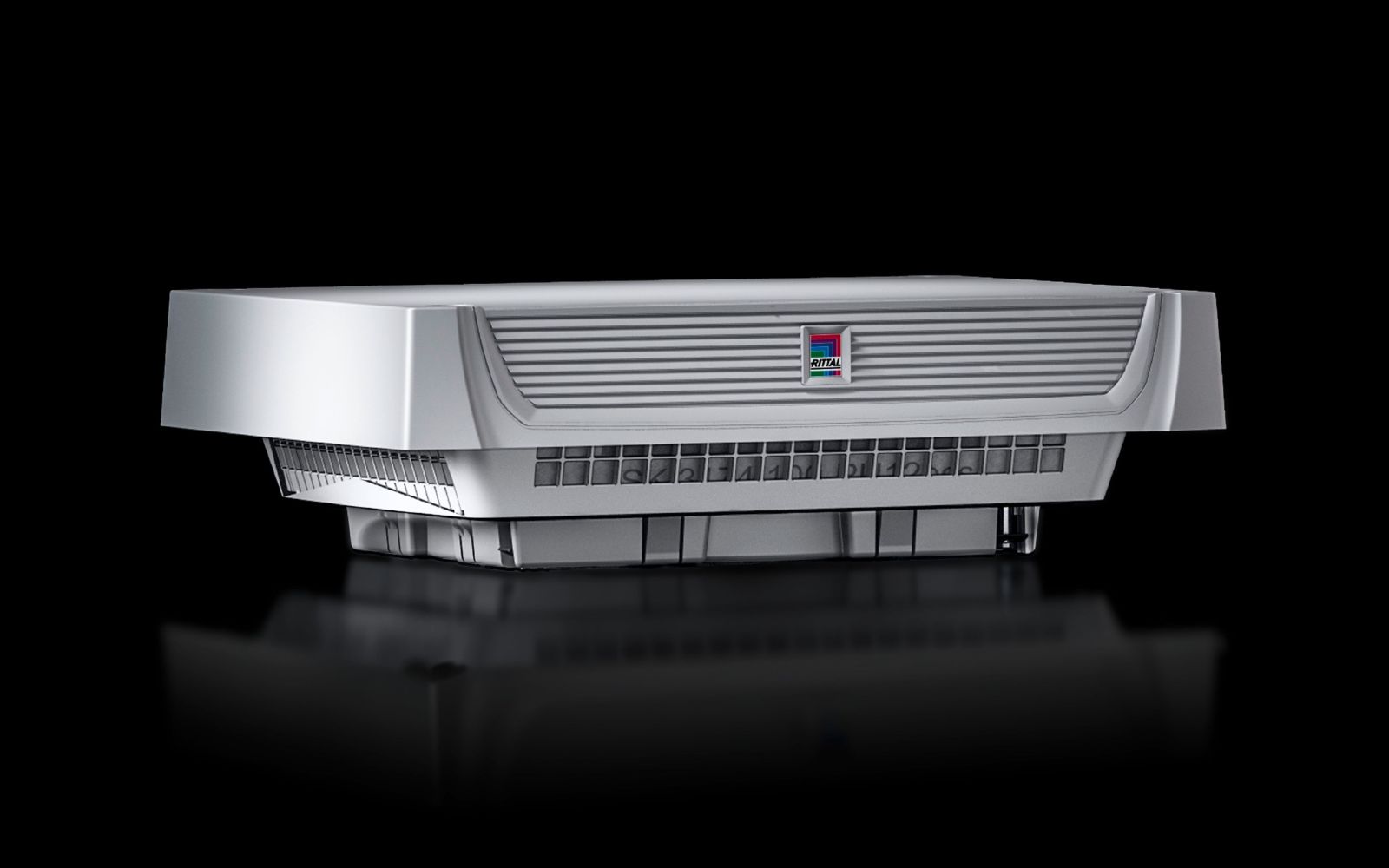

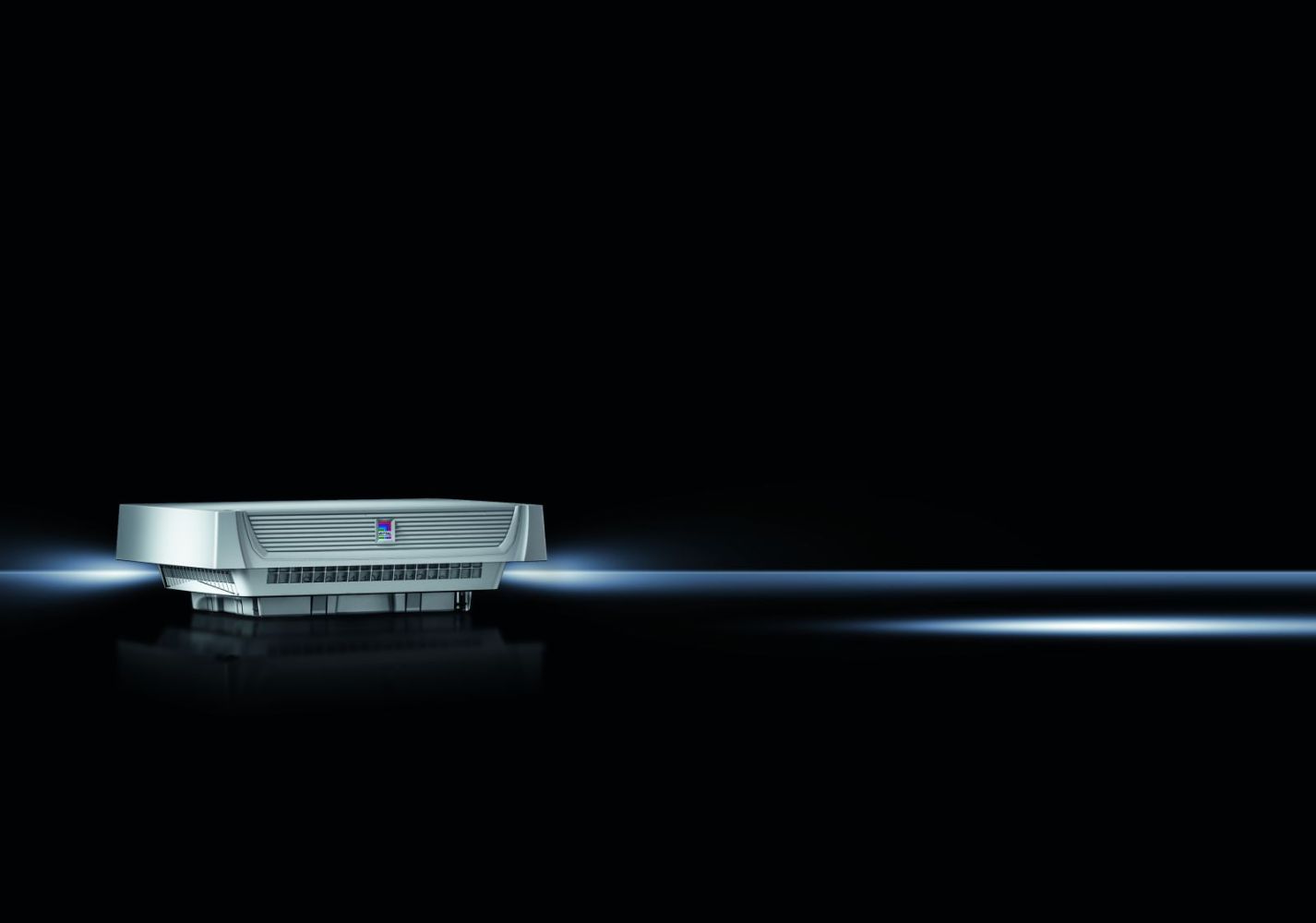

The Rittal SK 3140510 is a roof fan of the TopTherm series, designed with EC technology, specifically conceived for the climate control of enclosures. It serves for the controlled removal of heat from closed enclosures and ensures a stable operating temperature within the specified range of -20 °C to +55 °C. The device is delivered as a complete, ready-to-install unit and features an integrated pleated filter, enabling protection class IP 54 according to IEC 60 529. The construction is made of ABS plastic in the colour RAL 7035, offering high mechanical stability and weather resistance.

Applications

The roof fan is intended for use in industrial environments, particularly in enclosures operated in indoor and outdoor areas. The protection class IP 54 protects against dust and splashing water, making it suitable for many industrial applications. The NEMA protection class 12 complements its suitability for indoor environments with increased contamination risk. The installation dimensions of 400 mm width, 133 mm height, and 400 mm depth, along with the required mounting cutout of 258 mm width and depth, enable universal mounting on various enclosure types.

Functions and Equipment in Detail

The fan operates with a radial fan driven by an EC motor, ensuring high energy efficiency and low operating noise. The air performance is 1,069 m³/h free blowing at 60 Hz, decreasing to 975 m³/h when the integrated pleated filter is mounted. The rated power is 112 W at 60 Hz, with a maximum rated current of 1.51 A. The operating voltage is 115 V, 1~, 60 Hz. The integrated control interface with tachometer signal output enables fan control and monitoring of rotational speed and function. The fan's service life (L10, 40 °C) is 82,000 hours at 60 Hz.

Technology Explained Simply

EC technology (electronically commutated motors) ensures precise speed control and high energy efficiency. The EC motor responds flexibly to load changes and reduces power consumption compared to conventional motors. The air guidance with minimal pressure loss ensures high air flow performance. The integrated control interface enables external control and monitoring, for example, via speed controllers or thermostats. The sound pressure level is 60 dB(A) at 60 Hz, which is acceptable for industrial applications.

Compatibility and Accessories

For more efficient operation or to monitor fan speed, the use of EC speed controllers is recommended. Additional compatible accessories include thermostats, digital temperature display and control units, Blue e+ outlet filters, hygrostats, and control units for EC filter fans. Combining these components enables an intelligent and adaptable climate control solution.

Installation and Mounting

The roof fan is installed into the roof of the enclosure. The required mounting cutout measures 258 mm in width and depth. The installation depth of the device is 34.6 mm. Mounting is achieved via an innovative clamp fastening system, enabling secure and quick installation. The pre-fuse is equipped with a fuse switch or a 3 A fuse.

Operational Advantages

The Rittal SK 3140510 offers high air flow performance with low energy consumption. The EC technology ensures long service life and reliable operation. The integrated control interface enables flexible control and monitoring. The protection class IP 54 and NEMA 12 classification make the fan suitable for a wide range of industrial applications. Universal mounting and compatibility with various accessories increase flexibility in system design.

General
ModelRoof mounting, EC
MaterialPlastic ABS
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanRadial, EC motor
Airflow free blowing (with pleated filter)At 60 Hz: 975 m³/h
Airflow (without filter in roof fan) with exhaust filter including felt filter mat1 x 3243300: 690 m³/h
Airflow (with pleated filter in roof fan) with outlet filter including non-woven filter mat1 x 3243300: 690 m³/h, 2 x 3243300: 830 m³/h
Air performance free blowing (without filter mats)At 60 Hz: 1,069 m³/h
Rated operating voltage115 V, 1~, 60 Hz
Rated power PelAt 60 Hz: 112 W
Rated current max.At 60 Hz: 1.51 A
Width400 mm
Height133 mm
Depth400 mm
Built-in depth34,6 mm
Mounting cutoutCutout width: 258 mm, Cutout depth: 258 mm
Degree of protection IP according to IEC 60 529IP 21 without filter mat, IP 54 including pleated filter
NEMA degree of protectionNEMA 12
FuseCircuit breaker/fuse: 3 A
NoteTo increase the degree of protection to IP 55, a filter cloth can be optionally used (see accessories). For even more efficient operation or fan monitoring, the use of EC speed controllers is recommended
Fan life (L10, 40 °C)At 50 Hz: 82.000 h, At 60 Hz: 82.000 h
Operating temperature range-20 °C...55 °C
Storage temperature range-40 °C...70 °C
Sound pressure levelAt 60 Hz: 60 dB(A)
Control interfaceJa


Product data sheet
Datasheet for Rittal 3140510, EAN: 4028177805767
