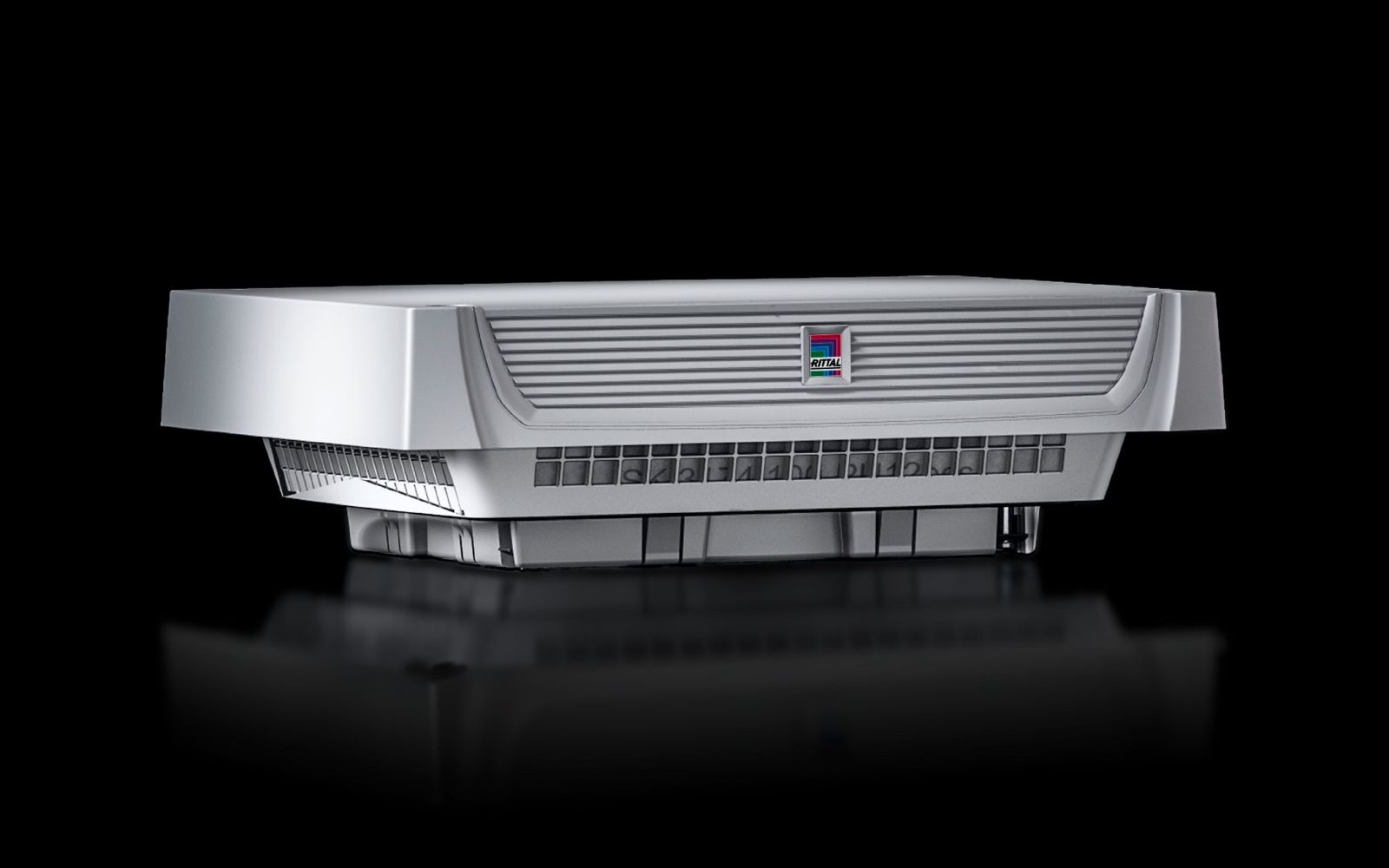

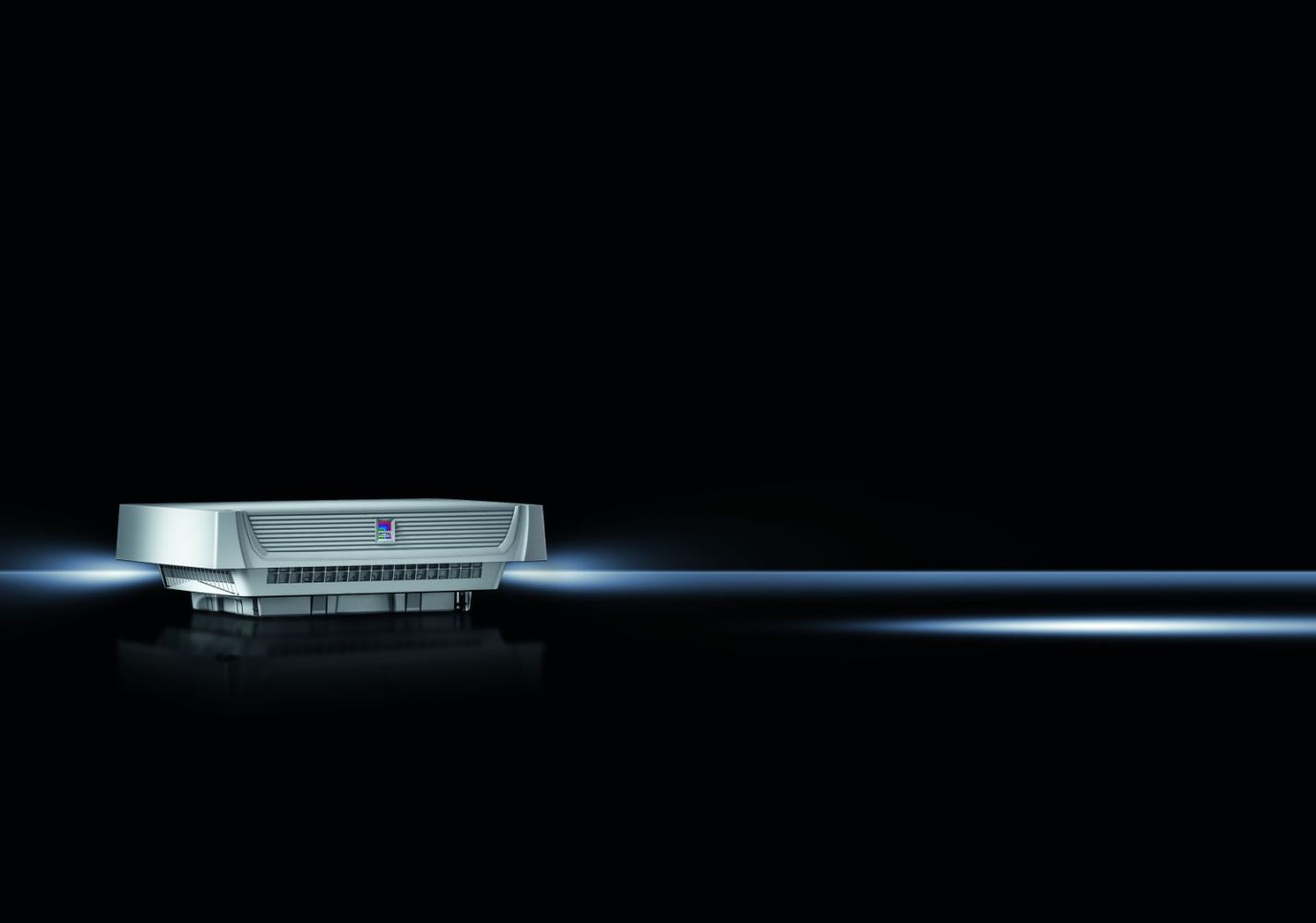

Rittal 3140500 Roof fan TopTherm 1069/1069 m³/h, 400x133x400 mm
|
519,57 EUR |
|
|
( 618,29 EUR incl. VAT ) ≈ £434.88 | ≈ $571.01 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1131007 |
| Mfg Part No: | 3140500 |
| UPC/EAN: | 4028177709126 |
| Weight: | 5.82 kg |
| Type: | SK 3140500 |
Product information for Rittal 3140500:
Applications
This roof fan is intended for use in industrial environments where controlled enclosure climate control is required. It is suitable for enclosures in production plants, automation systems, power supply installations, and other technical facilities where electronic components must be protected from overheating. The operating temperature range is from -20 °C to +55 °C, allowing use in regions with varying climatic conditions. The storage temperature range is -40 °C to +70 °C, ensuring storage capability under extreme conditions.
Functions and Equipment in Detail
The fan features a radial fan with an EC motor, ensuring high energy efficiency and low operating noise. The air performance is 1,069 m³/h free blowing (without filter mats) and 976 m³/h (with pleated filter). When using additional outlet filters (e.g. 1 x 3243300), the air performance drops to 690 m³/h, and with two filters (2 x 3243300), it is 830 m³/h. The integrated control interface with tachometer signal output enables fan control and monitoring of rotational speed and function. The rated operating voltage is 220 V – 240 V, 1~, 50 Hz/60 Hz, with a rated current of up to 1 A and a nominal power of 129 W. The fuse is rated for 3 A.
Technology Explained Simply
EC technology (electronically commutated motors) enables precise speed control and high efficiency. The motor dynamically responds to load and reduces energy consumption during partial load operation. The airflow design minimizes pressure losses, increasing overall performance. The integrated control interface allows external control, for example via an EC Sensor speed controller, and monitoring of fan function. The fan's service life (L10, 40 °C) is 84,000 hours, ensuring high reliability and low maintenance frequency. The sound pressure level is 60 dB(A), which is acceptable for industrial applications.
Compatibility and Accessories
The roof fan includes a pleated filter in the delivery scope, increasing the protection rating to IP 54. Without the filter mat, the protection rating is IP 54. Optionally, a non-woven filter can be used to increase the protection rating to IP 54. Compatible accessories include EC Sensor speed controllers, thermostats, digital temperature display and control, Blue e+ outlet filters, hygrostats, control units for EC filter fans, and replacement filter mats for SK 3138/39. Combining these components enables precise temperature control and optimized operation.
Mounting and Installation
Installation is carried out by fitting into the designated mounting cutout of 258 mm × 258 mm in the enclosure roof. The installation depth is 34.6 mm, ensuring compact integration. The unit is fully ready for installation and requires no additional mounting components. Electrical connection is made to the rated operating voltage of 220 V – 240 V, 1~, 50 Hz/60 Hz. The control interface enables flexible integration into existing control systems.
Operational Advantages
The roof fan provides high air performance with low energy consumption, reducing operating costs. EC technology ensures long service life and low maintenance. The integrated control interface enables precise control and monitoring, increasing system reliability. The protection rating IP 54 (with pleated filter) protects against dust and splashing water, expanding application possibilities in various environments. The uniform mounting geometry simplifies planning and installation in different enclosure sizes.
Protection Rating and Standards
The protection rating IP 54 (including pleated filter) complies with IEC 60 529 and protects against dust and splashing water. Without the filter mat, the protection rating is IP 54. The NEMA 12 protection rating is also met, enabling use in industrial environments with increased requirements for mechanical and electrical safety. The unit is designed for use in enclosures operating under these protection ratings.
| General | |
| Model | Roof mounting, EC |
| Material | Plastic ABS |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including pleated filter |
| Fan | Radial, EC motor |
| Airflow free blowing (with pleated filter) | At 50 Hz: 976 m³/h, At 60 Hz: 976 m³/h |
| Airflow (without filter in roof fan) with exhaust filter including felt filter mat | 1 x 3243300: 690 m³/h |
| Airflow (with pleated filter in roof fan) with outlet filter including non-woven filter mat | 1 x 3243300: 690 m³/h, 2 x 3243300: 830 m³/h |
| Air performance free blowing (without filter mats) | At 50 Hz: 1.069 m³/h, At 60 Hz: 1.069 m³/h |
| Rated operating voltage | 220 V - 240 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 129 W, at 60 Hz: 129 W |
| Rated current max. | At 50 Hz: 1 A, At 60 Hz: 1 A |
| Width | 400 mm |
| Height | 133 mm |
| Depth | 400 mm |
| Built-in depth | 34,6 mm |
| Mounting cutout | Cutout width: 258 mm, Cutout depth: 258 mm |
| Degree of protection IP according to IEC 60 529 | IP 21 without filter mat, IP 54 including pleated filter |
| NEMA degree of protection | NEMA 12 |
| Fuse | Circuit breaker/fuse: 3 A |
| Note | To increase the degree of protection to IP 55, a filter cloth can be optionally used (see accessories). For even more efficient operation or fan monitoring, the use of EC speed controllers is recommended |
| Fan life (L10, 40 °C) | At 50 Hz: 84,000 h, At 60 Hz: 84,000 h |
| Operating temperature range | -20 °C...55 °C |
| Storage temperature range | -40 °C...70 °C |
| Sound pressure level | At 50 Hz: 60 dB(A), At 60 Hz: 60 dB(A) |
| Control interface | |
