Rittal 3140140 SK roof fan 863/942 m³/h

Your rating:
Average rating
product review for Rittal 3140140 SK roof fan 863/942 m³/h
( 4.5 / 5 ) 38 ratings

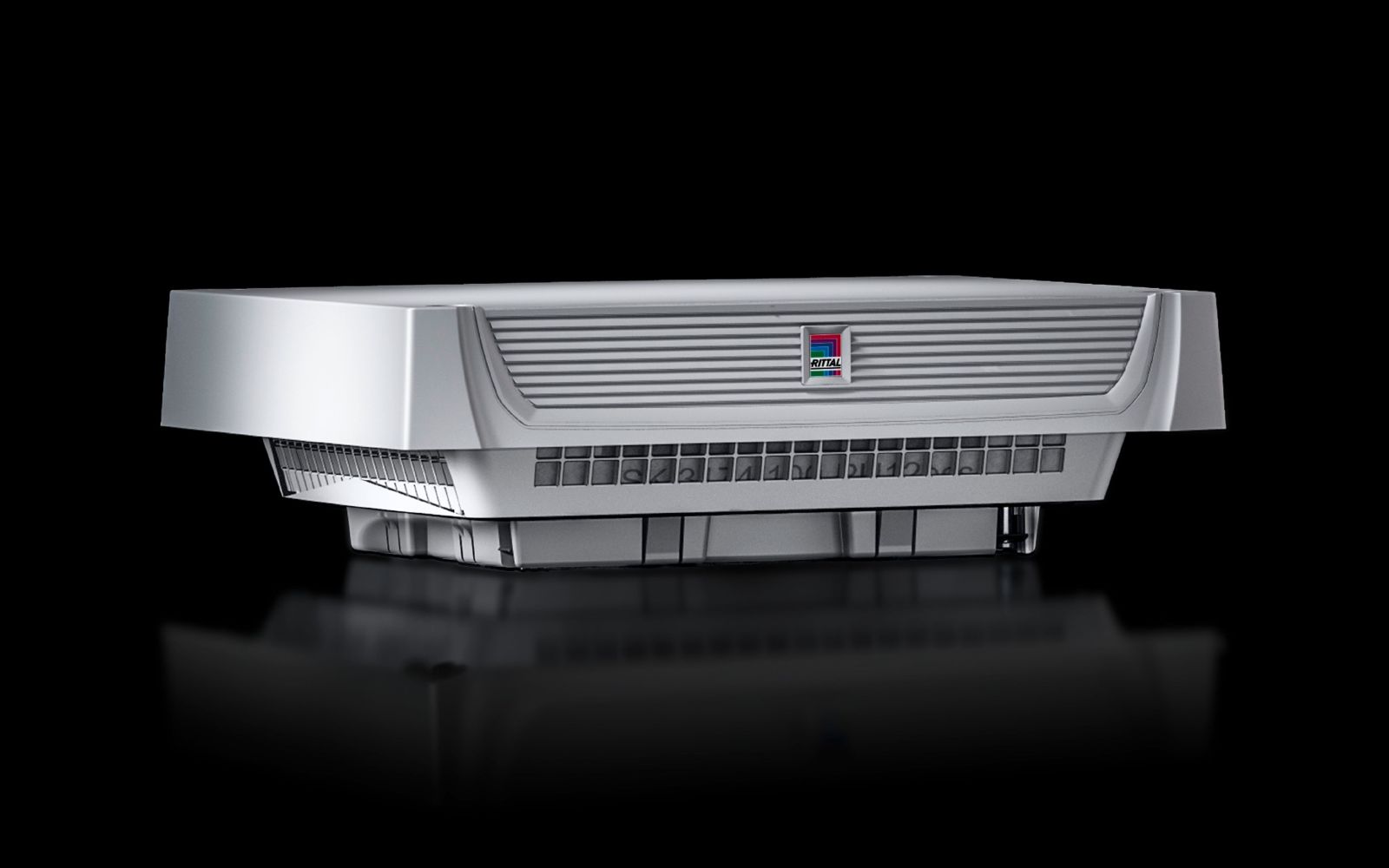

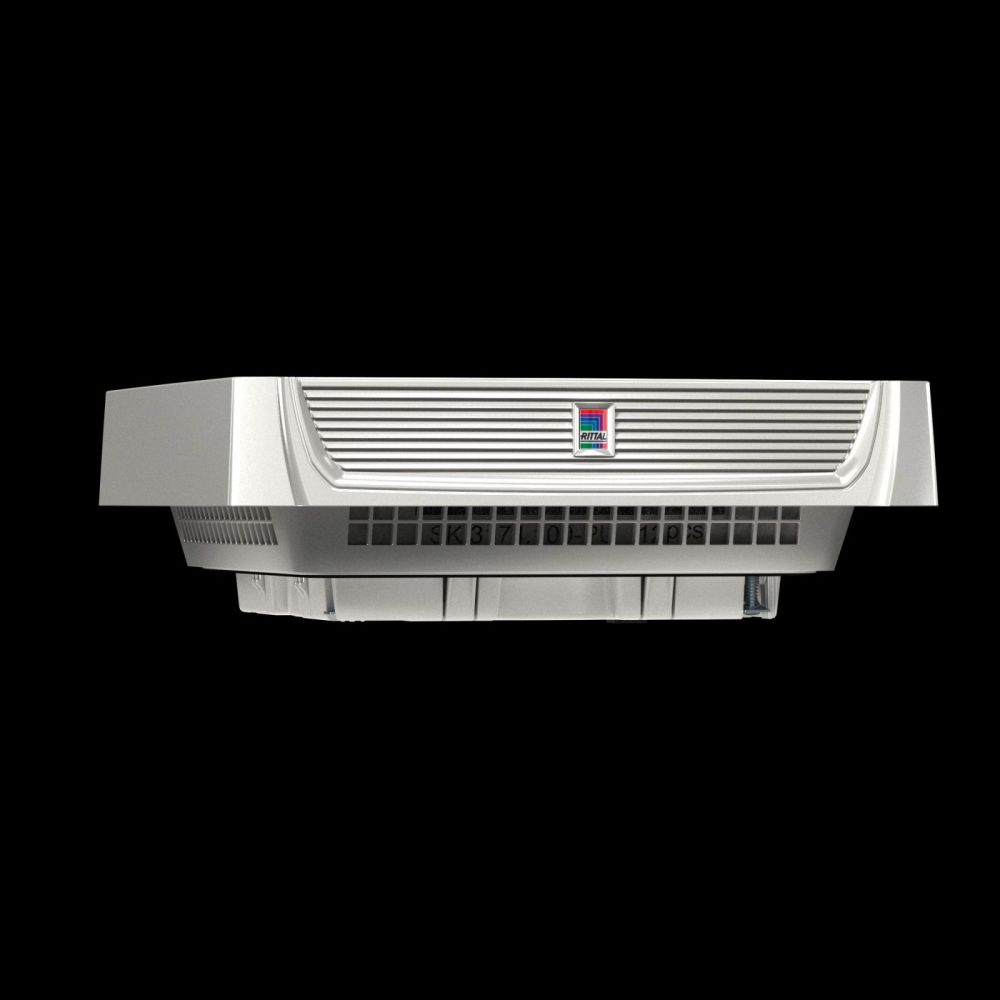

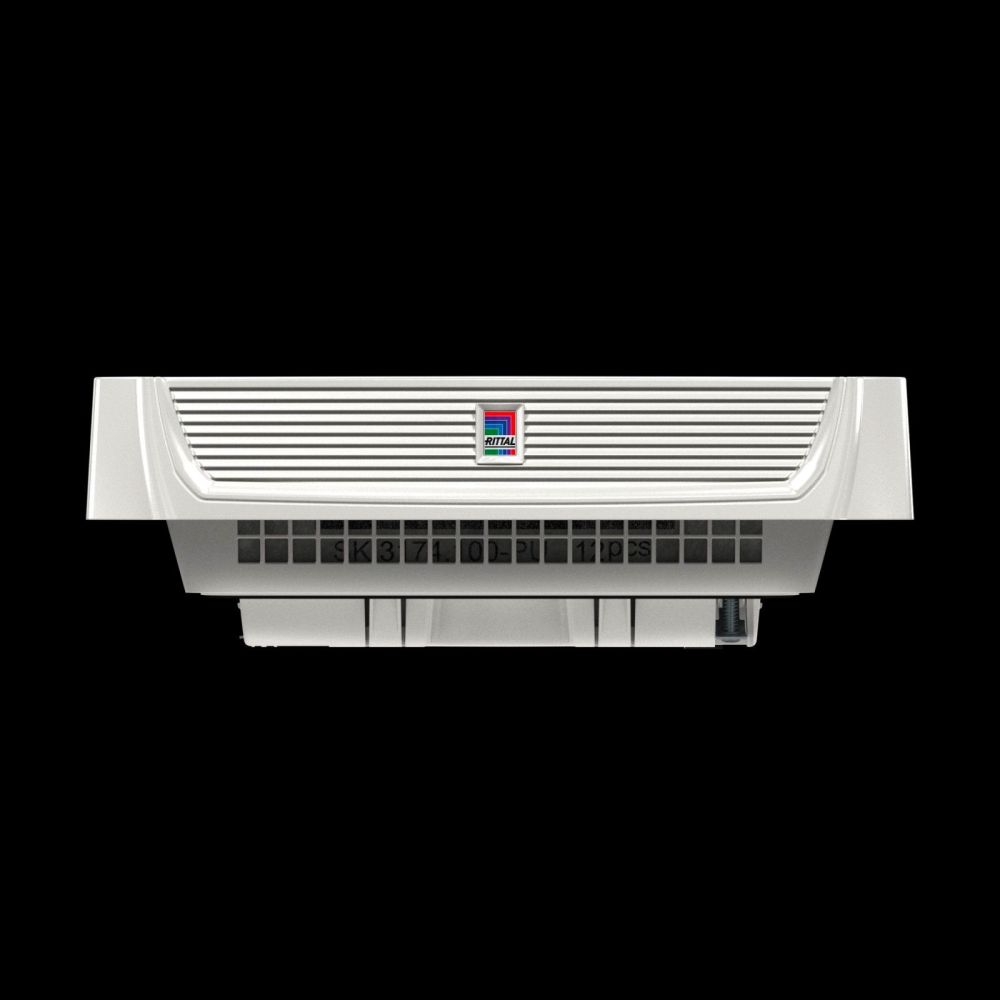

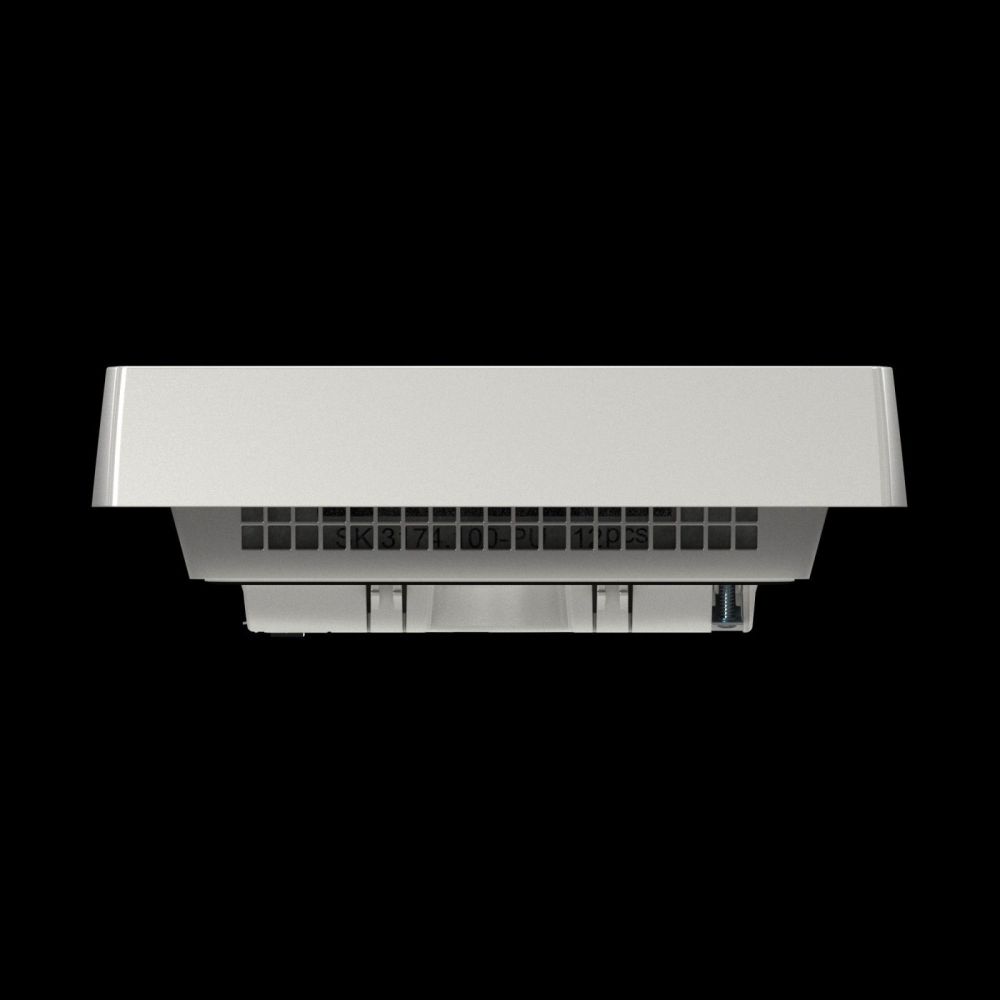

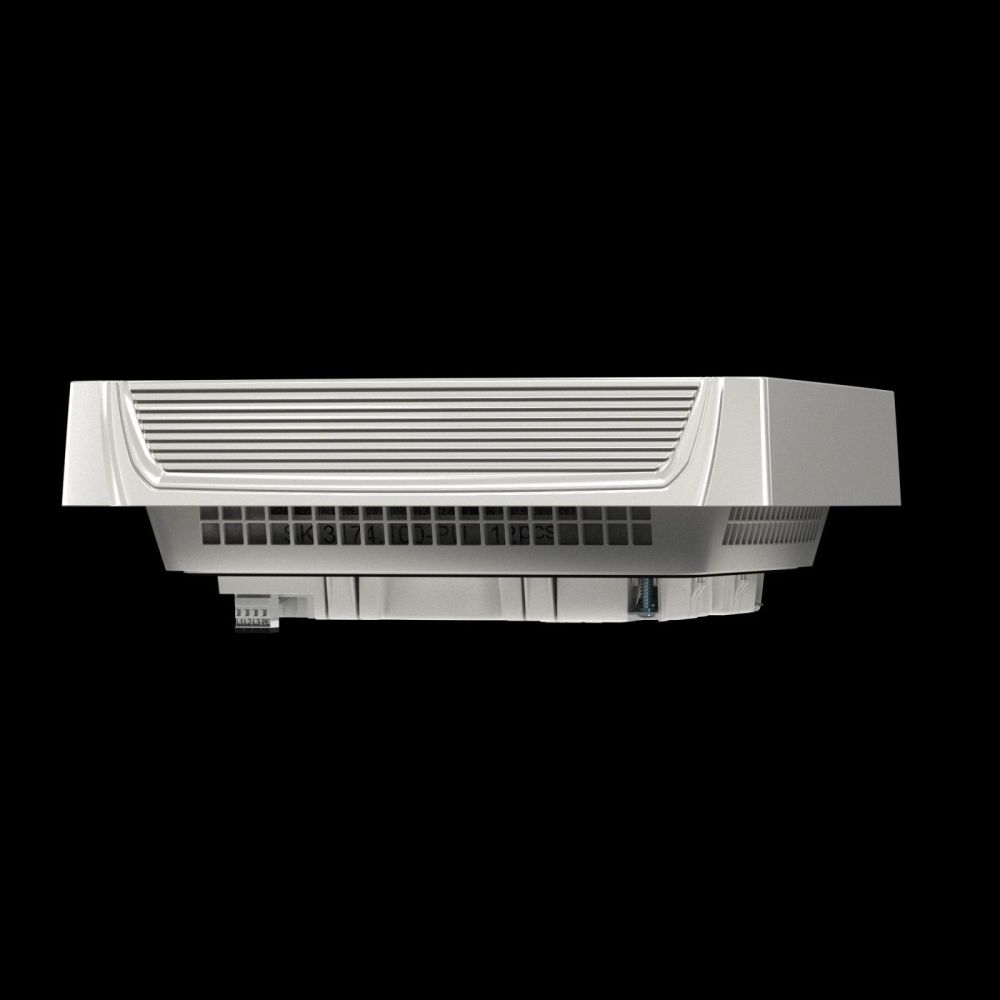

Rittal 3140140
This image may differ from the desired article.
Rittal 3140140Rittal 3140140Rittal 3140140Rittal 3140140Rittal 3140140Rittal 3140140Rittal 3140140
455,86 EUR
( 542,47 EUR incl. VAT )
≈ £381.55  |  ≈ $500.99
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 3140140 SK roof fan 863/942 m³/h
Datasheet:file_download Download
Lieske Part No.:1130993
Mfg Part No: 3140140
UPC/EAN: 4028177709133
Weight:6.02 kg
Type:SK 3140140

Product information for Rittal 3140140:

The Rittal SK 3140140 is a roof fan from the TopTherm series, designed for ventilating enclosures and industrial housings. It features a compact design with dimensions of 400 mm (width) × 133 mm (height) × 400 mm (depth) and is delivered as a ready-to-install unit, including a pleated filter. The unit is designed for roof mounting, with installation possible from either inside or outside. The housing is made of ABS plastic in RAL 7035, ensuring high mechanical stability and weather resistance.

Applications
This roof fan is designed for use in industrial environments where continuous air circulation is required to cool electronic components and prevent overheating. It is particularly suitable for enclosures in production plants, automation systems, or power engineering applications. The high protection rating of IP 54 (including pleated filter) protects against dust and splashing water, making it suitable for outdoor use as well. When used with an optional non-woven filter, the protection rating can be increased to IP 54.

Functions and Equipment in Detail
The fan is equipped with a radial fan driven by a three-phase motor. The air performance is 863 m³/h free blowing at 50 Hz and 942 m³/h at 60 Hz, decreasing to 800 m³/h (50 Hz) and 853 m³/h (60 Hz) when a pleated filter is installed. The airflow design minimizes pressure loss, increasing efficiency. The unit is designed for operating voltages of 380 V to 415 V (3~, 50/60 Hz) and 400 V to 480 V (3~, 60 Hz). The rated power is 98 W at 50 Hz and 130 W at 60 Hz, with a rated current of up to 0.17 A (50 Hz) and 0.2 A (60 Hz).

Technology Explained Simply
The fan uses an innovative clamp mounting system that enables the high IP 54 protection rating without requiring additional mounting components. Air is extracted through the roof area, providing effective cooling of the enclosure interior. The fan’s service life (L10, at 40 °C) is 63,500 hours at 50 Hz and 61,500 hours at 60 Hz, indicating high reliability. The sound pressure level is 56 dB(A) at 50 Hz and 58 dB(A) at 60 Hz, which represents acceptable noise emissions for industrial applications.

Compatibility and Accessories
The roof fan is delivered with an integrated pleated filter, ensuring IP 54 protection. For even higher protection, an optional non-woven filter (e.g., Blue e+ outlet filter) can be used to increase the protection rating to IP 54. Additional accessories such as thermostats, digital temperature displays, and hygrostats are available, contributing to energy efficiency and extending the device’s lifespan. Installation is performed via a standardized mounting cutout of 258 mm (width) × 258 mm (depth), allowing compatibility with various enclosure sizes.

Installation and Mounting
The unit is delivered fully assembled and ready for installation, to be directly inserted into the designated mounting cutout in the enclosure roof. The installation depth is 34.6 mm, providing sufficient space for mounting in standard enclosures. The flexible mounting option from inside or outside allows application-specific installation, depending on accessibility and space conditions.

Operational Advantages
The roof fan offers high airflow performance with low energy consumption and is designed for operating temperatures from -20 °C to +55 °C. The robust ABS plastic construction and high protection rating ensure long service life even in demanding environments. The combination of high efficiency, easy installation, and integrated protection filter makes it a reliable solution for enclosure climate control.

Protection Rating and Operating Environments
The protection rating is IP 54 without filter mat and IP 54 with pleated filter, complying with IEC 60 529 requirements. The NEMA protection rating is NEMA 12, confirming suitability for dry and damp indoor environments as well as lightly contaminated areas. The storage temperature range extends from -40 °C to +70 °C, allowing storage under various climatic conditions.

Recommended Add-ons
To optimize operating conditions, the use of temperature controllers or displays is recommended to control fan runtime and avoid unnecessary energy consumption. Combining the fan with a hygrostat can provide additional protection in humid environments.

General
ModelRoof structure
MaterialPlastic ABS
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanRadial, three-phase motor
Airflow free blowing (with pleated filter)At 50 Hz: 800 m³/h, At 60 Hz: 853 m³/h
Airflow (without filter in roof fan) with exhaust filter including felt filter mat1 x 3243300: 575/600 m³/h
Airflow (with pleated filter in roof fan) with outlet filter including non-woven filter mat1 x 3243300: 555/565 m³/h, 2 x 3243300: 660/685 m³/h
Air performance free blowing (without filter mats)At 50 Hz: 863 m³/h, At 60 Hz: 942 m³/h
Rated operating voltage380 V - 415 V, 3~, 50 Hz/60 Hz, 400 V - 480 V, 3~, 60 Hz
Rated power PelAt 50 Hz: 98 W, At 60 Hz: 130 W
Rated current max.At 50 Hz: 0.17 A, At 60 Hz: 0.2 A
Width400 mm
Height133 mm
Depth400 mm
Built-in depth34,6 mm
Mounting cutoutCutout width: 258 mm, Cutout depth: 258 mm
Degree of protection IP according to IEC 60 529IP 21 without filter mat, IP 54 including pleated filter
NEMA degree of protectionNEMA 12
NoteTo increase the degree of protection to IP 55, a felt filter can be optionally used (see accessories). To improve energy efficiency and increase device lifespan, the use of temperature controllers or indicators is recommended.
Fan life (L10, 40 °C)At 50 Hz: 63,500 h, At 60 Hz: 61,500 h
Operating temperature range-20 °C...55 °C
Storage temperature range-40 °C...70 °C
Sound pressure levelAt 50 Hz: 56 dB(A), At 60 Hz: 58 dB(A)


Product data sheet
Datasheet for Rittal 3140140, EAN: 4028177709133
