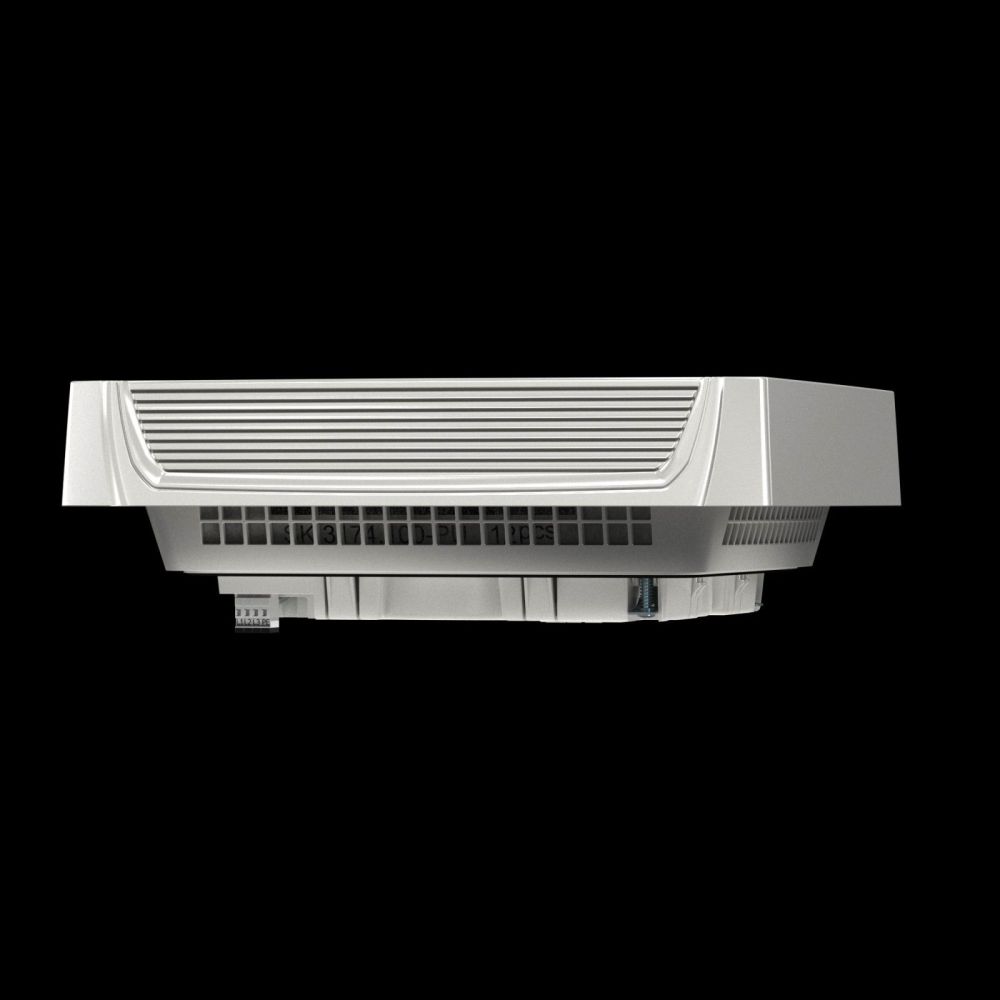

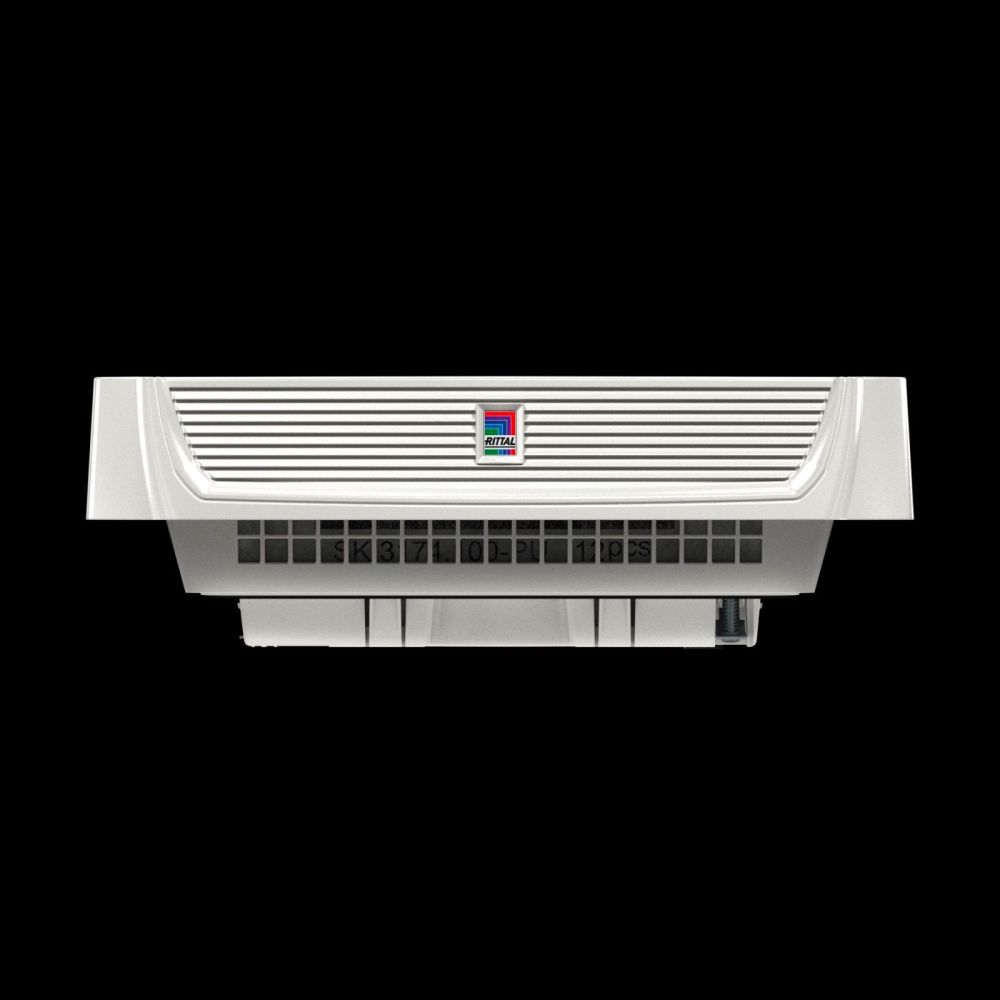

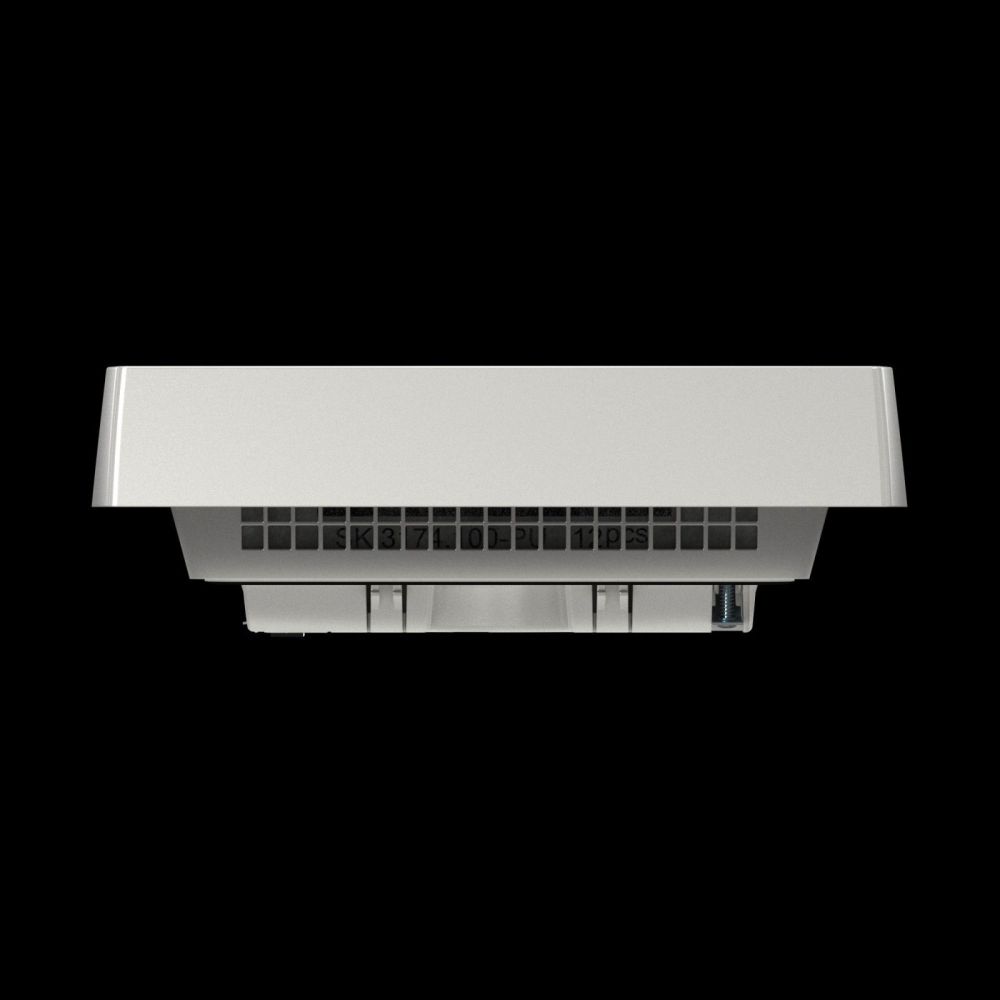

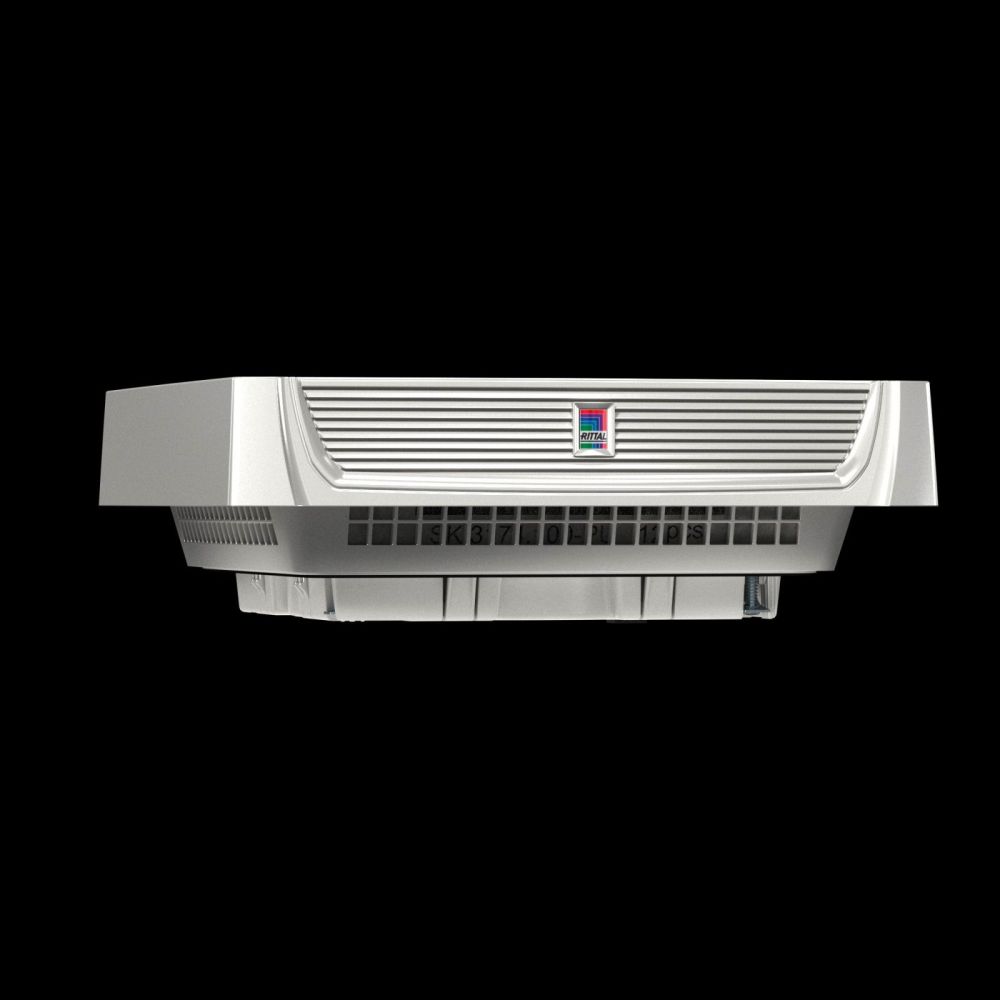

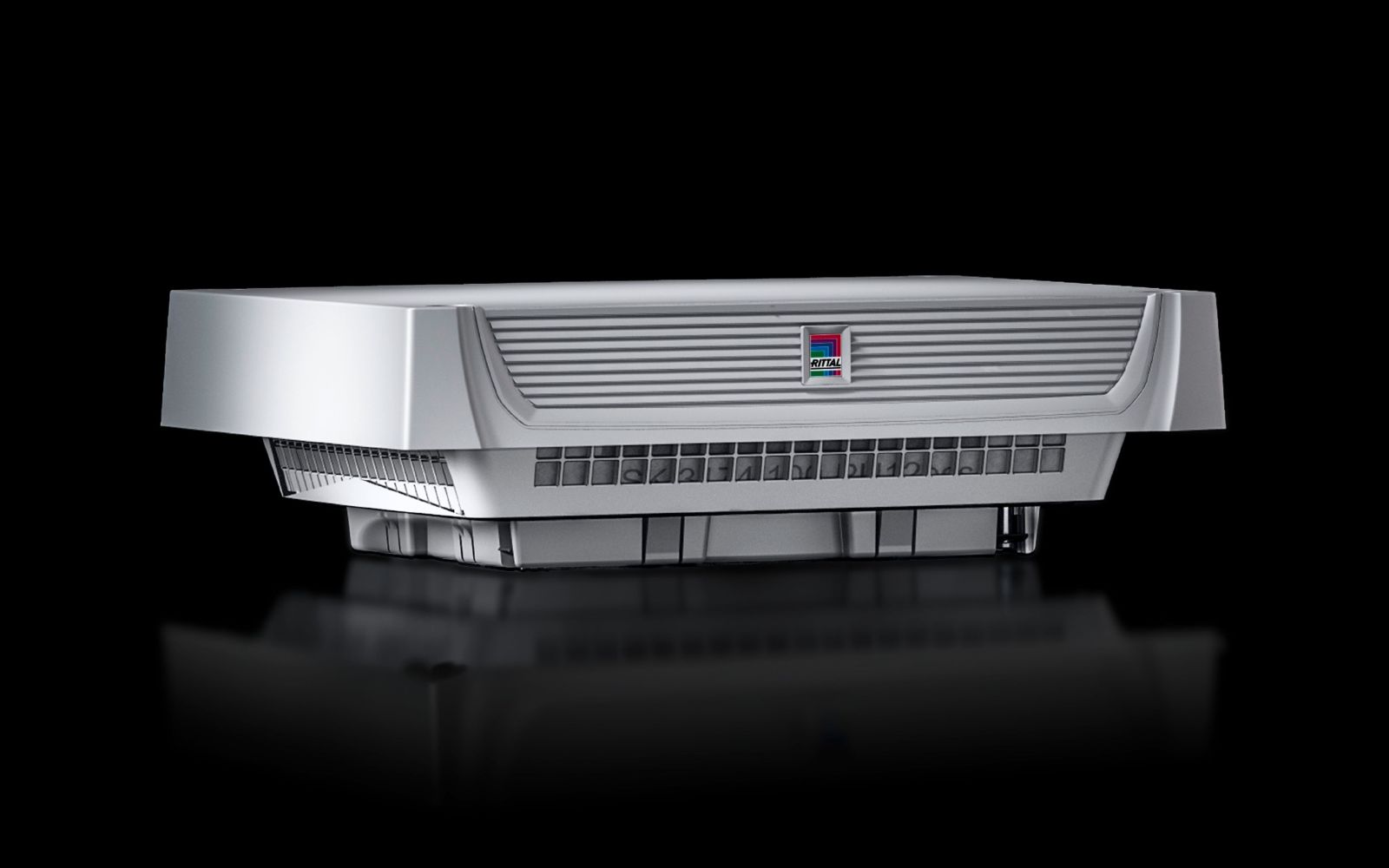

Rittal 3138000 Roof ventilation, without fan motor
|
109,86 EUR |
|
|
( 130,73 EUR incl. VAT ) ≈ £91.95 | ≈ $120.74 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1131010 |
| Mfg Part No: | 3138000 |
| UPC/EAN: | 4028177709188 |
| Weight: | 3.5 kg |
| Type: | SK 3138000 |
Product information for Rittal 3138000:
Applications
This roof ventilation unit is designed for use in industrial environments where efficient and reliable ventilation of enclosures is required. It is particularly suitable for installations where heat dissipation occurs via natural convection or through external fan solutions. The protection rating IP 54 (including pleated filter) provides protection against dust and splashing water, making it suitable for indoor use as well as in slightly damp environments. The protection rating NEMA 12 meets the requirements for enclosed switchgear in industrial applications that must be protected against dust, splashing water, and light dirt.
Functions and Equipment in Detail
The device is delivered as a complete unit, including the pleated filter, which is already installed. Airflow occurs with low pressure loss, increasing ventilation efficiency. The innovative clamp mounting enables secure installation and contributes to achieving the high protection rating. The unit can be mounted from inside or outside, providing flexible installation options. The operating temperature range is from -20 °C to +55 °C, while the storage temperature range extends from -40 °C to +70 °C.
Technology Explained Simply
The roof ventilation unit operates without an integrated fan motor, making it suitable for applications where air movement is achieved through natural convection or via external fans. The protection rating IP 54 means the device is protected against dust and splashing water, making it suitable for use in industrial indoor environments. The protection rating IP 54 (without filter mat) offers lower protection, sufficient for dry indoor areas. The protection rating NEMA 12 corresponds to requirements for enclosed switchgear in industrial environments that must be protected against dust, splashing water, and light dirt.
Compatibility and Accessories
Compatible accessories include the Blue e+ outlet filter in RAL 7035, as well as replacement filter mats for the SK 3138/39 series. The use of temperature controllers or indicators is recommended to improve energy efficiency and extend the service life of installed devices.
Mounting and Installation
Installation is performed by cutting an opening in the enclosure roof measuring 258 mm in width and 258 mm in depth. The installation depth is 27.5 mm, allowing the unit to be mounted flush into the roof. The flexible mounting option from inside or outside enables adaptable installation for various enclosure configurations.
Operational Advantages
The roof ventilation unit offers a high protection rating, low pressure loss in airflow, and flexible mounting. The use of a pleated filter ensures effective filtration of dirt and dust. The recommendation to use temperature controllers or indicators supports energy-efficient operation and extends the service life of installed devices. The unit is designed for an operating temperature range of -20 °C to +55 °C, making it suitable for a wide range of industrial applications.
| General | |
| Model | Roof structure |
| Material | Plastic ABS |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including pleated filter |
| Fan | without fan motor |
| Width | 400 mm |
| Height | 133 mm |
| Depth | 400 mm |
| Built-in depth | 27,5 mm |
| Mounting cutout | Cutout width: 258 mm, Cutout depth: 258 mm |
| Degree of protection IP according to IEC 60 529 | IP 21 without filter mat, IP 54 including pleated filter |
| NEMA degree of protection | NEMA 12 |
| Note | To increase the degree of protection to IP 55, a felt filter can be optionally used (see accessories). To improve energy efficiency and increase device lifespan, the use of temperature controllers or indicators is recommended. |
| Operating temperature range | -20 °C...55 °C |
| Storage temperature range | -40 °C...70 °C |
