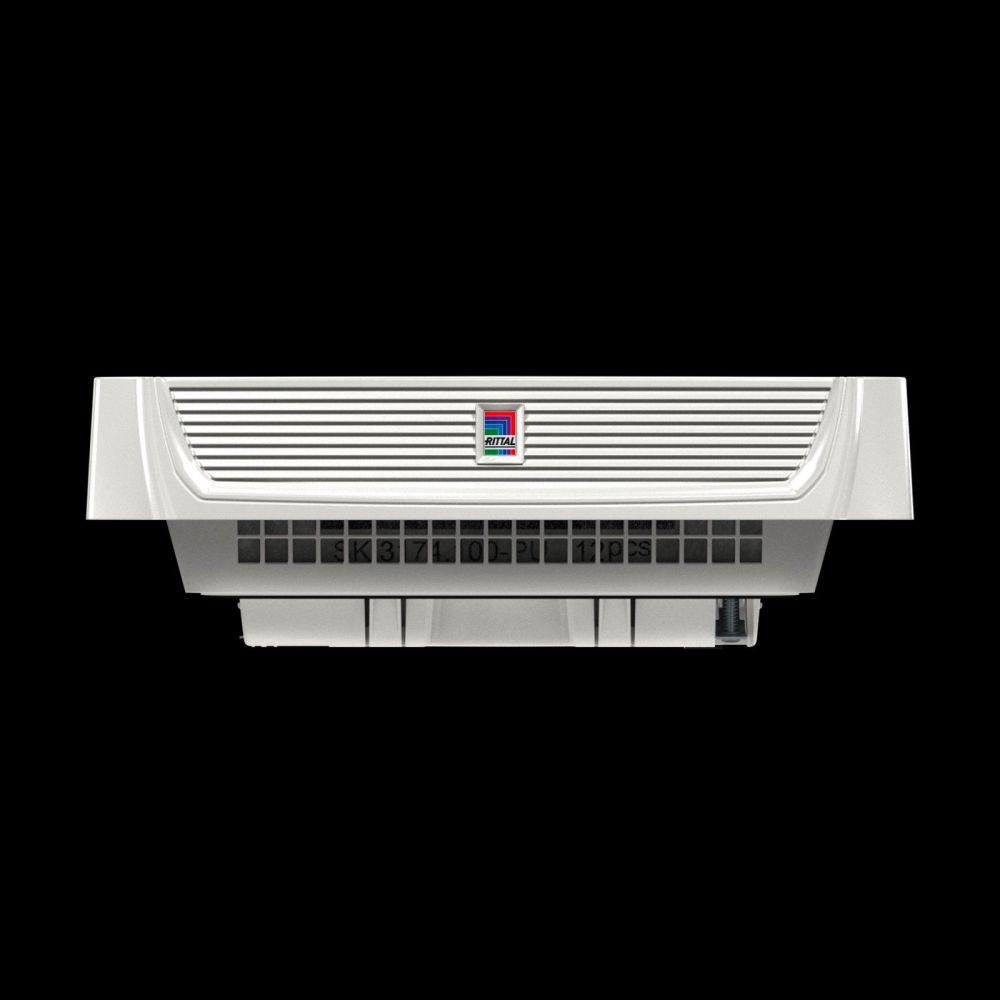

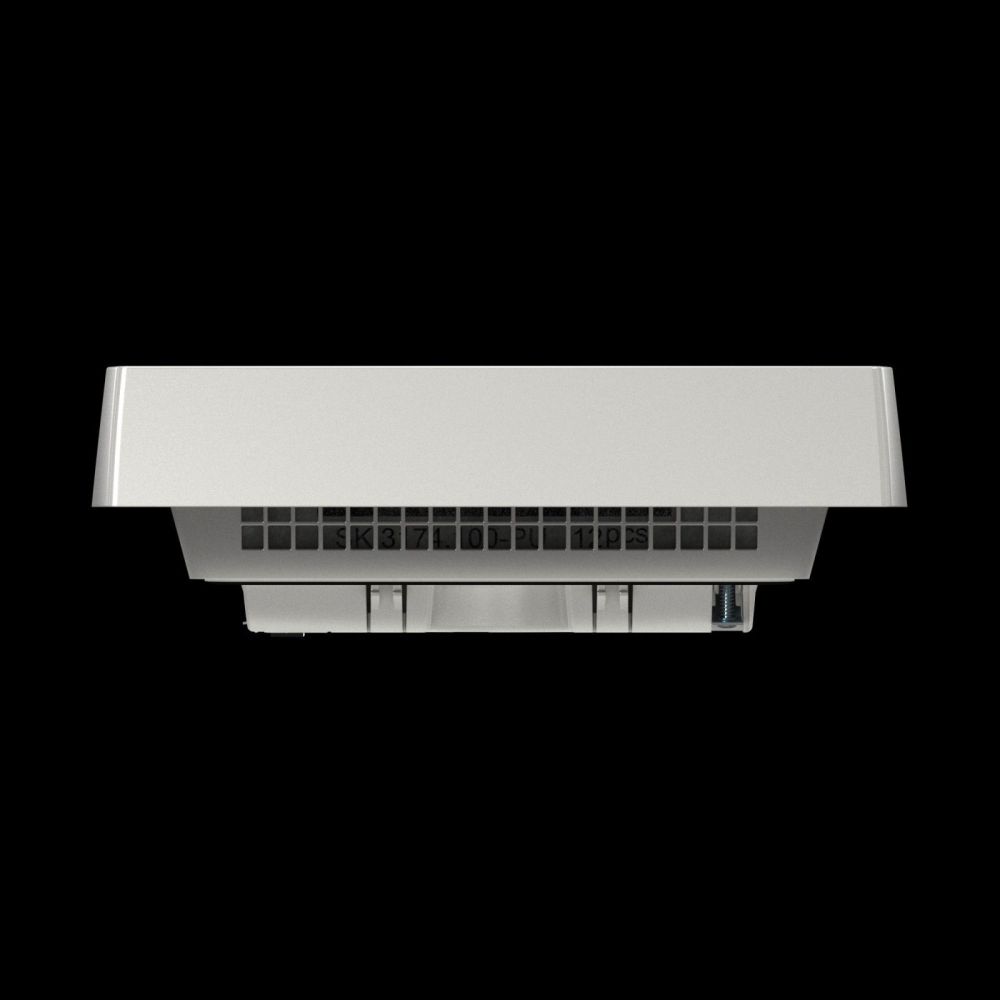

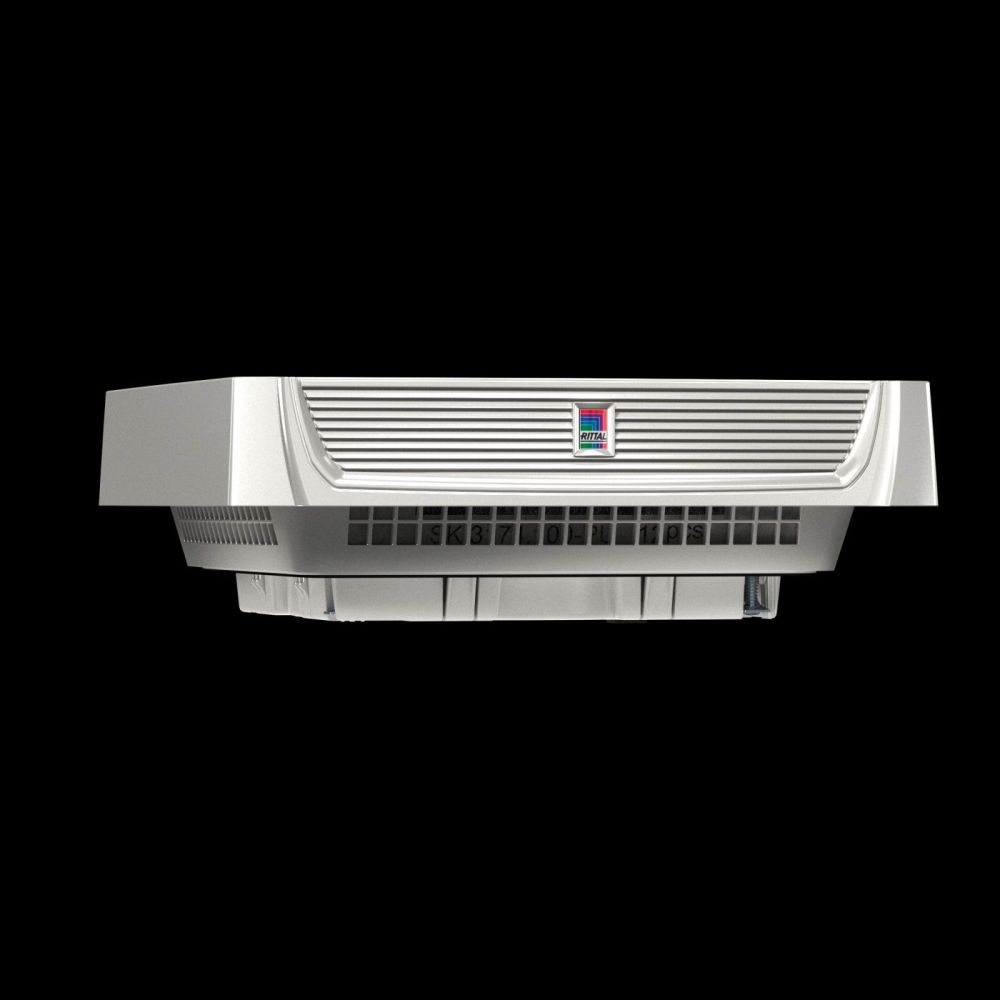

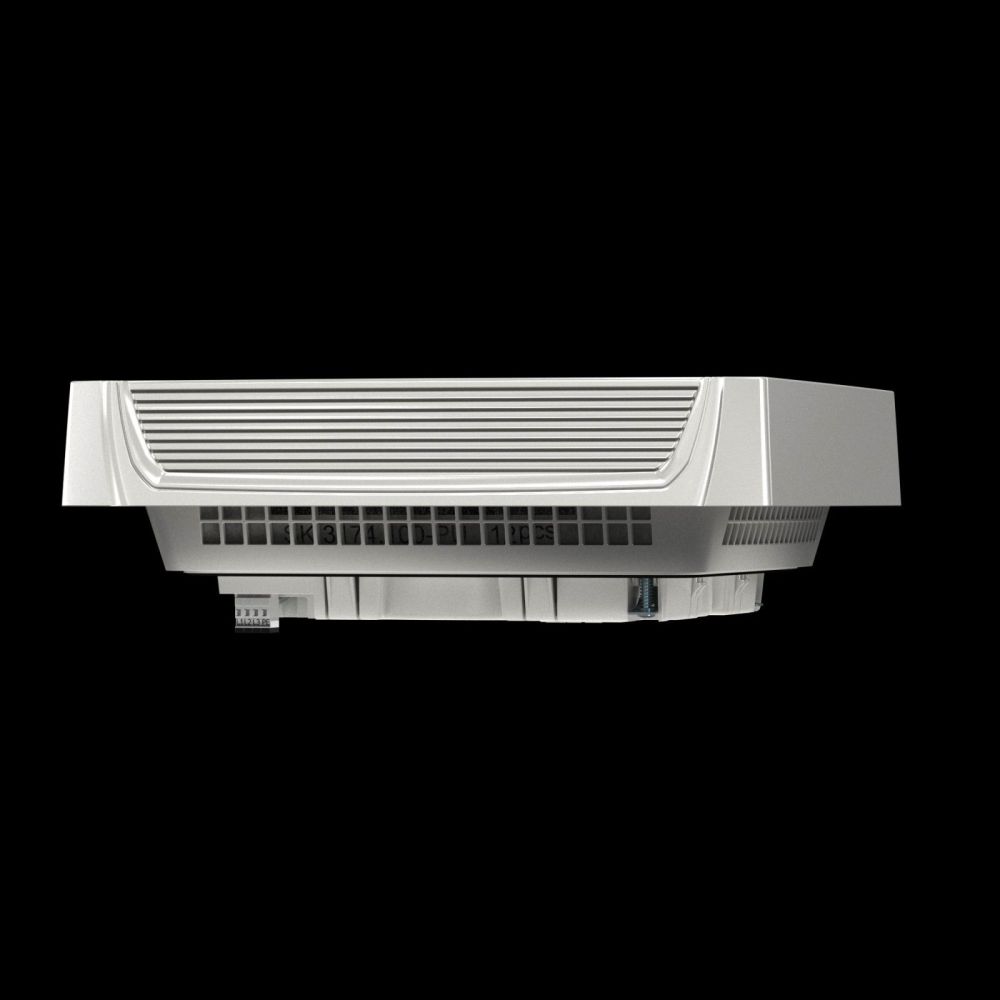

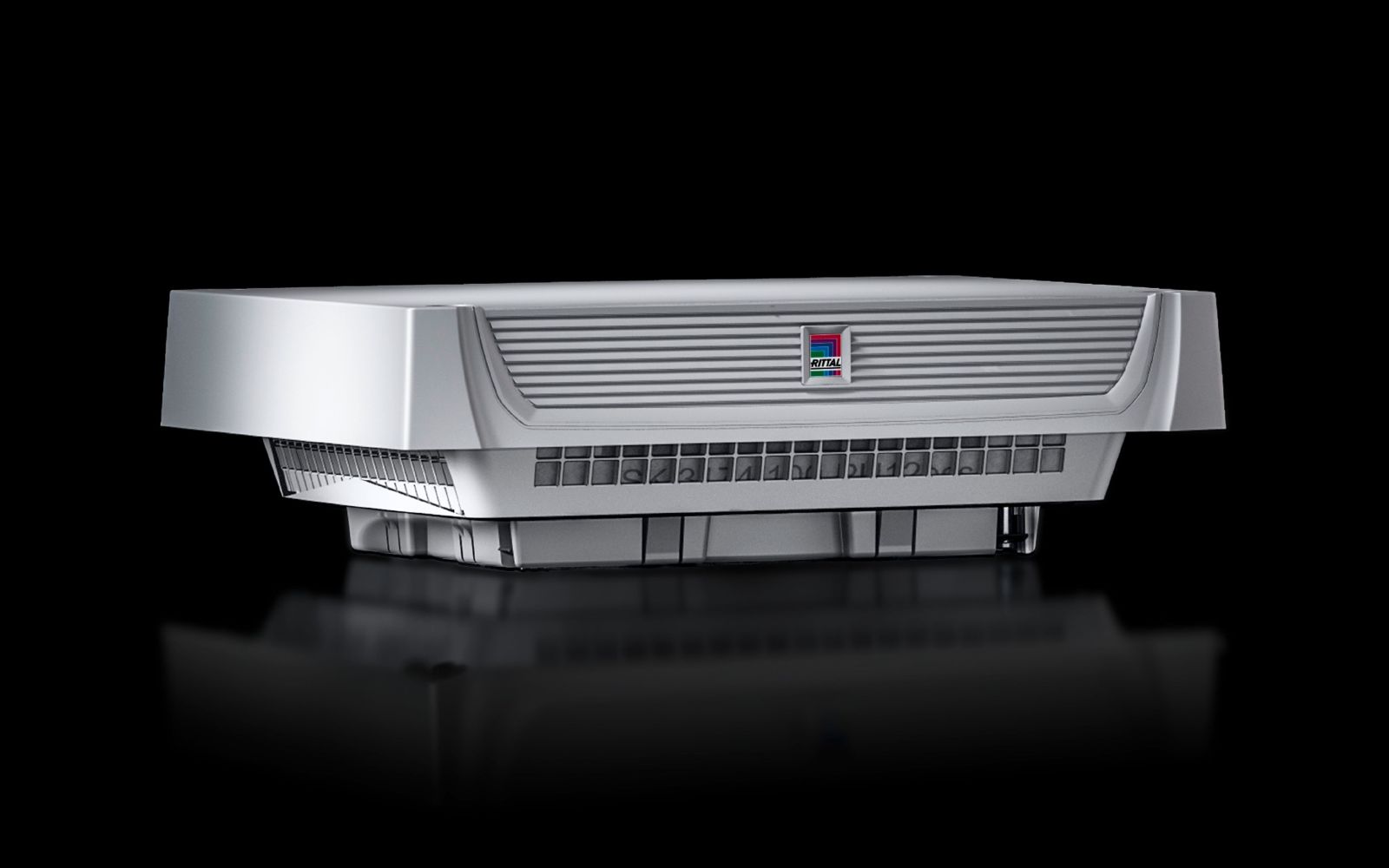

Rittal 3140100 Roof fan roof ventilation
|
393,53 EUR 405,44 EUR |
|
|
( 468,30 EUR incl. VAT ) ≈ £329.38 | ≈ $432.49 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 622172 |
| Mfg Part No: | 3140100 |
| UPC/EAN: | 4028177709140 |
| Weight: | 5.69 kg |
| Type: | SK 3140100 |
Product information for Rittal 3140100:
Protection category IP to IEC 60 529: IP 22 without filter mat IP 22 including filter mat
Supply includes: Complete unit ready to install, including filter mat
Note: For energy-efficient operation of the fans, we recommend the use of thermostats or temperature displays
Packs of: 1 pc(s).
EAN: 4028177709140
Customs tariff number: 84145100
eCl@ss 5.1: 27180707
eCl@ss 7.0: 27180716
ETIM 6.0: EC000320
Air throughput (unimpeded air flow): 873 m³/h
Air throughput, unimpeded air flow: without filter mats: 873 m³/h / 965 m³/h m³/h
with filter mats: 725 m³/h / 759 m³/h m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 400 mm
Height: 133 mm
Depth: 400 mm
Required mounting cut-out: Width: 258 mm
Depth: 258 mm
Installation depth: 34.6 mm
Temperature range: Bearing: -40°C...+70°C
Operation (environment): -30°C...+55°C
Power consumption Pel: At 50 Hz: 98 W
At 60 Hz: 130 W
Rated current (max.): At 50 Hz: 0.43 A
At 60 Hz: 0.56 A
Pre-fuse: Miniature circuit-breaker/fuse: 6 A
Diagonal fan: Radial, capacitor motor
| General | |
| Model | Roof structure |
| Material | Plastic ABS |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including pleated filter |
| Fan | Radial, capacitor motor |
| Airflow free blowing (with pleated filter) | At 50 Hz: 809 m³/h, At 60 Hz: 868 m³/h |
| Airflow (without filter in roof fan) with exhaust filter including felt filter mat | 1 x 3243300: 575/598 m³/h |
| Airflow (with pleated filter in roof fan) with outlet filter including non-woven filter mat | 1 x 3243300: 555/565 m³/h, 2 x 3243300: 670/690 m³/h |
| Air performance free blowing (without filter mats) | At 50 Hz: 873 m³/h, At 60 Hz: 965 m³/h |
| Rated operating voltage | 220 V - 240 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 99 W, At 60 Hz: 130 W |
| Rated current max. | At 50 Hz: 0.43 A, At 60 Hz: 0.56 A |
| Width | 400 mm |
| Height | 133 mm |
| Depth | 400 mm |
| Built-in depth | 34,6 mm |
| Mounting cutout | Cutout width: 258 mm, Cutout depth: 258 mm |
| Degree of protection IP according to IEC 60 529 | IP 21 without filter mat, IP 54 including pleated filter |
| NEMA degree of protection | NEMA 12 |
| Fuse | Circuit breaker/fuse: 3 A |
| Note | To increase the degree of protection to IP 55, a felt filter can be optionally used (see accessories). To improve energy efficiency and increase device lifespan, the use of temperature controllers or indicators is recommended. |
| Fan life (L10, 40 °C) | At 50 Hz: 62,800 h, At 60 Hz: 65,800 h |
| Operating temperature range | -20 °C...55 °C |
| Storage temperature range | -40 °C...70 °C |
| Sound pressure level | At 50 Hz: 58 dB(A), At 60 Hz: 60 dB(A) |
