RAK Wireless WisDuo LPWAN Module

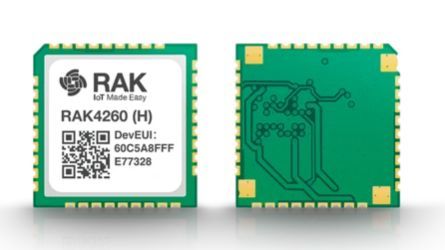

RAK4260H
Overview
The RAK4260 LPWAN module is based on Microchip's ATSAMR34J18B. It is a SiP device that integrates a 32-bit ARM Cortex-M0+ MCU with a LoRa transceiver in a compact surface-mount package.
The SAMR chip offers a range of highly configurable peripherals (configurable as I2C/SPI/UART interfaces). In addition to the interfaces already mentioned, there is a 12-bit ADC.
It is a perfect solution for every LoRaWAN® end node developer. The integration of MCU and LoRa® transceiver reduces size and minimizes costs. Such a compact solution in a single package reduces time to market and enables rapid development and deployment for a range of scenarios.
The RAK4260 is a cost-effective and flexible solution. It can be used in a variety of IoT scenarios that require the widespread connectivity and long battery life of LoRaWAN®.
If you need a complete development board, you can choose the RAK4260 Evaluation Board, where the RAK4260 LoRa® board is pre-soldered in the RAK4261 and the RAK5005 development board is included.
Full documentation for this product can be found on our website under Documentation.
FeaturesHigh quality, low power LoRa® device (Microchip ATSAMR34J18 SiP) Fully supported frequency coverage from 862 to 1020 MHz (all LoRaWAN® bands) High degree of accuracy and stability (32MHz TXCO) Maximum transmit power: 20dBm Maximum sensitivity (SF12 BW125kHz): - 136dBm Rx current: 17mA (typical) A wide range of interfaces: I2C, SPI, ADC, UART, GPIOs
