RAK Wireless WisDuo RAK4200 LoRa® Evaluation Board
Overview

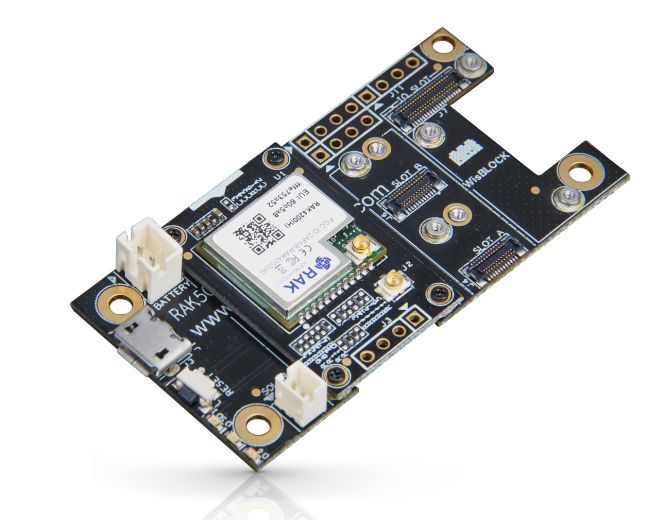

The RAK4200 LPWAN Evaluation Board is a WisDuo product consisting of the RAK4200 LPWAN module and the RAK5005 WisBlock Base. With this development board you can access and easily configure all serial and GPIO ports. The RAK4200 core module contains an STM32L071 MCU and an SX1276 LoRa® chip that complies with the LoRaWAN® 1.0.2 protocols.
Full documentation for this product can be found on our website documentation page.
A notice!
In order to achieve optimal antenna matching for the low and high LoRa band, there are two module types with different hardware. The Type L module only works for the LoRa bands 433MHz and 470MHz. The Type H module is for the range 868MHz to 923MHz (the rest of the spectrum). Note that the hardware is specific to your selected band and cannot be changed.
PropertiesLoRa® module for Smart City, Smart Agriculture, Smart Industry I/O ports: UART/I2C/GPIO Temperature range: -40°C to +85°C Frequency range: 433 to 470 MHz 863 to 923 MHz (entire LoRa® Spectrum) Low-power radio systems with 7.8kHz to 500KHz bandwidth Ultra-low power consumption 1.5uA in sleep mode Core: ARM 32-bit Cortex M0+ with MPU Up to 128KB Flash memory with ECC 20KB RAM Scope of delivery1 x RAK4200 EVB 1 x Micro USB cable 1 x IPEX LoRa antenna 2 x 4-pin header 13 x Duont lines
