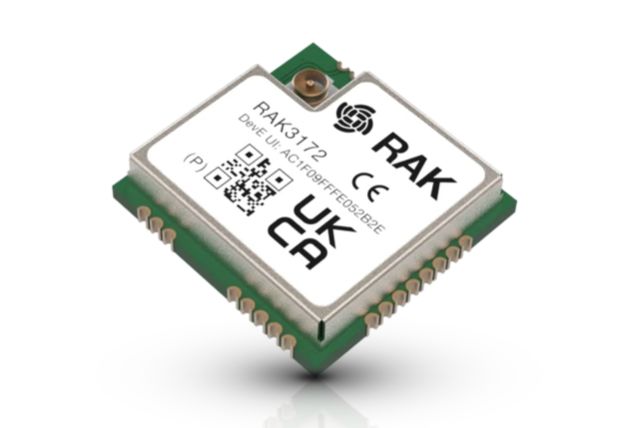

RAK Wireless LoRa WisDuo STM32WL module RAK3172 with ipex EU868
|
10,07 EUR |
|
|
( 11,98 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1890276 |
|---|---|
| Mfg Part No: | 305017 |
| Weight: | 0.03 kg |
Product information for RAK Wireless 305017:
RAK3172H
Overview
The RAK3172 LoRa module contains an STM32WLE5CC chip that supports eight (8) spreading factors (SF5 ~ SF12) and a signal bandwidth that can be adjusted between 7.8 kHz and 500 kHz. It has an ultra-low power consumption of 1.69 µA in sleep mode, but can reach a maximum output power of 22 dBm in transmit mode. As a receiver, it can achieve a sensitivity of -148 dBm.
The module meets Class A, Class B and Class C of the LoRaWAN 1.0.3 specifications and also supports LoRa Point to Point (P2P) communication. The module is suitable for various applications that require long-range and low-power data acquisition, such as: B. smart meters, supply chain and logistics tracking, agricultural sensors and smart cities.
You can configure the mode and operation of the RAK3172 module using RAK3172 AT commands via a UART interface. It also offers low power consumption features that are very suitable for battery-powered applications.
FeaturesLoRa module for Smart City, Smart Agriculture, Smart Industry Compact form factor: 15 x 15.5 x 3.5 mm 32 Pin Stamp Pad for PCB SMT assembly I/O Ports: UART/I2C/SPI/ADC/GPIO Temperature range: - 40°C to +85°C Supply voltage: 2.0 ~ 3.6V Frequency range: 150MHz to 960MHz Low power wireless systems with 7.8kHz to 500kHz bandwidth Ultra-low power consumption 1.69µA in sleep mode Core: ARM 32-bit Cortex - M4 with MPU Up to 256 KB Flash memory with ECC 64 KB RAM AT commands Control interface Supported bands: (EU433, CN470, RU864, IN865, EU868, AU915, US915, KR920, and AS923)
Questions & answers
What is the delivery time of RAK Wireless LoRa WisDuo STM32WL module RAK3172 with ipex EU868?
The article RAK Wireless LoRa WisDuo STM32WL module RAK3172 with ipex EU868 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RAK Wireless 305017 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RAK Wireless LoRa WisDuo STM32WL module RAK3172 with ipex EU868 always at the best possible price. We can give you a discount of 2% on RAK Wireless LoRa WisDuo STM32WL module RAK3172 with ipex EU868 if you choose payment in advance on ordering.
You can also send us a price proposal for your desired quantity of RAK Wireless LoRa WisDuo STM32WL module RAK3172 with ipex EU868 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
