RAK Wireless LoRa WisDuo Breakout Board RAK3244EU868
|
-7% 28,72 EUR 30,95 EUR |
|
|
( 34,18 EUR incl. VAT ) ≈ £24.61 | ≈ $32.63 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 1020690 |
|---|---|
| Mfg Part No: | 315014 |
| Weight: | 0.06 kg |
Product information for RAK Wireless 315014:
RAK Wireless WisDuo Breakout Board
RAK3244
Overview

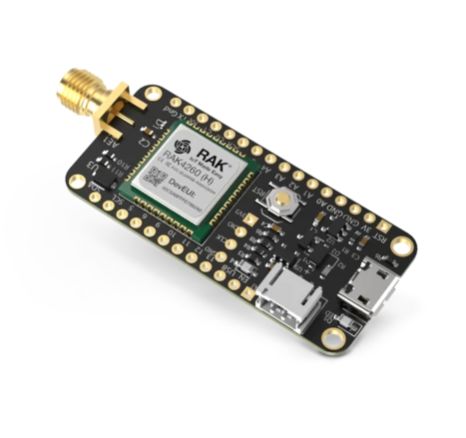

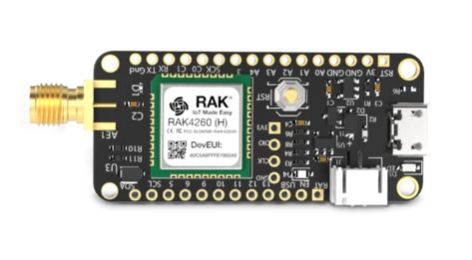

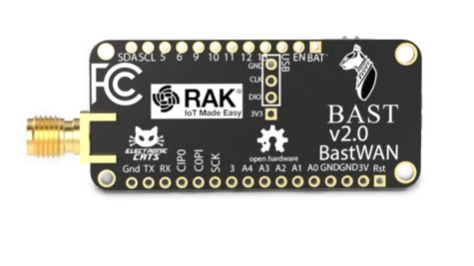

BastWAN is a feather form factor board with the extremely low-power and high-performance RAK4260 module at its heart. It is powered by the Microchip R34 LoRa® System-in-Package (SiP), which includes a 48Mhz SAML21 32-bit microcontroller. It also has native USB functionality and a LoRa transceiver.
Developed by Electronic Cats, BastWAN features a Micro-USB port and a LiPo battery charger, as well as unique elements such as an ATECC608A crypto authentication chip and 2MB SPI flash for additional storage.
For easy software development, the Arduino environment is fully supported, including a LoRa/LoRaWAN® compatible stack.
The board comes pre-installed with the UF2 bootloader and appears as a virtual drive. Reprogramming is as easy as dragging and dropping the firmware file - no special tools are required. Since this bootloader is BOSSA compatible, it can also be used directly with Arduino's integrated development environment (IDE), MakeCode and many other programs.
BastWAN is fully assembled, tested and programmed with the UF2 USB bootloader.
Features
Key FeaturesPerfect for beginners and advanced developers. Fast prototype with LoRa/LoRaWAN technology Can easily use a large number of sensors and actuators with existing expansion cards. Open source design and firmware from Electronic Cats LoRa FeaturesUltra-low power LoRa® SiP device Supports the frequency range of 862 to 1020 MHz Receive sensitivity up to -148 dBm Maximum transmit power up to 20 dBm Low RX current of 17 mA (typical) LoRa, (G)FSK, (G)MSK modulations Product specificationsRAK4260 @ 48MHz with 3.3V logic/power supply 256KB FLASH + 32KB RAM 32.768 kHz crystal for clock generation and RTC 3.3 V regulator with 500 mA -Peak current output Native USB support, with USB bootloader and serial port debugging 20 IO pins available on headers PWM, Hardware Serial, Hardware I2C, Hardware SPI Support 6 x 12-bit analog inputs 1 x 10-bit analog output ( DAC) Built-in 100mA LiPo charger with charging status indicator LED Pin #13 red LED for general flashing purposes Power/Enable pin Reset pin and button 4 mounting holes Box contents: 1x BastWAN development board 1x antenna for LoRa 1x micro USB cable 1x set of jumper wires Link to data sheet
RAK3244
Overview
BastWAN is a feather form factor board with the extremely low-power and high-performance RAK4260 module at its heart. It is powered by the Microchip R34 LoRa® System-in-Package (SiP), which includes a 48Mhz SAML21 32-bit microcontroller. It also has native USB functionality and a LoRa transceiver.
Developed by Electronic Cats, BastWAN features a Micro-USB port and a LiPo battery charger, as well as unique elements such as an ATECC608A crypto authentication chip and 2MB SPI flash for additional storage.
For easy software development, the Arduino environment is fully supported, including a LoRa/LoRaWAN® compatible stack.
The board comes pre-installed with the UF2 bootloader and appears as a virtual drive. Reprogramming is as easy as dragging and dropping the firmware file - no special tools are required. Since this bootloader is BOSSA compatible, it can also be used directly with Arduino's integrated development environment (IDE), MakeCode and many other programs.
BastWAN is fully assembled, tested and programmed with the UF2 USB bootloader.
Features
Key FeaturesPerfect for beginners and advanced developers. Fast prototype with LoRa/LoRaWAN technology Can easily use a large number of sensors and actuators with existing expansion cards. Open source design and firmware from Electronic Cats LoRa FeaturesUltra-low power LoRa® SiP device Supports the frequency range of 862 to 1020 MHz Receive sensitivity up to -148 dBm Maximum transmit power up to 20 dBm Low RX current of 17 mA (typical) LoRa, (G)FSK, (G)MSK modulations Product specificationsRAK4260 @ 48MHz with 3.3V logic/power supply 256KB FLASH + 32KB RAM 32.768 kHz crystal for clock generation and RTC 3.3 V regulator with 500 mA -Peak current output Native USB support, with USB bootloader and serial port debugging 20 IO pins available on headers PWM, Hardware Serial, Hardware I2C, Hardware SPI Support 6 x 12-bit analog inputs 1 x 10-bit analog output ( DAC) Built-in 100mA LiPo charger with charging status indicator LED Pin #13 red LED for general flashing purposes Power/Enable pin Reset pin and button 4 mounting holes Box contents: 1x BastWAN development board 1x antenna for LoRa 1x micro USB cable 1x set of jumper wires Link to data sheet
Questions & answers
What is the delivery time of RAK Wireless LoRa WisDuo Breakout Board RAK3244EU868?
The article RAK Wireless LoRa WisDuo Breakout Board RAK3244EU868 is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RAK Wireless 315014 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RAK Wireless LoRa WisDuo Breakout Board RAK3244EU868 always at the best possible price. We can give you a discount of 2% on RAK Wireless LoRa WisDuo Breakout Board RAK3244EU868 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
