RAK Wireless LoRaWAN WisDuo EVB RAK4600 Evaluation Board EU868
|
39,22 EUR 39,90 EUR |
|
|
( 46,67 EUR incl. VAT ) ≈ £33.61 | ≈ $44.55 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1781932 |
|---|---|
| Mfg Part No: | 315004 |
| Weight: | 0.08 kg |
Product information for RAK Wireless 315004:

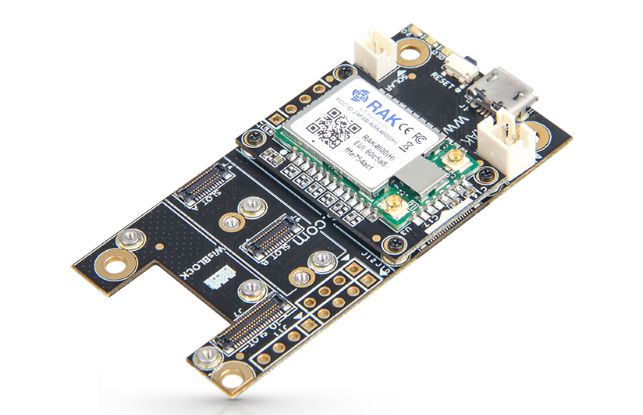

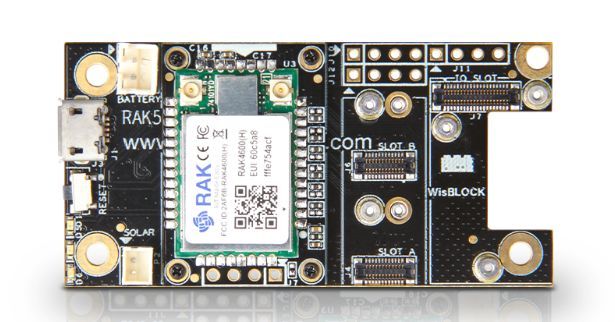

RAK Wireless Wis Duo RAK4600 Evaluation Board
Overview
The RAK4600 LPWAN Evaluation Board is a WisDuo product consisting of the RAK4600 LPWAN module and the RAK5005 WisBlock Base. This development board allows access to all serial and GPIO ports for easy configuration. The RAK4600 core module contains an nRF52832 MCU and an SX1276 LoRa® chip, allowing you to quickly and easily develop/test your firmware.
To use this product properly, make sure you purchase a compatible emulator kit. We recommend that you purchase directly from the SEGGER Microcontroller website to ensure you receive an original product.
The RAK Wireless RAK4600 Evaluation Board is a WisBlock product that consists of the RAK4261 (RAK4260 LoRa Module + Breakout Board) and the RAK5005 WisBase. 868MHz version
PropertiesLoRa® module for Smart City, Smart Agriculture, Smart Industry I/O ports: UART/I2C/GPIO (optional NFC interface) Frequency range: 863 to 923 MHz (entire LoRa® high-band spectrum) Low-power wireless systems with 7.8kHz to 500KHz bandwidth LoRa® Tx power up to 20dBm BLE5.0 (Tx power -20 to +4 dBm in 4dB steps) Serial Wire Debug (SWD) interface Ultra-low power consumption 2.0µA in sleep mode 512 KB Flash, 64 KB RAM Supply voltage: 2.0 ~ 3.6V Temperature range: -40°C to +85°C Scope of delivery1 x RAK4600 EVB 1 x Micro USB cable 1 x SubG IPEX antenna 1 x 2.4 G IPEX antenna 2 x 4-pin header 9 x Dupont lines
Overview
The RAK4600 LPWAN Evaluation Board is a WisDuo product consisting of the RAK4600 LPWAN module and the RAK5005 WisBlock Base. This development board allows access to all serial and GPIO ports for easy configuration. The RAK4600 core module contains an nRF52832 MCU and an SX1276 LoRa® chip, allowing you to quickly and easily develop/test your firmware.
To use this product properly, make sure you purchase a compatible emulator kit. We recommend that you purchase directly from the SEGGER Microcontroller website to ensure you receive an original product.
The RAK Wireless RAK4600 Evaluation Board is a WisBlock product that consists of the RAK4261 (RAK4260 LoRa Module + Breakout Board) and the RAK5005 WisBase. 868MHz version
PropertiesLoRa® module for Smart City, Smart Agriculture, Smart Industry I/O ports: UART/I2C/GPIO (optional NFC interface) Frequency range: 863 to 923 MHz (entire LoRa® high-band spectrum) Low-power wireless systems with 7.8kHz to 500KHz bandwidth LoRa® Tx power up to 20dBm BLE5.0 (Tx power -20 to +4 dBm in 4dB steps) Serial Wire Debug (SWD) interface Ultra-low power consumption 2.0µA in sleep mode 512 KB Flash, 64 KB RAM Supply voltage: 2.0 ~ 3.6V Temperature range: -40°C to +85°C Scope of delivery1 x RAK4600 EVB 1 x Micro USB cable 1 x SubG IPEX antenna 1 x 2.4 G IPEX antenna 2 x 4-pin header 9 x Dupont lines
Questions & answers
What is the delivery time of RAK Wireless LoRaWAN WisDuo EVB RAK4600 Evaluation Board EU868?
The article RAK Wireless LoRaWAN WisDuo EVB RAK4600 Evaluation Board EU868 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RAK Wireless 315004 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RAK Wireless LoRaWAN WisDuo EVB RAK4600 Evaluation Board EU868 always at the best possible price. We can give you a discount of 2% on RAK Wireless LoRaWAN WisDuo EVB RAK4600 Evaluation Board EU868 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
