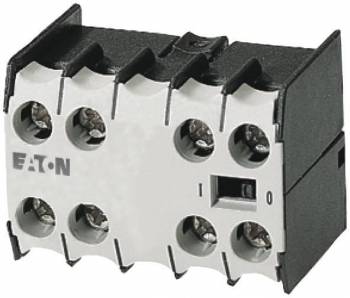

Eaton 010240 02DILE auxiliary switch 2NC construction
|
13,24 EUR 13,28 EUR |
|||||||||||
|
( 15,76 EUR incl. VAT ) ≈ £11.08 | ≈ $14.55 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 5 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 642947 | ||||||||||
| Mfg Part No: | 010240 | ||||||||||
| UPC/EAN: | 4015080102403 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | 02DILE | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 010240:
Applications
This auxiliary switch module is intended for use in industrial control and switching installations, particularly in combination with contactors from the series DILEM-10(-G)(.), DILEM-01(-G)(.), DILEM-4(-G)(.), DILER40(-G), DILER31(-G), DILER22, DILEEM-10(-G)(.) and DILEEM-01(-G)(.). It serves for signal transmission, status indication, or interconnection of control circuits. Front mounting allows for easy installation directly onto the contactors, enabling integration into existing installations without additional space requirements.
Functions and Equipment in Detail
The device is 2-pole and provides two normally open contacts suitable for transmitting switching states in control circuits. The contacts are mechanically interlocked, meaning they are mechanically linked to the main contact and thus perform the same switching operation as the main contact. This ensures high reliability and prevents incorrect switching. The rating is according to standard AC-15, with the rated operational current being 4 A at 220 V, 230 V, and 240 V, and 2 A at 380 V, 400 V, and 415 V. These values are relevant for dimensioning control circuits and ensure safe operation under the specified voltages.
Technology Explained Simply
The switching elements comply with standard EN 50005, with standard EN 50012 being recommended as the preferred version. Combinations of type E correspond to standard EN 50011 and are also specified as preferred. These standards define the electrical and mechanical requirements for auxiliary switches, particularly regarding switching capacity, service life, and safety. The operating temperature of the device ranges from -25 °C to +50 °C, enabling use in a wide range of industrial environments, including outdoor areas under moderate climatic conditions. Dimensions are 45 mm (width), 86 mm (depth), and 58 mm (height), representing a compact design that integrates well into existing control panels.
Compatibility and Accessories
The auxiliary switch module is specifically designed for use with the mentioned DILE contactor types. Mounting is done via front mounting, establishing a direct mechanical connection to the respective contactor.
Mounting and Installation
Mounting is performed via front mounting onto compatible contactors. The screw terminals allow for easy and secure connection of control wiring. Installation requires no special tools or additional components, as the device is designed as a modular add-on. The dimensions and front mounting ensure compact and space-saving integration into existing switching installations.
Operational Advantages
The use of the auxiliary switch module enables flexible extension of control functions without additional space requirements. The mechanically interlocked contacts ensure high reliability and prevent incorrect switching. The rating values according to AC-15 ensure safe operation under the specified voltages. The operating temperature range of -25 °C to +50 °C allows use in a wide range of industrial environments. Front mounting and screw terminals facilitate installation and maintenance.
Product Type, Core Function, Technology, Standard
The item is an auxiliary switch module, whose core function is signal transmission and status indication in control circuits. The technology is based on mechanically interlocked contacts linked to the main contact. Standards EN 50005, EN 50012, and EN 50011 define the requirements for switching elements and are relevant for the reliability and safety of the device. The rating is according to AC-15, which describes the electrical load capacity under defined conditions.
Finalization
The description is factual, precise, and focused on relevant technical details, without promotional language or unsubstantiated claims.
| Features | |
| Product colour | Black, White |
| Operating temperature (T-T) | -25 - 50 °C |
| Weight & dimensions | |
| Width | 45 mm |
| Depth | 86 mm |
| Height | 58 mm |
