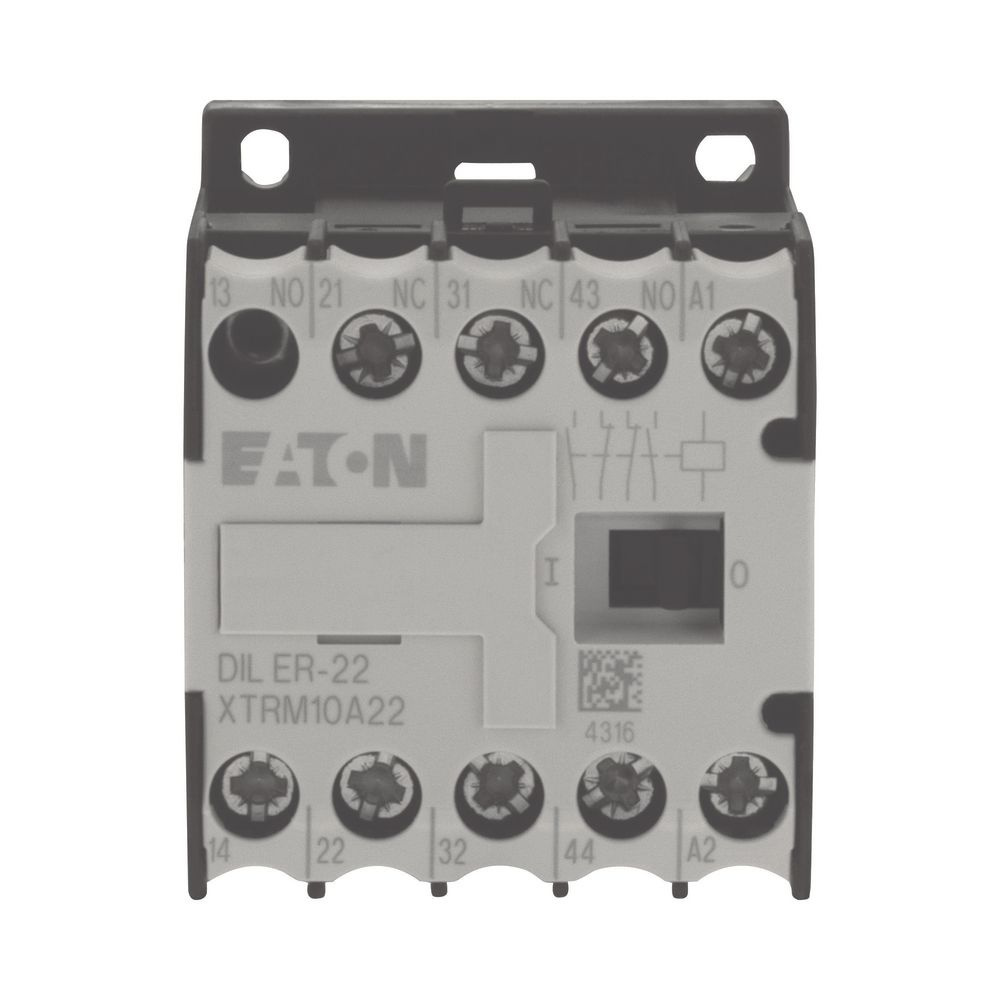

Eaton 010344 DILER-22(24V50Hz) auxiliary contactor AC 2NO2NC

Your rating:
Average rating
product review for Eaton 010344 DILER-22(24V50Hz) auxiliary contactor AC 2NO2NC
( 4.4 / 5 ) 13 ratings
Eaton 010344
This image may differ from the desired article.
Eaton 010344Eaton 010344
52,85 EUR
incl. 0,32 EUR copper surcharge
( 62,89 EUR incl. VAT )
≈ £44.24  |  ≈ $58.08
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >5 pieces
1x Eaton 010344 DILER-22(24V50Hz) auxiliary contactor AC 2NO2NC
Lieske Part No.:107009
Mfg Part No: 010344
UPC/EAN: 4015080103448
Weight:0.178 kg
Type:DILER-22(24V50HZ)
Graduated prices net
From piecesPrice per pieces
651,27 EUR
1249,70 EUR
2448,12 EUR
3646,55 EUR

Product information for Eaton 010344:

The Eaton DILER-22(24V50HZ) is an auxiliary contactor from the DILER Mini-contactor product series, designed for use in industrial control systems. It serves as an auxiliary contactor for signal transmission and logic control in electrical circuits, particularly in combination with main contactors from the DILER series. The device features forced-guided contacts, ensuring reliable and precise switching performance, independent of mechanical wear. Operation is via an AC coil with a nominal voltage of 24 V at 50 Hz, making it suitable for use in standardised control circuits with AC operating voltage.

Applications
This auxiliary contactor is intended for use in industrial control and switching systems, particularly in systems with an operating voltage of 24 V AC. It is frequently used in conjunction with main contactors from the DILER family to implement additional switching functions such as feedback, signal transmission, or logic interconnections. Applications are in enclosures and control systems where a compact design and high switching reliability are required. The protection rating IP20 makes it suitable for use in enclosed, dry indoor environments where direct contact with moving parts is not possible.

Functions and Equipment in Detail
The device features two normally closed contacts (2 S) and two normally open contacts (2 Ö), connected via screw terminals. The contacts are forced-guided switching contacts, ensuring secure and reproducible switching performance. Rated operating currents depend on the operating voltage: at 220 V, 230 V, and 240 V, the rated operating current (Ie) is 6 A; at 380 V, 400 V, and 415 V, it is 3 A. The conventional thermal current (Ith) at 50 °C with an open pole is 10 A. These values are defined for category AC-15, typical for switching operations with inductive loads.

Technology Explained Simply
Operation is via an electromagnetic coil, which, when the operating voltage (24 V AC, 50 Hz) is applied, pulls in an armature, causing the contacts to switch. The forced-guided design of the contacts ensures that all contacts switch simultaneously and synchronously, which is crucial for reliability in control systems. The screw terminals allow for a secure and mechanically stable connection of the wiring. The protection rating IP20 protects against contact with moving parts and against solid objects larger than 12.5 mm, but not against water or dust.

Compatibility and Accessories
The auxiliary contactor is specifically designed for use with DILER contactors. It can be combined with various accessories, including auxiliary switches such as 02DILE, 11DILE, 22DILE, 20DILE, 31DILE, 40DILE, 04DILE, 13DILE, 22DILEM, 02DILEM, 11DILEM, 22DDILE, as well as protective circuits such as VGDILE48, VGDILE250, RCDILE48, RCDILE250. Mechanical interlocks such as MVDILE and label holders such as XGKE-GE are also available. These components extend the functionality and safety of the overall system.

Mounting and Installation
Mounting is carried out in standard enclosures or on mounting plates. The screw terminals allow for simple and secure connection of the wiring. The mounting height and depth are adapted to the standard dimensions of the DILER series, enabling easy integration into existing switching systems. The electrical connection of the coil is made to the designated terminals, marked in accordance with EN 50005.

Advantages in Operation
The forced-guided contacts ensure high switching accuracy and reliability, which is essential for the function of control systems. The compact design enables dense mounting in enclosures. The use of screw terminals ensures a mechanically stable connection that remains secure even under vibration. Compliance with standards IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, and CSA ensures conformity with international safety and quality standards. The switching function is designed for use in industrial environments where high operational reliability is required.

General
Degree of protectionIP20
Actuation voltage24 V
Frequency50 Hz
Type of currentAlternating current
Connection systemScrew terminals
Contact arrangement2 S, 2 Ö
Rated operational current AC-15 220-240 V6 A
Rated operational current AC-15 380-415 V3 A
Thermal current Ith at 50 °C10 A
Contact typeForced-guided contacts
StandardsIEC/EN 60947, EN 60947-5-1, VDE 0660, UL, CSA


Please note...
This article contains a copper surcharge of 0,32 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
