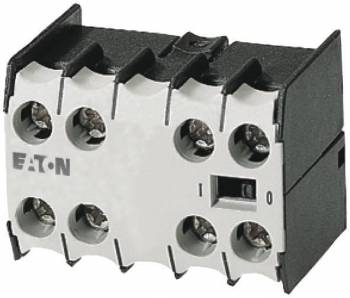

Eaton 010064 02DILEM auxiliary switch 2NC construction
|
66,22 EUR 66,41 EUR |
|||||||||||
|
( 78,80 EUR incl. VAT ) ≈ £55.43 | ≈ $72.78 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 5 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 312255 | ||||||||||
| Mfg Part No: | 010064 | ||||||||||
| UPC/EAN: | 4015080100645 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | 02DILEM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 010064:
Auxiliary switch module is the central product type described here. It is specifically developed for integration into contactor systems of the DILEM series, including models DILEM-10(-G)(.), DILEM-4(-G)(.), DILEEM-10(-G)(.), and DILEM12-10(-G)(.). The application is in industrial plants where reliable and secure signal transmission is required. The switching functions are realized via positively guided contacts, ensuring a mechanical link between the contacts and the switching mechanism. This prevents unintended switching operations and increases operational safety. The contacts are designed as openers, opening the circuit when the contactor is actuated.
Positively guided contacts are a key feature of this module. They ensure that the switching movement of the contacts is mechanically coupled to the movement of the contactor lever. This prevents the contacts from switching independently of the main contact, which is particularly important in safety-critical applications. The contacts comply with standards EN 50012 and EN 50011, with EN 50012 applying to the configuration described here. These standards define requirements for the mechanical and electrical reliability of switching elements.
Screw terminals serve as the connection technology, enabling a secure and durable connection for cables. The terminals are suitable for cables commonly used in industrial environments. Mounting is done via front mounting, allowing the module to be directly attached to the front plate of the contactor. This enables a compact and clear installation, especially in enclosures with limited space.
Rated operational current is an important parameter for electrical load capacity. At voltages of 220 V, 230 V, and 240 V, the rated operational current (AC-15) is 4 A. At higher voltages of 380 V, 400 V, and 415 V, the rated operational current is 2 A. These values are relevant for selecting appropriate cable cross-sections and dimensioning switching circuits. The specifications refer to operating mode AC-15, typical for inductive loads such as motors or transformers.
Operating temperature ranges from -25 °C to 50 °C. This temperature range covers most industrial operating conditions, including cooler environments such as cooling towers or production halls with air conditioning. The temperature resistance ensures reliable operation of the module under various environmental conditions.
Dimensions are 45 mm (width), 86 mm (depth), and 58 mm (height). These dimensions are designed for mounting in standard enclosures and integration into existing contactor systems. The compact design enables efficient space utilization, especially in control systems with limited installation space. The module is available in black and white, allowing optical integration into various enclosure designs.
Compatibility is limited to contactor models DILEM-10(-G)(.), DILEM-4(-G)(.), DILEEM-10(-G)(.), and DILEM12-10(-G)(.). Use is exclusively intended for these systems, with mounting via front mounting. Combination with other contactor types is not intended and may cause malfunctions. The switching functions are designed for standard applications, with safety ensured by positively guided contacts.
Application areas include industrial controls, plant automation, machine building, and manufacturing technology. The auxiliary switch module is used to implement additional switching functions such as status indication, feedback, or signal transmission. Reliability and safety of switching functions are crucial, especially in continuously operated plants. Front mounting enables quick and easy installation, reducing mounting time.
Operational advantages include the high reliability of positively guided contacts, easy installation via front mounting, and compatibility with the specified DILEM contactor models. Screw terminals ensure a secure connection, and temperature resistance allows use in various environments. The rated operational current values are sufficient for typical industrial applications, making the module suitable for many standard installations.
Technology explained simply – the auxiliary switch module operates as a mechanically coupled add-on module that supplements the switching functions of the main contactor. The positively guided contacts ensure that the switching movement of the contacts is synchronized with the movement of the contactor lever. This prevents independent switching, which is particularly important in safety-critical applications. Screw terminals enable a secure and durable connection for cables, and front mounting simplifies installation in enclosures.
Functions and equipment in detail – the module provides two opener contacts (2 O) and is designed for standard applications. The switching functions are intended for use in industrial controls, with reliability ensured by positively guided contacts. Connection is via screw terminals, ensuring a secure connection. Mounting is done via front mounting, allowing the module to be directly attached to the front plate of the contactor.
Mounting and installation – mounting is done via front mounting, allowing the module to be directly attached to the front plate of the contactor. Screw terminals enable a secure and durable connection for cables. Installation is in enclosures, with dimensions of 45 mm (width), 86 mm (depth), and 58 mm (height) enabling compact placement. The module is available in black and white, allowing optical integration into various enclosure designs.
Compatibility and accessories – the module is exclusively intended for contactor models DILEM-10(-G)(.), DILEM-4(-G)(.), DILEEM-10(-G)(.), and DILEM12-10(-G)(.). Combination with other contactor types is not intended. The switching functions are designed for standard applications, with safety ensured by positively guided contacts.
Operational advantages – the high reliability of positively guided contacts, easy installation via front mounting, and compatibility with the specified DILEM contactor models are the main advantages. Screw terminals ensure a secure connection, and temperature resistance allows use in various environments. The rated operational current values are sufficient for typical industrial applications, making the module suitable for many standard installations.
The item price shown refers to 5 pieces Eaton 010064
| Features | |
| Product colour | Black, White |
| Operating temperature (T-T) | -25 - 50 °C |
| Weight & dimensions | |
| Width | 45 mm |
| Depth | 86 mm |
| Height | 58 mm |
Questions & answers
What is the delivery time of Eaton 010064 02DILEM auxiliary switch 2NC construction ?
The article Eaton 010064 02DILEM auxiliary switch 2NC construction is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 010064 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 010064 02DILEM auxiliary switch 2NC construction always at the best possible price. We can give you a discount of 2% on Eaton 010064 02DILEM auxiliary switch 2NC construction if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 010064 02DILEM auxiliary switch 2NC construction we can offer you a price of 64,73 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 010064 02DILEM auxiliary switch 2NC construction is offered by us in a sales unit of 5 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
