Eaton 230241 DILER-40-G-C(24VDC) auxiliary contactor DC 4S

Your rating:
Average rating
product review for Eaton 230241 DILER-40-G-C(24VDC) auxiliary contactor DC 4S
( 4.5 / 5 ) 8 ratings

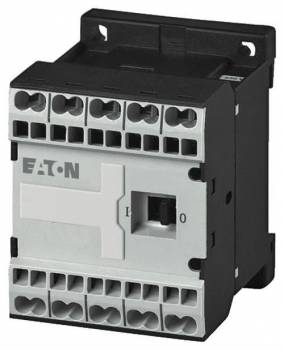

Eaton 230241
This image may differ from the desired article.
Eaton 230241Eaton 230241
-79% 69,43 EUR 329,08 EUR
incl. 3,72 EUR copper surcharge
( 82,62 EUR incl. VAT )
≈ £58.11  |  ≈ $76.30
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 5 pieces
1x Eaton 230241 DILER-40-G-C(24VDC) auxiliary contactor DC 4S
Lieske Part No.:140544
Mfg Part No: 230241
UPC/EAN: 4015082302412
Weight:1.1 kg
Type:DILER-40-G-C(24VDC)
Graduated prices net
From piecesPrice per pieces
666,97 EUR
1264,50 EUR
2462,04 EUR
3659,57 EUR

Product information for Eaton 230241:

This product is an auxiliary contactor of the DILER Mini-contactor series by Eaton, type DILER-40-G-C(24VDC), with manufacturer number 230241. It serves as an auxiliary contactor in industrial control systems and is used for signal transmission, status indication, or controlling auxiliary functions in electrical circuits. The device features forced-guided contacts, ensuring reliable and precise switching performance, and is designed for operation with direct voltage. Connection is made via spring-cage terminals, enabling quick and secure connections.

Applications

The auxiliary contactor is designed for use in industrial control systems, particularly in installations combined with DILER contactors of the .DILE-C series. It is commonly used in automation technology, machine building, and manufacturing plants where transmission of switching states or control of auxiliary functions is required. The protection rating IP20 makes the device suitable for use in enclosed enclosures, where no direct access to moving parts is possible.

Functions and Equipment in Detail

The device features four normally closed contacts (4S), serving as auxiliary contacts. Contact numbering conforms to EN 50011, enabling uniform identification and wiring in complex circuits. Operation is performed with a voltage of 24 V DC, with direct current as the current type. The integrated diode-resistor combination protects the control electronics from inductive voltage spikes when the coil is switched off.

Technology Explained Simply

The rated operational current is 10 A (Ith = Ie) at an ambient temperature of 50 °C for an open pole. For alternating voltage AC-15, the rated operational current is 6 A for voltages of 220 V, 230 V, and 240 V, and 3 A for 380 V, 400 V, and 415 V. These values define the maximum current load capacity of the contacts under respective operating conditions. Spring-cage terminals allow for easy and secure connections without additional tools. The protection rating IP20 protects against finger contact and solid foreign objects, but not against water or dust.

Compatibility and Accessories

The auxiliary contactor is specifically designed for use with DILER contactors of the .DILE-C series. It can be combined with various auxiliary switches, including models such as 13DILE, 40DILE-C, 31DILE, 04DILE, 11DILEM, 22DDILE, 11DILE, 02DILEM, 02DILE, XGKE-GE, 20DILE, 11DILE-C, 22DILEM, 13DILE-C, 22DILE-C, 40DILE, 31DILE-C, 04DILE-C, and 22DILE. These accessories extend the functionality of the contactor, for example by adding additional normally closed or normally open contacts, and allow flexible adaptation to specific requirements.

Mounting and Installation

Mounting is performed in standard enclosures or on mounting plates. The spring-cage terminals allow for quick and secure connection of wires. Coil terminal designation follows EN 50005, ensuring uniform and error-free wiring. Installation requires no special tools, as the terminals are mechanically secured.

Advantages in Operation

The forced-guided contacts ensure reliable switching performance, even with frequent switching operations. The integrated diode-resistor combination protects the control electronics from inductive voltage spikes. The spring-cage terminals enable quick and secure connections, reducing installation time. The protection rating IP20 is sufficient for use in enclosed enclosures, where no direct environmental influences occur.

Compliance with standards includes IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, and CSA, confirming adherence to international safety and quality standards. The coil power is 2.6 W, ensuring efficient operation.

The item price shown refers to 5 pieces Eaton 230241
General
Degree of protectionIP20
Actuation voltage24 V DC
Type of currentDirect current
Contact arrangement4 S
Rated operational current (Ith = Ie, 1 pole open at 50 °C)10 A
Rated operational current AC-15 (220–240 V)6 A
Rated operating current AC-15 (380–415 V)3 A
Connection systemSpring clamp terminals
Coil power2,6 W
Contact numbersaccording to EN 50011
Coil terminal designationin accordance with EN 50005
Compliance with standardsIEC/EN 60947, EN 60947-5-1, VDE 0660, UL, CSA


Please note...
This article contains a copper surcharge of 3,72 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of Eaton 230241 DILER-40-G-C(24VDC) auxiliary contactor DC 4S ?

The article Eaton 230241 DILER-40-G-C(24VDC) auxiliary contactor DC 4S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 230241 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 230241 DILER-40-G-C(24VDC) auxiliary contactor DC 4S always at the best possible price. We can give you a discount of 2% on Eaton 230241 DILER-40-G-C(24VDC) auxiliary contactor DC 4S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 230241 DILER-40-G-C(24VDC) auxiliary contactor DC 4S we can offer you a price of 66,97 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 230241 DILER-40-G-C(24VDC) auxiliary contactor DC 4S is offered by us in a sales unit of 5 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
