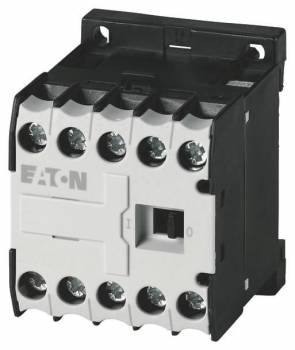

Eaton 051756 DILER-40(110V50Hz 120V60Hz) auxiliary contactor AC 4S
|
-79% 54,12 EUR 263,15 EUR |
|||||||||||
|
incl. 1,59 EUR copper surcharge ( 64,40 EUR incl. VAT ) ≈ £45.30 | ≈ $59.48 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 5 pieces | |||||||||||
| Lieske Part No.: | 181488 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 051756 | ||||||||||
| UPC/EAN: | 4015080517566 | ||||||||||
| Weight: | 0.92 kg | ||||||||||
| Type: | DILER-40(110V50HZ,120V60HZ) | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 051756:
Applications
The auxiliary contactor is used in industrial control systems where additional switching functions such as signal transmission, status indication, or logic control are required. It is particularly suitable for applications in automation technology, where the reliability and precision of switching operations are critical. It is used in conjunction with main contacts, with the auxiliary contactors handling the control of auxiliary circuits, for example, to operate relays, indicator lights, or other contactors.
Functions and Equipment in Detail
The device features four normally open contacts (4S), each closing an electrical contact when the contactor is energized. Contact numbering conforms to EN 50011, enabling uniform identification and easy integration into existing circuit diagrams. The contacts are forced-guided, meaning they are mechanically synchronized to ensure reliable and simultaneous switching. Rated operational currents are defined for various voltage ranges: at 220 V, 230 V, and 240 V, the current is 6 A; at 380 V, 400 V, and 415 V, it is 3 A. The conventional thermal current (Ith) at 50 °C with an open pole is 10 A.
Technology Explained Simply
Operation is achieved via a coil supplied with the specified voltage (110 V/50 Hz or 120 V/60 Hz). The coil generates a magnetic field that moves the armature, thereby closing the contacts. Protection class IP20 means the device is protected against contact with fingers and against solid foreign objects larger than 2.5 mm, but not against water or dust. Screw terminals allow for easy and secure connection of wires. The construction is designed for use in enclosed control cabinets, where environmental conditions are controlled.
Compatibility and Accessories
The auxiliary contactor is specifically designed for use with DILE contactors. It can be combined with various accessories, including auxiliary switches such as 02DILE, 22DDILE, 40DILE, 04DILE, 22DILE, 20DILE, 11DILEM, 02DILEM, 22DILEM, 11DILE, 13DILE, 31DILE, as well as protection circuits such as VGDILE48, VGDILE250, RCDILE250, RCDILE48, mechanical interlocks such as MVDILE, sealing caps such as HDILE, and label holders such as XGKE-GE. These components extend the functionality and safety of the overall circuit.
Mounting and Installation
Mounting is directly onto DILE contactors, with mechanical connection via the designated fastening elements. The terminal connections are designed for cable connections, with cross-sections selected according to electrical load requirements. Installation is carried out in enclosed control cabinets, with protection class IP20 defining the operating conditions. Compliance with standards IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, and CSA ensures conformity with international safety and quality standards.
Operational Advantages
Using this auxiliary contactor provides high reliability through forced-guided contacts and clear, standardized contact identification. Integration into existing DILE circuits is simple and quick. Defined rated currents and protection class IP20 enable safe operation in industrial environments. Compatibility with various accessories expands application possibilities and supports individual adaptation to specific requirements.
The item price shown refers to 5 pieces Eaton 051756
| General | |
| Degree of protection | IP20 |
| Actuation voltage | 110 V 50 Hz, 120 V 60 Hz |
| Type of current | AC operation |
| Connection system | Screw terminals |
| Contact arrangement | 4 S |
| Rated operational current AC-15 220-240 V | 6 A |
| Rated operational current AC-15 380-415 V | 3 A |
| Thermal current Ith at 50 °C | 10 A |
| Identification number | 40 E |
| Standards | IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, CSA |
| Contact numbers | according to EN 50011 |
