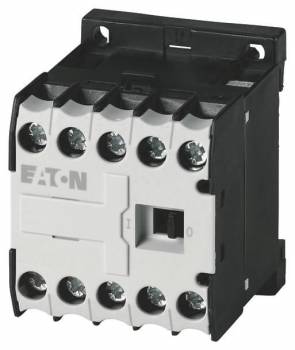

Eaton 052725 DILER-40(230V50/60Hz) auxiliary contactor AC 4S
|
-79% 54,12 EUR 263,15 EUR |
|||||||||||
|
incl. 1,59 EUR copper surcharge ( 64,40 EUR incl. VAT ) ≈ £45.30 | ≈ $59.48 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 5 pieces | |||||||||||
| Lieske Part No.: | 285592 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 052725 | ||||||||||
| UPC/EAN: | 4015080527251 | ||||||||||
| Weight: | 0.92 kg | ||||||||||
| Type: | DILER-40(230V50/60HZ) | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 052725:
Auxiliary contactor is used here as an electrical switching device serving signal transmission in control and protection circuits. It is not designed for direct load switching, but for auxiliary functions such as actuating relays, signaling states, or connecting control lines. The design with forced-guided contacts ensures reliable and precise switching performance, as the contacts are mechanically guided and cannot move unintentionally. This is particularly important in applications with high switching frequencies or in environments with mechanical vibrations.
Functions and equipment in detail include four normally open contacts (4S), meaning four contacts are open in the resting state and close when switching. Rated operational currents are defined according to voltage level: at 220 V, 230 V, and 240 V, the rated operational current AC-15 is 6 A; at 380 V, 400 V, and 415 V, it is 3 A. The conventional thermal current (Ith) at 50 °C with an open pole is 10 A. These values are relevant for circuit dimensioning and selection of associated wiring. The designation of the combination is 40E, identifying the specific configuration within the DILER series.
Technology explained simply shows that the device is designed for use with other DILER contactors, with the operating voltage of 230 V AC enabling control via a network or control system. Screw terminals provide a robust connection suitable for industrial applications. The IP20 protection rating is intended for indoor use, where no direct exposure to water or dust is expected. Contacts are numbered according to EN 50011, ensuring compliance with international standards for switching device identification.
Compatibility and accessories include a wide range of auxiliary switches and protection modules specifically developed for the DILER series. These include auxiliary switches such as 11DILE (1S1Oe), 20DILE (2S), 04DILE (4Oe), 40DILE (4S), 11DILEM (1S1Oe), 22DDILE (1fS1S1Oe1Oe1S), 13DILE (1S3Oe), 31DILE (3S1Oe), 22DILE (2S2Oe), 02DILE (2Oe), 02DILEM (2Oe), 22DILEM (2S2Oe), as well as protection modules such as VGDILE250 (varistor), VGDILE48 (varistor), RCDILE250 (RC protection circuit), RCDILE48 (RC protection circuit), MVDILE (mechanical interlock), and HDILE (sealing cap). These components can be used as needed to add functions such as signaling, protection, or mechanical interlocking.
Mounting and installation is carried out in the usual manner for contactors in enclosures. Screw terminals allow for simple and secure wiring. The device is used in conjunction with other DILER contactors, with the 230 V AC operating voltage enabling control via an external control system or network. Compliance with standards IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, and CSA ensures safety and reliability in industrial applications.
Operational advantages include the reliability of forced-guided contacts, clear identification according to EN 50011, and compatibility with a wide range of accessories. Screw terminals ensure a stable connection, and the 230 V AC operating voltage enables easy integration into existing control systems. The IP20 protection rating is suitable for indoor installations where no special environmental conditions such as humidity or dust are present. Rated operational currents are designed for typical auxiliary switching applications, with values of 6 A at 230 V and 3 A at 400 V covering common loads.
Compliance with standards IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, and CSA ensures the device meets international requirements for safety and functionality. Contact numbering according to EN 50011 simplifies circuit planning and maintenance, as designations are standardized. Use in conjunction with other DILER components enables modular and flexible system design.
The item price shown refers to 5 pieces Eaton 052725
| General | |
| Degree of protection | IP20 |
| Actuation voltage | 230 V |
| Frequency | 50/60 Hz |
| Type of current | AC operation |
| Connection system | Screw terminals |
| Contact arrangement | 4 S |
| Rated operational current AC-15 220-240 V | 6 A |
| Rated operational current AC-15 380-415 V | 3 A |
| Thermal current Ith (50 °C, 1 pole open) | 10 A |
| Combination marking | 40E |
| Utilization | for .DILE |
| Contact numbers | according to EN 50011 |
| Standards | IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, CSA |
Questions & answers
What is the delivery time of Eaton 052725 DILER-40(230V50/60Hz) auxiliary contactor AC 4S ?
The article Eaton 052725 DILER-40(230V50/60Hz) auxiliary contactor AC 4S is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 052725 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 052725 DILER-40(230V50/60Hz) auxiliary contactor AC 4S always at the best possible price. We can give you a discount of 2% on Eaton 052725 DILER-40(230V50/60Hz) auxiliary contactor AC 4S if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 052725 DILER-40(230V50/60Hz) auxiliary contactor AC 4S we can offer you a price of 52,54 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 052725 DILER-40(230V50/60Hz) auxiliary contactor AC 4S is offered by us in a sales unit of 5 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
