Eaton 079761 DILER-31-G(12VDC) auxiliary contactor DC 3NO1NC

Your rating:
Average rating
product review for Eaton 079761 DILER-31-G(12VDC) auxiliary contactor DC 3NO1NC
( 4.5 / 5 ) 10 ratings

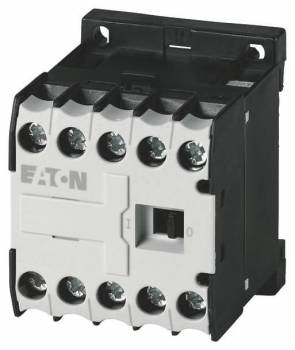

Eaton 079761
This image may differ from the desired article.
Eaton 079761Eaton 079761
-79% 66,75 EUR 315,69 EUR
incl. 3,72 EUR copper surcharge
( 79,43 EUR incl. VAT )
≈ £55.87  |  ≈ $73.36
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 5 pieces
1x Eaton 079761 DILER-31-G(12VDC) auxiliary contactor DC 3NO1NC
Lieske Part No.:189623
Mfg Part No: 079761
UPC/EAN: 4015080797616
Weight:1.1 kg
Type:DILER-31-G(12VDC)
Graduated prices net
From piecesPrice per pieces
664,39 EUR
1262,02 EUR
2459,66 EUR
3657,30 EUR

Product information for Eaton 079761:

The product is an auxiliary contactor of the DILER Mini contactor series by Eaton, type DILER-31-G(12VDC), with manufacturer's number 079761. It serves as an auxiliary contactor in electrical control and switching systems, particularly in combination with other DILER contactors. The device features forced-guided contacts, ensuring a safe and reliable switching function, even under mechanical stress. The connection technology uses screw terminals, enabling a secure and durable connection.

Applications
This auxiliary contactor is suitable for use in industrial controls, machine building, and plant engineering, where auxiliary functions such as signal transmission, status indication, or feedback of switching operations are required. It is frequently used in combination with main contactors to take over additional switching functions without requiring additional relays or switches. Operation is via a direct voltage of 12 V DC, making it suitable for applications with battery power supply or in vehicles.

Functions and Equipment in Detail
The device features three close contacts (3 S) and one open contact (1 Ö), enabling a flexible switching configuration. The contacts are forced-guided, meaning the switching movement is mechanically secured, ensuring safe switching even under load conditions. Rated operational currents are defined for various voltage ranges: at 220 V, 230 V, and 240 V, the rated operational current (AC-15) is 6 A; at 380 V, 400 V, and 415 V, it is 3 A. The conventional thermal current (Ith) at 50 °C with an open pole is 10 A. These values are relevant for sizing the switching system and ensure safe operation.

Technology Explained Simply
Operation is via a direct voltage of 12 V DC, with the coil having a power of 2.6 W. The integrated diode-resistor combination protects against inductive voltage spikes that may occur when switching off the coil. This protects the circuit from damage and extends the device's service life. The protection class IP20 means the device is protected against contact with fingers or similar objects, but not against dust or water. It is therefore intended for use in enclosed, dry indoor environments.

Compatibility and Accessories
The auxiliary contactor is designed for use with other DILER contactors, particularly models bearing the designation .DILE. Suitable accessories include various auxiliary switches such as 11DILE (1S1Ö), 20DILE (2S), 04DILE (4Ö), 02DILE (2Ö), 31DILE (3S1Ö), 22DDILE (1fS1S1Ö1Ö1S), 11DILEM (1S1Ö), 40DILE (4S), HDILE (transparent sealing cap), 22DILE (2S2Ö), XGKE-GE (label sheet), 22DILEM (2S2Ö), 13DILE (1S3Ö), MVDILE (mechanical interlock for reversing contactor), and 02DILEM (2Ö). These components can be used to expand switching functions or for labeling and securing the switching system.

Mounting and Installation
Mounting is done via screw terminals, enabling a secure and easy connection. The coil terminal designation follows EN 50005, ensuring a standardized and unambiguous assignment of connections. Installation is carried out in enclosed control cabinets or enclosures, as the protection class IP20 does not permit outdoor use or use in damp environments. Mounting typically occurs on a mounting plate or within the enclosure, ensuring mechanical stability and correct alignment of the contacts.

Advantages in Operation
The auxiliary contactor provides a reliable and low-maintenance switching function with forced-guided contacts. The integrated diode-resistor combination protects the circuit from inductive voltage spikes. Operation via 12 V DC enables flexible integration into existing systems, especially in vehicles or battery-powered installations. The protection class IP20 ensures safe operation in dry indoor environments. Compatibility with other DILER models allows modular expansion of the switching system without additional components.

Standards and Regulations
The device complies with standards IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, and CSA. The switching functions comply with EN 50011, ensuring the reliability and safety of switching operations. Compliance with these standards ensures the device can be safely and reliably used in industrial applications.

The item price shown refers to 5 pieces Eaton 079761
General
Degree of protectionIP20
Actuation voltage12 V DC
Type of currentDC operation
Rated operational current AC-15 220-240 V6 A
Rated operational current AC-15 380-415 V3 A
Rated operational current (Ith) 1 pole open at 50 °C10 A
Contacts Normally open (NO)3 S
Contacts Normally closed (NC)1 O
Connection systemScrew terminals
Coil power2,6 W
Combination code number31E
Suitable for.DILE
Coil terminal designationin accordance with EN 50005
StandardsIEC/EN 60947, EN 60947-5-1, VDE 0660, UL, CSA
Control extra function(s)according to EN 50011
Positive-guided contactsYes
Integrated diode-resistor combinationYes


Please note...
This article contains a copper surcharge of 3,72 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of Eaton 079761 DILER-31-G(12VDC) auxiliary contactor DC 3NO1NC ?

The article Eaton 079761 DILER-31-G(12VDC) auxiliary contactor DC 3NO1NC is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 079761 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 079761 DILER-31-G(12VDC) auxiliary contactor DC 3NO1NC always at the best possible price. We can give you a discount of 2% on Eaton 079761 DILER-31-G(12VDC) auxiliary contactor DC 3NO1NC if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 079761 DILER-31-G(12VDC) auxiliary contactor DC 3NO1NC we can offer you a price of 64,39 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 079761 DILER-31-G(12VDC) auxiliary contactor DC 3NO1NC is offered by us in a sales unit of 5 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
