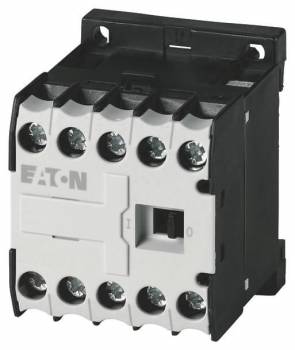

Eaton 010251 DILER-31(24V50Hz) auxiliary contactor AC 3NO1NC
|
52,85 EUR |
|||||||||||
|
incl. 0,32 EUR copper surcharge ( 62,89 EUR incl. VAT ) ≈ £44.24 | ≈ $58.08 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 132379 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 010251 | ||||||||||
| UPC/EAN: | 4015080102519 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | DILER-31(24V50HZ) | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 010251:
Applications
This auxiliary contactor is designed for use in industrial control systems, such as in machine control systems, automation technology, or switchgear. It is frequently used in combination with main contactors or other control components to implement additional switching functions such as feedback, blocking, or signaling. The protection rating IP20 makes it suitable for indoor use where there is no direct mechanical or water-resistant stress.
Functions and Equipment in Detail
The device features three close contacts (3S) and one open contact (1O), enabling flexible integration into complex circuit diagrams. The contacts are rated for a nominal operating current of 10 A at 50 °C, where the conventional thermal current (Ith) equals the nominal operating current (Ie). At an operating voltage of 220 V to 240 V, the nominal operating current is 6 A; at 380 V to 415 V, it is 3 A. Connection is via screw terminals, ensuring a secure and mechanically stable connection. The combination code is 31E, identifying the specific configuration within the DILER series.
Technology Explained Simply
The forced-guided contacts ensure that the switching movement is mechanically guided, increasing reliability and service life. The coil is operated with alternating current (AC), which is common in many industrial control systems. The protection rating IP20 means the device is protected against contact with fingers or similar objects, but not against dust or splashing water. Compliance with standards IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, and CSA ensures conformity with international safety and quality standards.
Compatibility and Accessories
The auxiliary contactor is specifically designed for use with DILE contactors. It can be combined with various accessories to integrate additional functions. These include auxiliary switches such as the 13DILE (1S3O), 22DDILE (1fS1S1O1O1S), 20DILE (2S), 02DILE (2O), 31DILE (3S1O), 11DILEM (1S1O), 11DILE (1S1O), 22DILE (2S2O), 04DILE (4O), 22DILEM (2S2O), 02DILEM (2O), 40DILE (4S), as well as protection circuits such as VGDILE48 (varistor) and RCDILE48 (RC protection circuit). Additionally, mechanical interlocks such as MVDILE and label strips such as XGKE-GE are available to extend the application.
Mounting and Installation
Mounting is typically on a standard control panel or in an enclosure. The screw terminals allow for easy and secure connection of wires. The mounting height and depth are adapted to the standard dimensions of the DILER series, enabling modular installation in existing switchgear. The operating voltage of 24 V 50 Hz requires a corresponding supply, usually provided by a control voltage source.
Advantages in Operation
The combination of forced-guided contacts, high operational safety, and compliance with international standards ensures reliable performance in industrial applications. Clear contact identification (3S1O) and the use of screw terminals simplify installation and maintenance. Compatibility with a wide range of accessories expands application possibilities and allows customized adaptation to specific requirements.
| General | |
| Degree of protection | IP20 |
| Actuation voltage | 24 V |
| Frequency | 50 Hz |
| Type of current | AC operation |
| Rated operational current (Ith = Ie) | 10 A |
| Rated operational current AC-15 (220–240 V) | 6 A |
| Rated operating current AC-15 (380–415 V) | 3 A |
| Contacts Normally open (NO) | 3 |
| Contacts Normally closed (NC) | 1 |
| Connection system | Screw terminals |
| Combination code number | 31E |
| Suitable for | .DILE |
| Standards | IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, CSA |
Questions & answers
What is the delivery time of Eaton 010251 DILER-31(24V50Hz) auxiliary contactor AC 3NO1NC ?
The article Eaton 010251 DILER-31(24V50Hz) auxiliary contactor AC 3NO1NC is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 010251 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 010251 DILER-31(24V50Hz) auxiliary contactor AC 3NO1NC always at the best possible price. We can give you a discount of 2% on Eaton 010251 DILER-31(24V50Hz) auxiliary contactor AC 3NO1NC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 010251 DILER-31(24V50Hz) auxiliary contactor AC 3NO1NC we can offer you a price of 51,27 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
