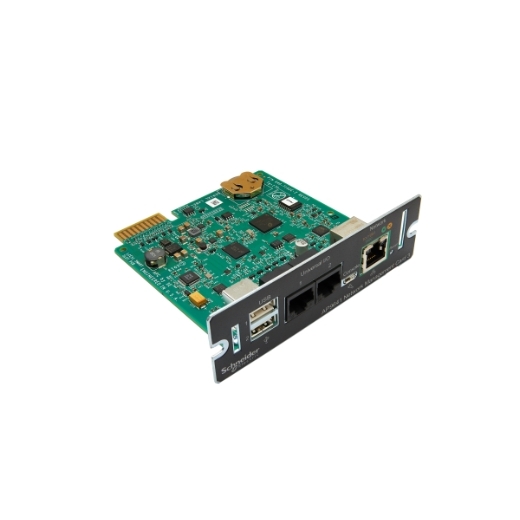

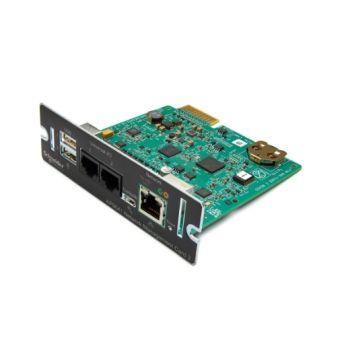

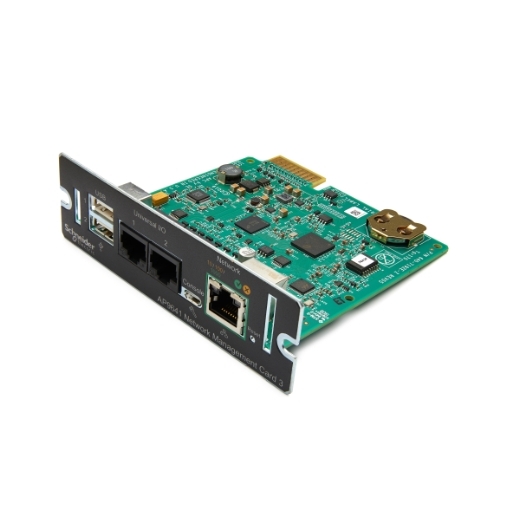

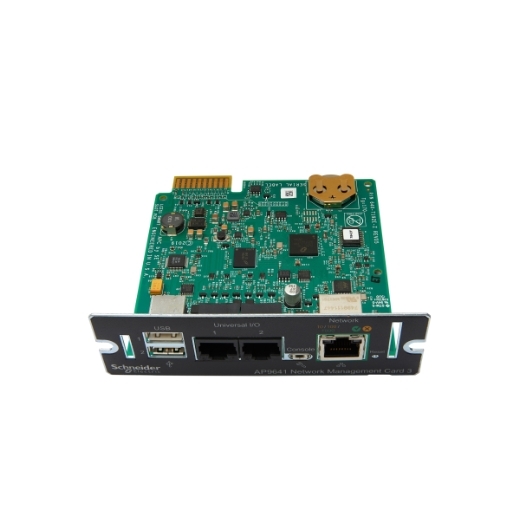

APC Network Management AP9641 Card 3 Environmental Monitor content_copy

The APC AP9641 is a network management card for Smart-UPS systems, which connects via a SmartSlot. It enables remote monitoring and control of the UPS over a network, thereby making the operation of IT infrastructures safer and more efficient. The card provides functions for controlling the UPS, including performing self-tests, and delivers detailed data and event logs. This information can be delivered to designated recipients via various protocols such as SNMP, Syslog, and E-Mail, allowing for quick response to critical events such as power failure or system errors.

Applications

The card is designed for use in IT infrastructures where continuous power supply and remote monitoring of UPS systems are required. It is particularly suitable for data centers, server rooms, and other critical installations where a power interruption could lead to data loss or operational downtime. The integrated environmental monitoring allows measurement of temperature and humidity in the vicinity of the UPS, enabling early detection of potential damage caused by extreme environmental conditions.

Functions and Equipment in Detail

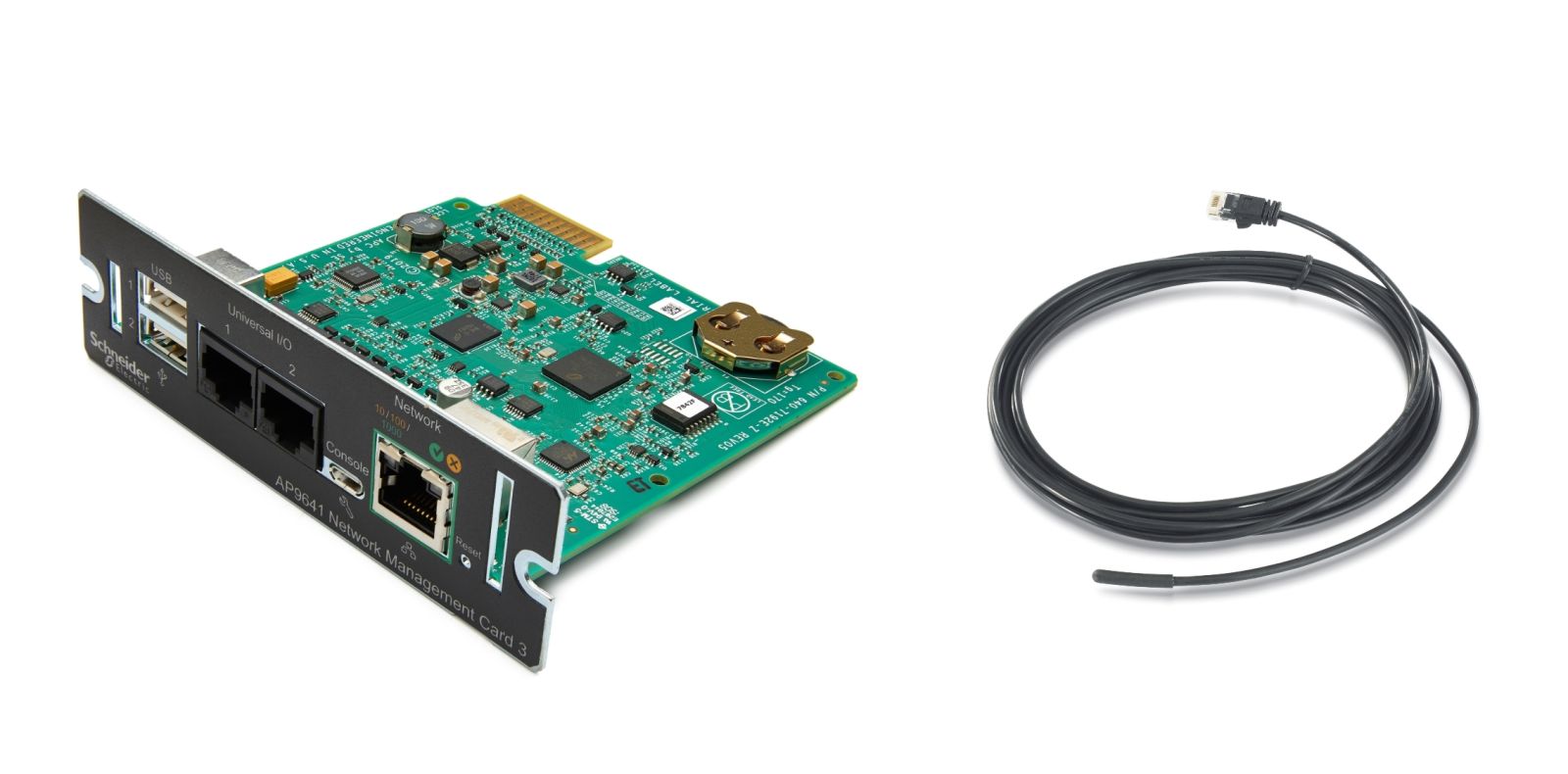

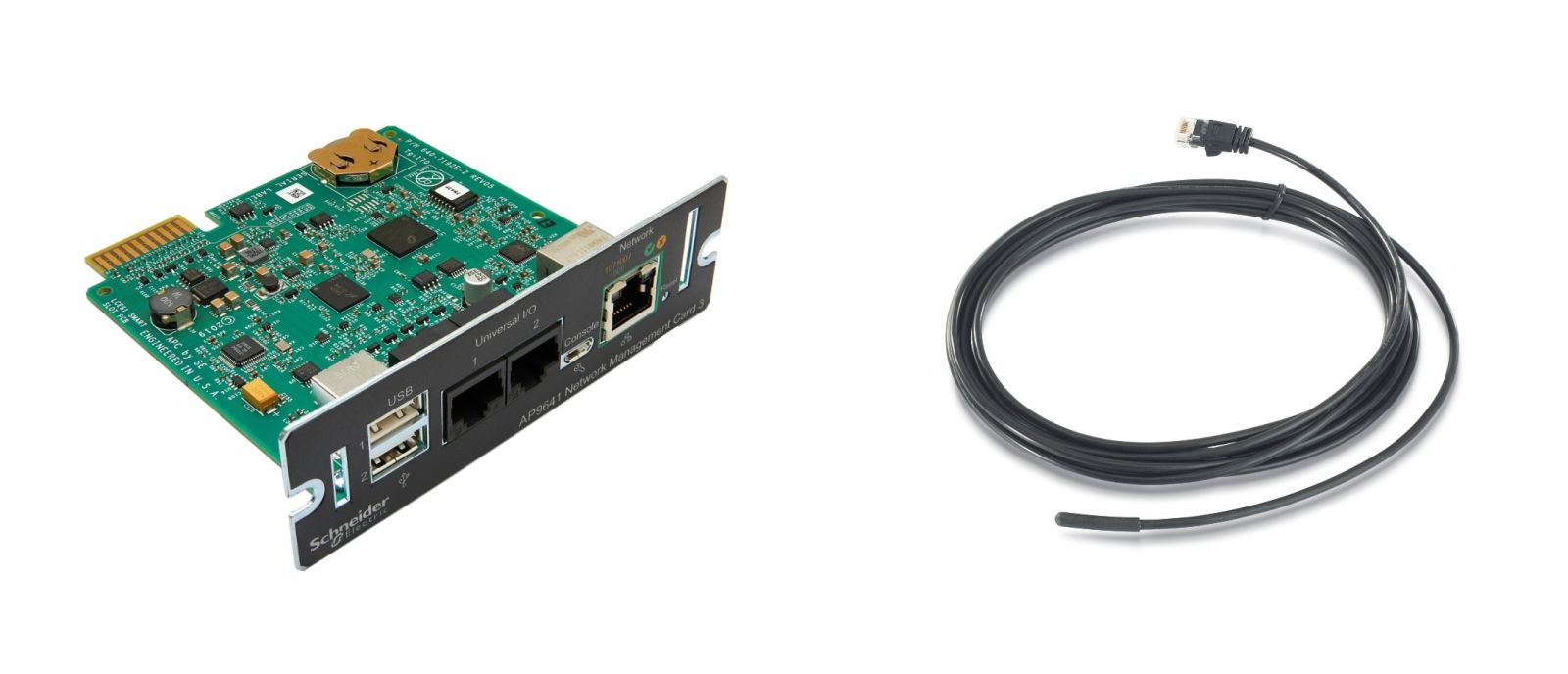

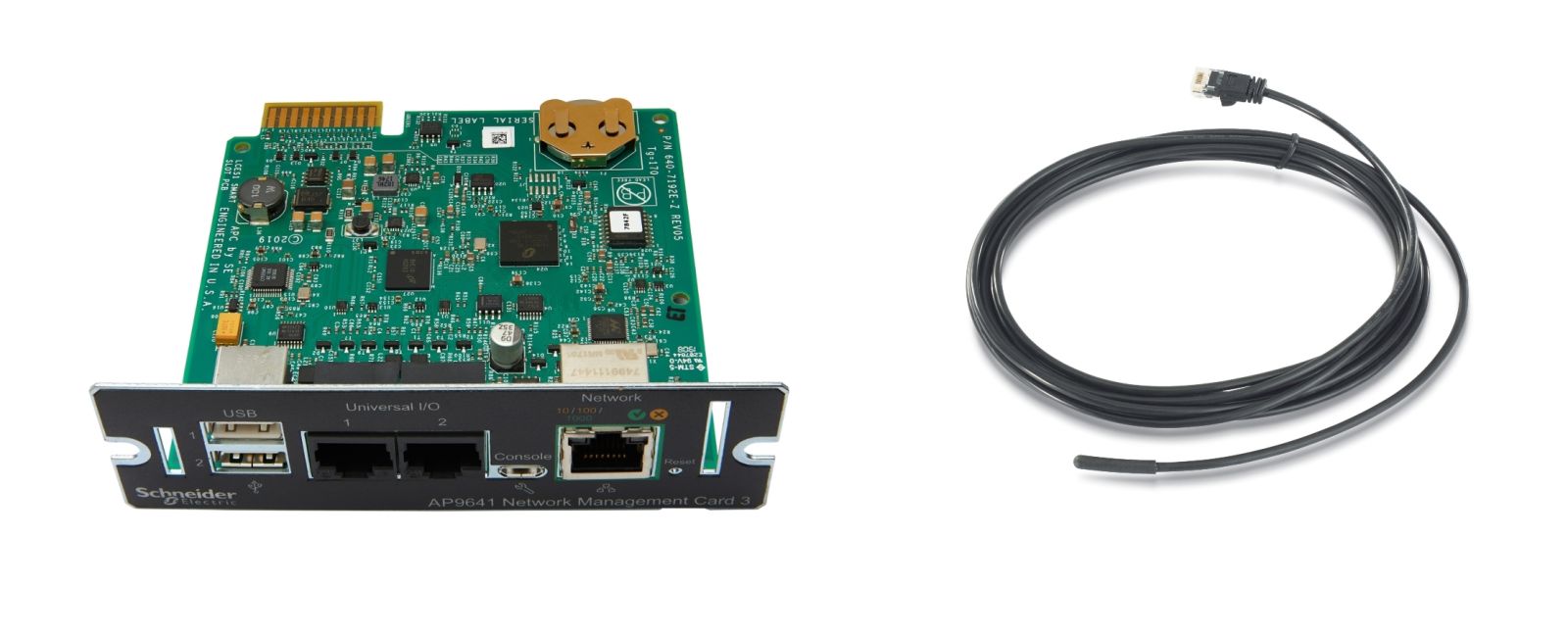

The APC AP9641 supports the use of DHCP servers or BOOTP servers to automatically configure TCP/IP network parameters. This simplifies integration into existing networks. The card offers multiple security protocols for authentication and encryption to protect network communication. Additionally, it supports Modbus TCP/IP and BACnet/IP, enabling integration into building management systems and industrial automation systems. The card is equipped with a temperature sensor that enables remote monitoring of ambient temperature. Optionally, a second sensor, such as the AP9335TH, can be added for humidity measurement, ensuring comprehensive environmental monitoring.

Technology Explained Simply

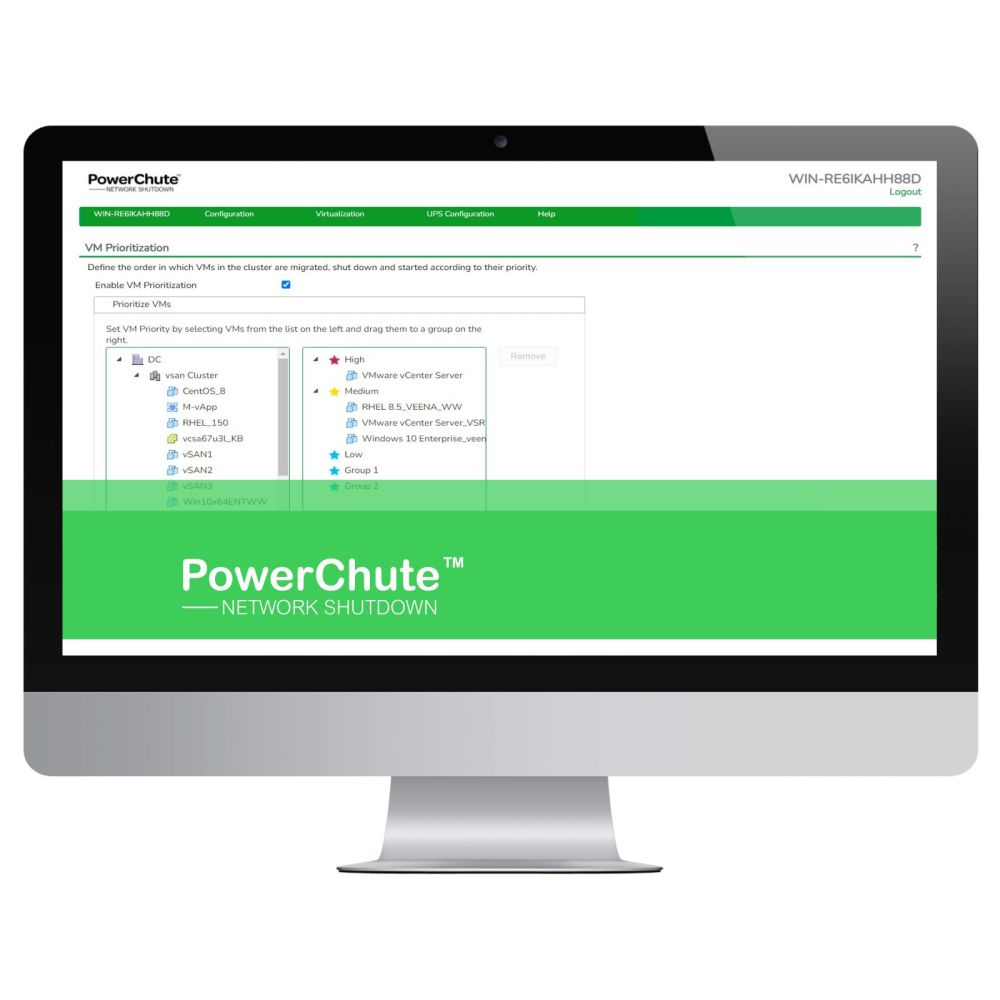

The card features a SmartSlot connection, specifically developed for APC Smart-UPS models. Through this connection, the card is integrated into the UPS and enables network communication. Remote control is performed via a web browser interface, which allows intuitive operation. The card can also be connected to the PowerChute® Network Shutdown software to ensure an orderly shutdown of physical and virtual servers in the event of a power failure. This protects the IT infrastructure from data loss and hardware damage.

Compatibility and Accessories

The APC AP9641 is compatible with APC Smart-UPS models that feature a SmartSlot. It can be combined with the temperature and humidity sensor AP9335TH to enable comprehensive environmental monitoring. Additionally, the card can be connected to the AP9834 USB-WLAN dongle to enable wireless communication with the network. Combining it with the AP9810 allows the use of potential-free contacts for additional monitoring functions.

Installation and Mounting

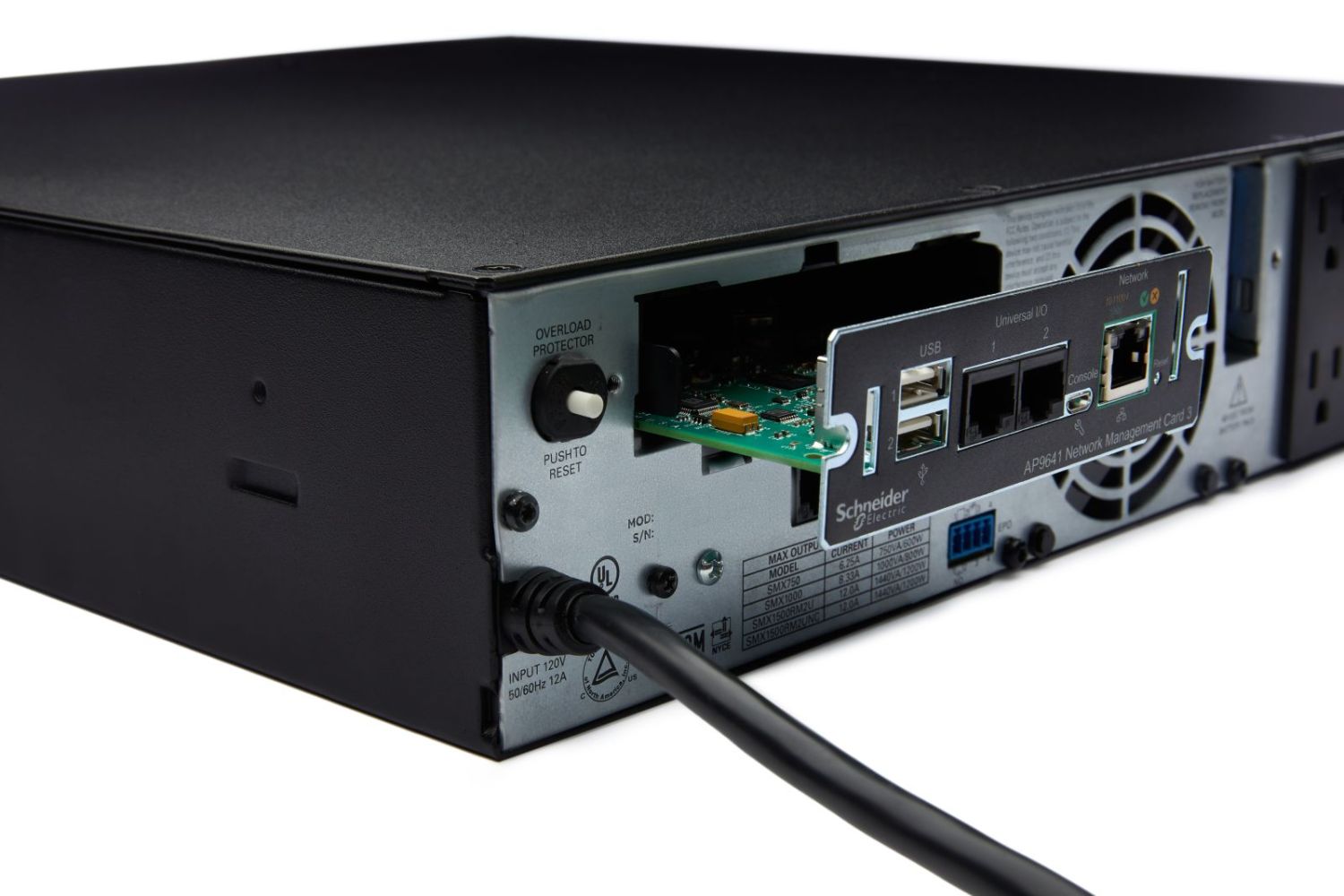

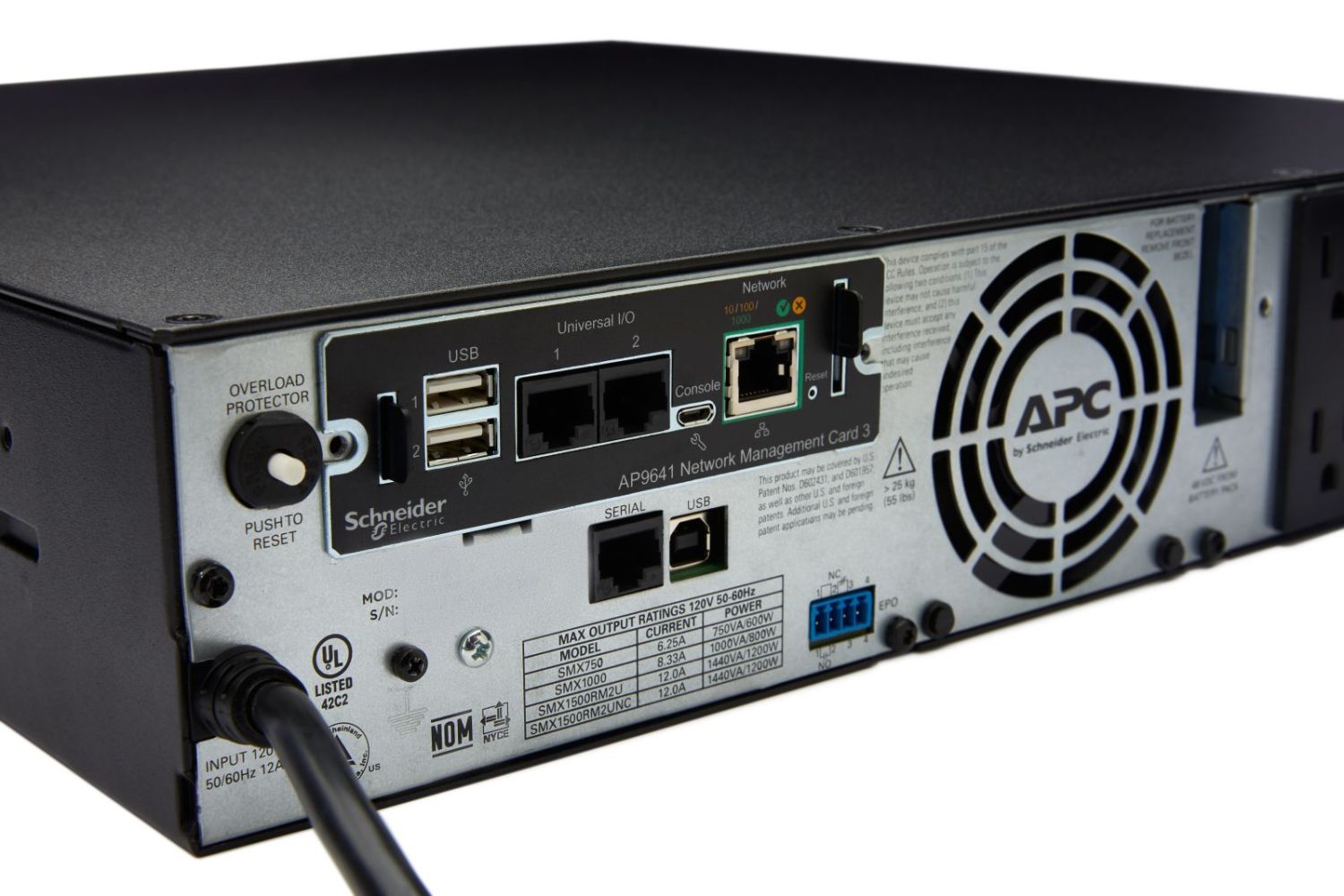

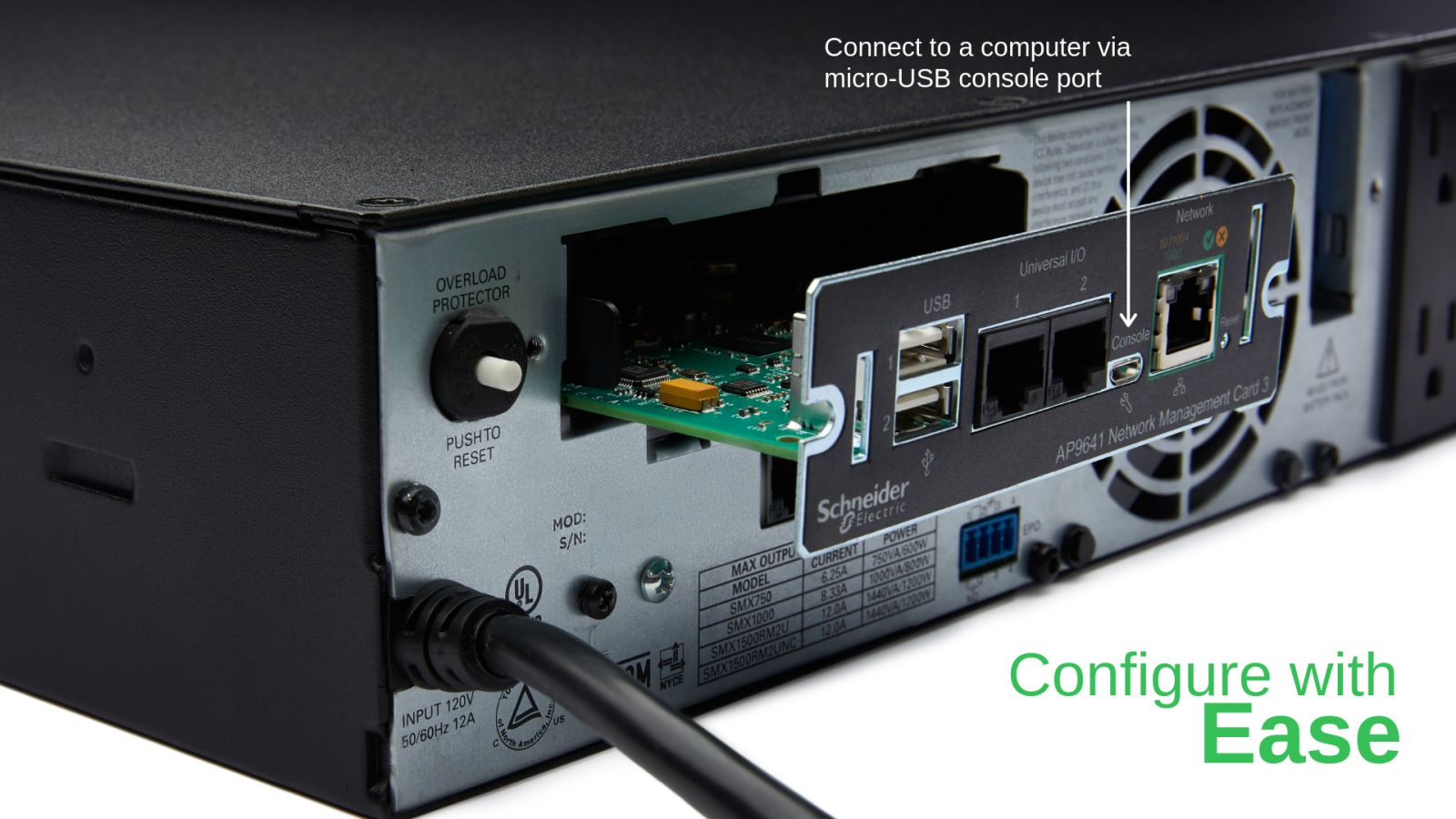

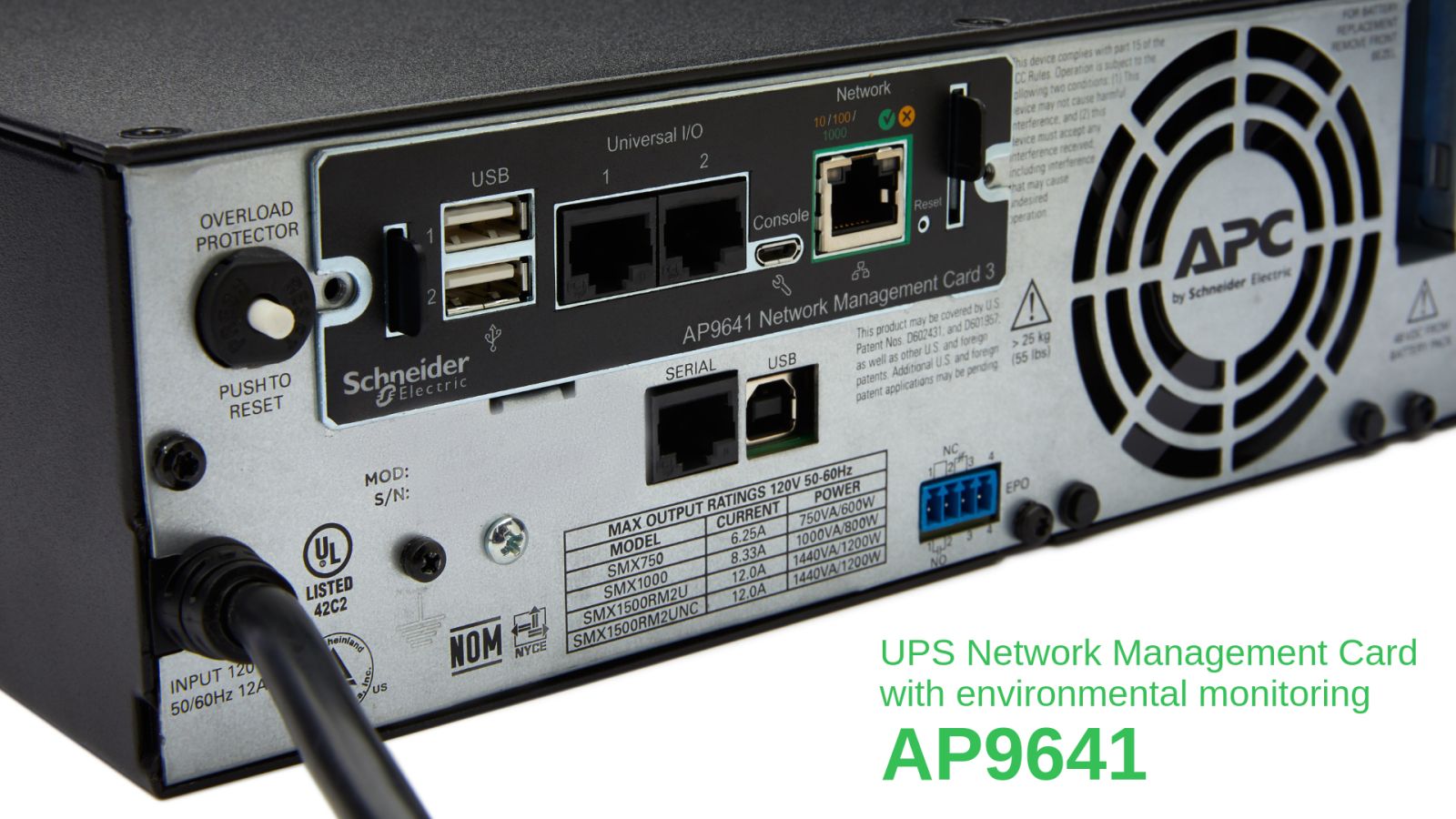

Installation is performed by inserting the card into the SmartSlot of the UPS. Configuration is done via the web browser interface or through the PowerChute® Network Shutdown software. The card is compact in size, with a width of 12.1 mm, depth of 11.4 mm, and height of 38 mm. The weight is 90 g, enabling lightweight and space-saving integration into existing UPS systems.

Operational Advantages

The APC AP9641 provides comprehensive remote monitoring and control of the UPS, increasing operational safety. The integrated environmental monitoring enables early detection of potential damage caused by extreme temperatures or humidity. Support for SNMP, Syslog, and E-Mail notifications allows for rapid response to critical events. Combination with the PowerChute® Network Shutdown software protects the IT infrastructure from data loss and hardware damage in the event of a power failure. The card is compatible with various network protocols and can be seamlessly integrated into existing IT infrastructures.

Features
Product type	Network management card
Logistics data
Harmonized System (HS) code	85079080
Total carbon footprint (kg of CO2e)	122.83
Ports & interfaces
Host interface	SmartSlot
Weight & dimensions
Width	12.1 mm
Depth	11.4 mm
Height	38 mm
Weight	90 g

---
