APC SMT1000IC Smart-UPS 1000 VA LCD with SmartConnect content_copy

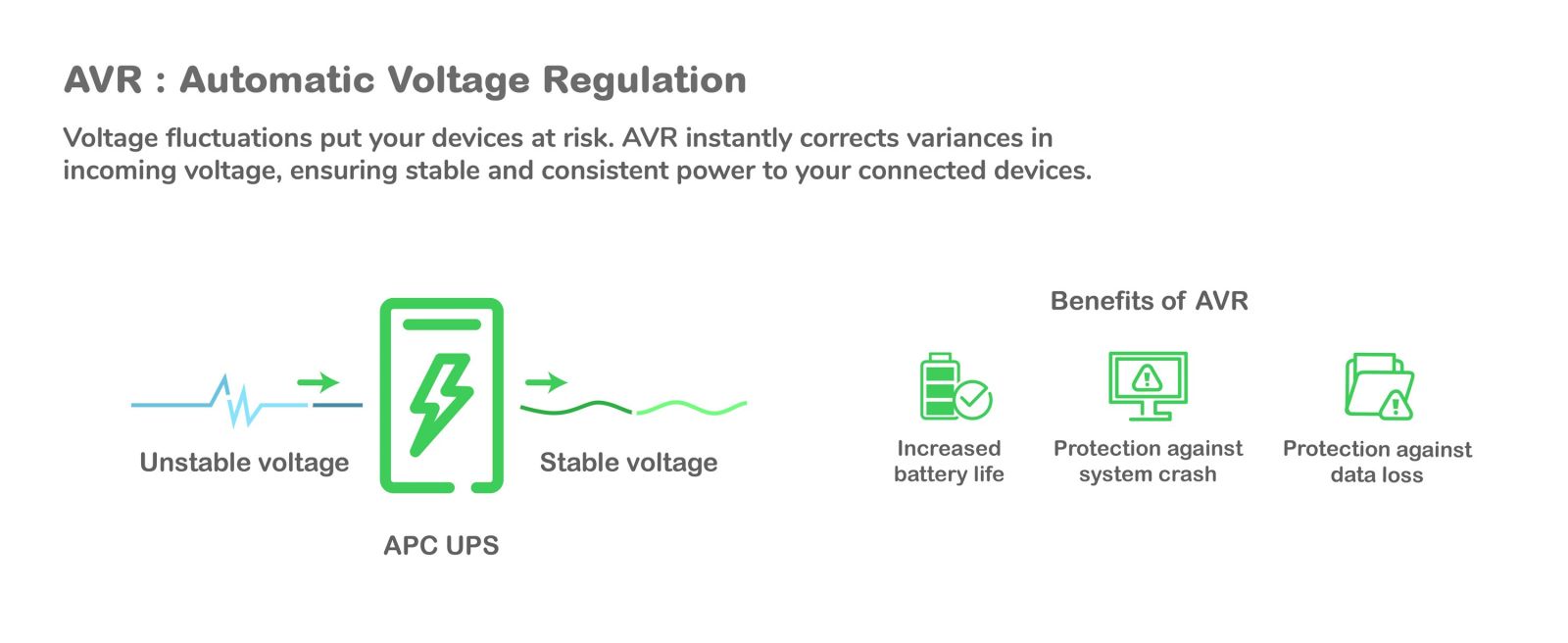

The APC Smart-UPS SMT1000IC is a line-interactive UPS with an output capacity of 1 kVA and an output power of 700 W. It is designed for use in small businesses and IT environments where reliable power supply for servers, network devices and other sensitive equipment is required. The device delivers a pure sine wave, which is important for the compatible operational safety of sensitive IT systems. The UPS operates within an input voltage range of 151 V to 302 V and maintains a stable output voltage between 220 V and 240 V, with automatic voltage regulation (AVR) compensating for voltage fluctuations in the grid. The response time is 10 ms, ensuring a rapid switch to battery operation in case of power failure. The output voltage has a total harmonic distortion (THD) of 5 %, ensuring clean power supply. The device has a noise level of 41 dB, suitable for quiet operation in office environments.

Applications

The SMT1000IC is suitable for use in offices, server rooms, small data centres and with network devices, where a power interruption could lead to data loss or system failures. The integrated surge absorption protects connected devices from overvoltages caused by lightning strikes or grid disturbances. The UPS is designed for operation at temperatures from 0 to 40 °C and relative humidity from 0 to 95 %, enabling flexible installation in various environments.

Features and Equipment in Detail

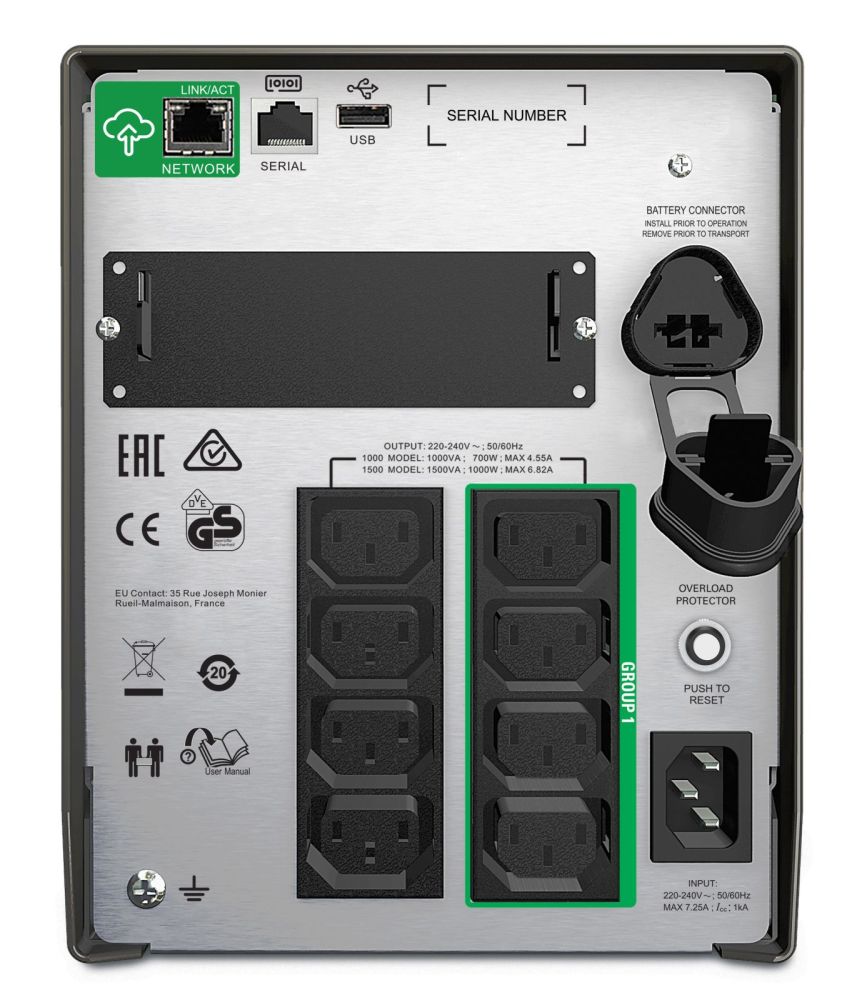

The device features eight AC outlets with C13 connectors and a C14 plug at the input, allowing easy connection to existing power supplies. The hot-swap battery enables replacement of the battery cartridge (RBC6) without shutting down the UPS or connected devices, ensuring operational continuity. The battery has a lifespan of up to five years and can be fully charged in three hours. An automatic battery test regularly checks the battery condition, and a cold start allows operation without mains power supply. Temperature-voltage compensation adjusts the output voltage to ambient temperature to ensure optimal performance.

Technology Explained Simply

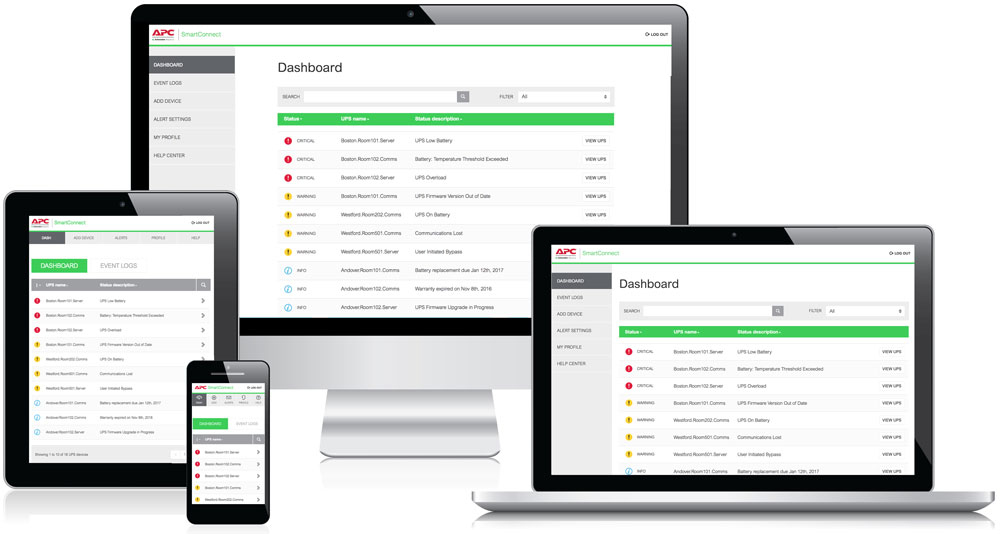

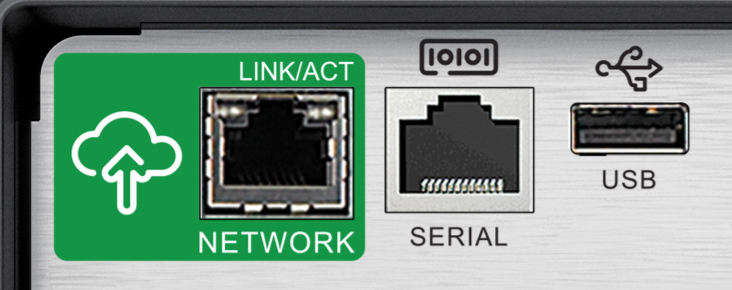

The line-interactive topology combines the efficiency of an online system with the flexibility of an offline system. Under normal mains voltage, the load is supplied directly from the grid, with the UPS regulating the voltage. In case of power failure, it switches to battery operation within 10 ms. The SmartConnect function enables remote monitoring of the UPS over the internet, allowing the status and condition of the device to be checked from any internet-connected device. This is achieved via the integrated Ethernet LAN connection (RJ-45). Additionally, a USB port (Type-A, USB 2.0) and a serial interface (RS-232) are available to connect the UPS to computers or network management software. The free APC PowerChute software enables controlled shutdown of connected systems when the battery is nearly depleted, preventing data loss.

Compatibility and Accessories

The SMT1000IC is equipped with a SmartSlot, into which optional network management cards such as the AP9640 or AP9641 can be inserted. These extend remote management functions via SNMP and enable monitoring and control of the UPS over the network. The battery cartridge RBC6 is available as a spare part and can be replaced as needed. The UPS is equipped with an LCD display and LED indicators showing operational status and key parameters. The delivery includes an RJ-45 and a USB cable, as well as a quick installation guide.

Mounting and Installation

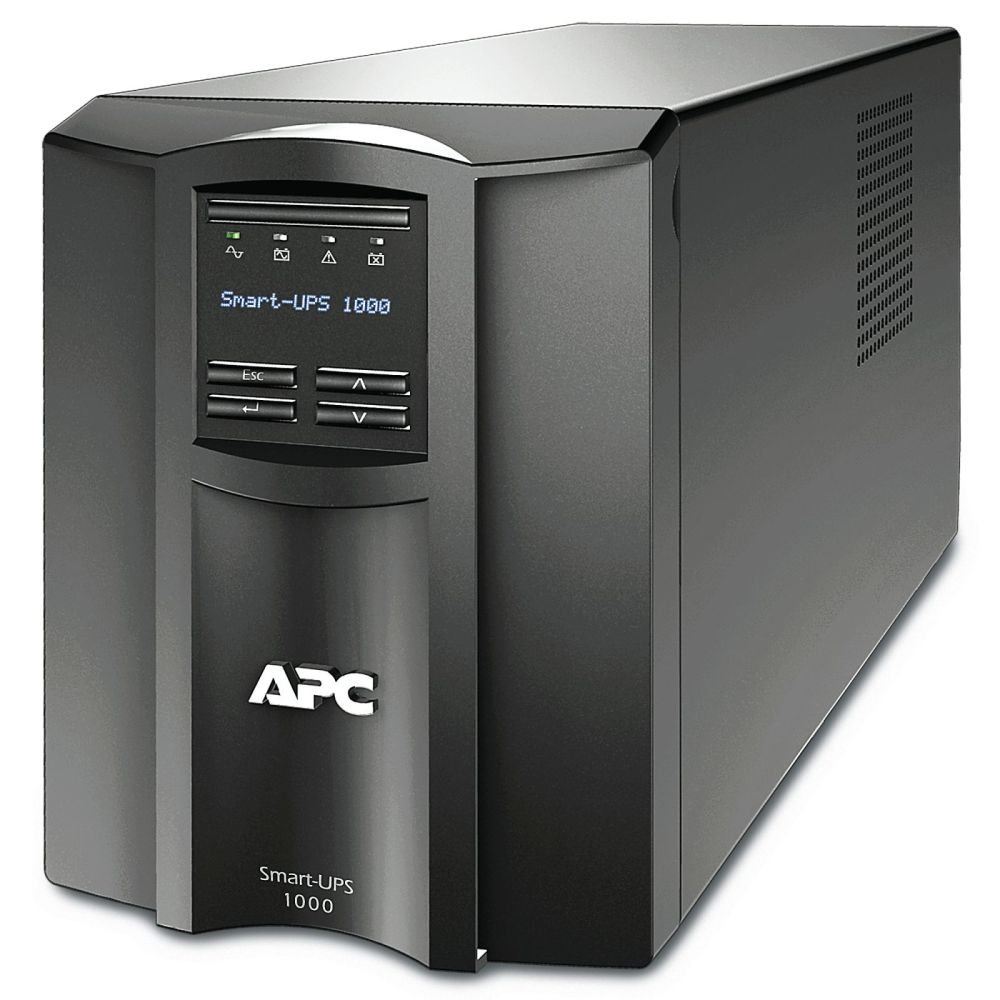

The device has a mini-tower form factor and is black in colour. Dimensions are 171 mm (width) × 439 mm (depth) × 219 mm (height), allowing integration into standard rack or desk environments. Installation is done via the C14 plug connection at the input, with the eight C13 outlets designated for connected devices. Mounting requires no special tools, and operation is performed via physical buttons and the LCD display.

Operational Advantages

The SMT1000IC offers high operational reliability through the combination of automatic voltage regulation, overvoltage protection and fast response time. Remote monitoring via SmartConnect enables proactive maintenance and reduces downtime. The hot-swap function for the battery cartridge minimises downtime during maintenance. Integrated software support via PowerChute ensures controlled shutdown of IT systems, preventing physical damage and data loss. Certification according to EN/IEC 62040-1 and -2 as well as CE, CSA, UL 1778 and other standards ensures compliance with international safety and quality standards. The manufacturer's warranty is three years for electronics and two years for the battery.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery life (max)	5 year(s)
Battery recharge time	3 h
Replacement battery cartridge	RBC6
Hot-swap battery
Automatic battery test
Cold start
Certificates
Compliance certificates	RoHS
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
Design
Form factor	Mini Tower
Product colour	Black
Display type	LCD
LED indicators
Features
UPS topology	Line-Interactive
Output power capacity	1 kVA
Output power	700 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Surge energy rating	459 J
Response time	10 ms
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	41 dB
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
Automatic Voltage Regulation (AVR)
Surge protection
Audible alarm(s)
Auto-restart
Temperature voltage compensation
Logistics data
Products per pallet	12 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	984.74
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Packaging content
Cables included	RJ-45, USB cable
Management card included
Quick installation guide
Packaging data
Package width	328 mm
Package depth	595 mm
Package height	376 mm
Package weight	22.8 kg
Ports & interfaces
AC outlet types	C13 coupler, IEC Jumpers
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
USB 2.0 ports quantity	1
USB port type	USB Type-A
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB port
Serial interface
SmartSlot
SmartConnect port
Weight & dimensions
Width	171 mm
Depth	439 mm
Height	219 mm
Weight	18.9 kg

---
