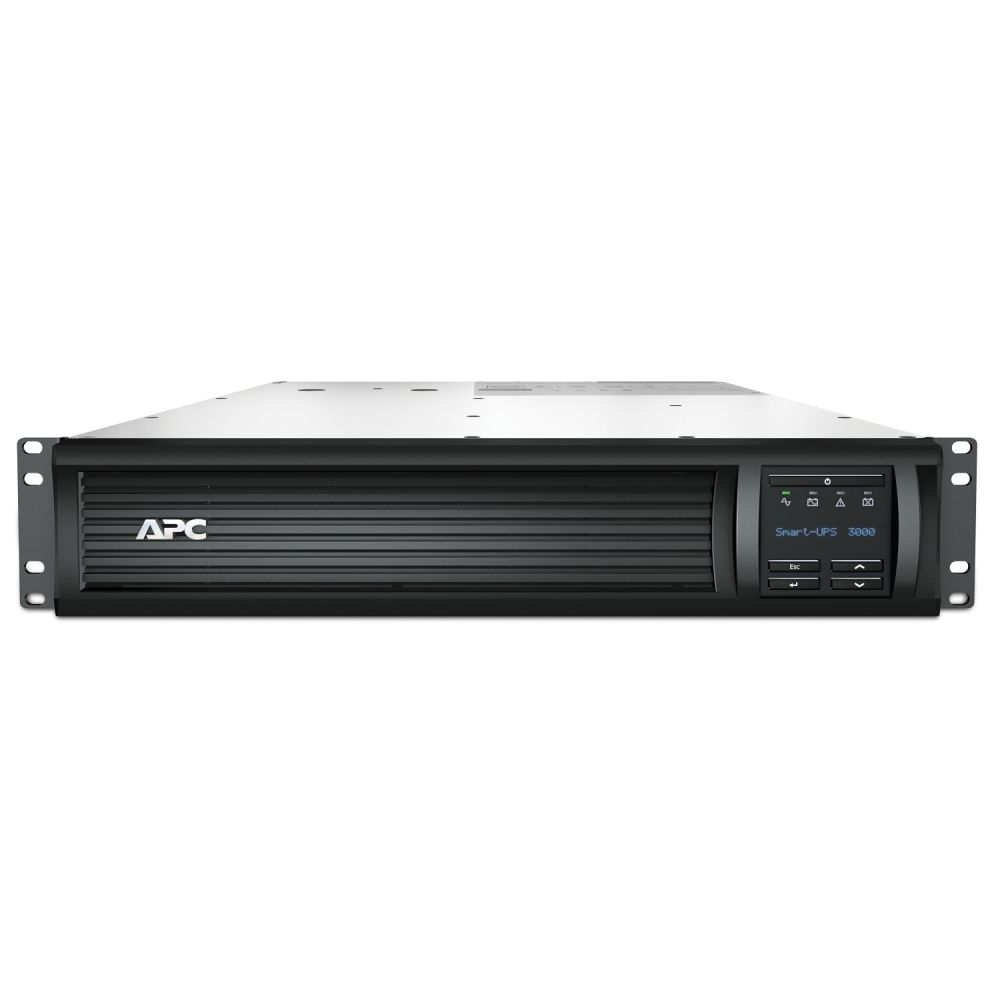

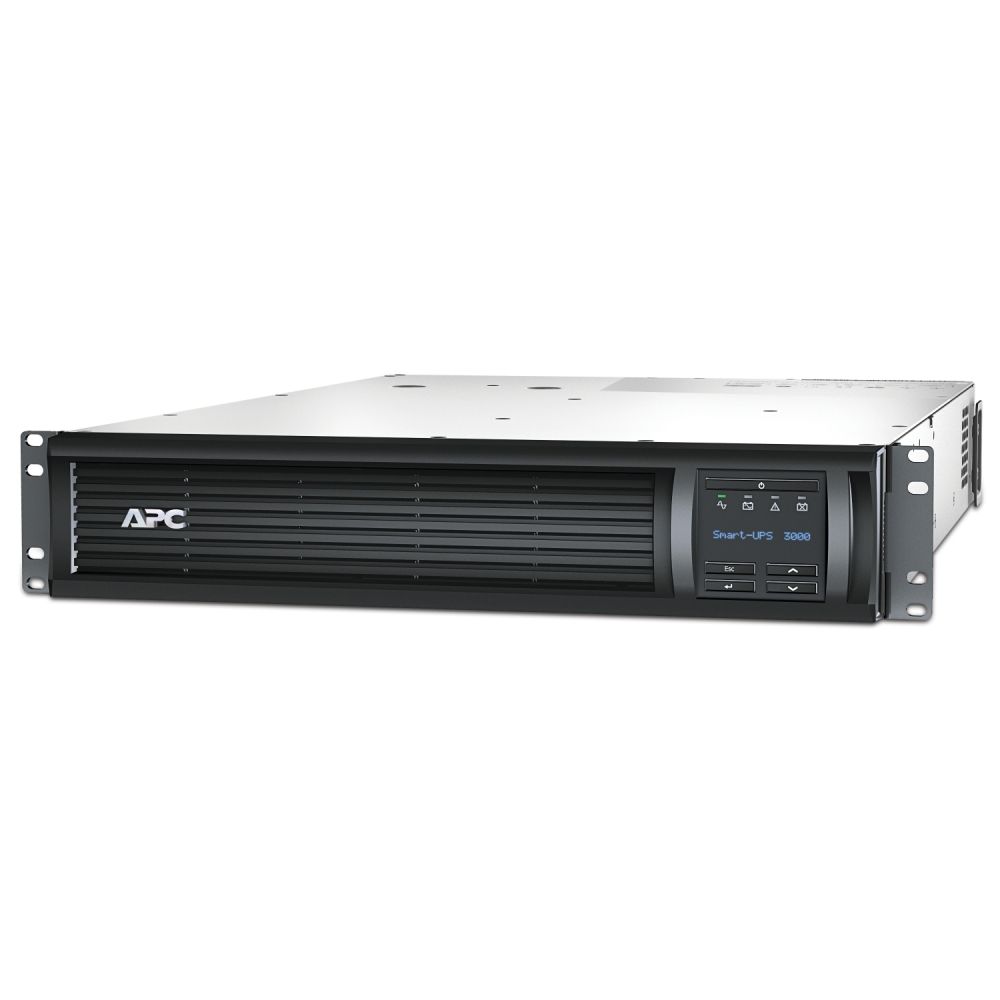

APC SMT3000RMI2UNC Smart-UPS, Line Interactive, 3 kVA, rack mounting 2 U, 230 V content_copy

The APC Smart-UPS SMT3000RMI2UNC is a rack-mountable uninterruptible power supply (UPS) in 2U format, designed for use in IT infrastructures, server rooms, and network environments. It offers an output capacity of 3 kVA and an output power of 2700 W, with an output voltage of 230 V. The UPS operates using the Line-Interactive topology, enabling efficient power supply with low energy consumption during mains operation. In the event of a power failure, it switches to battery operation within 4 ms, delivering output power in the form of a pure sine wave, which is required for sensitive IT and network equipment.

Applications

The UPS is designed for use in medium to large IT environments where continuous power supply for servers, network switches, routers, and other critical devices is necessary. The rack-mounting in 2U format makes it ideal for standard 19-inch racks. The integrated web-based management enables remote monitoring and control over the network, ensuring operational continuity even from a distance.

Features and Equipment in Detail

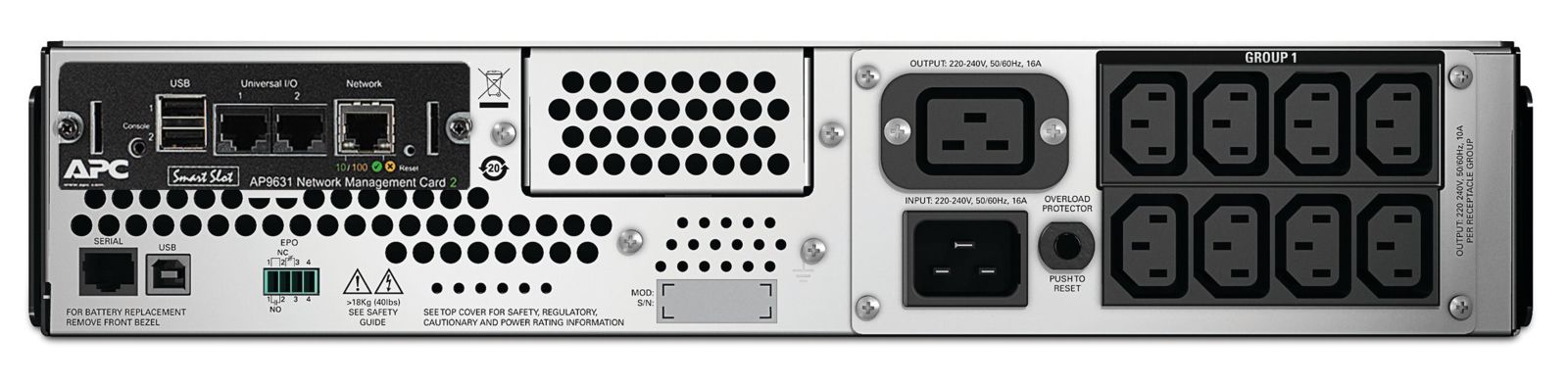

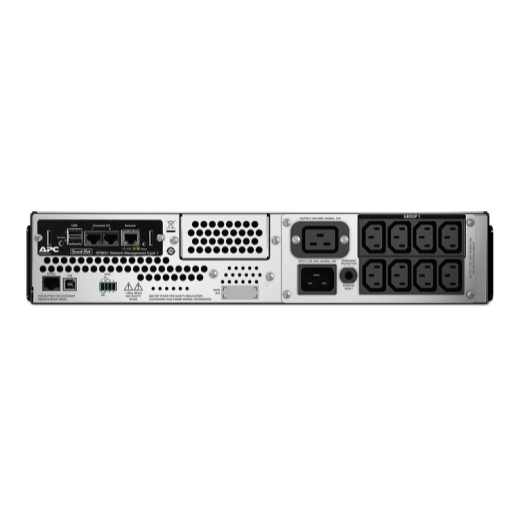

The SMT3000RMI2UNC features a total of 9 AC outlets: eight C13 connectors and one C19 connector, suitable for powering various IT devices. The input is via a C20 connector, with the supplied input cable having a length of 2 m. The UPS is equipped with an LCD display and LED indicators showing the operating status, battery charge level, and any faults. An integrated automatic battery test regularly checks battery function to detect wear or defects early.

Technology Explained Simply

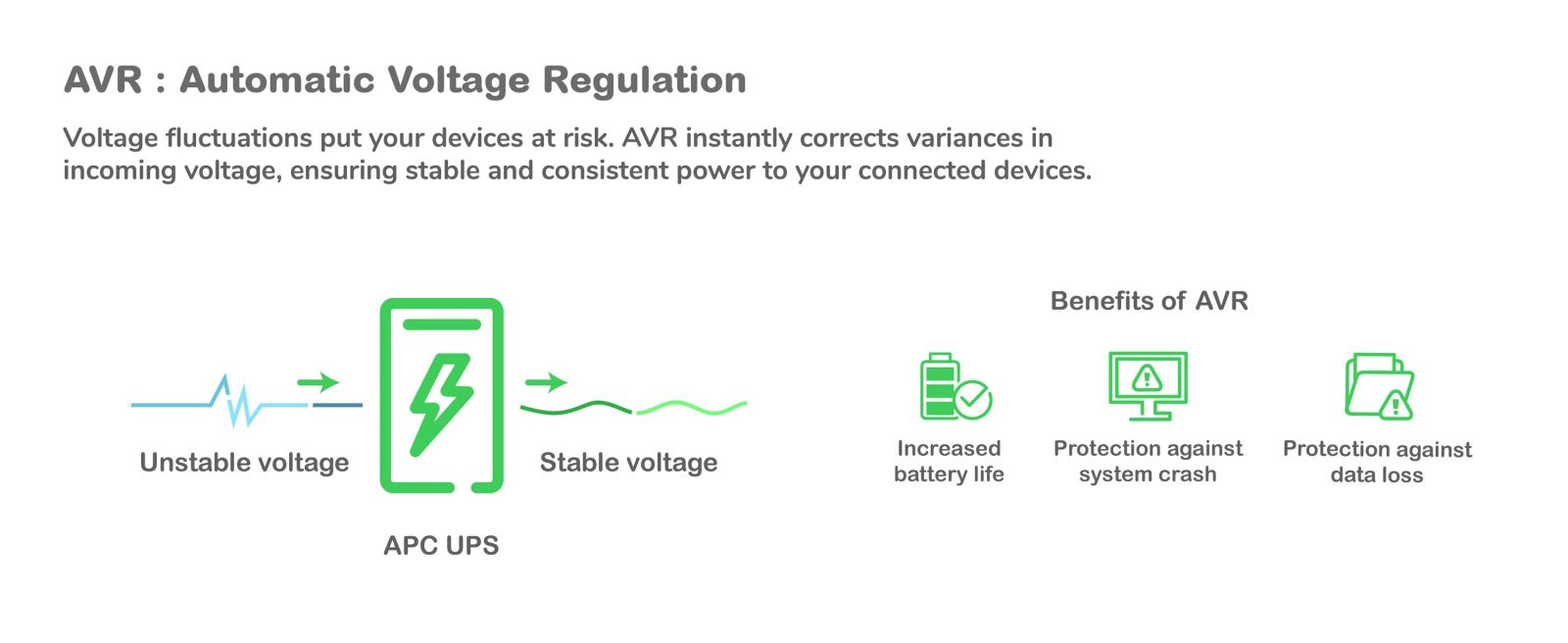

The Line-Interactive topology operates directly from the mains in normal operation, with voltage regulated via a transformer. In case of voltage fluctuations or power failure, the UPS automatically switches to internal battery power. The pure sine wave ensures sensitive devices such as servers or network equipment can operate without interruptions. The response time of 4 ms is critical to avoid data loss or system crashes. The battery technology is based on sealed lead-acid batteries (VRLA), offering high reliability and long service life. The battery capacity is 547 Ah, and the battery recharge time is 3 hours. The hot-swap function allows battery replacement without interrupting power supply.

Compatibility and Accessories

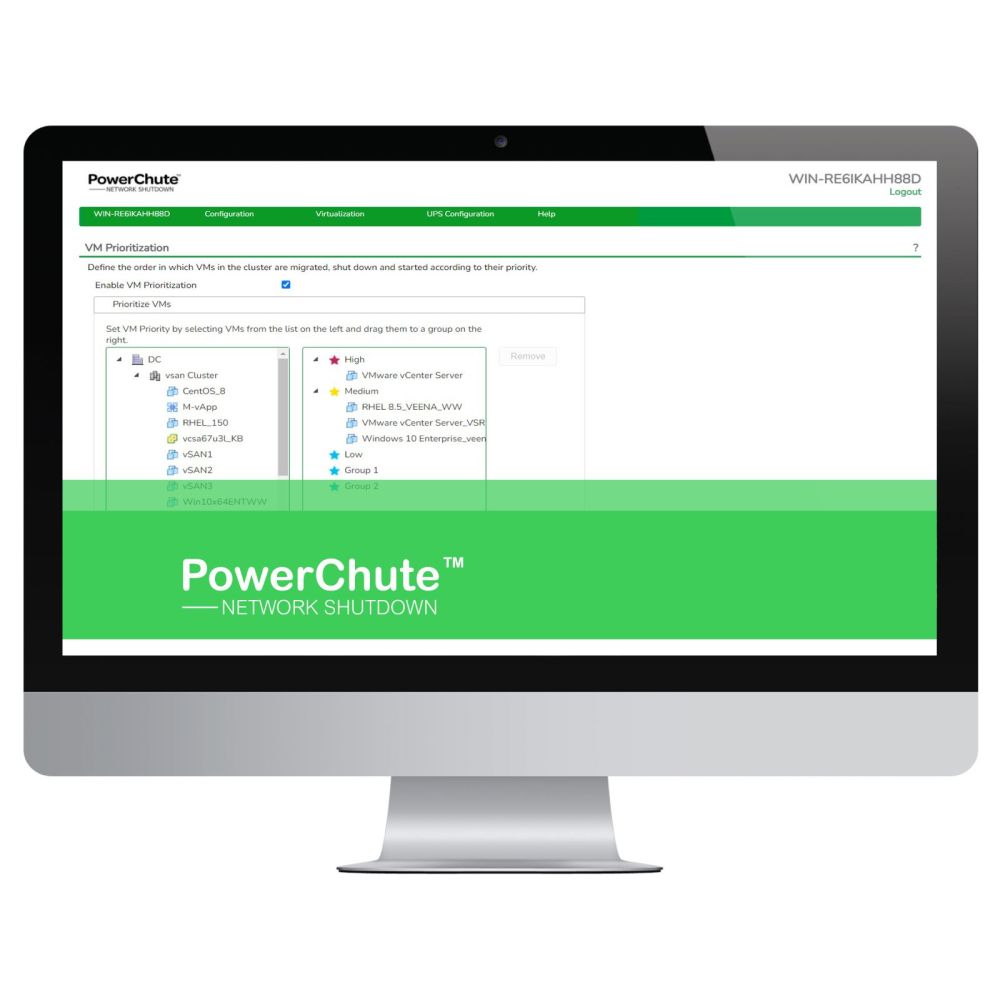

The UPS comes pre-installed with a network management card (AP9641), enabling remote monitoring via SNMP and web browser. The software PowerChute Network Shutdown supports controlled shutdown of physical servers, virtual machines, and HCI clusters to prevent data loss. The UPS is compatible with EcoStruxure IT and other centralized management platforms. As an accessory, the replacement battery cartridge RBC43 is available, suitable for the SUA2200RMI2U and SUA3000RMI2U. Other compatible UPS models include the Effekta MTD RT Lineinteractive UPS, the PR3000ERT2UC and PR3000ERTXL2UC, as well as the All930019RT.

Mounting and Installation

The UPS is designed for mounting in a 19-inch rack and is supplied with a rack mounting kit. Installation is carried out using the designated mounting rails. The supplied input cable is country-specific and detachable, enabling flexible use in different regions. Installation is supported by a quick installation guide.

Operational Advantages

The UPS provides overvoltage protection against lightning strikes, voltage sags, and power failures. The automatic restart function ensures connected devices are automatically powered back on after a power failure. Audible alarms inform the user of critical conditions such as battery replacement. The pressure rise protection function protects the UPS against overloads. The operating temperature ranges from 0 to 40 °C, and the UPS can be operated up to an altitude of 3000 m. The noise level is 55 dB, which is acceptable for rack applications.

Certifications and Sustainability

The UPS complies with standards EN/IEC 62040-1 and EN/IEC 62040-2, which regulate safety and performance of UPS systems. It also meets certifications CE, EAC, GS Mark, IRAM, RCM, VDE, and WEEE. RoHS compliance ensures no harmful substances are used. The product carries the Green Premium certification, indicating sustainable production and packaging practices. The total weight is 44.2 kg, and the dimensions are 480 mm (width) × 683 mm (depth) × 86 mm (height). The delivery includes the rack mounting kit, input cable, USB cable, network management card, and quick installation guide. A resource CD is also included.

The APC Smart-UPS SMT3000RMI2UNC is thus a powerful, reliable, and maintenance-friendly solution for professional use in IT infrastructures requiring continuous power supply and high operational safety.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	547 Ah
Battery recharge time	3 h
Hot-swap battery
Automatic battery test
Cold start
Certificates
Compliance certificates	RoHS
Certification	CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Design
Form factor	Rackmount
Rack capacity	2U
Cable length	2 m
Product colour	Black
Display type	LCD
LED indicators
Features
UPS topology	Line-Interactive
Output power capacity	3 kVA
Output power	2700 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Surge energy rating	320 J
Response time	4 ms
Emergency Power Off (EPO)	O
Noise level	55 dB
Audible alarm modes	Battery replacement
Surge protection
Audible alarm(s)
Web-based management
Auto-restart
Logistics data
Products per pallet	8 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	2958.37
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Other features
Output voltage	230 V
Packaging content
Cables included	Input power cable, USB cable
Rack mount kit
Management card included
Quick installation guide
Packaging data
Package width	600 mm
Package depth	980 mm
Package height	254 mm
Package weight	51.6 kg
Resource CD
Ports & interfaces
AC outlet types	C13 coupler, C19 coupler, C20 coupler
Power plug	C20 coupler
AC outlets quantity	9 AC outlet(s)
USB 2.0 ports quantity	1
SmartSlot
SmartConnect port
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Width	480 mm
Depth	683 mm
Height	86 mm
Weight	44.2 kg

---
