APC SMT2200RMI2UC UPS SMARTUPS 2200 VA LCD RM 2U 230 V (freight shipping)

Your rating:
Average rating
product review for APC SMT2200RMI2UC UPS SMARTUPS 2200 VA LCD RM 2U 230 V (freight shipping)
( 5 / 5 ) 2 ratings
APC SMT2200RMI2UC
This image may differ from the desired article.
APC SMT2200RMI2UCAPC SMT2200RMI2UCAPC SMT2200RMI2UCAPC SMT2200RMI2UCAPC SMT2200RMI2UCAPC SMT2200RMI2UCAPC SMT2200RMI2UCAPC SMT2200RMI2UCAPC SMT2200RMI2UCAPC SMT2200RMI2UCAPC SMT2200RMI2UCAPC SMT2200RMI2UCAPC SMT2200RMI2UC
3.755,35 EUR
( 4.468,87 EUR incl. VAT )
≈ £3,139.47  |  ≈ $4,127.13
Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline
In Stock: >100 pieces
1x APC SMT2200RMI2UC UPS SMARTUPS 2200 VA LCD RM 2U 230 V (freight shipping)
Datasheet:file_download Download
Lieske Part No.:2014238
Mfg Part No: SMT2200RMI2UC
UPC/EAN: 0731304337324
Weight:50.72 kg
Type:SMT2200RMI2UC
Graduated prices net
From piecesPrice per pieces
23.473,70 EUR
43.192,05 EUR
62.910,40 EUR
82.628,75 EUR

Product information for APC SMT2200RMI2UC:

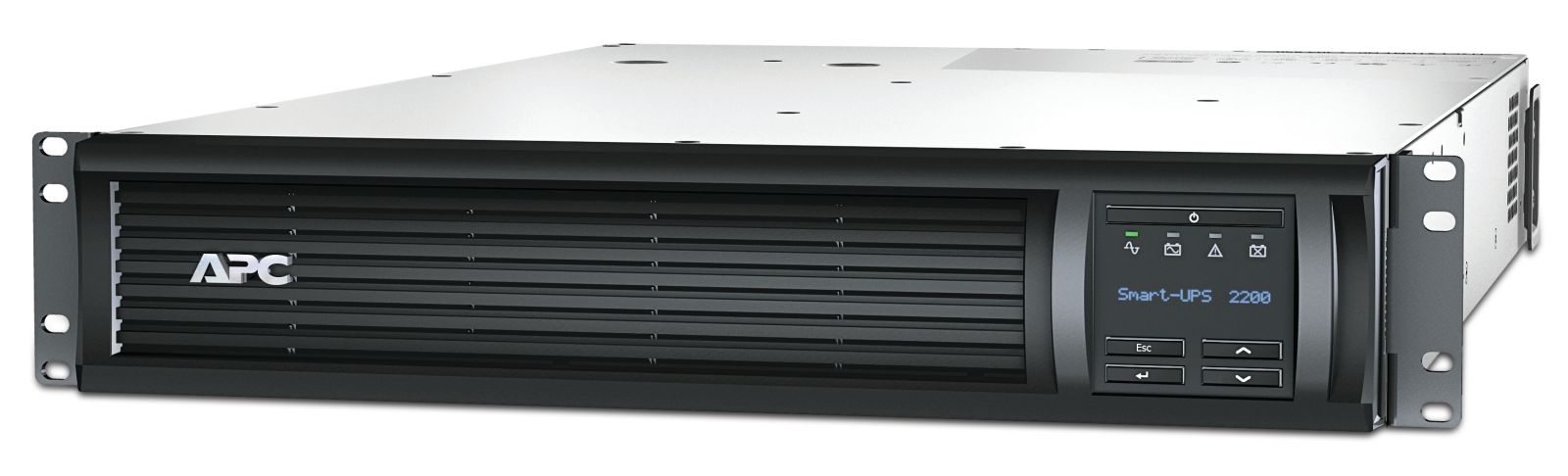

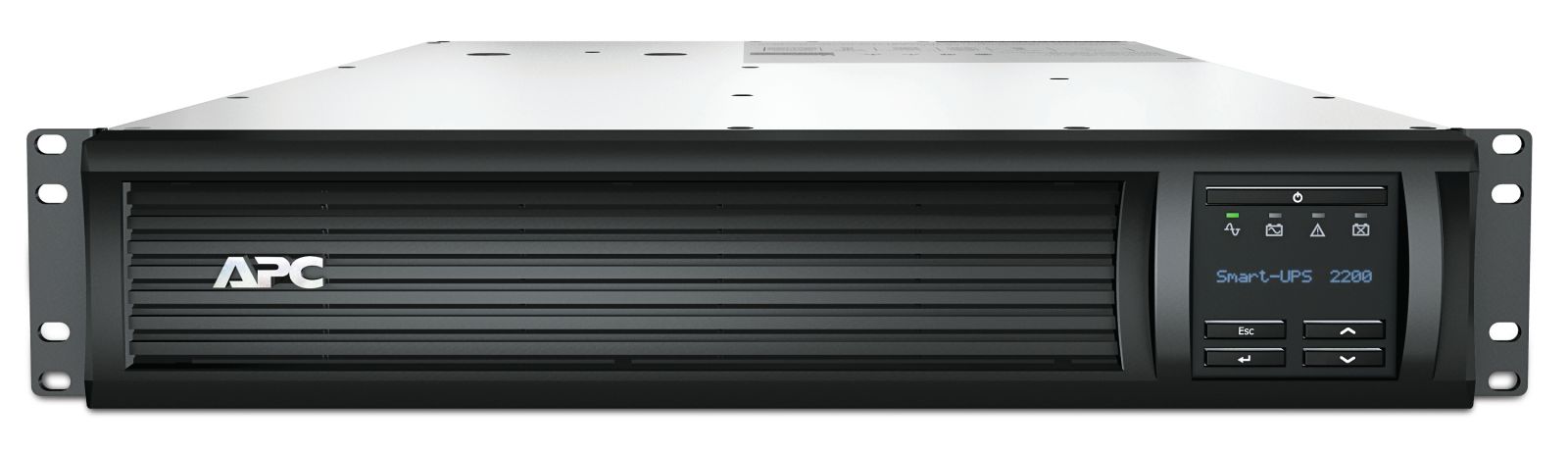

The APC Smart-UPS SMT2200RMI2UC is a line-interactive uninterruptible power supply (UPS) in rackmount format with an output capacity of 2.2 kVA and an output power of 1980 W. It is designed for use in IT infrastructures where continuous power supply for servers, network devices and other critical electronics is required. The device operates with a pure sine wave, suitable for sensitive equipment, and offers a response time of 6 ms to switch immediately to battery mode in case of voltage fluctuations or power outages. The UPS is designed for use in 48,3 cm ( 19 inch ) racks and occupies a height of 2U. The operating temperature ranges from 0 to 40 °C, with relative humidity during operation up to 95 %.

Applications

The SMT2200RMI2UC is suitable for small and medium-sized enterprises as well as IT infrastructures requiring high operational continuity. It is particularly suitable for server rooms, network centers and data centers, where a sudden power failure could lead to data loss or system downtime. The UPS protects connected devices against overvoltage, voltage sags and power outages, thereby extending the lifespan of the devices and preventing damage.

Features and equipment in detail

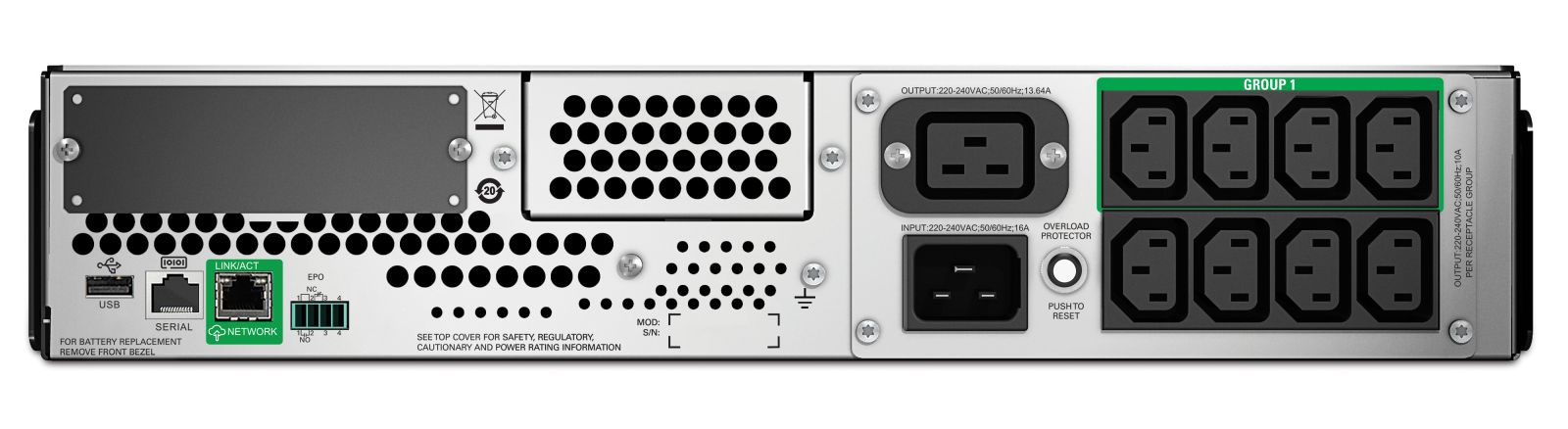

The device features a total of 9 AC outlets, consisting of 8 IEC 320 C13 sockets and one IEC 320 C19 connector, suitable for powering various IT devices. Additionally, 3 IEC bypass cables are integrated to optimize cabling. The UPS offers a USB port (Type-A) and a serial interface (RS-232), used for communication with the APC PowerChute software, enabling controlled shutdown of connected devices in case of power failure. An LCD display allows the display of operating states, load values and alarms.

Technology explained simply

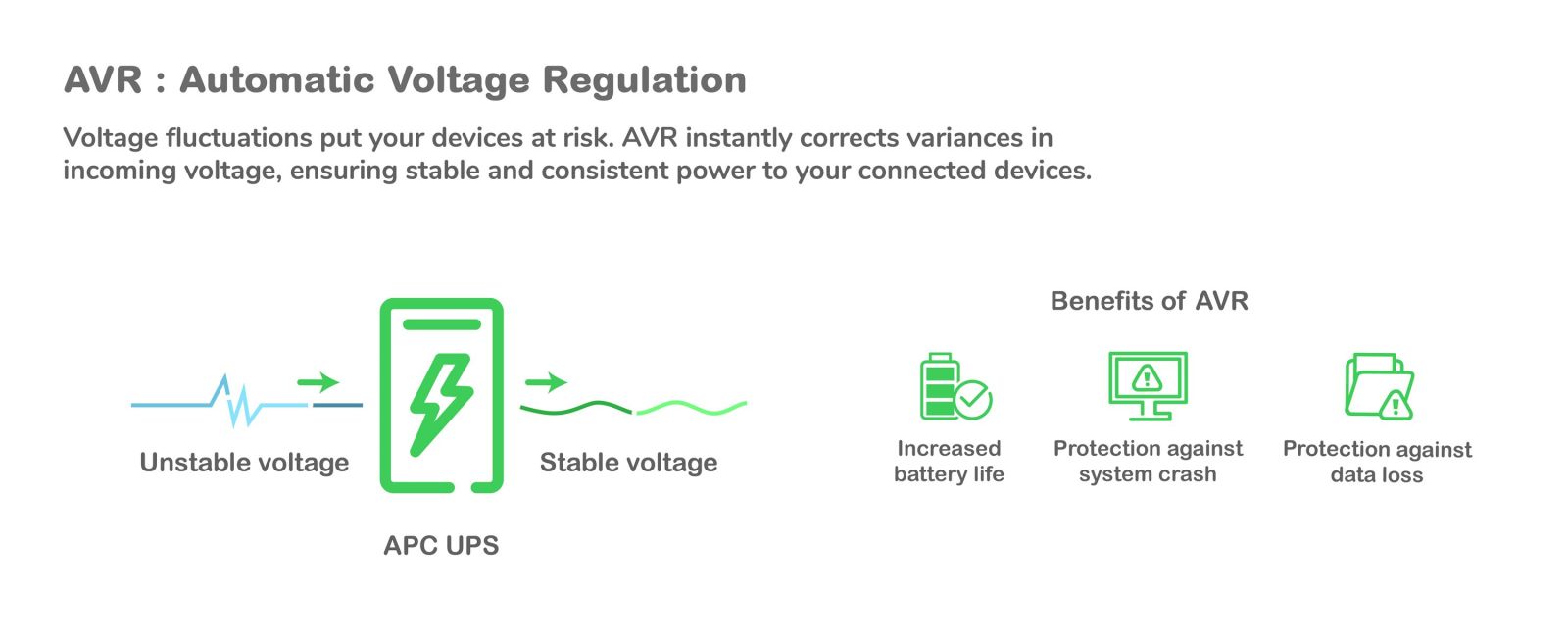

The UPS operates according to the line-interactive topology, where the mains voltage is normally passed directly to the load. In case of voltage fluctuations, the UPS automatically switches to battery mode, where the battery supplies the load via an inverter with a pure sine wave. The input operating voltage ranges from 151 V to 302 V, and the output voltage ranges from 220 V to 240 V. The total harmonic distortion (THD) of the output voltage is 5 %, which is acceptable for sensitive devices. The battery is a sealed lead-acid (VRLA) with a maximum lifespan of 5 years and a charging time of 3 hours. The battery cartridge RBC43 is user-replaceable, thereby extending the lifespan of the UPS without having to replace the entire unit.

Compatibility and accessories

The UPS is equipped with a SmartSlot, into which an optional network management card (e.g. AP9640 or AP9641) can be inserted. This enables remote monitoring over the network, use of SNMP and integration into management platforms such as EcoStruxure IT. The SmartConnect function allows cloud-based remote monitoring via the APC SmartConnect web portal, enabling the status of the UPS to be monitored from any internet-enabled device. Additionally, an Ethernet LAN port (RJ-45) and a SmartConnect port are available to facilitate integration into existing networks.

Mounting and installation

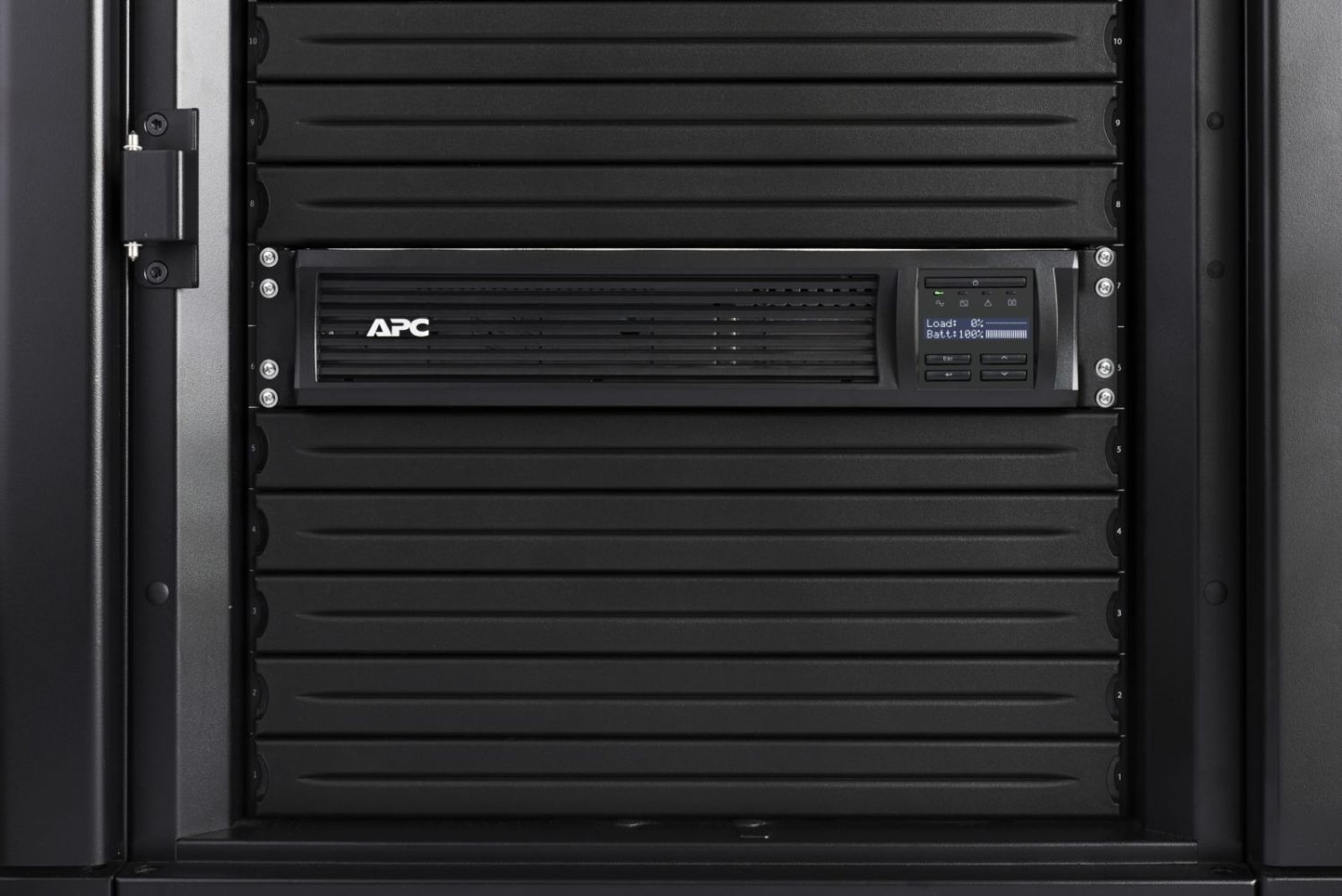

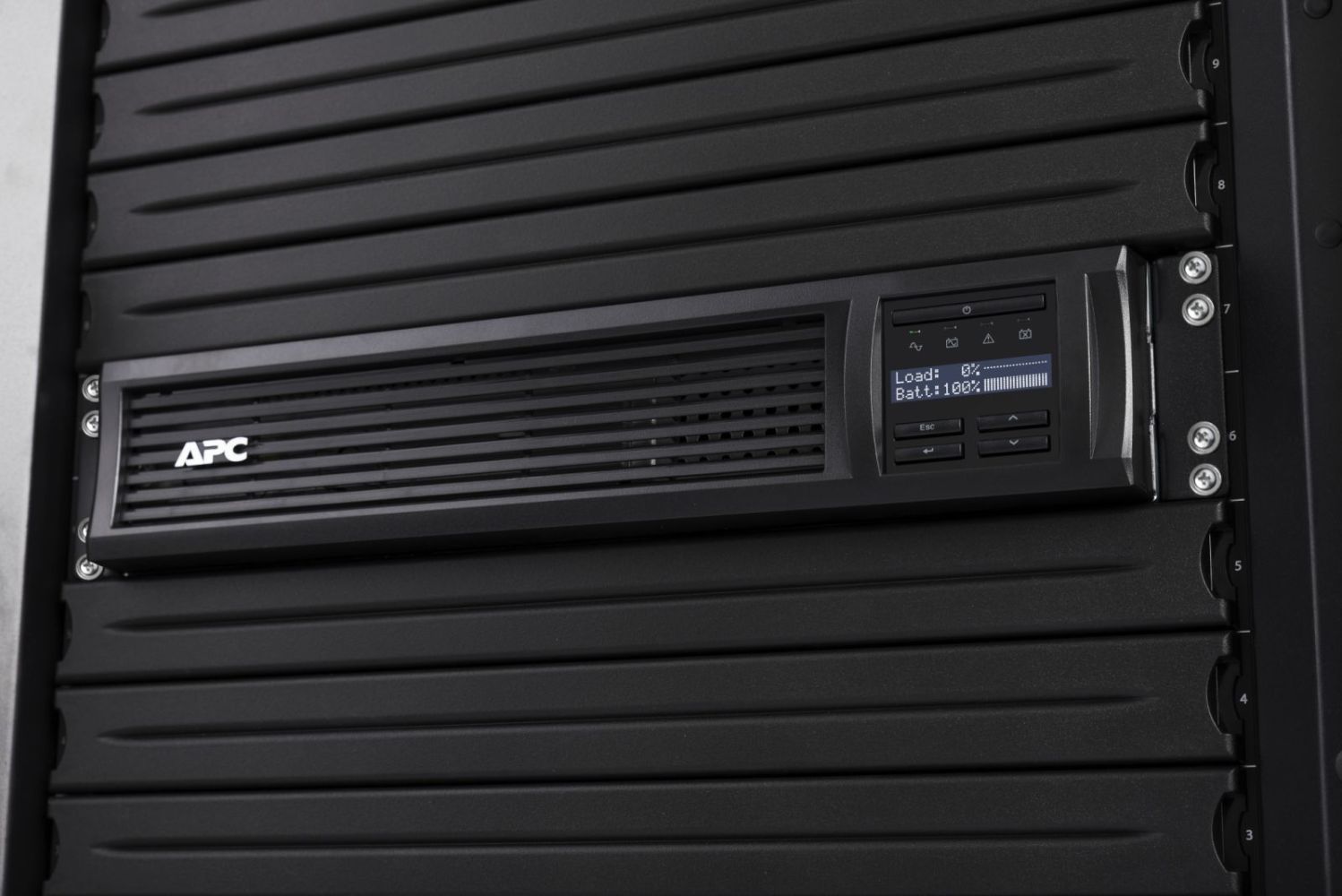

The UPS is designed for mounting in a 48,3 cm ( 19 inch ) rack and is delivered with a rack mounting kit. The cable length is 2 m, allowing for flexible placement. Installation should be carried out by a qualified electrician to ensure compliance with national and local electrical and safety regulations. The UPS is intended exclusively for indoor use and must not be operated in direct sunlight, in contact with liquids or in environments with excessive dust or humidity.

Advantages in operation

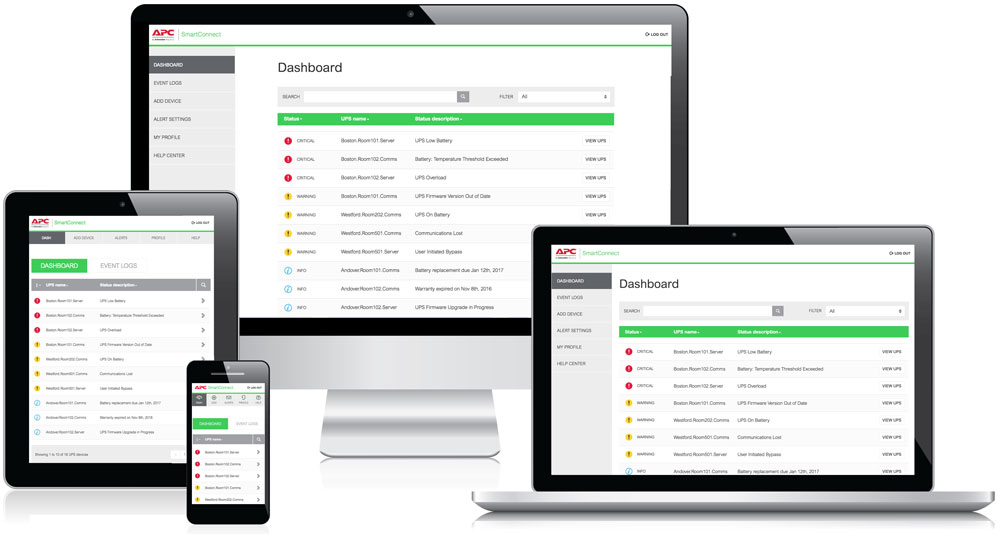

The APC Smart-UPS SMT2200RMI2UC offers reliable power supply with minimal interruption time. The integrated overvoltage protection function protects connected devices from damage caused by lightning strikes or voltage spikes. Remote monitoring via SmartConnect and the ability to replace the battery independently reduce maintenance effort and increase operational safety. The noise emission is 55 dB, which is acceptable for a rack server room. The UPS is equipped with various certifications such as CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, RCM, VDE and WEEE, confirming compliance with European and international standards. The delivery includes a rack mounting kit, a USB cable and an RS-232 cable. A software CD is also included in the delivery scope.

Certification and sustainability

The UPS meets the requirements of the RoHS directive and carries the Green Premium certificate, indicating environmentally friendly manufacturing and disposal. The certifications CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE and WEEE confirm the safety and compliance of the device with international standards. The manufacturer's warranty is 3 years for electronics and 2 years for the battery.

Battery
Battery technologySealed Lead Acid (VRLA)
Number of batteries supported1
Battery life (max)5 year(s)
Battery recharge time3 h
Replacement battery cartridgeRBC43
Certificates
Compliance certificatesRoHS
CertificationCE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Design
Form factorRackmount
Rack capacity2U
Cable length2 m
Product colourBlack, Metallic

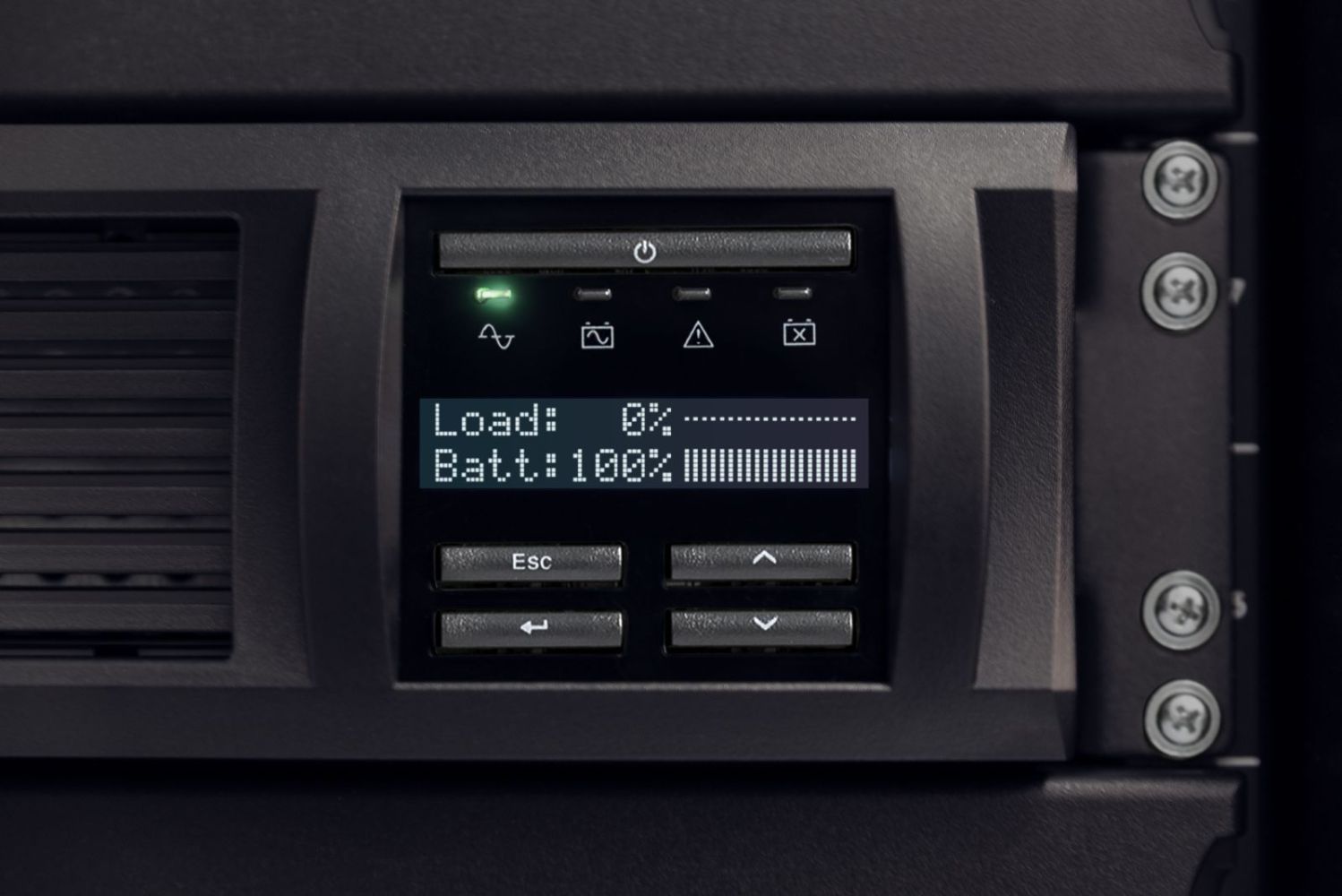

Display typeLCD
Features
UPS topologyLine-Interactive
Output power capacity2.2 kVA
Output power1980 W
WaveformSine
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating375 J
Response time6 ms
Output voltage Total Harmonic Distortion (THD)5%
Noise level55 dB
Power protection featuresOver voltage
Audible alarm modesAlarm when on battery, Low battery alarm
Audible alarm(s)Yes
Logistics data
Products per pallet8 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)3416.11
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Packaging content
Cables includedRS-232, USB cable
Rack mount kitYes
Management card includedNo
Packaging data
Package width600 mm
Package depth980 mm
Package height254 mm
Package weight49.7 kg
Software CDYes

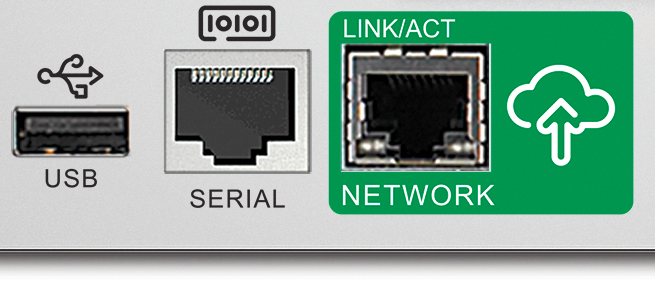

Ports & interfaces
AC outlet typesC13 coupler, C19 coupler
AC outlets quantity9 AC outlet(s)
Number of output IEC jumpers3
USB 2.0 ports quantity1
USB port typeUSB Type-A
Serial interface typeRJ-45
Ethernet LAN (RJ-45) ports1
USB portYes
Serial interfaceYes
SmartSlotYes
SmartConnect portYes
Sustainability
Sustainability certificatesGreen Premium
Weight & dimensions
Width432 mm
Depth683 mm
Height86 mm
Weight42.3 kg


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for APC SMT2200RMI2UC, EAN: 0731304337324

Questions & answers

What is the delivery time of APC SMT2200RMI2UC UPS SMARTUPS 2200 VA LCD RM 2U 230 V (freight shipping)?

The article APC SMT2200RMI2UC UPS SMARTUPS 2200 VA LCD RM 2U 230 V (freight shipping) is currently in stock

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC SMT2200RMI2UC to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you APC SMT2200RMI2UC UPS SMARTUPS 2200 VA LCD RM 2U 230 V (freight shipping) always at the best possible price. We can give you a discount of 2% on APC SMT2200RMI2UC UPS SMARTUPS 2200 VA LCD RM 2U 230 V (freight shipping) if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC SMT2200RMI2UC UPS SMARTUPS 2200 VA LCD RM 2U 230 V (freight shipping) we can offer you a price of 3.473,70 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
