APC SMX1000I Smart-UPS X 1000 VA LCD content_copy

The APC Smart-UPS X SMX1000I is a line-interactive uninterruptible power supply (UPS) with an output capacity of 1 kVA and an output power of 800 W. It is designed for use in server rooms, network enclosures, small data centers, as well as for business VoIP systems and data storage solutions such as NAS (Network Attached Storage). The device provides a pure sine wave output, which is essential for the safe operation of sensitive IT and network equipment. The UPS operates with a nominal input voltage of 230 V and can handle input voltages between 151 V and 302 V, ensuring stable operation even during voltage fluctuations in the grid. The automatic voltage regulation (AVR) ensures a constant output voltage without activating the battery, thereby extending the battery life and increasing efficiency. The efficiency is 98.2 %, ensuring high energy utilization and low operating costs.

Applications

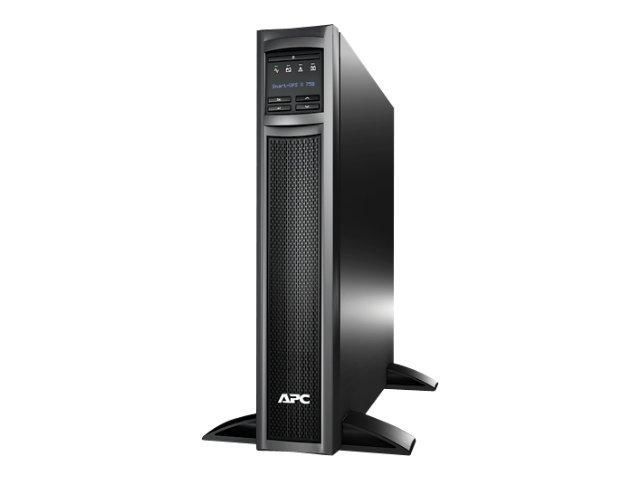

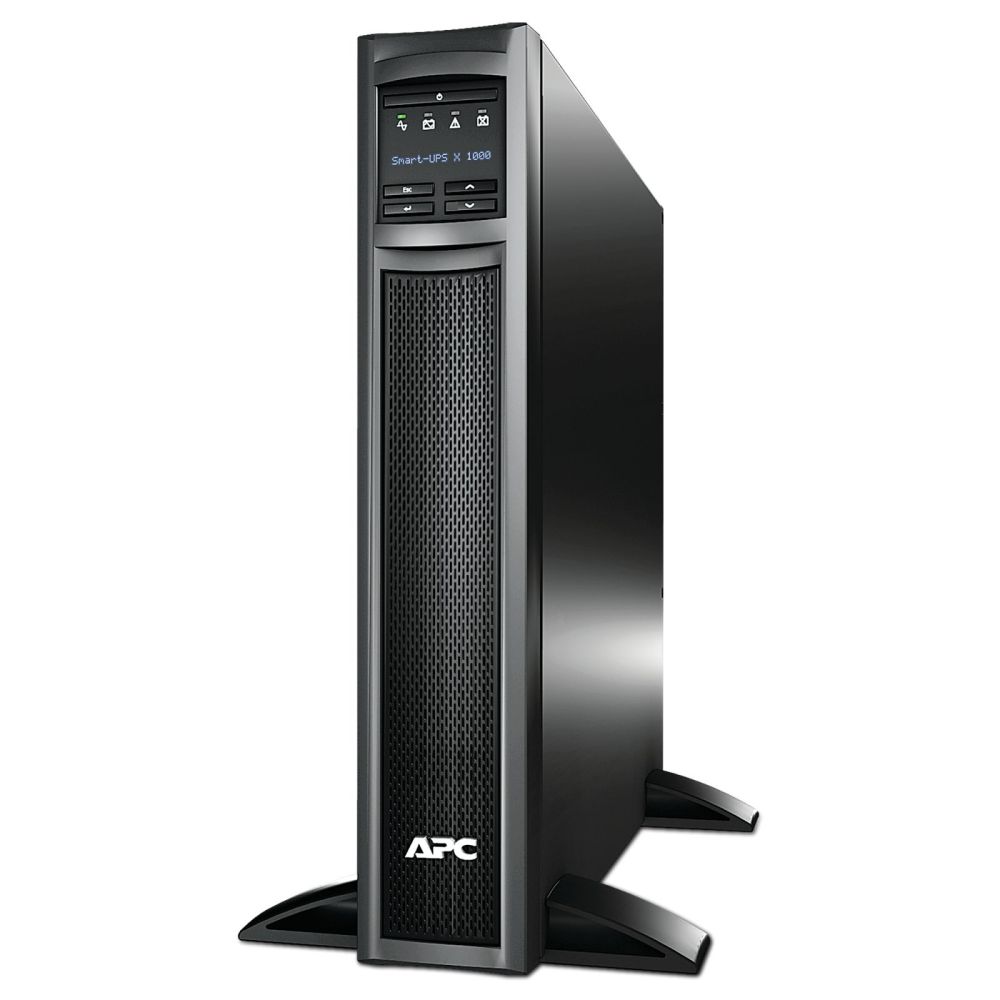

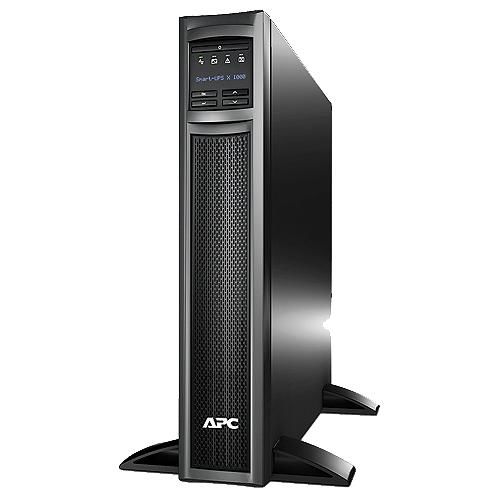

The SMX1000I is designed for use in professional IT environments where continuous power supply is critical. It protects connected devices from voltage spikes, overvoltages, power outages, and other power supply disturbances. The UPS is ideal for use in rack systems (2U) or as a tower unit, with installation made easy and flexible thanks to the included rack mounting bracket and removable support feet. The convertibility between rack and tower operation allows for application-specific installation.

Features and Equipment in Detail

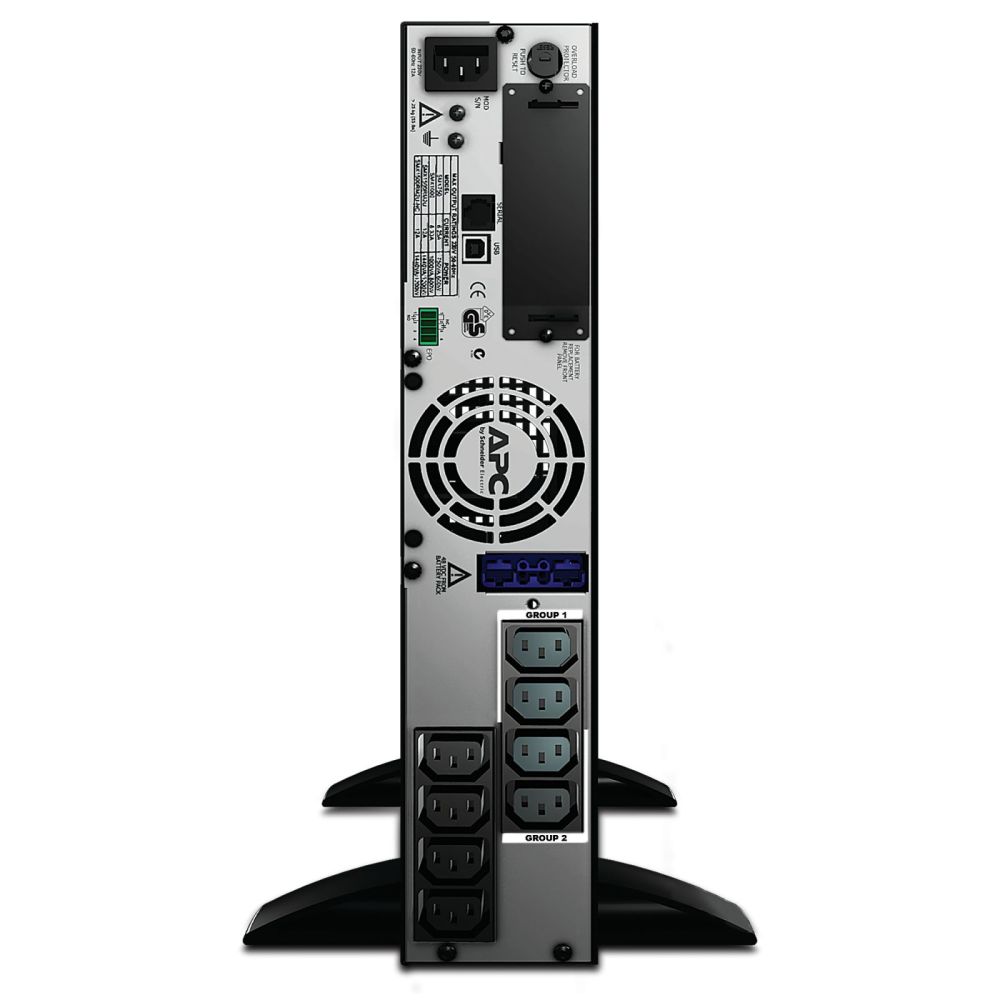

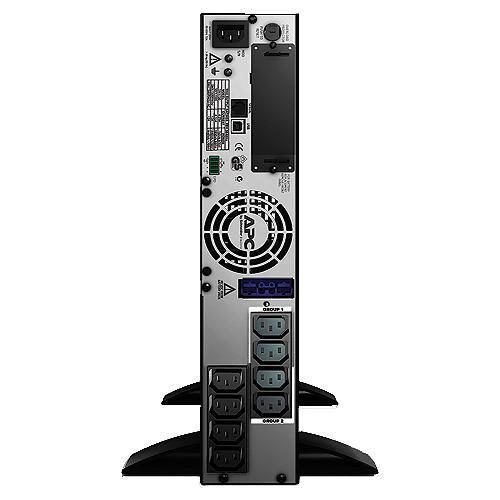

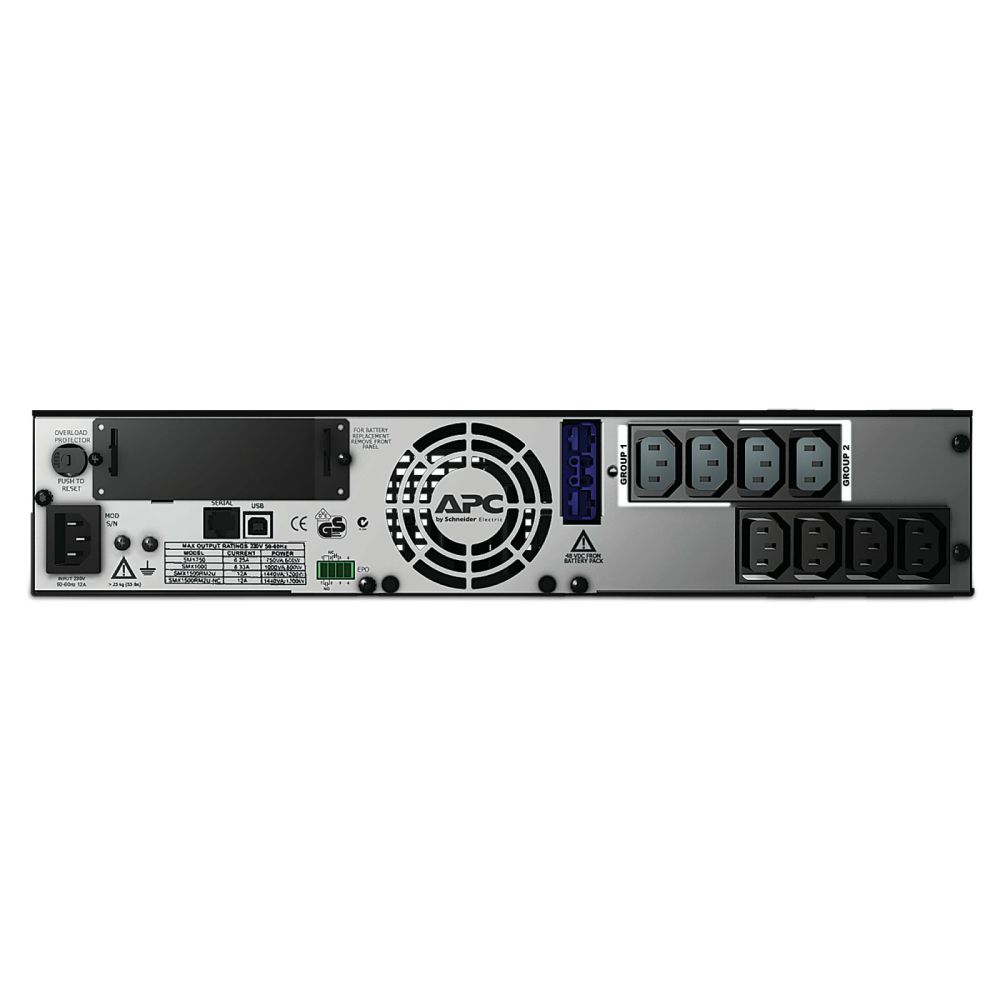

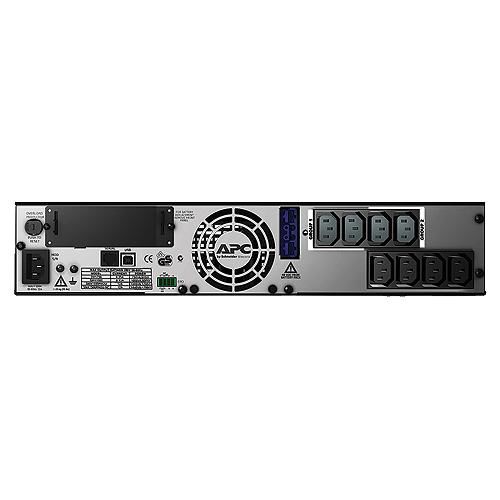

The device features 8 AC outlets of type IEC 320 C13, suitable for powering servers, switches, routers, and other IT equipment. Two IEC jumper cables (Output IEC Jumper) enable flexible use of the outlets. The UPS is equipped with a USB port and an RS-232 serial port to enable local control and monitoring. The integrated LCD user interface displays operational status, remaining runtime, battery charge, and other relevant information. The interface supports multiple languages and allows for easy on-site configuration. An emergency power off (EPO) switch enables immediate shutdown of the UPS in an emergency.

Technology Explained Simply

The line-interactive topology of the SMX1000I means that the UPS is supplied directly from the grid during normal operation, but automatically regulates voltage within the defined range (151–302 V) during voltage fluctuations without drawing on the battery. Only in the event of a complete power failure or voltages outside the regulation range does the UPS switch to battery operation. The battery is a sealed lead-acid battery (VRLA) with a capacity of 299 VAh. The typical backup time is 8.1 minutes at full load and 24.2 minutes at half load. The battery can be fully charged in 3 hours. An automatic battery test regularly checks the battery condition to enable early detection of wear. The UPS supports cold start, allowing it to be turned on even without grid power.

Compatibility and Accessories

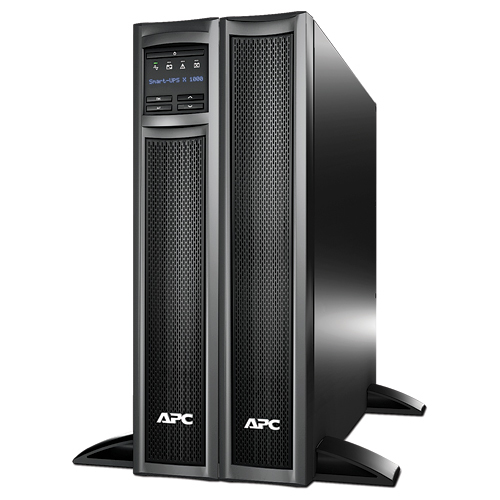

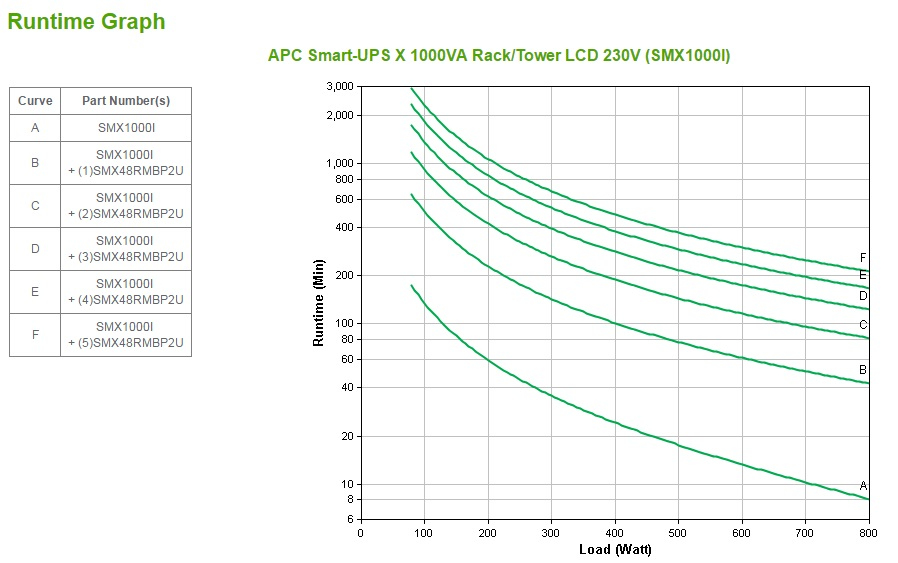

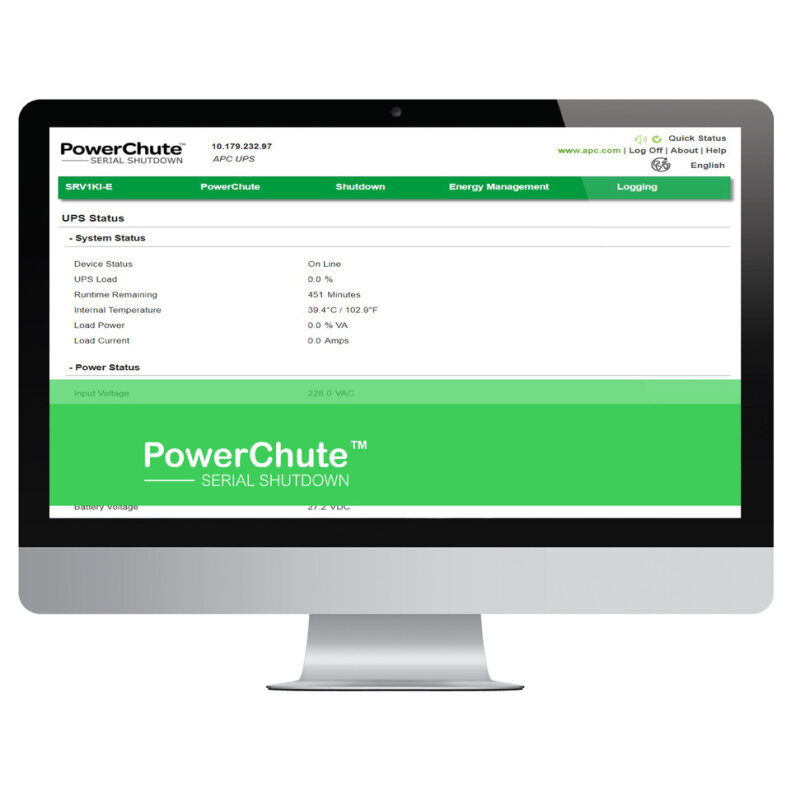

The SMX1000I is equipped with a SmartSlot slot, enabling the installation of optional management cards such as the AP9640 or AP9641. These cards allow network-based monitoring and remote control via SNMP or the APC PowerChute Network Shutdown software. Remote management enables controlled shutdown of servers and virtual machines in the event of a power outage. Additionally, external battery modules such as the SMX48RMBP2U can be connected to extend backup time. The maximum number of external battery modules is ten, enabling runtime of several hours. The UPS is equipped with an energy consumption meter that monitors the power usage of connected devices.

Mounting and Installation

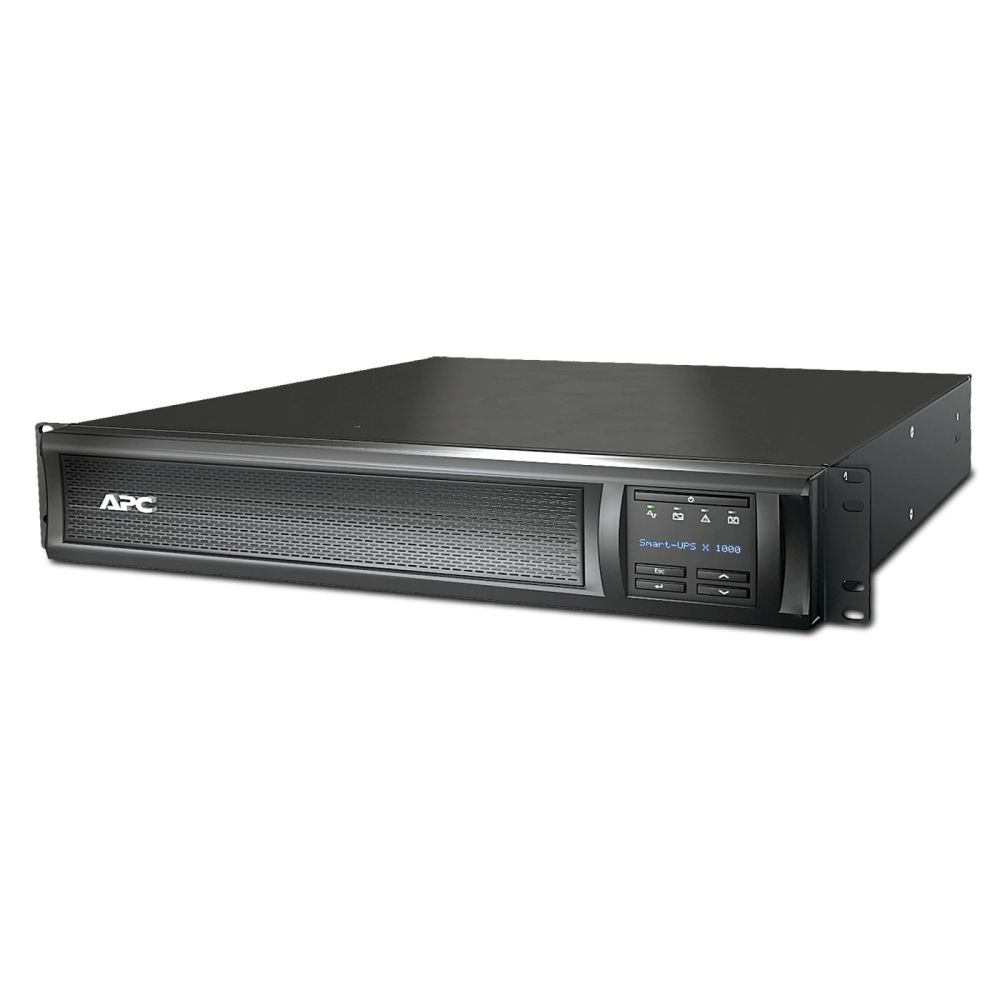

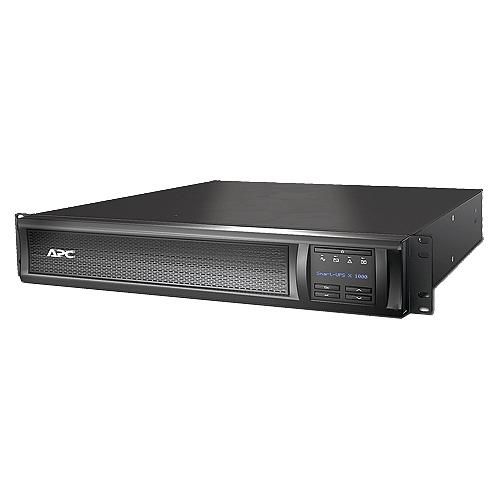

The SMX1000I is designed as a rack/tower unit and occupies 2U in a rack. Mounting is done using the included rack mounting bracket. The power cord length is 1.83 m. Installation is carried out according to the instructions in the included installation manual, which is available on the supplied software CD and on the APC website. The UPS is intended for indoor use and must not be operated in direct sunlight, in contact with liquids, or in environments with excessive dust or humidity. Airflow must be ensured to allow sufficient cooling.

Operational Advantages

The SMX1000I offers high operational reliability through the combination of automatic voltage regulation, pure sine wave output, and extendable runtime. Remote management via network management cards enables centralized monitoring and control, which is particularly beneficial in larger IT infrastructures. The switched outlet groups (Switched Outlet Groups) allow for phased powering on of connected devices to reduce inrush current. The integrated LED indicators and audible alarms (low battery warning, overload alarm) support operation with visual and audible feedback. The UPS complies with standards CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, RoHS, REACH, PEP, and EOLI. The operating temperature range is 0 °C to 40 °C, and the storage temperature range is -15 °C to 45 °C. The relative humidity during operation is 0–95 %, non-condensing. The maximum operating altitude is 3000 m. The manufacturer's warranty is 3 years for electronics and 2 years for the battery.

Scope of Delivery

The scope of delivery includes the rack mounting bracket, RS-232 cable, USB cable, quick installation guide, and software CD.

Sustainability

The device carries the Green Premium certification, indicating environmentally friendly manufacturing and a reduced ecological footprint. The total carbon dioxide footprint is 1153.31 kg CO2e.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	299 VAh
Typical backup time at full load	8.1 min
Typical backup time at half load	24.2 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery
Automatic battery test
Cold start
Certificates
Compliance certificates	RoHS
Certification	CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Design
Form factor	Rackmount/Tower
Rack capacity	2U
Cable length	1.83 m
Product colour	Black
LED indicators
Features
UPS topology	Line-Interactive
Output power capacity	1 kVA
Output power	800 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Output frequency regulation	50/60 Hz
Surge energy rating	600 J
Efficiency	98.2%
Noise level	40 dB
Audible alarm modes	Low battery alarm, Overload alarm
Automatic Voltage Regulation (AVR)
Emergency Power Off (EPO)
Surge protection
Audible alarm(s)
Auto-restart
Logistics data
Products per pallet	8 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1153.31
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V
Packaging content	Removable support feet
Packaging content
Cables included	RS-232, USB cable
Rack mount kit
Management card included
Quick installation guide
Packaging data
Package width	589 mm
Package depth	620 mm
Package height	246 mm
Package weight	27.3 kg
Software CD
Ports & interfaces
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
Number of output IEC jumpers	2
USB port
SmartSlot
SmartConnect port
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Width	432 mm
Depth	490 mm
Height	89 mm
Weight	22.9 kg

---
