Smart-UPS 1000VA LCD RM UPS Rack AC 220/230/240V 700Watt 1000VA Ethernet 10/100 RS-232 USB oc 4 2 U black with APC SmartConnect content_copy

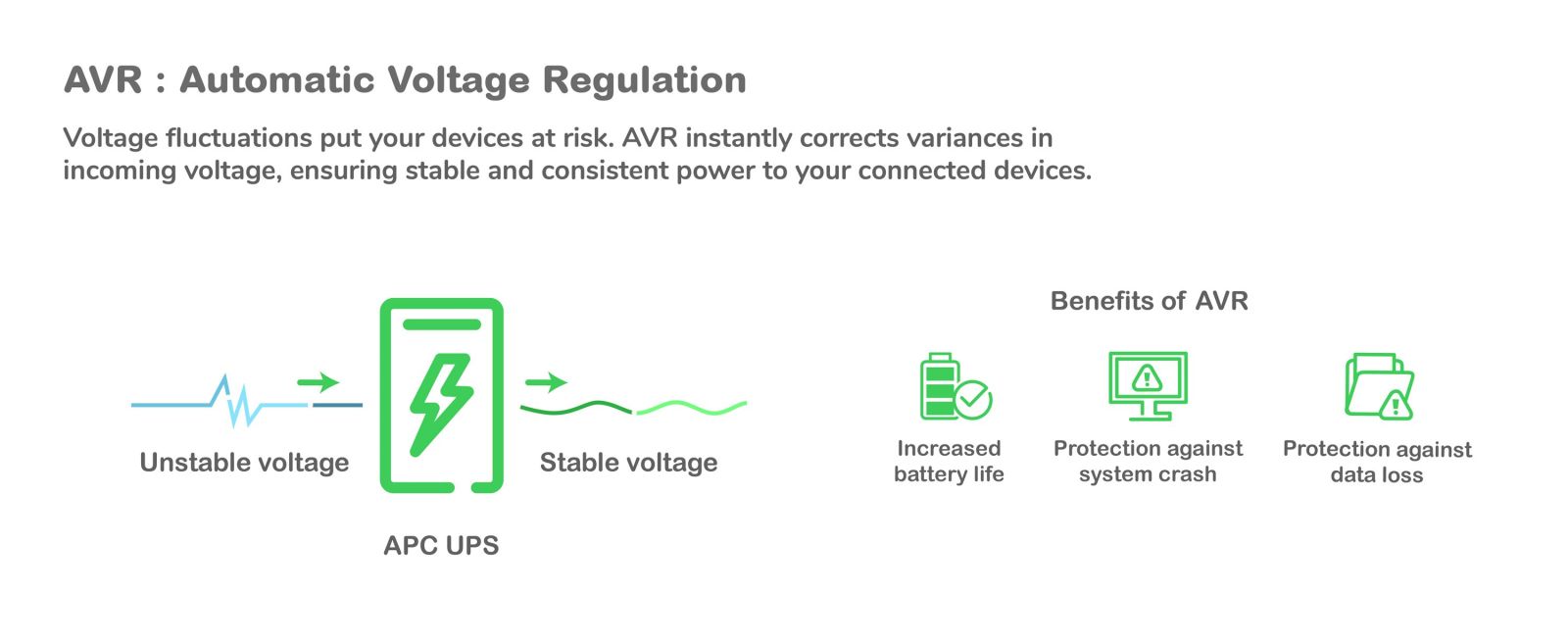

The APC Smart-UPS SMT1000RMI2UC is a Line-Interactive UPS in Rackmount format with an output capacity of 1 kVA and an output power of 700 W. The device is designed for use in server and network environments, particularly in small businesses, IT enclosures, VoIP systems, and POS cash register systems in retail. The UPS provides a pure sinusoidal output AC voltage (Sine), suitable for sensitive electronic devices, and features automatic voltage regulation (AVR), which corrects voltage fluctuations in the input range of 151 V to 302 V without switching to battery power. The output voltage ranges between 220 V and 240 V, with a frequency of 50/60 Hz. The response time is 10 ms, enabling rapid transfer of power supply during power outages. The total harmonic distortion (THD) of the output voltage is 5 %, ensuring stable and clean power supply.

Applications

The UPS is designed for use in IT infrastructures where continuous power supply is critical. It protects connected devices such as servers, network switches, routers, and cash register systems from power failures, voltage surges, and other power disturbances. The surge protection function provides additional protection against transient voltage spikes caused by lightning strikes or other electrical disturbances. The temperature-voltage compensation ensures that the output voltage remains stable at different ambient temperatures, enhancing the reliability of connected devices.

Functions and Equipment in Detail

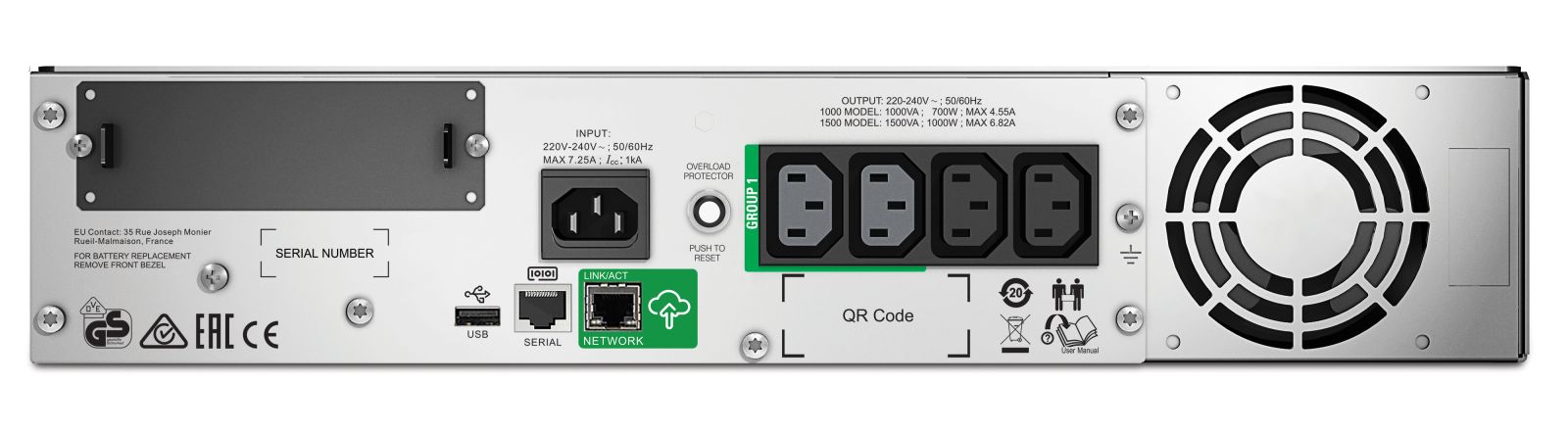

The device features four C13 AC outlets, suitable for powering standard IT equipment. The hot-swap battery allows replacement of the battery cartridge (APCRBC132) without shutting down the UPS or connected devices, ensuring operational continuity. The battery life is up to 6 years, and the battery recharge time is 3 hours. An automatic battery test regularly checks battery functionality to detect wear or defects early. The cold start function enables operation of the UPS even without mains connection, as long as the battery is sufficiently charged.

Technology Explained Simply

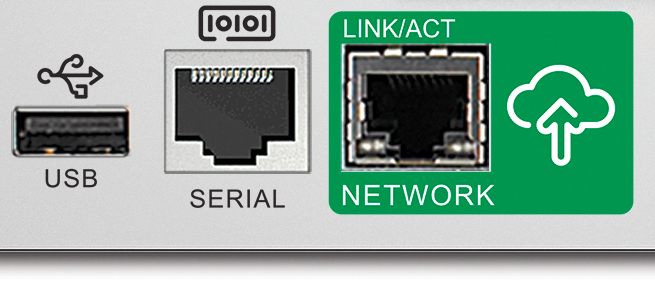

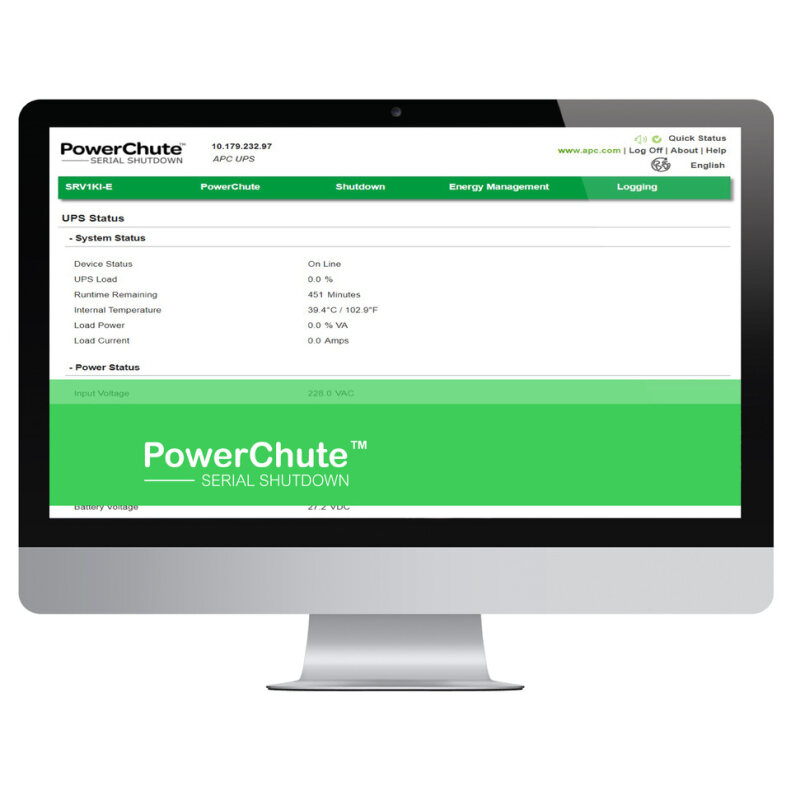

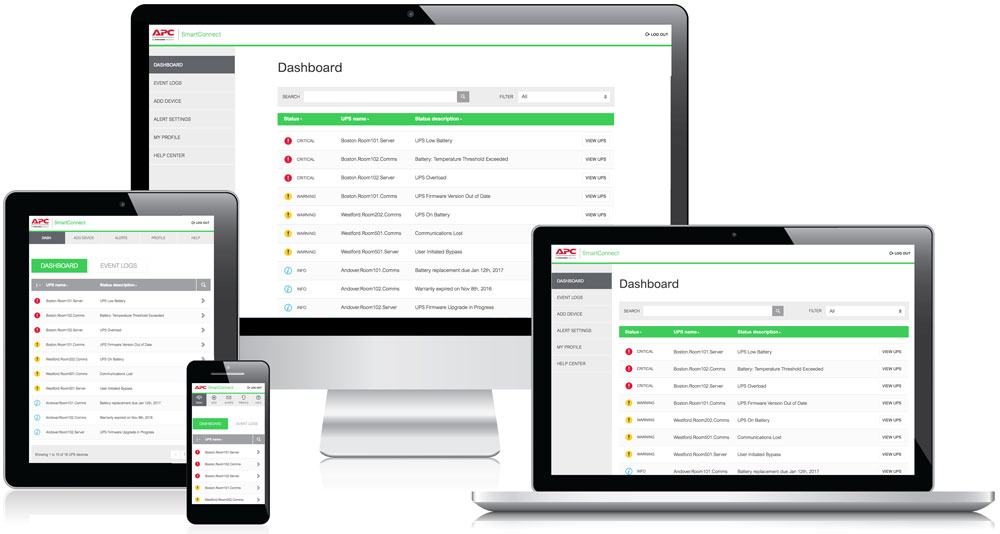

The Line-Interactive topology combines the efficiency of an online system with the flexibility of an offline system. Under normal mains voltage, the load is supplied directly from the mains, while the AVR stabilizes the voltage. In the event of a power failure, the UPS switches to battery power within 10 ms. The SmartConnect function enables web-based remote monitoring via an Ethernet port (RJ-45), allowing the UPS status to be checked through the secure cloud-based APC SmartConnect web portal. The USB interface (Type-A) and the serial interface (RS-232) allow integration into IT management systems. The free PowerChute software can be connected via USB or serial to initiate a controlled shutdown of connected devices during prolonged power outages, preventing data loss and hardware damage.

Compatibility and Accessories

The UPS is equipped with a SmartSlot, into which optional network management cards such as the AP9640 or AP9641 can be inserted. These extend remote management functions and enable monitoring via SNMP as well as controlling shutdown processes for multiple servers over the network. The battery cartridge APCRBC132 is available as a spare part and can be replaced as needed. The battery cartridge replacement is thus a central component of maintenance and extending the device’s lifespan.

Mounting and Installation

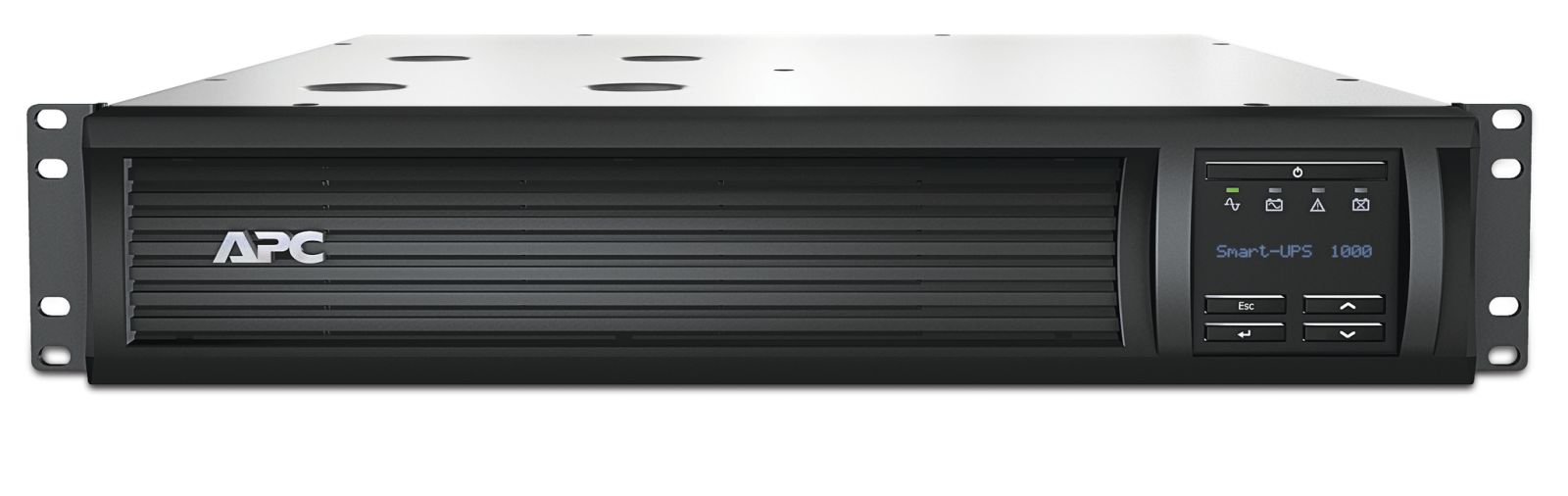

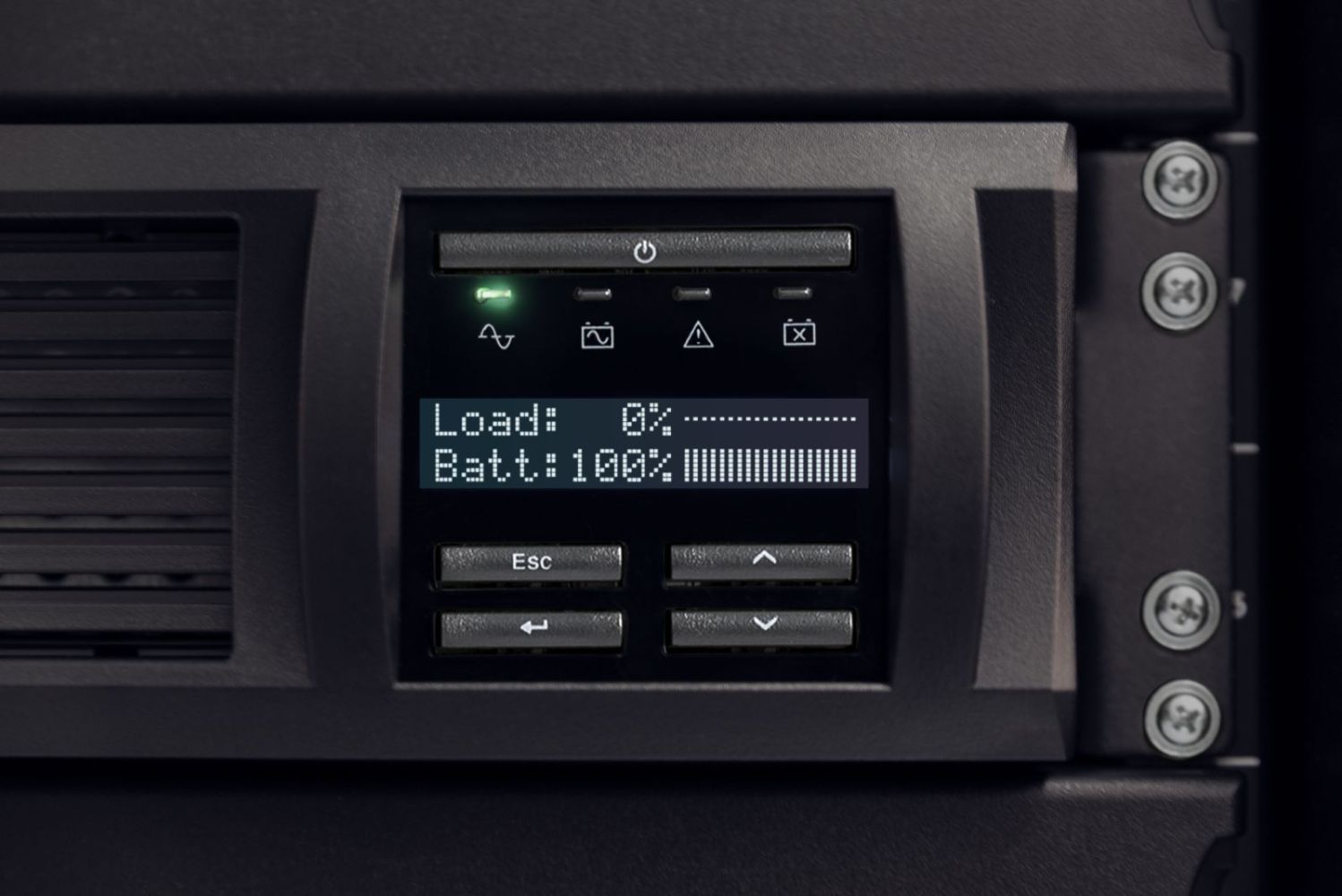

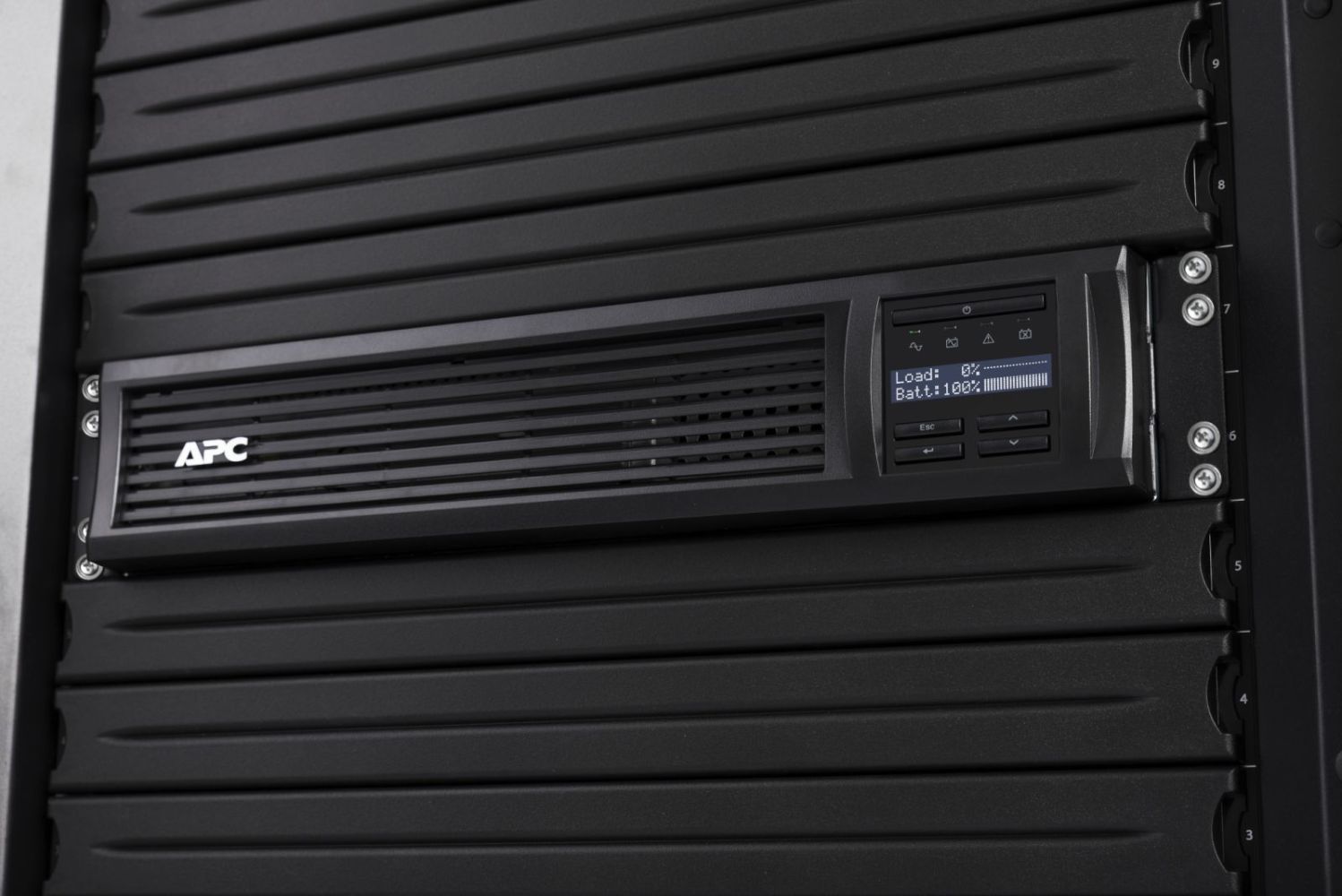

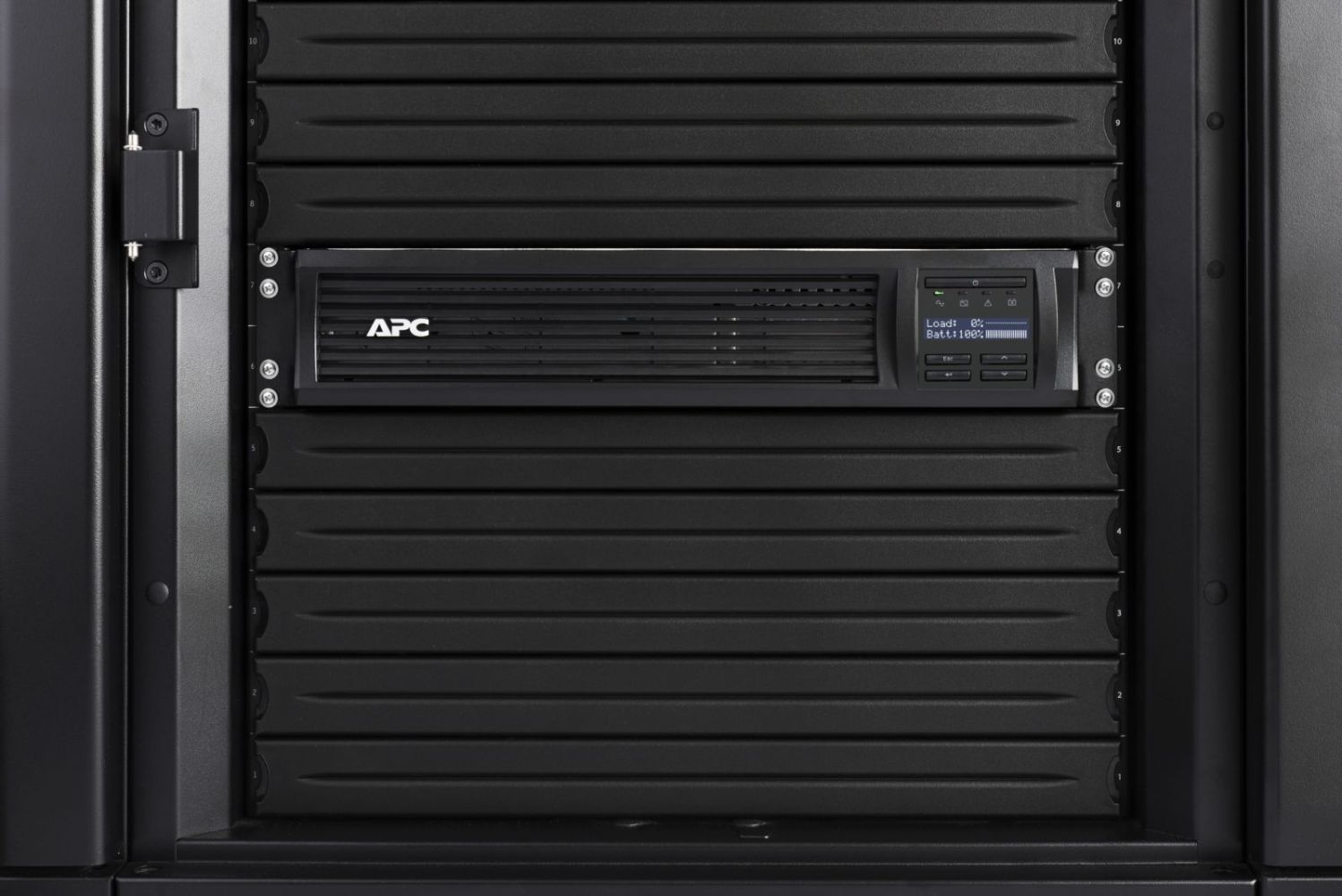

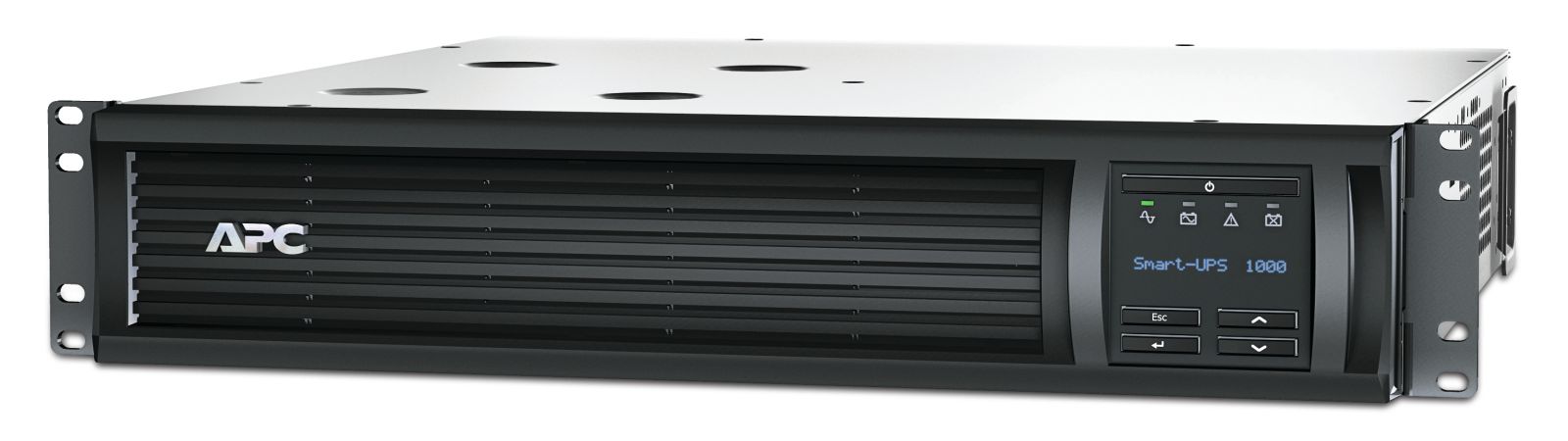

The device has a rack capacity of 2U and is designed for installation in standard 19-inch racks. The delivery includes a rack mounting kit, facilitating secure installation. The product color is black, and the device features an LCD display and LED indicators showing operational status, battery charge level, and any faults. The noise level is 45 dB, suitable for quiet operation in office environments.

Operational Advantages

The auto-restart function ensures that the UPS automatically restarts after a power failure once mains voltage is restored. Energy efficiency is supported by the Line-Interactive technology and automatic voltage regulation. Certifications include, among others, EN/IEC 62040-1, EN/IEC 62040-2, UL 1778, VDE, RCM, EAC, and REACH, confirming safety and compliance with international standards. The device is designed for operating temperatures from 0 to 40 °C and relative humidity from 0 to 95 %. Storage is possible at temperatures from -15 to 45 °C and humidity from 0 to 95 %. The maximum operating altitude is 3000 m, and the storage altitude is 15000 m.

The delivery includes a rack mounting kit, an RS-232 cable, a USB cable, a quick installation guide, a software CD, and a resources CD. The sustainability certification Green Premium highlights the manufacturer’s environmentally conscious approach. The weight is 22.5 kg, and the dimensions are 432 mm (width) × 477 mm (depth) × 86 mm (height).

Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery life (max)	6 year(s)
Battery recharge time	3 h
Replacement battery cartridge	APCRBC132
Hot-swap battery
Automatic battery test
Cold start
Certificates
Compliance certificates	RoHS
Certification	EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
Design
Form factor	Rackmount
Rack capacity	2U
Product colour	Black
Display type	LCD
LED indicators
Features
UPS topology	Line-Interactive
Output power capacity	1 kVA
Output power	700 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Surge energy rating	459 J
Response time	10 ms
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	45 dB
Automatic Voltage Regulation (AVR)
Surge protection
Web-based management
Auto-restart
Temperature voltage compensation
Logistics data
Products per pallet	8 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	1165.17
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Packaging content
Cables included	RS-232, USB cable
Rack mount kit
Management card included
Quick installation guide
Packaging data
Package width	594 mm
Package depth	603 mm
Package height	251 mm
Package weight	31.4 kg
Resource CD
Software CD
Ports & interfaces
AC outlet types	C13 coupler
AC outlets quantity	4 AC outlet(s)
USB port type	USB Type-A
Serial interface type	RJ-45
Ethernet LAN (RJ-45) ports	1
USB port
Serial interface
SmartSlot
SmartConnect port
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Width	432 mm
Depth	477 mm
Height	86 mm
Weight	22.5 kg

---
