ALLNET ALL3419 IP MSR central 3x I2C, 1x USB, LAN/WLAN

ALLNET ALL3419 / IP MSR central 3x I2C, 1x USB, LAN/WLAN
Building control via network made easy
Highlights:Sensor detection via network
Robust metal housing
Suitable for all operating systems
SNMP software module to install
3x I2C sensor ports for optional sensors and actuators

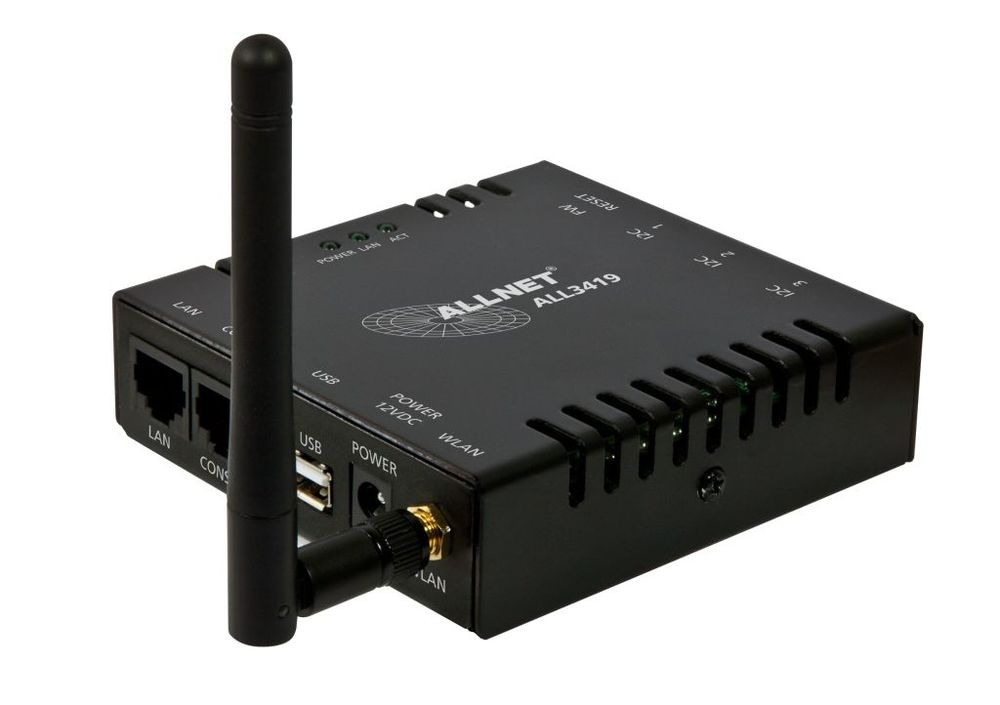

1x USB 2.0 for optional Wireless sensors "EnOcean and Plugwise\dlashThe ALLNET ALL3419 IP thermometer/sensor center is a flexible and cost-effective solution for temperature detection via network. Thanks to its extremely compact design, it can also be used in places that are difficult to access. The robust metal housing has tabs for attaching to the wall and ceiling and protects against mechanical damage.

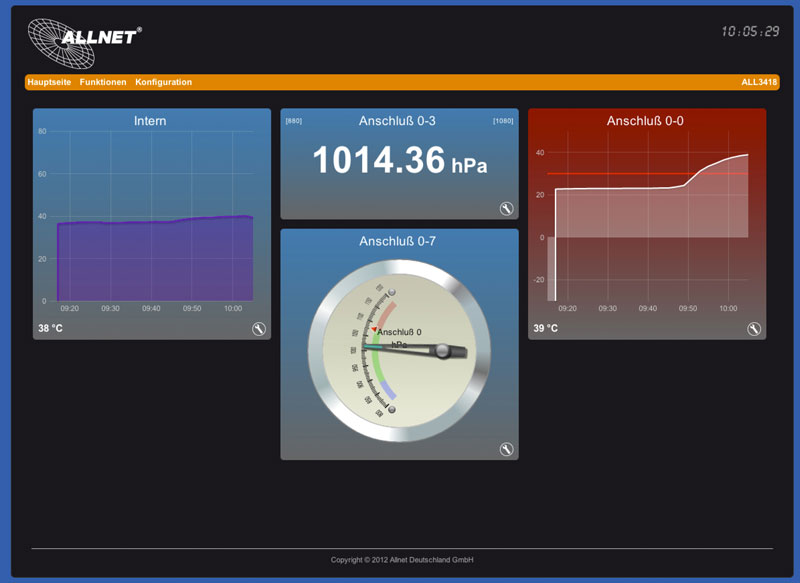

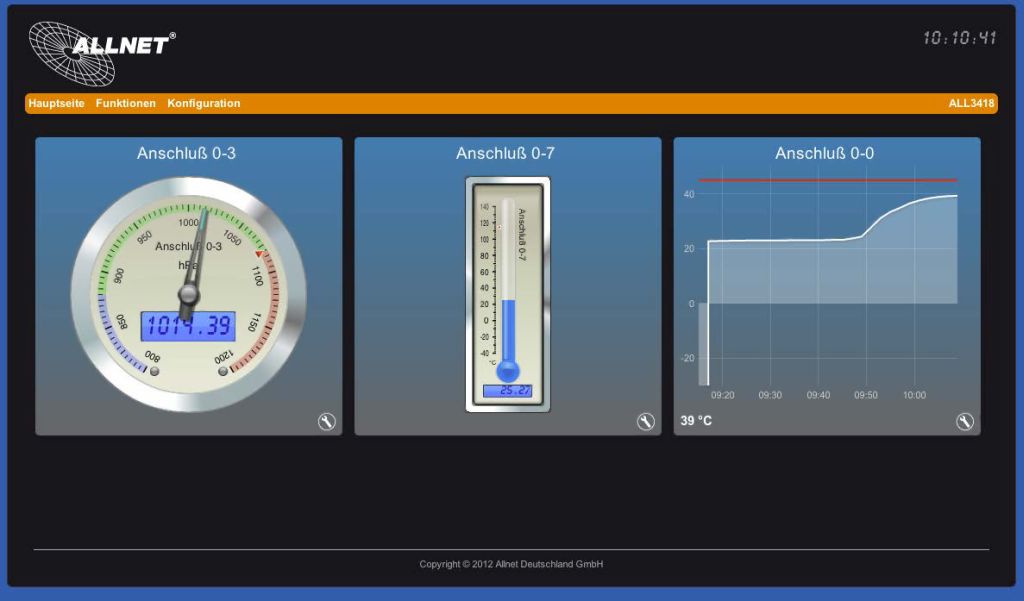

The ALL3419 IP thermometer/sensor center is integrated into a computer network via cable or wireless LAN and can be reached via an IP address. The determined values can be viewed directly in the device via a web browser. Additional software is not necessary for operation. This makes the ALL3419 suitable for all operating systems.
Optionally, the ALL3419 can be expanded using software modules available free of charge from ALLNET. These include, for example,
SNMP = data can be read out via SNMP
POST/GET = data transmission via POST/GET
EnOcean = the USB 300DA dongle is supported. Currently supports Button [f6] and temperature sensor [a5]
PoE clock ALL-PoE-CLK-2,5 cm ( 1 inch ) = push of values into the PoE clock "6x 7 segment display\dlashPoE counter "ALL-PoE-CNT-2,5 cm ( 1 inch ) = push of Values in the PoE counter 4x 7 segment display\dlashThe sensor measurements are carried out via the external ALL3006 temperature sensor included in the scope of delivery. Another internal temperature sensor on the device's circuit board shows the system temperature. With the optionally available ALL3018 temperature & humidity sensor, not only temperature but also humidity can be recorded. The measuring intervals can be set to the exact second. If desired, the last 512 measured values can also be displayed directly in the device as a graph.
Intelligent functions and programming via switching matrix
Depending on the values determined, certain actions can be programmed via the software switching matrix. For example, if the set limits are exceeded or fallen below, the measured values can be transmitted by email. This can be done once, several times and/or at specific time intervals as long as the matrix condition exists.
Another possibility is the targeted switching of external, IP-capable switching devices, such as the ALL307x series network sockets or the ALL4075/4175 network relay, as well as the switching of directly connected actuators, e.g. the ALL4427/3527 relay module etc.
Flexible installation options

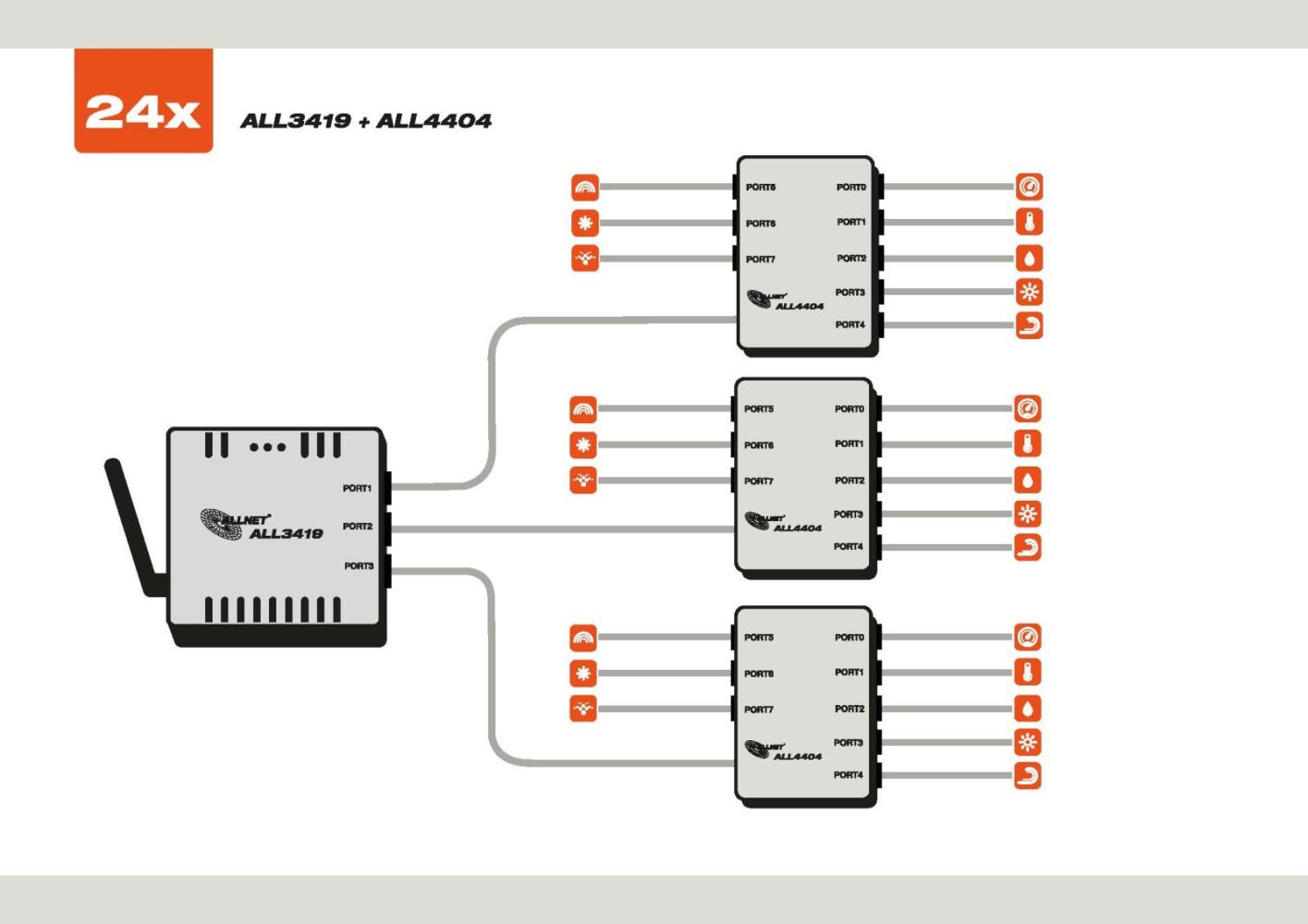

The external sensors are either connected directly to the ALL3419 plugged in or can be remotely connected via a control line. Optionally, the ports can be expanded by 8x sensors via the ALL4404 8-fold multiplexing hub, i.e. a maximum of 24x sensors per ALL3419. To remotely connect the sensors to the central unit, all ALLNET home automation products use a simple network cable (RJ45 plug, Cat. 5). An existing cable network such as your own network or telephone cabling can be used for this. The maximum cable length between the central unit and the module can be up to 100 meters. The modules are supplied with voltage by the central unit. A separate power source for the individual modules is not necessary.
Cross-location temperature recording without limits
In conjunction with the other control and measuring computers ALLNET ALL3500/3505/4500 and ALL5000, several ALL3419 can be operated in a network that are distributed across different locations. Each individual ALL3419 is queried via its individual IP address and displayed and stored centrally in the web interface. For this we use the open standard “JSON”.
Technical data:
Element
specification

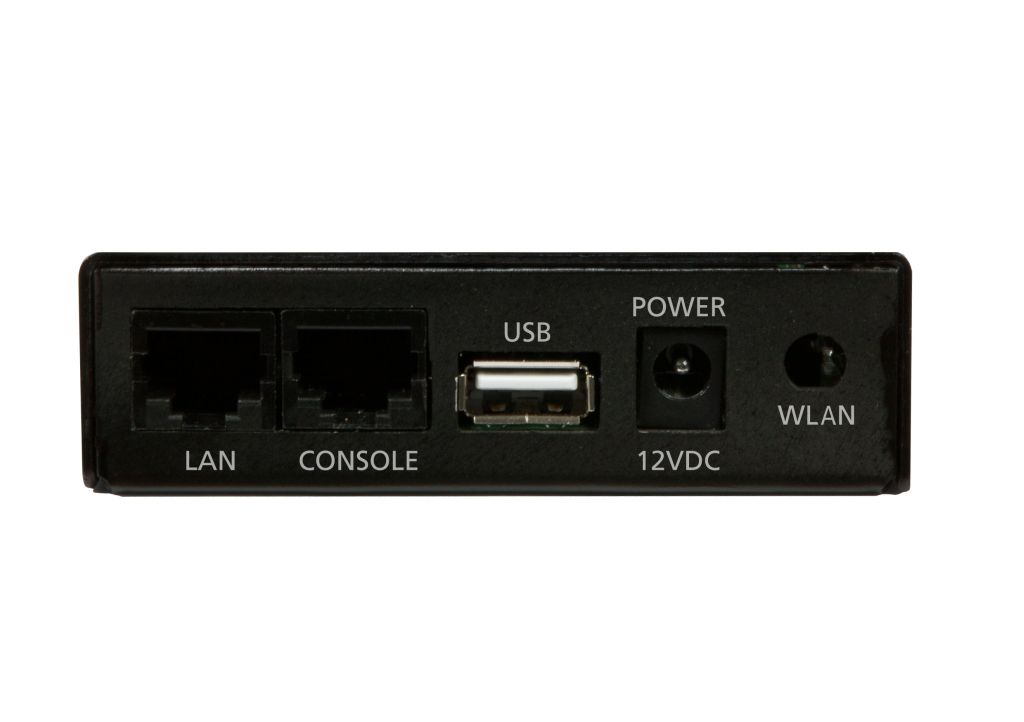

Interfaces:

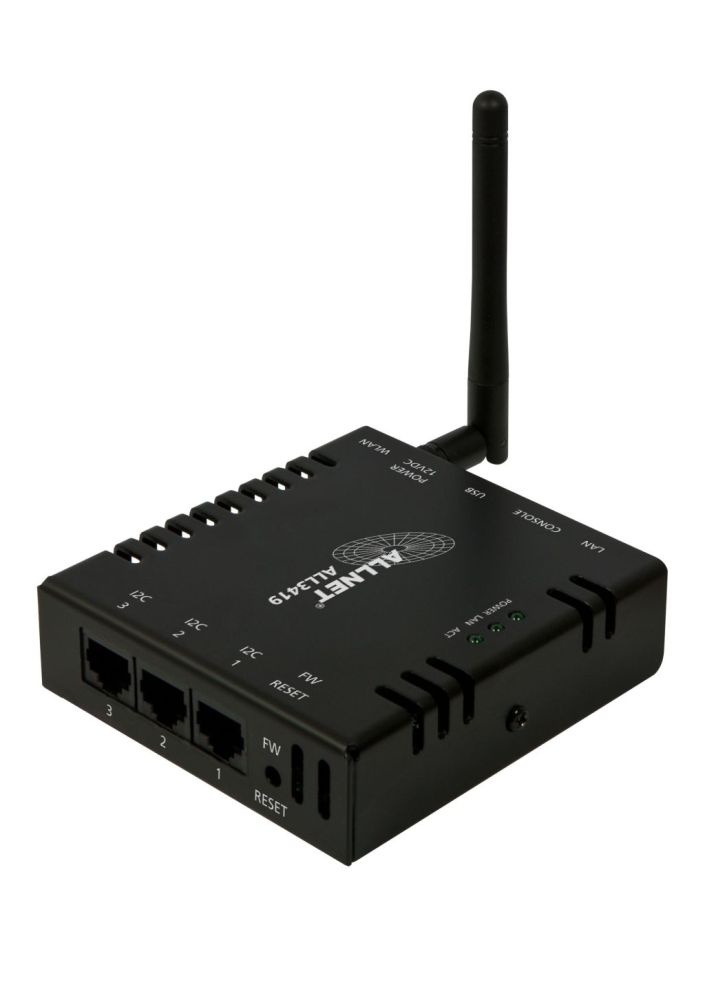

3x RJ45 for sensor modules
1x USB 2.0 for optional wireless sensors/actuators "EnOcean / Plugwise\dlash1x RJ45 console
network connection:
1x RJ45 10/100Mbps
Wireless LAN:
Ralink/Mediatek MT7688AN chipset
2.4 GHz wireless N , up to 150 Mbps
Security: WEP 64/128bit, WPA, WPA2
Supported standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.11b/g/n
Power supply:
100~240 VAC, 50/60 Hz, 12V / 1A external power supply
Power consumption:
< 3 Watt maximum
Housing:
Metal housing
Environment:
Temperature Operating: 0 ~ 40 °C
Humidity Operating: 10% ~ 85% (non-condensing)
Temperature Storage: -20 ~ 60 °C
Humidity Storage: 5% ~ 90% (non-condensing)
Labeling :
CE, RoHS
Dimensions:
92 x 85 x 24 mm (length x width x height)
Weight:
115 grams (device including WLAN antenna and ALL3006 sensor)
Packaging contents:
-ALLNET ALL3419
-ALLNET ALL3006 temperature sensor
-WLAN antenna
-External power supply "12V 1A\dlash-User instructions
