Triton 48,3 cm ( 19 inch )Wall Mount Cabinet, 6U, 1-piece, T495, light gray, side content_copy

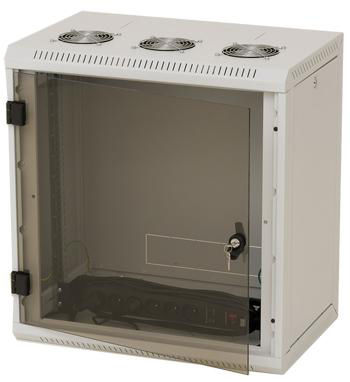

The Triton wall cabinet RUA-06-AS5-CAX-A1 is a single-piece 48,3 cm ( 19 inch ) wall-mounted enclosure with a height of 6HE (370 mm) and a width of 600 mm. It is designed for wall mounting and provides space for data and telecommunication devices as well as distribution systems. The enclosure is made of sheet steel and is painted in light grey (RAL 7035). The construction is welded and features a robust frame structure, enabling a maximum load capacity of 30 kg. The door is made of 4 mm thick tempered safety glass, coated in bronze, and can be mounted with right- or left-hand hinges. The hinge system allows an opening angle of nearly 180°, facilitating access to the devices. The door can be removed, simplifying maintenance and installation.

Applications
This cabinet is intended for use in office environments and is not suitable for outdoor installations or in damp, wet, or explosion-hazardous areas. It is designed to house IT and communication devices operated in a protected indoor environment. The protection rating IP30 protects against solid foreign objects larger than 2.5 mm and against splashing water, but not against direct water jets or immersion. The maximum installation depth is 400 mm, allowing secure mounting of devices with low depth.

Functions and Equipment in Detail

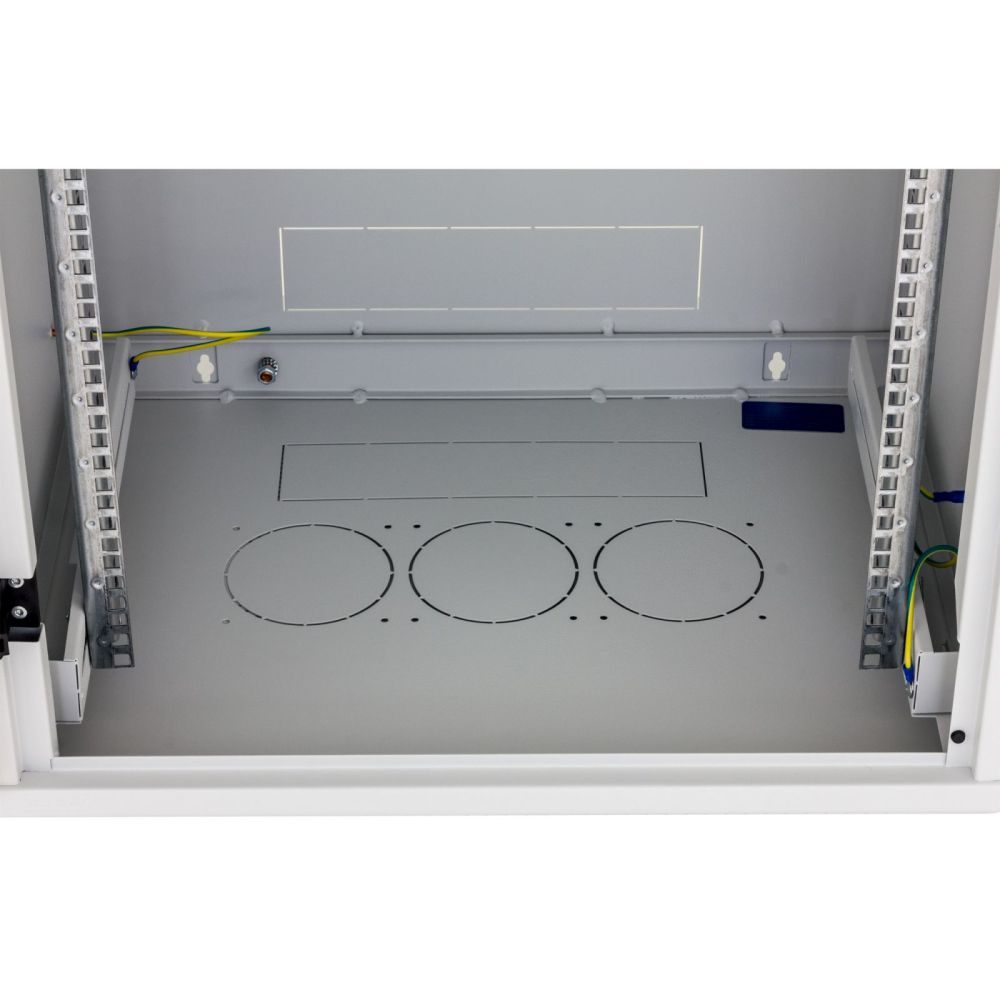

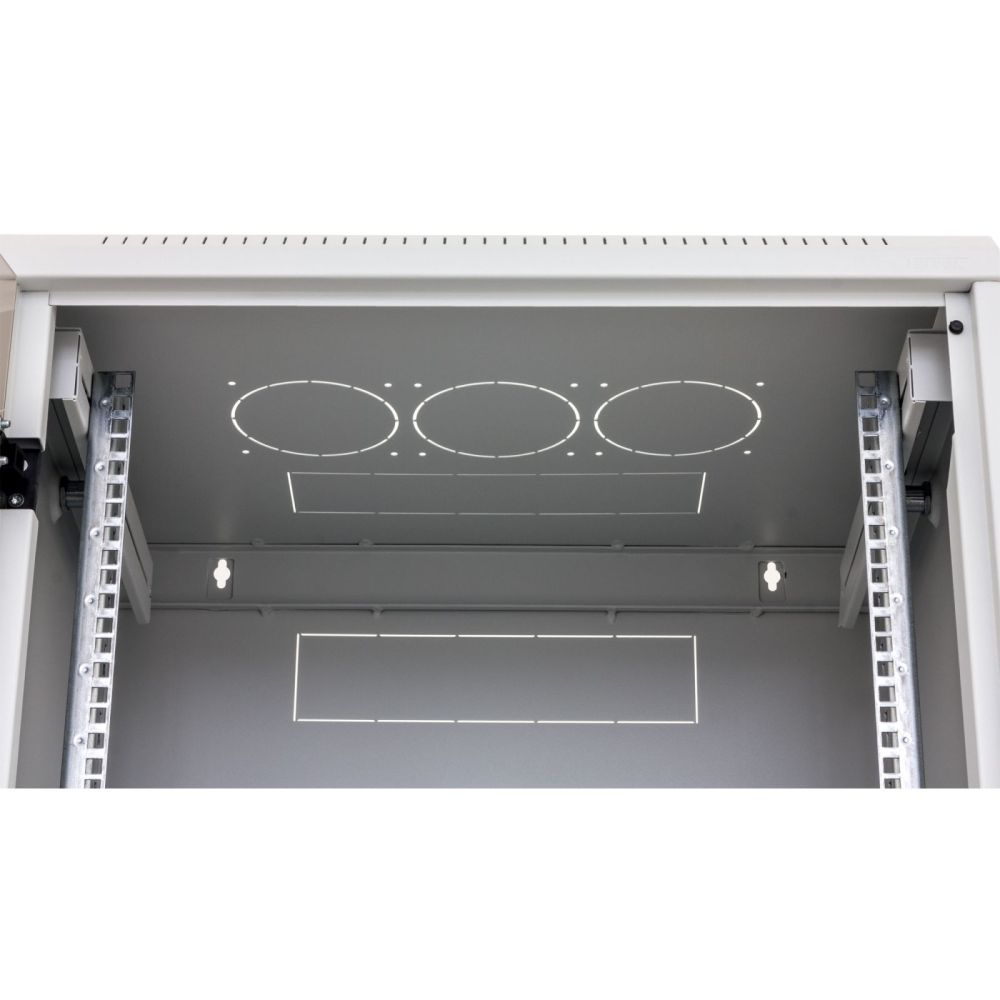

The enclosure features removable side panels secured with locks, enabling access to devices from the rear without fully disassembling the cabinet. The side panels can be removed to install fans or other cooling components. Cable openings in the upper, lower, and rear sections of the cabinet are equipped with break-off blanking plates, which can be sealed using a brush set included in the delivery, preventing dust ingress. Additionally, six openings are provided for installing cooling fans (e.g. RAX-CH-X07-X9), allowing heat-intensive devices to be operated in this wall cabinet.

Technology Explained Simply

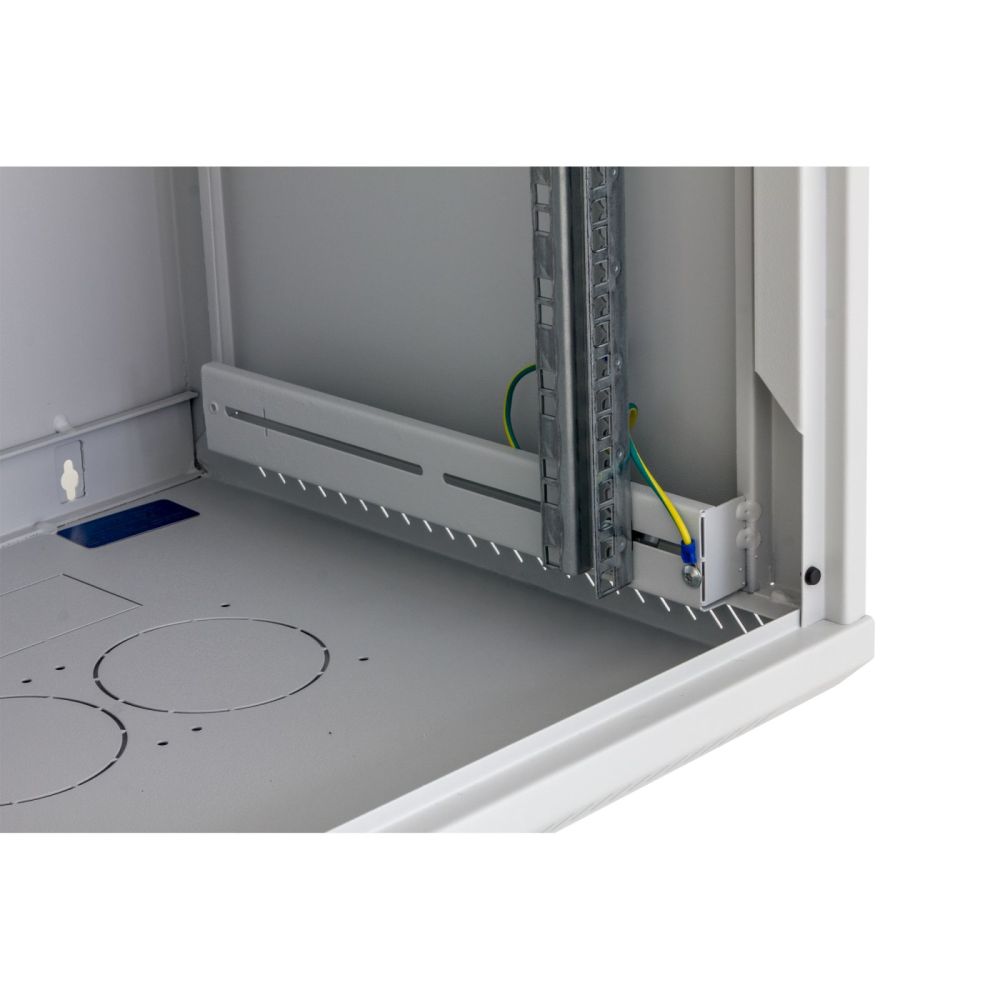

The vertical 48,3 cm ( 19 inch ) profile rails are depth-adjustable, enabling flexible mounting of devices at various depths. This facilitates cable organization and adaptation to different device heights. The rails are pre-mounted, allowing for quick installation without additional tools. The entire construction is equipped with grounding cables, which are connected to an M8 grounding point at the lower part of the cabinet. This ensures safe and reliable grounding of all mounted devices. The surface treatment has a minimum thickness of 65 micrometers, ensuring high corrosion resistance and durability.

Compatibility and Accessories
The cabinet is compatible with accessories from the RBA-6+RUA+RCA series, particularly with fan units equipped with one or two fans and expandable options. Additionally, 48,3 cm ( 19 inch ) intermediate shelves in various depths (150 mm, 250 mm, 350 mm) as well as shelf panels (e.g. T300 mm/1 HE or 2 HE) can be used to optimize device spacing. Mounting kits with screws and cage nuts (in various quantities) are also available to support installation. Combination with UPS systems such as CP2000EIPFCRM2U or CP1600EIPFCRM2U is possible to ensure redundant power supply.

Mounting and Installation
The cabinet is mounted directly to the wall, with mounting holes marked with “R” in the drawing. Mounting is done using screws, anchors, and washers included in the delivery. The maximum load on the door is 10 kg. Mounting must be performed such that the recommended maximum load of 30 kg is not exceeded. Devices must be mounted in a way that does not impair the cabinet’s function or the operation of installed devices. Modification of the construction or design is not permitted.

Advantages in Operation
The cabinet offers high accessibility through removable side panels and a wide-opening glass door. The depth-adjustable rails and pre-mounted racks simplify installation. Integrated cable openings and blanking plates ensure organized cable routing and dust-tight sealing. The grounding connection ensures the safety of installed devices. The robust construction and high load capacity make the cabinet a reliable solution for office and IT infrastructure applications. The light grey color (RAL 7035) blends well into typical office and server environments. The IP30 protection rating safeguards against mechanical damage and unauthorized manipulation, enhancing operational safety.

Technical data
Door height	265mm
Packaging volume	0.1099m³
Recommended maximum load	30kg
Width packaging	0.600m
Depth	495mm
Door width	530mm
Length packaging	0.500m
Width	600mm
Height packaging	0.370m
Protection class	IP30
Height (outside)	370mm
Height unit	6U
Weight	16.610kg
Colour	Grey (RAL7035)
Detachable rear panel
Demountable
Detachable side panels

---
