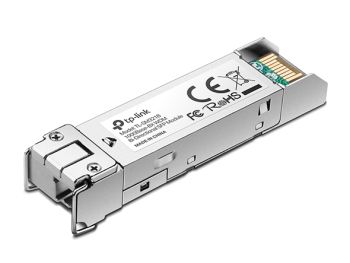

TP LINK TP-Link TL-SM321B 1000Base-BX WDM Bi-Directional SFP Module
|
19,69 EUR |
|
|
( 23,43 EUR incl. VAT ) ≈ £16.58 | ≈ $22.11 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 293075 |
| Mfg Part No: | SM321B(UN) |
| UPC/EAN: | 6935364030520 |
| Weight: | 0.06 kg |
Product information for TP-Link SM321B(UN):
TP-LINK's TL-SM321B uses the 1000Base-BX standard, and operates on a single fiber, with different wavelengths for each direction. This allows you to expand your network up to 10 km in size to connect teams over long distances.
| Certificates | |
| Certification | FCC, CE |
| Features | |
| Plug and Play | |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1310 nm |
| Networking standards | IEEE 802.3z |
| Single-mode fiber (SMF) supported | |
| Power | |
| Input voltage | 3.3 V |
| Weight & dimensions | |
| Width | 55.4 mm |
| Depth | 12.9 mm |
| Height | 12.9 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
