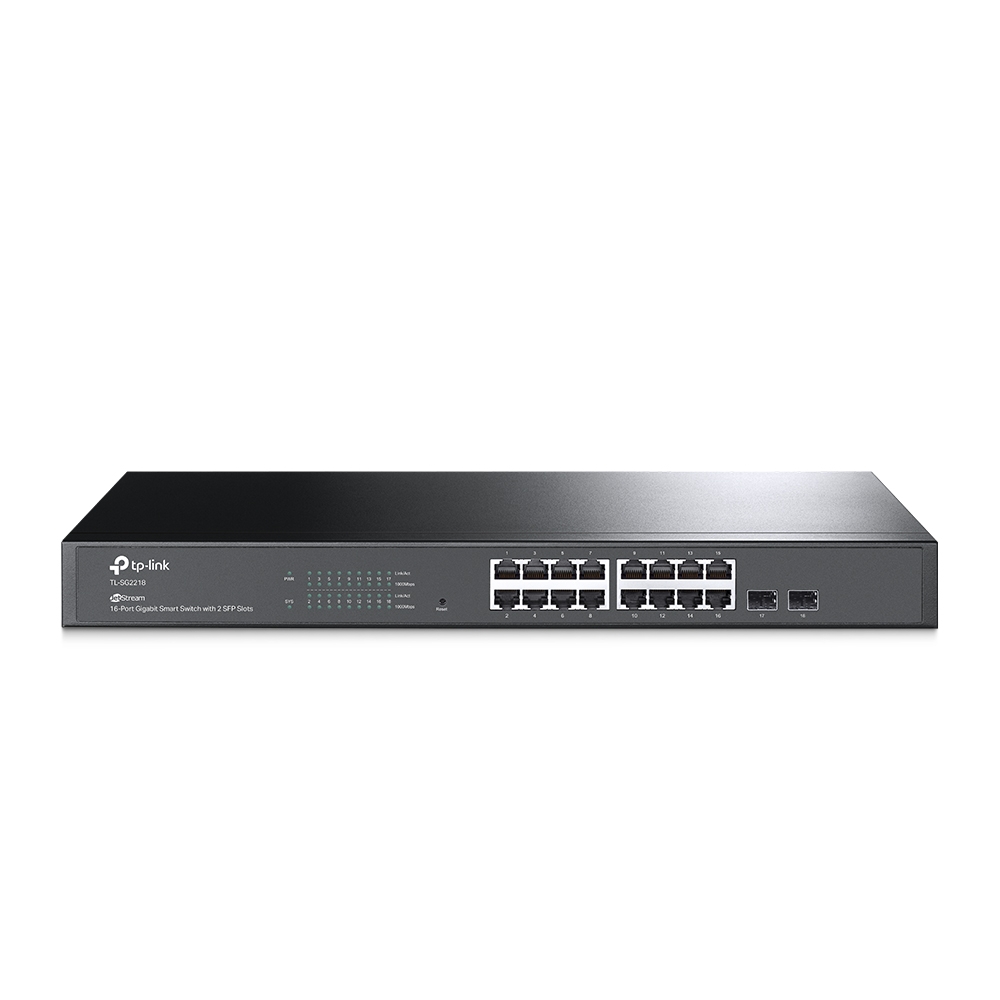

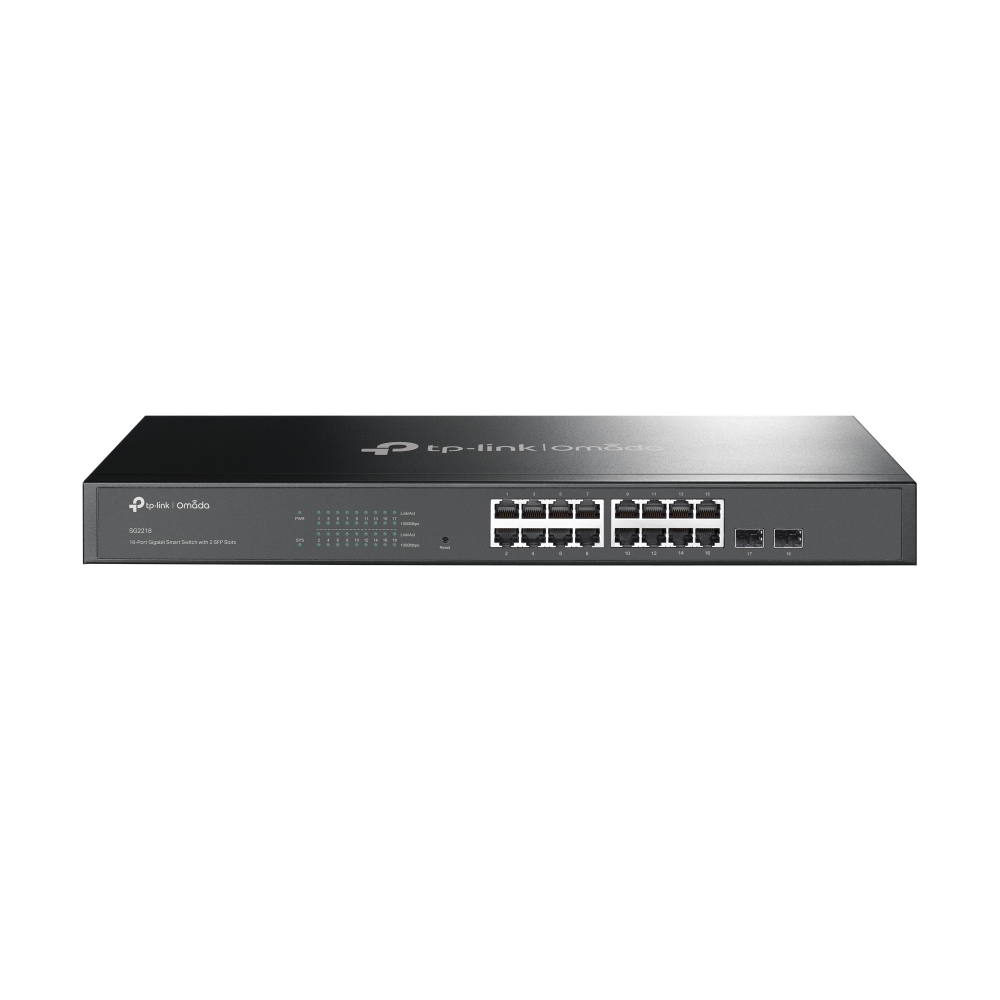

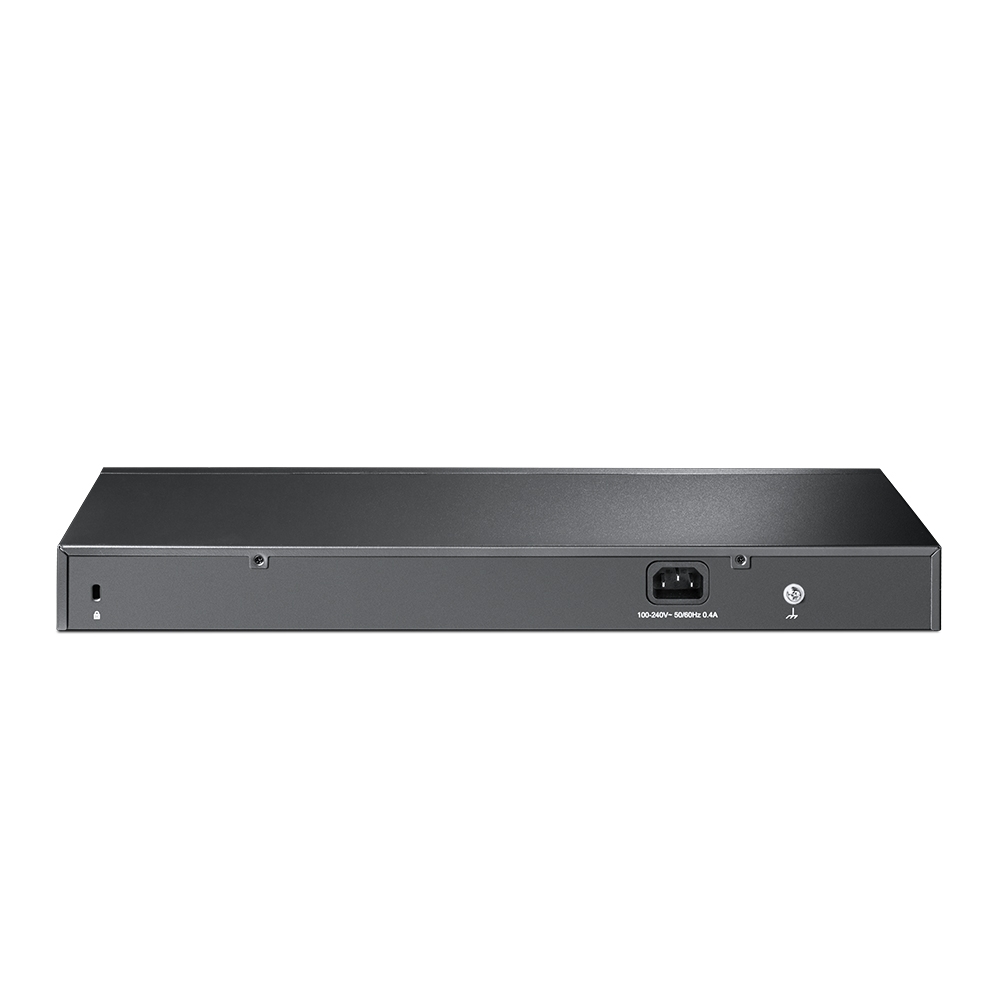

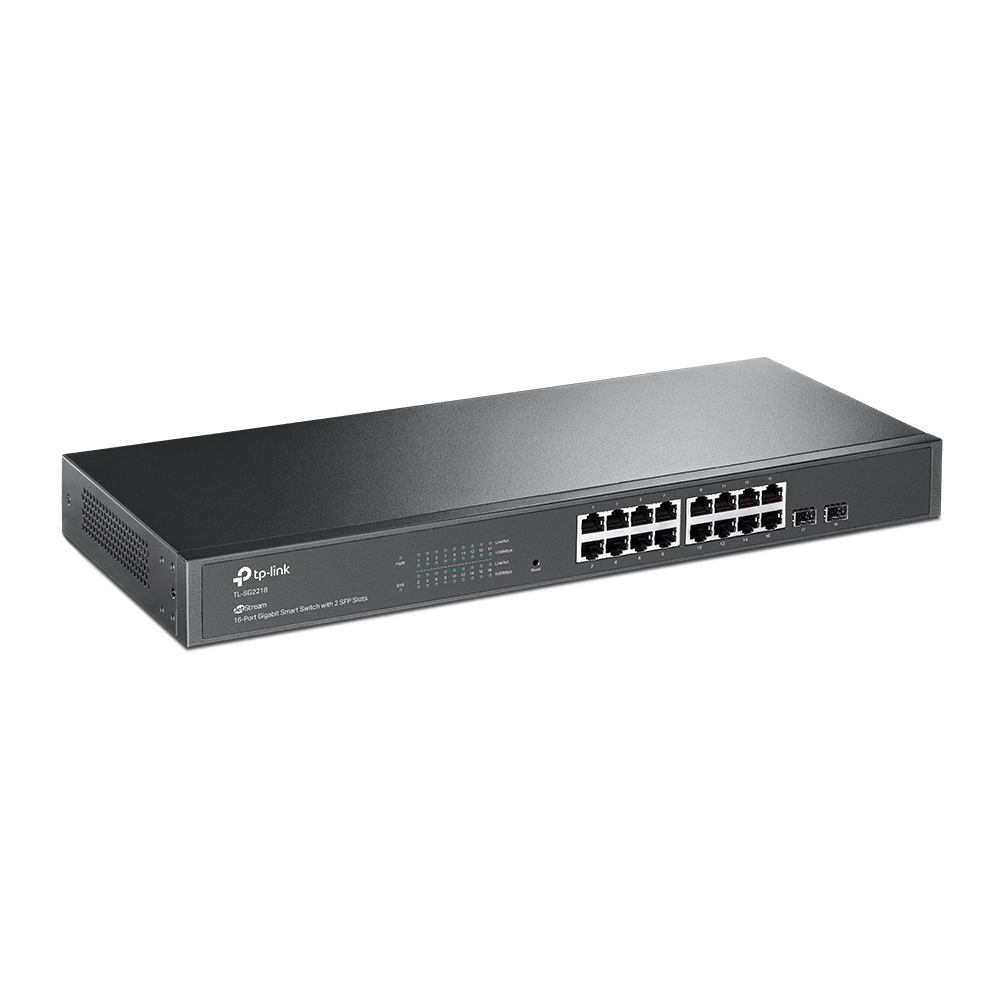

TP-LINK Switch SG2218 16xGBit/2xSFP Smart Managed content_copy

The TL-SG2218 from TP-Link is a practical Gigabit L2 managed switch with 16 ports and 2 SFP slots for a complete Omada network. It offers high performance and powerful L2 and L2+ features such as static routing, QoS, advanced security strategies and a bundle of ISP features, making it a reliable and secure solution for enterprise networks.

Highlights

• 16× Gigabit RJ45 ports and 2× Gigabit SFP slots provide high-speed connections
• Integrated into Omada: Zero-Touch Provisioning (ZTP), central cloud management and intelligent monitoring
• Static Routing: Helps route internal data transfers for a More efficient use of network resources
• IP-MAC port binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication and more
• L2/L3/L4 QoS and IGMP Snooping
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image deliver powerful management capacities
• Switching capacity: 36 Gbit/s

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices Technology, small devices for IT and telecommunications technology B2C

Specifications

• Switch type: Access

Connections

• Total number of copper ports: 16
• Bandwidth: 10/100/1000 MBit/s

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) Rack mounting

Basic features

• Color: Black
• Width: 440 mm

Scope of delivery

• TL-SG2218 Switch
• Power cable
• Rack mounting kit
• Rubber feet
• Quick start guide

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	36 Gbit/s
Forwarding rate	26.8 Mpps
MAC address table	8000 entries
Number of static routes	32
Number of IP interfaces	16
Jumbo frames	9000
Packet buffer memory	4.1 MB
Store-and-forward
Static route
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Rack mounting
LED indicators
Management features
Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
System event log
MIB support
Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support
Network
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Virtual LAN features	Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	41.97 BTU/h
Packaging content
Cables included	AC, LAN (RJ-45)
Quick start guide
Performance
Fanless
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
SFP module slots quantity	2
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	12.3 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)
IGMP snooping
SSH/SSL support
Loop protection
BPDU filtering/protection
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm

---
