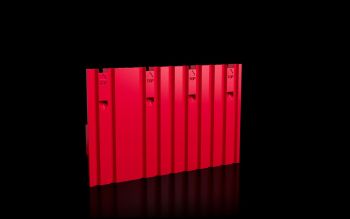

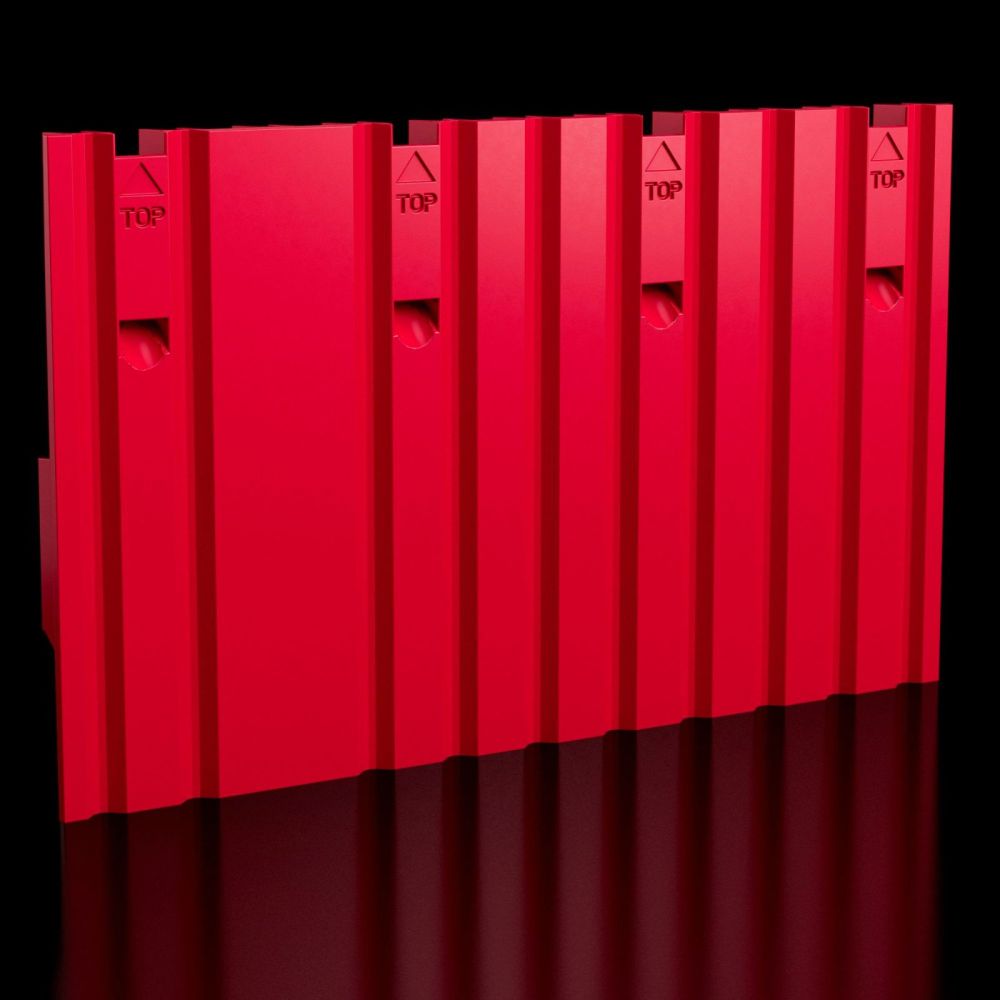

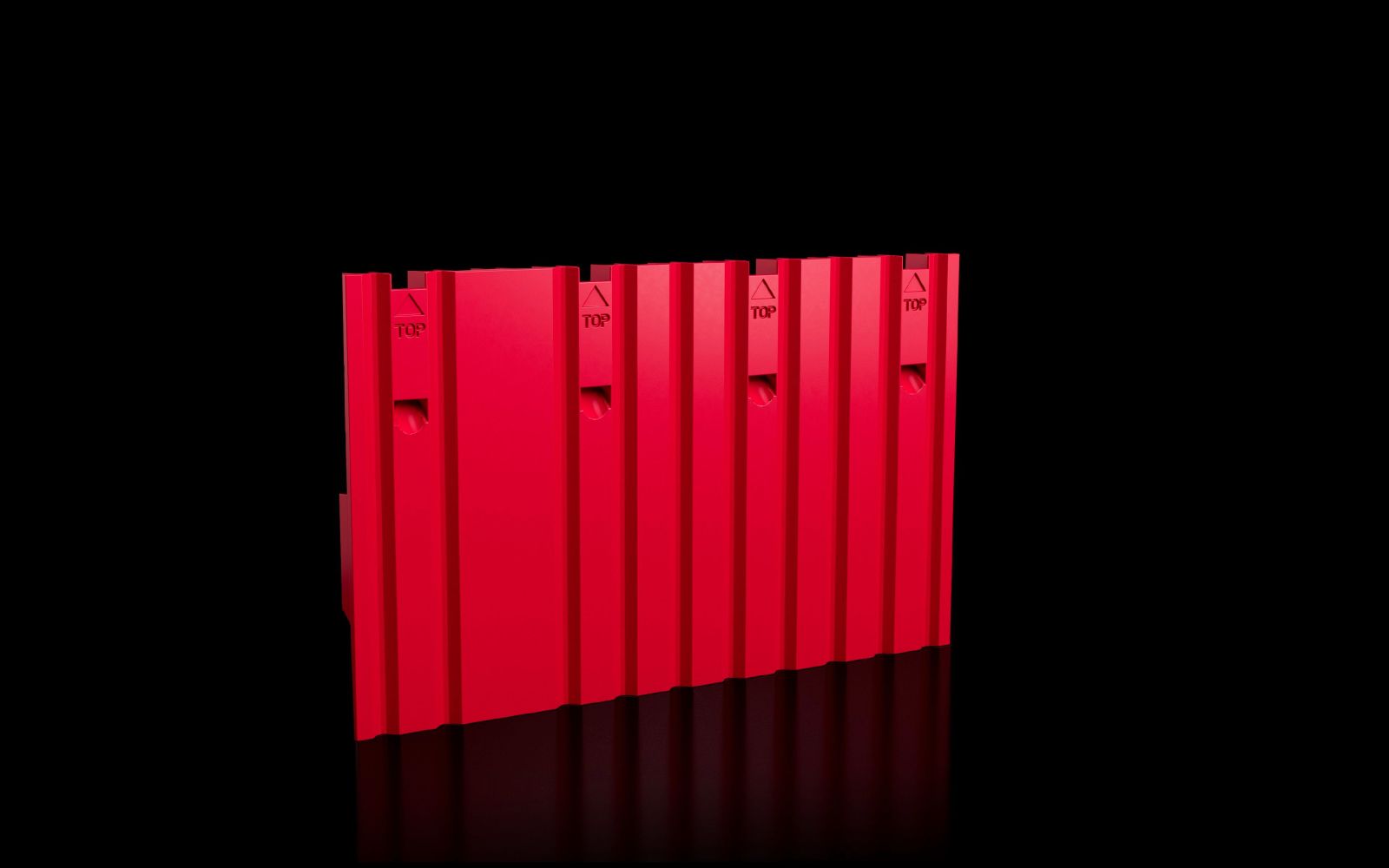

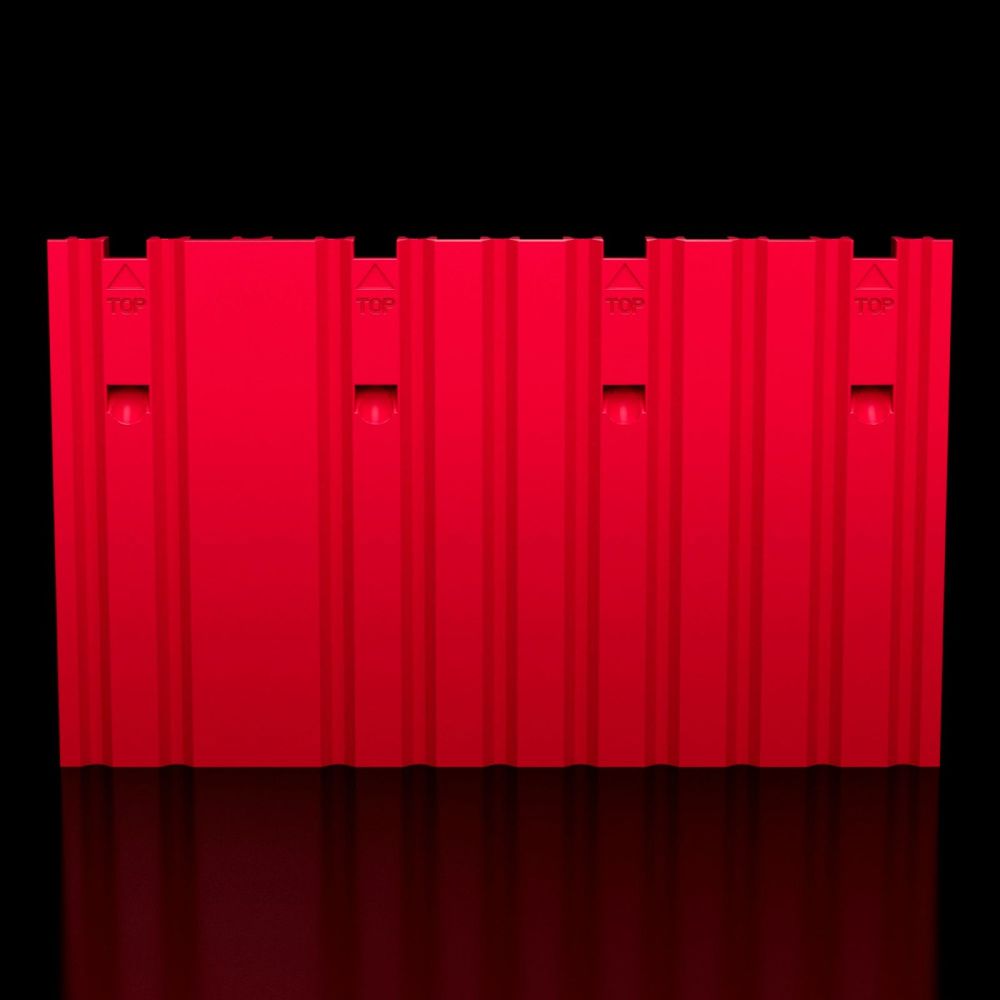

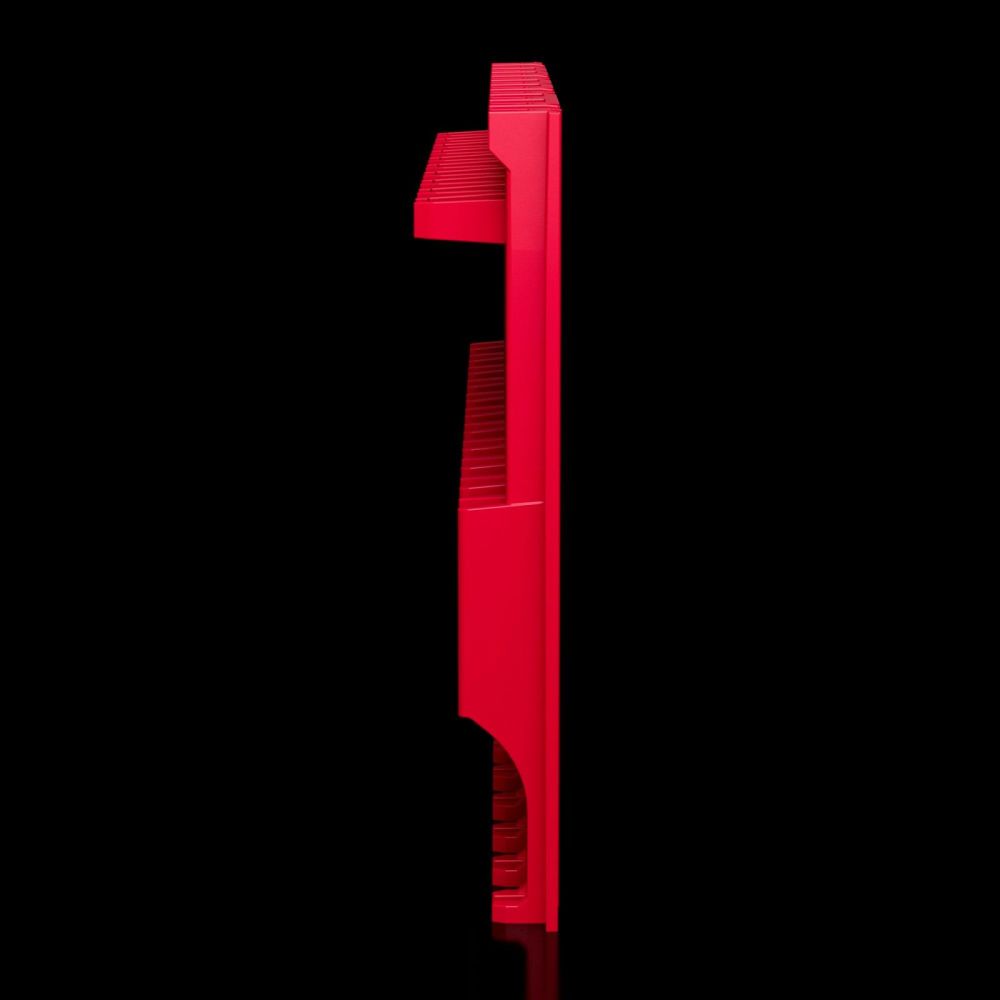

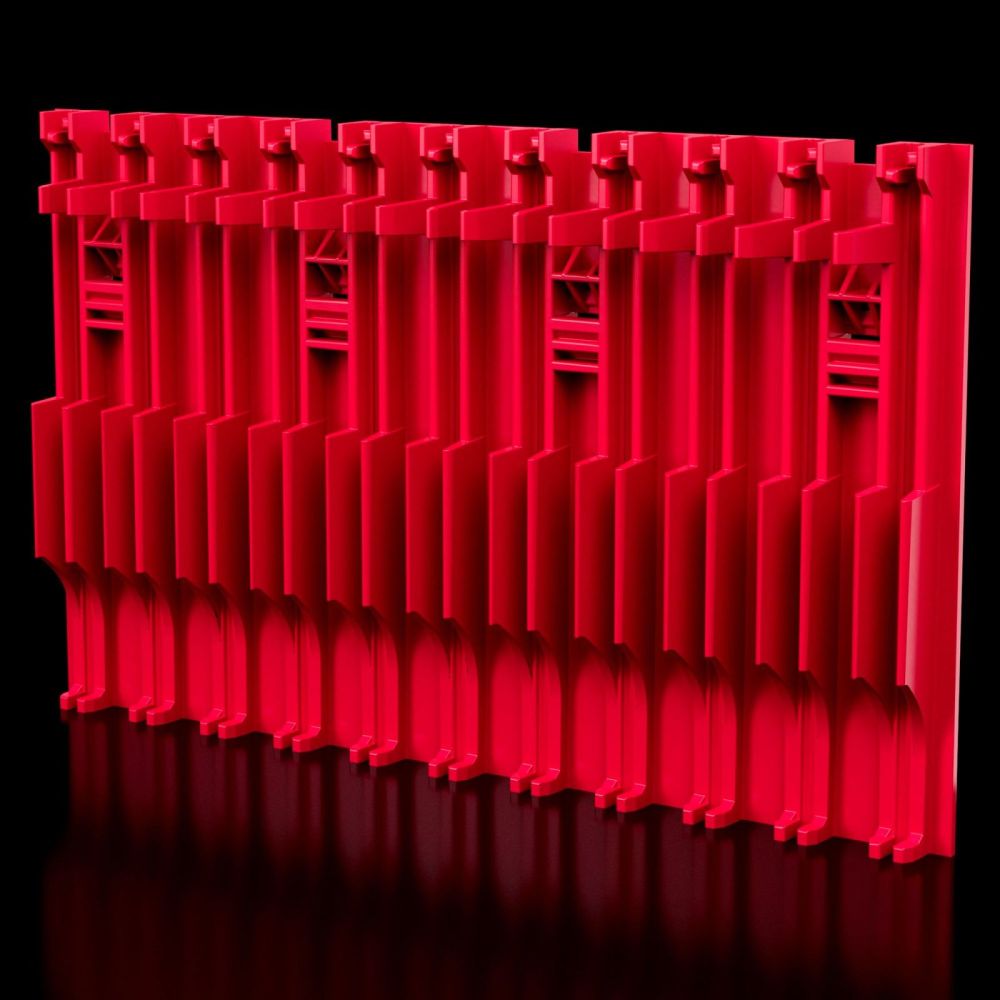

Rittal 9365020 RX cover strip, pack of 10 for RiLineX Board and base module
|
-7% 14,95 EUR 15,99 EUR |
|
|
( 17,79 EUR incl. VAT ) ≈ £12.50 | ≈ $16.52 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 612137 |
| Mfg Part No: | 9365020 |
| UPC/EAN: | 4069196007336 |
| Weight: | 0.19 kg |
| Type: | RX 9365020 |
Product information for Rittal 9365020:
Applications
The cover strip is used in industrial electrical installations where RiLineX boards are employed as modular components for mounting switching devices, controls, or fuse elements. When individual segments of a board are not occupied, open gaps are created, representing a shock protection gap. The RX 9365020 closes these gaps, thereby increasing the safety of the installation. It is particularly suitable for applications in manufacturing automation, power supply, or process control, where a high protection standard is required.
Functions and Equipment in Detail
The strip has a width of 100 mm and a height of 60 mm, making it suitable for standard modules of the RiLineX system. It is modular in design and can be broken to fit the respective gap, allowing for fine adjustment to different board configurations. The fit is intended for article numbers 9360.004 to .088 as well as 9360.110 to .150, ensuring compatibility with the corresponding base modules and complete boards. The packaging unit includes 10 pcs, which is sufficient for mounting multiple open segments.
Technology Explained Simply
The use of polyamide (PA 6) ensures high mechanical stability and resistance to mechanical stress, as encountered in industrial environments. The fire load is 0.367 MJ/m², quantifying the thermal load in case of a fire in the enclosure and being relevant for planning fire protection measures. The UL 94 rating indicates that the material does not ignite easily and does not propagate flame, increasing safety. The increase in shock protection from IP 2XB to IP 3X means the strip protects against access with a 2.5 mm thick probe, reducing the risk of electric shock.
Compatibility and Accessories
The cover strip is specifically developed for RiLineX boards equipped with article numbers 9360.004 to .088 as well as 9360.110 to .150. It is part of the modular RiLineX system, enabling flexible and standardized mounting of enclosure components. Use with these modules ensures clean and safe coverage of unoccupied areas.
Mounting and Installation
Mounting is done by simply inserting the cover strip into the open segments of the RiLineX board. Due to its breakability, it can be adjusted to the respective gap, achieving an exact fit. Installation requires no additional tools or mounting aids. The use occurs directly during the enclosure assembly, with coverage of open segments taking place after placing the electrical components.
Advantages in Operation
The use of the cover strip improves the safety of the installation by increasing shock protection. This reduces the risk of accidents due to electric contact and contributes to compliance with safety regulations. The modular design enables flexible adaptation to different configurations, shortening assembly time and simplifying maintenance. The use of polyamide ensures long service life and resistance to industrial stresses.
| General | |
| Material | Polyamide (PA 6), flammability according to UL 94 |
| Colour | RAL 35745 |
| Suitable for part no. | 9360.004 - .088, 9360.110 - .150 |
| Width | 100 mm |
| Height | 60 mm |
| Fire load | 0,367 MJ/m² |
| PCF/VE (Cradle-to-Gate) | 1,25 |
