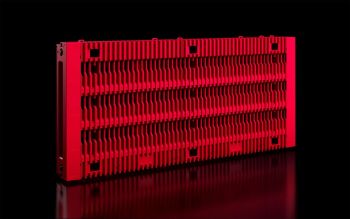

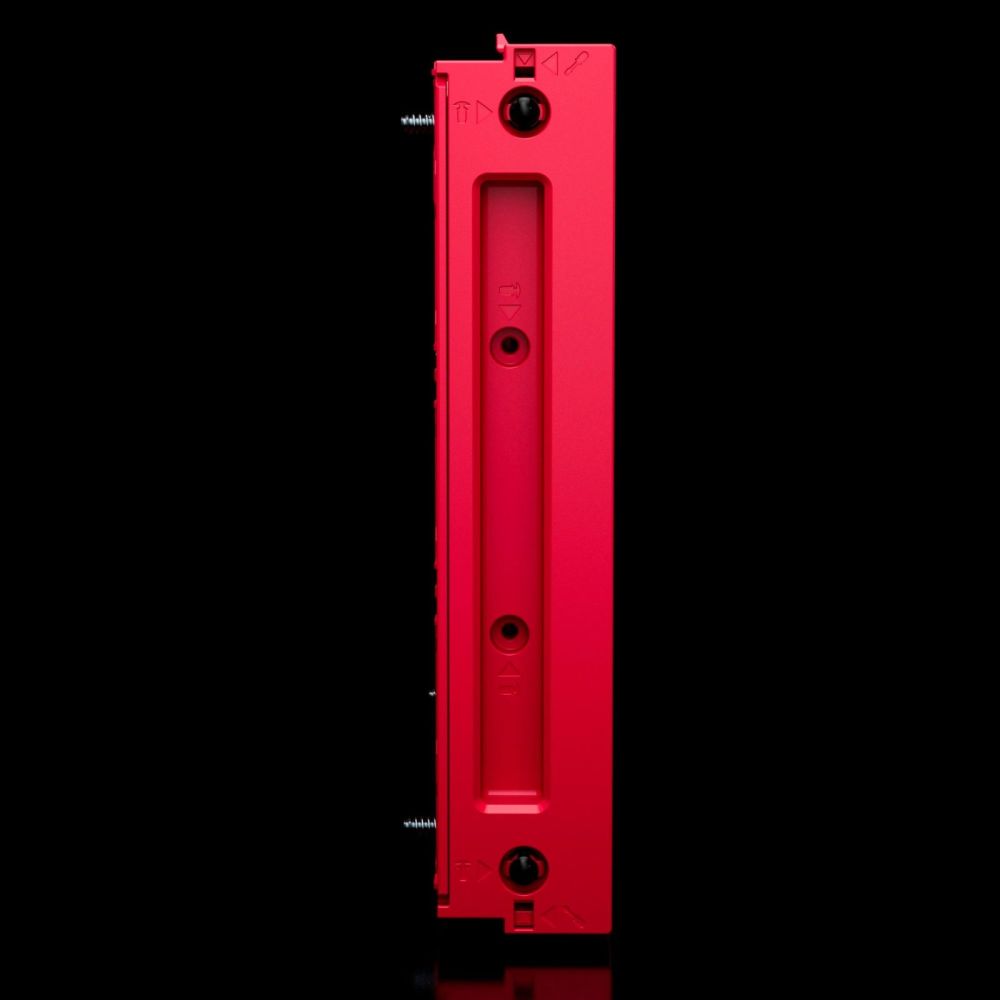

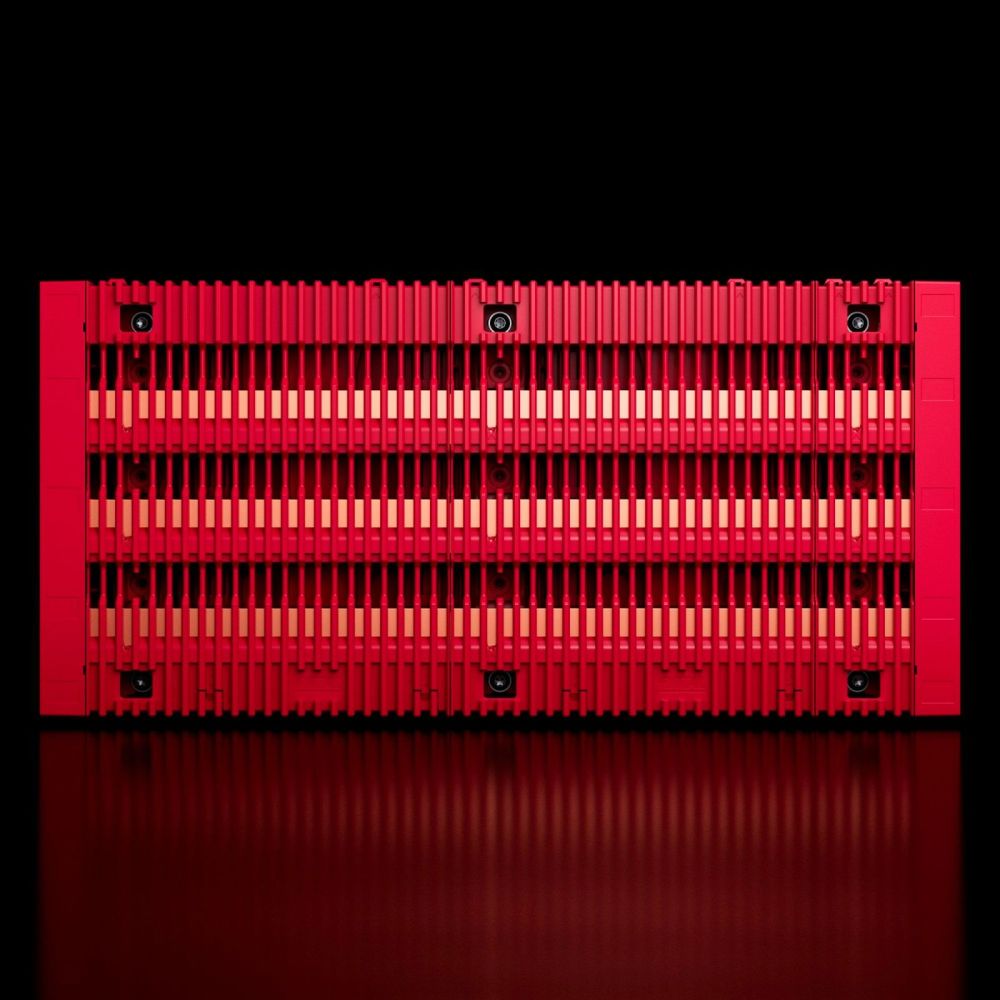

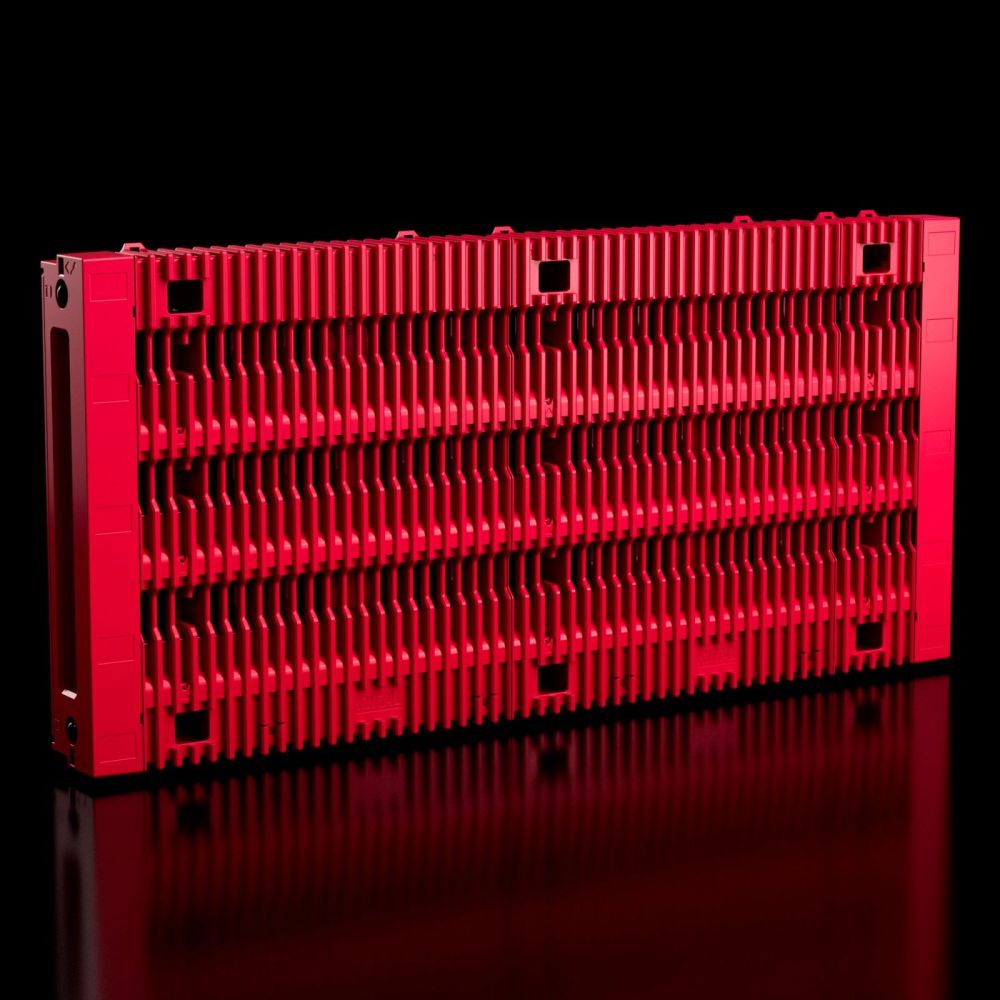

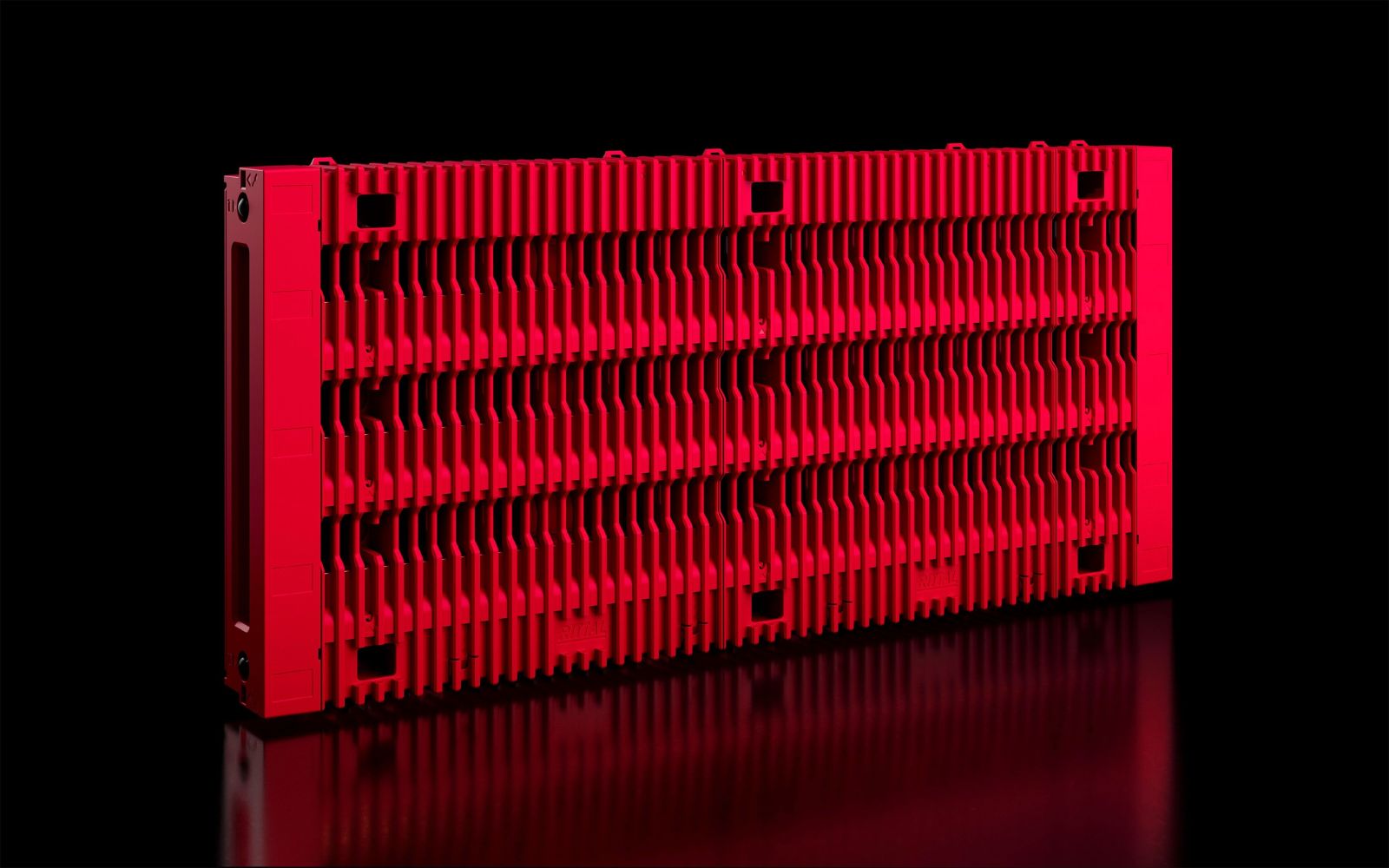

Rittal 9360068 RX RiLineX Board 800 A 3-pole 60 mm with busbars 30x10 mm W:505

Your rating:
Average rating
product review for Rittal 9360068 RX RiLineX Board 800 A 3-pole 60 mm with busbars 30x10 mm W:505
( 4.5 / 5 ) 2 ratings
Rittal 9360068
This image may differ from the desired article.
Rittal 9360068Rittal 9360068Rittal 9360068Rittal 9360068Rittal 9360068Rittal 9360068Rittal 9360068
233,01 EUR
incl. 37,51 EUR copper surcharge
( 277,28 EUR incl. VAT )
≈ £194.80  |  ≈ $257.48
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 9360068 RX RiLineX Board 800 A 3-pole 60 mm with busbars 30x10 mm W:505
Datasheet:file_download Download
Lieske Part No.:1571733
Mfg Part No: 9360068
UPC/EAN: 4028177997356
Weight:6.762 kg
Type:RX 9360068

Product information for Rittal 9360068:

The Rittal RiLineX complete board RX 9360068 is a 3-pole power distribution module with a rated current of 800 A, specifically designed for use in industrial enclosures. It is designed for enclosures with a width of 600 mm and has a length of 505 mm. The board is made of polyamide (PA 6) with flame resistance according to UL 94, E-Cu, and is available in the colours RAL 35745 and RAL 9005. The integrated busbars have dimensions of 30 mm x 10 mm and a centre-to-centre spacing of 60 mm. The product is pre-assembled and includes the busbars in the delivery scope.

Applications

The RiLineX board is suitable for applications in the alternating current range up to 1,000 V AC and direct current up to 1,500 V DC. It is used in industrial electrical installations where reliable power distribution with high short-circuit resistance is required. The certifications according to IEC 61 439-1/-2 and UL 508 enable use in international markets. The overvoltage category 4 and pollution degree 3 make it suitable for environments with increased electrical stress and risk of contamination.

Functions and Equipment in Detail

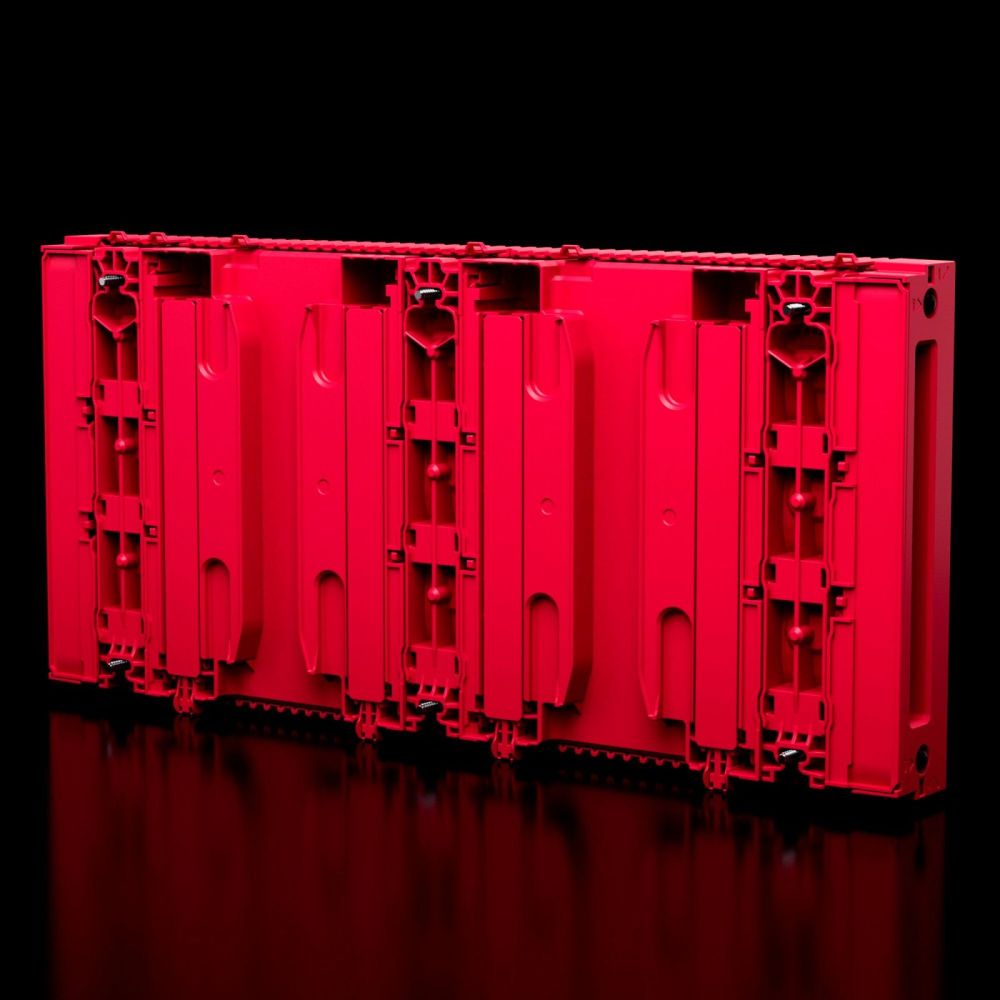

The board offers a verified short-circuit resistance up to 65 kA/500 ms, ensuring high safety in case of faults. The rated impulse voltage is 12 kV, and the rated impulse current withstand is 143 kA. The protection class IP 2XB provides sufficient shock protection, with an upgrade to IP 3X possible by adding additional cover strips. Cable routing at the rear of the board enables flexible system design, particularly for control wiring.

Technology Explained Simply

The integrated copper busbars (copper content: 3.999 kg per piece) ensure efficient power distribution. The choice of polyamide material ensures high mechanical stability and heat resistance. The frequency of the fundamental wave is 50 to 60 Hz, meeting industrial requirements. The operating temperature range is between -5 °C and 55 °C, making the board suitable for various climatic conditions.

Compatibility and Accessories

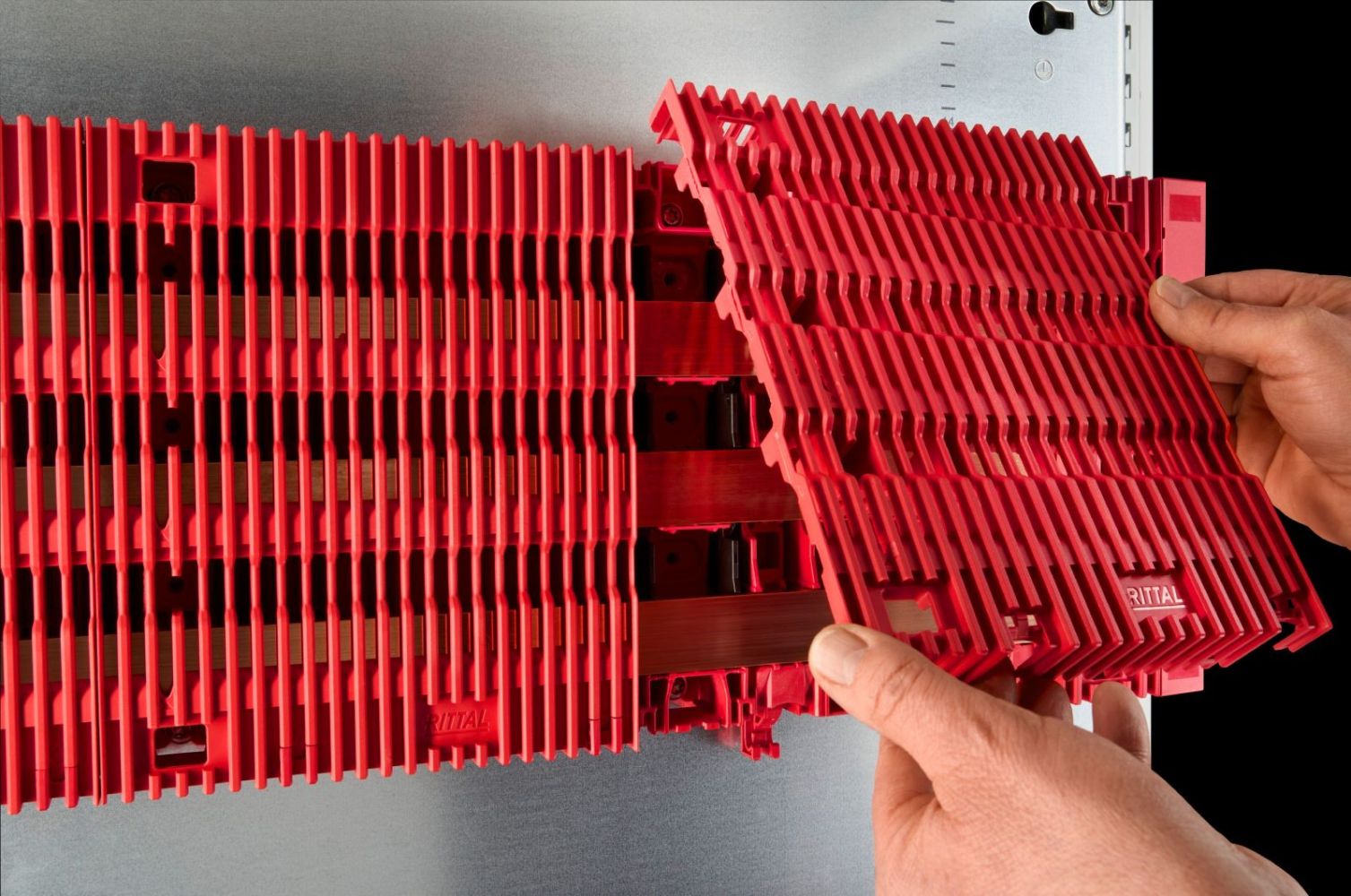

The RiLineX board can be mounted horizontally, vertically, and overhead, enabling flexible integration into existing enclosure configurations. The baying of multiple boards is achieved using RiLineX baying connectors (item RX 9360000), without reducing the short-circuit resistance. For increased protection class, the board can be supplemented with cover strips (item RX 9365020) to increase the protection class to IP 3X.

Mounting and Installation

Mounting is done by simply inserting the board into the enclosure, with the pre-assembled construction reducing installation time. The cable routing at the rear facilitates wiring, especially in complex installations. The availability of digital product data supports planning and documentation, leading to time savings.

Advantages in Operation

The pre-assembled design reduces installation time and minimizes error sources. The verified short-circuit resistance and certifications according to IEC and UL ensure high safety. The simple baying and expandability enable scalable system design. The use of digital product data supports efficiency in planning and documentation.

General
MaterialPolyamide (PA 6), flammability rating according to UL 94, E-Cu
ColourRAL 35745, RAL 9005
Scope of deliveryIncluding integrated busbars
Degree of protection IP according to IEC 60 529IP 2XB
StandardsIEC 61 439-1/-2, UL 508
Rated current max.800 A
Rated current (UL)800 A
Electrical values UL (SCCR)65 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Fuse Class L max. 1600 A, JDDZ/7, 100 kA - 600 V, Circuit Breaker max. 600 A, DIVQ/7, 100 kA - 480 V, Circuit Breaker max. 800 A, DIVQ/7, 65 kA - 600 V, Circuit Breaker max. 800 A, DIVQ/7
Center-to-center spacing of busbars60 mm
Rated impulse voltage Uimp12 kV
Rated voltage1.000 V AC, 1.500 V DC, 600 V AC (UL), 600 V DC (UL)
Rated insulation voltage Ui1.000 V AC, 1.500 V DC
Rated surge withstand current Ipk143 kA, 143 kA (UL)
Rated short-time withstand current / t65 kA/500 ms
Over voltage category4
Pollution degree3
Busbar dimensions30 mm x 10 mm
Number of poles3-pole
Frequency of fundamental wave50...60 Hz
Humidity (non-condensing)10...90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Width505 mm
Height246 mm
Depth49,2 mm
Fire load53,669 MJ/m²
Copper content (kg/piece)3,999
PCF/VE (Cradle-to-Gate)42,48


Please note...
This article contains a copper surcharge of 37,51 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9360068, EAN: 4028177997356
