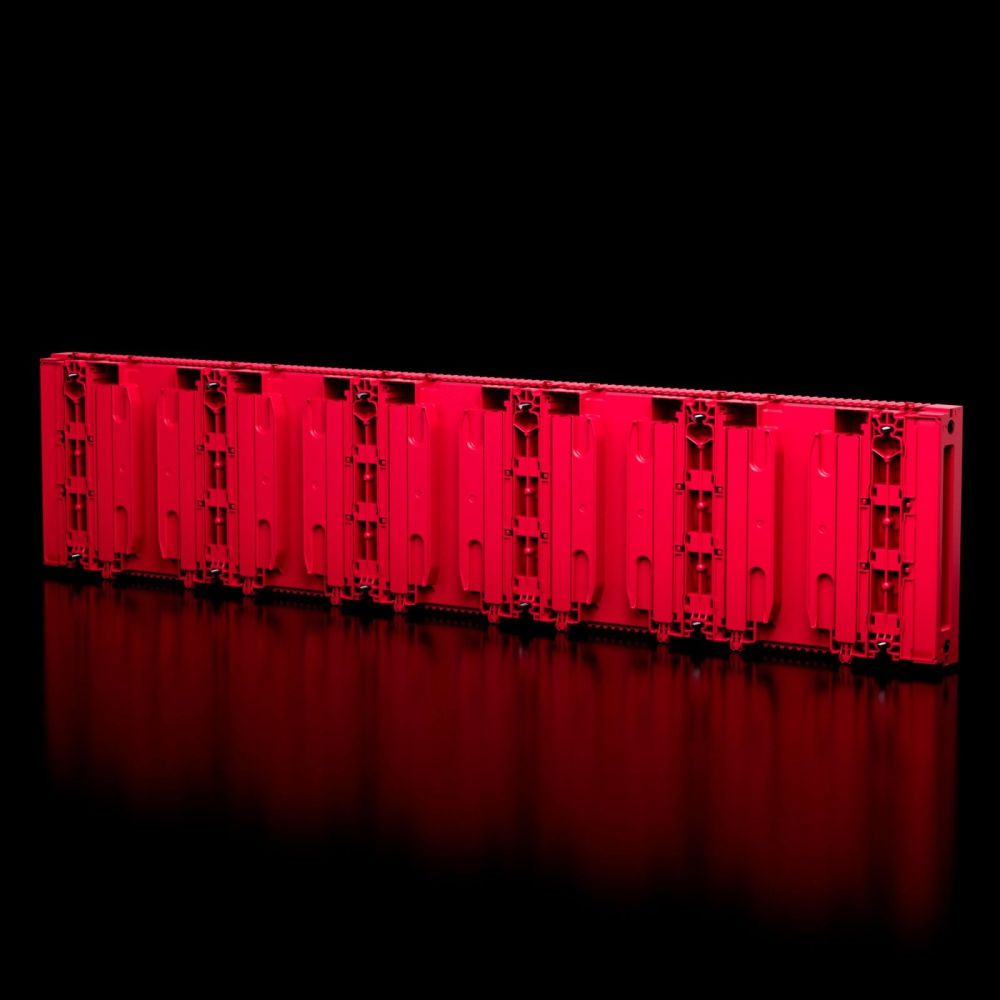

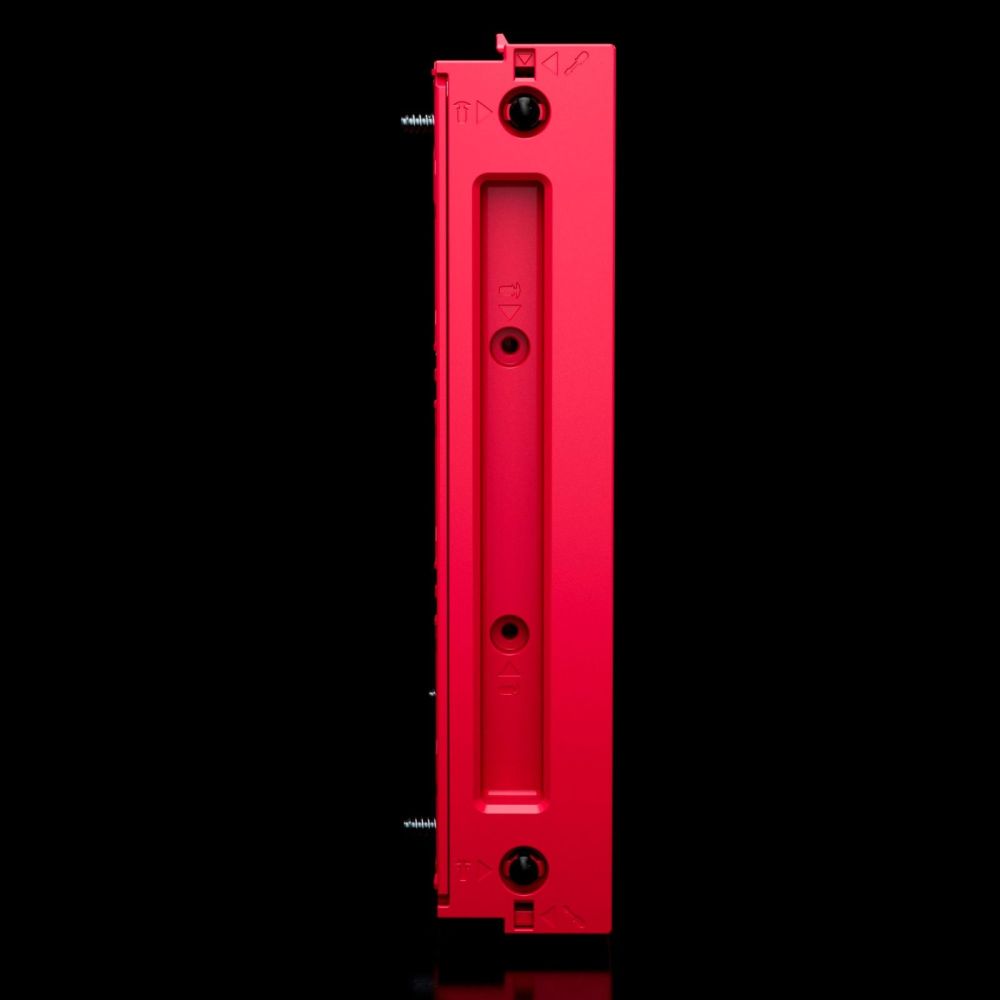

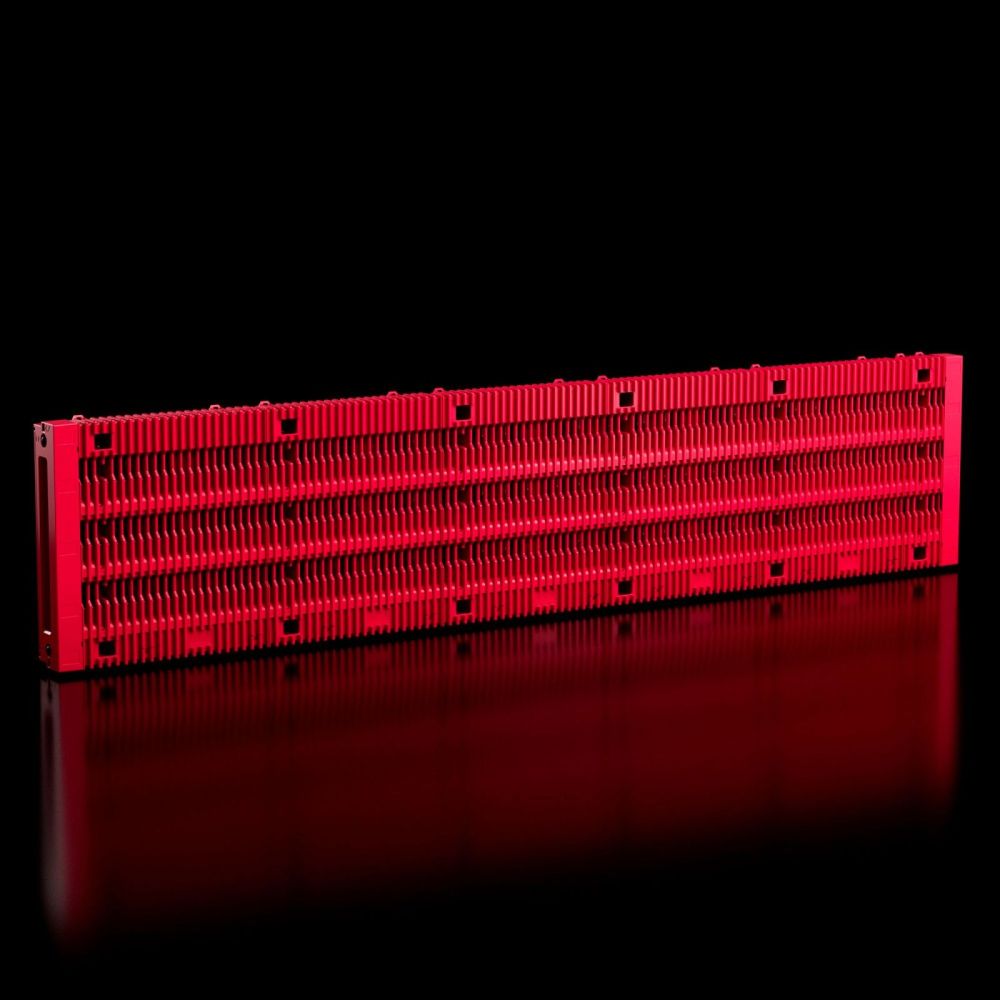

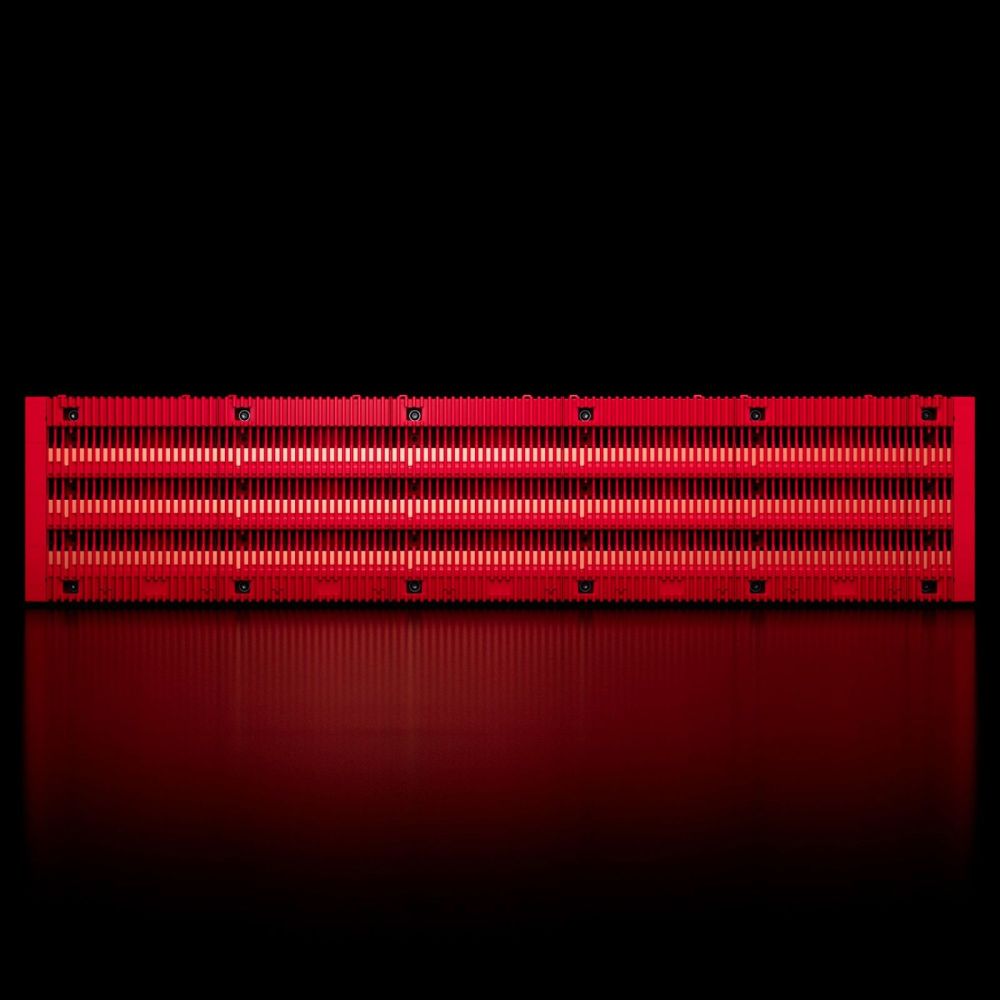

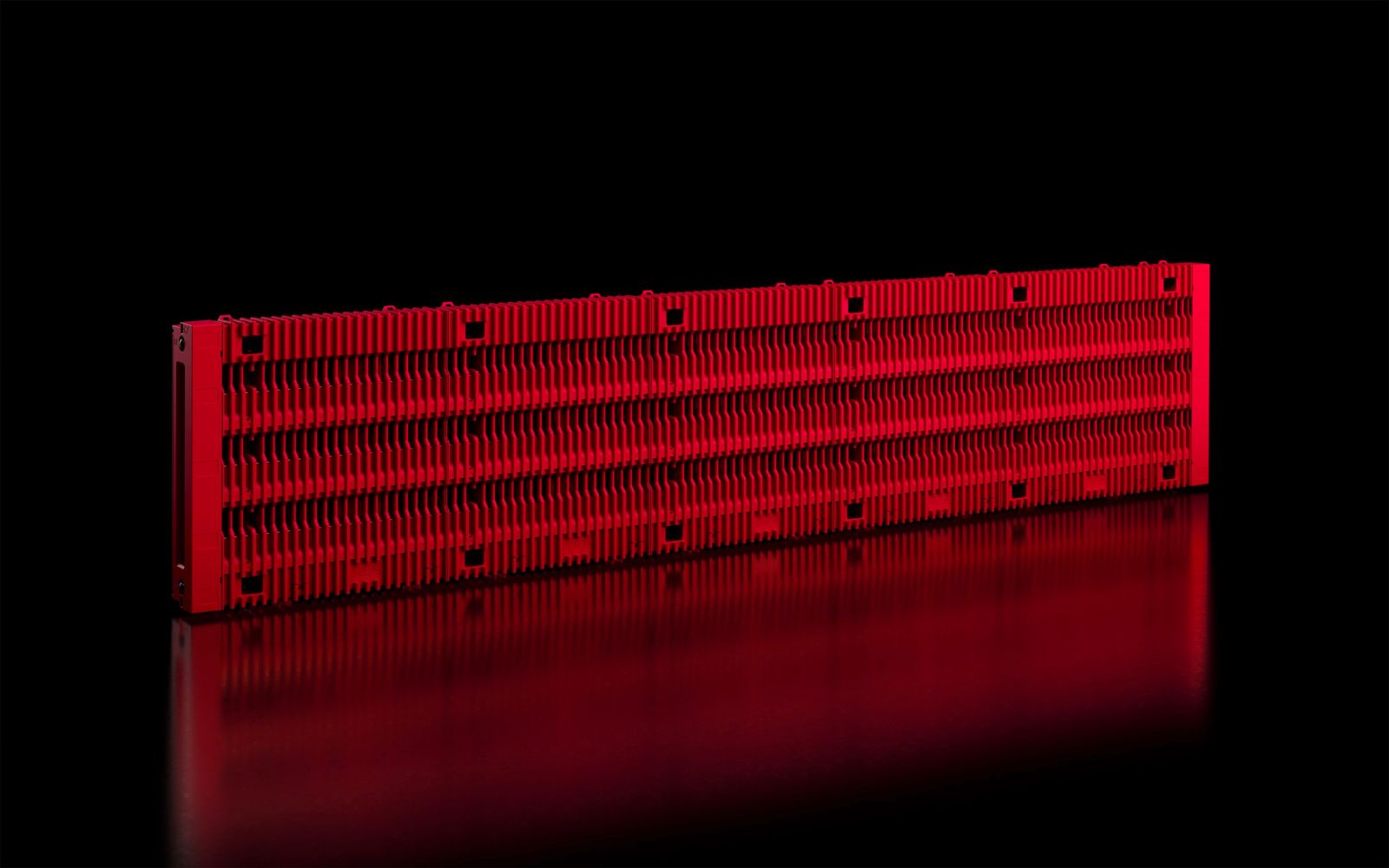

Rittal 9360028 RX RiLineX Board 800 A 3-pole 60 mm with busbars 30x10 mm W:1105

Your rating:
Average rating
product review for Rittal 9360028 RX RiLineX Board 800 A 3-pole 60 mm with busbars 30x10 mm W:1105
( 4 / 5 ) 3 ratings
Rittal 9360028
This image may differ from the desired article.
Rittal 9360028Rittal 9360028Rittal 9360028Rittal 9360028Rittal 9360028Rittal 9360028Rittal 9360028
525,65 EUR
incl. 82,90 EUR copper surcharge
( 625,52 EUR incl. VAT )
≈ £439.44  |  ≈ $580.84
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9360028 RX RiLineX Board 800 A 3-pole 60 mm with busbars 30x10 mm W:1105
Datasheet:file_download Download
Lieske Part No.:1571630
Mfg Part No: 9360028
UPC/EAN: 4028177997394
Weight:14.68 kg
Type:RX 9360028

Product information for Rittal 9360028:

The Rittal RiLineX complete board RX 9360028 is a 3-pole power distribution module with a rated current of 800 A, specifically designed for use in industrial enclosures. It is designed for enclosures with a width of 1200 mm and has a length of 1105 mm. The board is delivered pre-assembled and includes integrated busbars with dimensions 30 mm x 10 mm, arranged at a center-to-center spacing of 60 mm. The construction made of polyamide (PA 6) with flammability rating according to UL 94, E-Cu, ensures high mechanical stability and safety. The coloration is in RAL 35745 and RAL 9005.

Applications
This board is suitable for applications in alternating current up to 1000 V AC and direct current up to 1500 V DC. It meets the requirements of standards IEC 61 439-1/-2 and UL 508, enabling worldwide use in industrial and commercial electrical installations. The tested short-circuit withstand capability up to 65 kA makes it suitable for installations with high electrical loads. The overvoltage category 4 and pollution degree 3 ensure reliable operation in environments with increased electrical stress and contamination risk.

Functions and Equipment in Detail

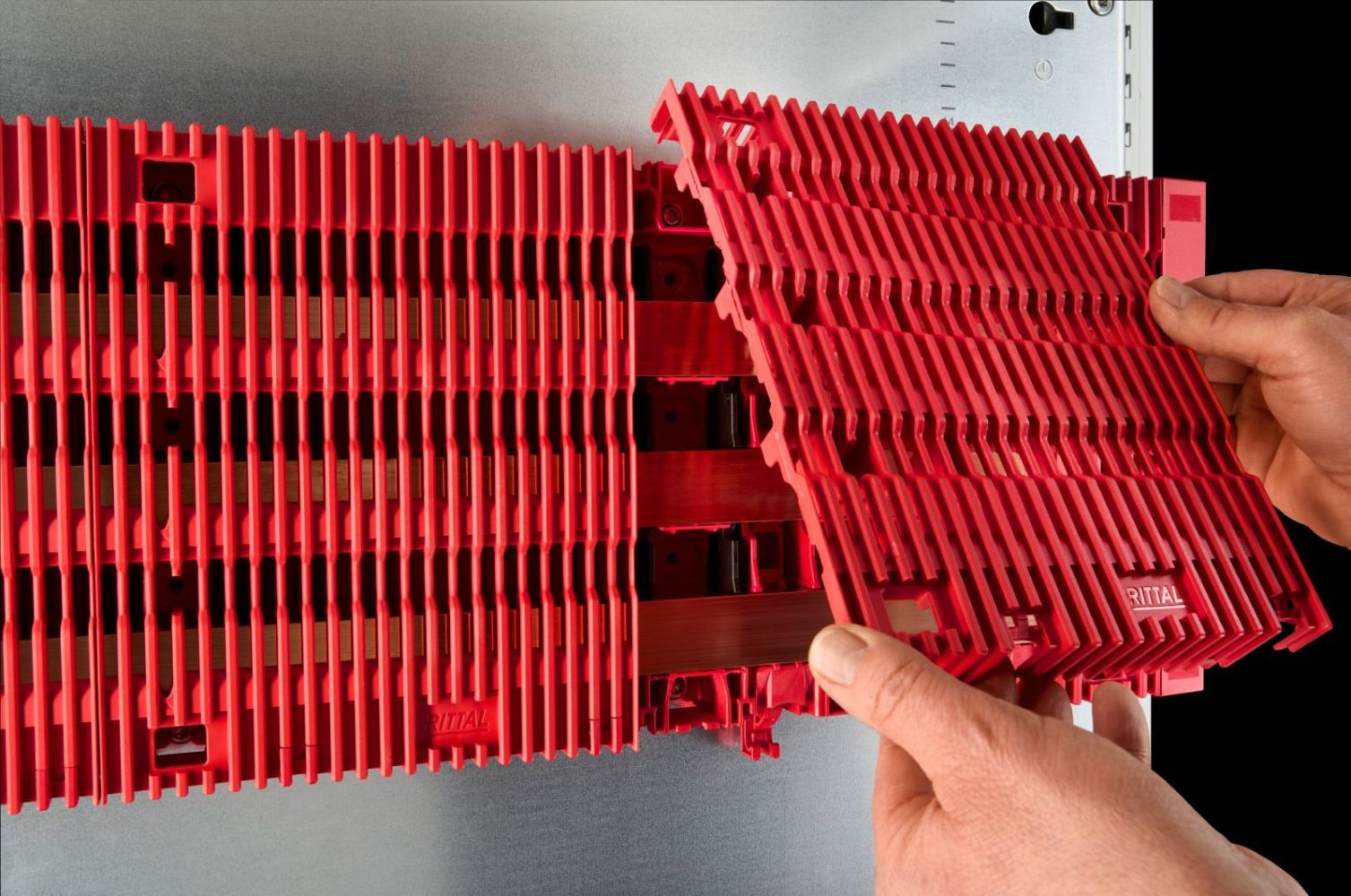

The board provides complete shock protection class up to IP 2XB according to IEC 60 529. An upgrade to IP 3X is possible by using cover strips (item RX 9365020). Cable routing at the rear of the board enables flexible and clear wiring, especially for control lines. Mounting is possible in horizontal, vertical, and overhead positions, allowing flexible integration into various enclosure configurations. Baying of multiple boards is achieved using RiLineX baying connectors (item RX 9360000), without reducing the short-circuit withstand capability.

Technology Explained Simply
The rated voltage is 1,000 V AC and 1,500 V DC, with UL approval for 600 V AC and 600 V DC. The rated insulation voltage Ui is 1,000 V AC and 1,500 V DC. The rated impulse voltage Uimp is 12 kV, and the rated impulse current withstand Ipk is 143 kA. The rated short-time withstand current is 65 kA/500 ms. These values ensure safe and stable operation under various operating conditions. The frequency of the fundamental wave is between 50 and 60 Hz. The operating temperature range is from -5 °C to 55 °C, and the storage temperature range is from -25 °C to 75 °C. The relative humidity (non-condensing) is 10 to 90 %.

Compatibility and Accessories
The RiLineX board is compatible with the baying set with connector for RiLineX board 3-pole (item RX 9360000) to connect multiple boards. For increased shock protection, the cover strip set RX 9365020 can be used. The pre-assembled version reduces installation time and enables faster commissioning. Fully digital product data support planning and documentation, resulting in significant time savings.

Mounting and Installation
Mounting is carried out in enclosures with a width of 1200 mm. The board can be mounted in horizontal, vertical, and overhead positions. Cable routing at the rear enables flexible wiring. Baying is performed using special RiLineX baying connectors, ensuring electrical safety through the tested short-circuit withstand capability.

Advantages in Operation
The pre-assembled complete board reduces installation time and minimizes error sources. The integrated busbars and flexible cable routing at the rear increase planning security. The approvals according to IEC 61 439-1/-2 and UL 508 enable use in various markets. The availability of digital product data supports planning and documentation, leading to more efficient project implementation. Simple expandability and baying enable a scalable system architecture.

General
MaterialPolyamide (PA 6), flammability rating according to UL 94, E-Cu
ColourRAL 35745, RAL 9005
Scope of deliveryIncluding integrated busbars
Degree of protection IP according to IEC 60 529IP 2XB
StandardsIEC 61 439-1/-2, UL 508
Rated current max.800 A
Rated current (UL)800 A
Electrical values UL (SCCR)65 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Fuse Class L max. 1600 A, JDDZ/7, 100 kA - 600 V, Circuit Breaker max. 600 A, DIVQ/7, 100 kA - 480 V, Circuit Breaker max. 800 A, DIVQ/7, 65 kA - 600 V, Circuit Breaker max. 800 A, DIVQ/7
Center-to-center spacing of busbars60 mm
Rated impulse voltage Uimp12 kV
Rated voltage1.000 V AC, 1.500 V DC, 600 V AC (UL), 600 V DC (UL)
Rated insulation voltage Ui1.000 V AC, 1.500 V DC
Rated surge withstand current Ipk143 kA, 143 kA (UL)
Rated short-time withstand current / t65 kA/500 ms
Over voltage category4
Pollution degree3
Busbar dimensions30 mm x 10 mm
Number of poles3-pole
Frequency of fundamental wave50...60 Hz
Humidity (non-condensing)10...90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Width1.105 mm
Height246 mm
Depth49,2 mm
Fire load115,574 MJ/m²
Copper content (kg/piece)8,838
PCF/VE (Cradle-to-Gate)92,84


Please note...
This article contains a copper surcharge of 82,90 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9360028, EAN: 4028177997394

Questions & answers

What is the delivery time of Rittal 9360028 RX RiLineX Board 800 A 3-pole 60 mm with busbars 30x10 mm W:1105?

The article Rittal 9360028 RX RiLineX Board 800 A 3-pole 60 mm with busbars 30x10 mm W:1105 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9360028 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9360028 RX RiLineX Board 800 A 3-pole 60 mm with busbars 30x10 mm W:1105 always at the best possible price. We can give you a discount of 2% on Rittal 9360028 RX RiLineX Board 800 A 3-pole 60 mm with busbars 30x10 mm W:1105 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
