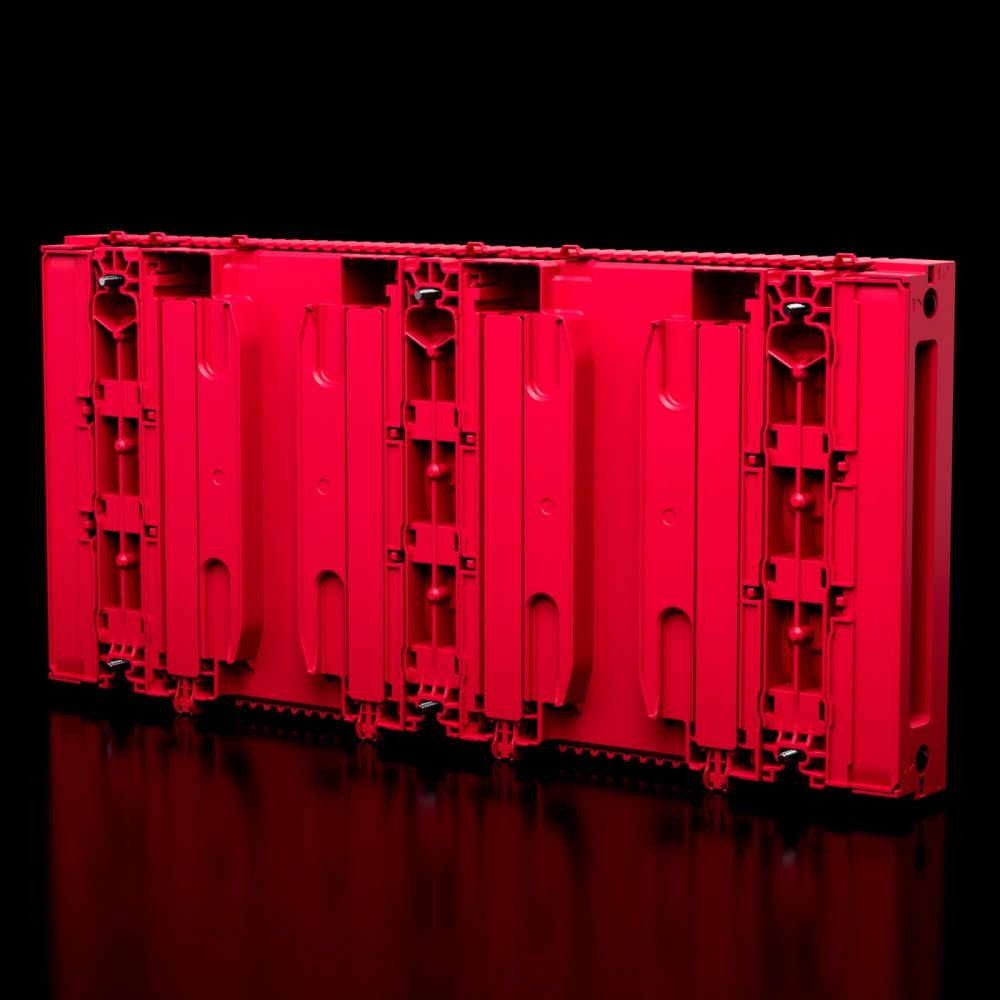

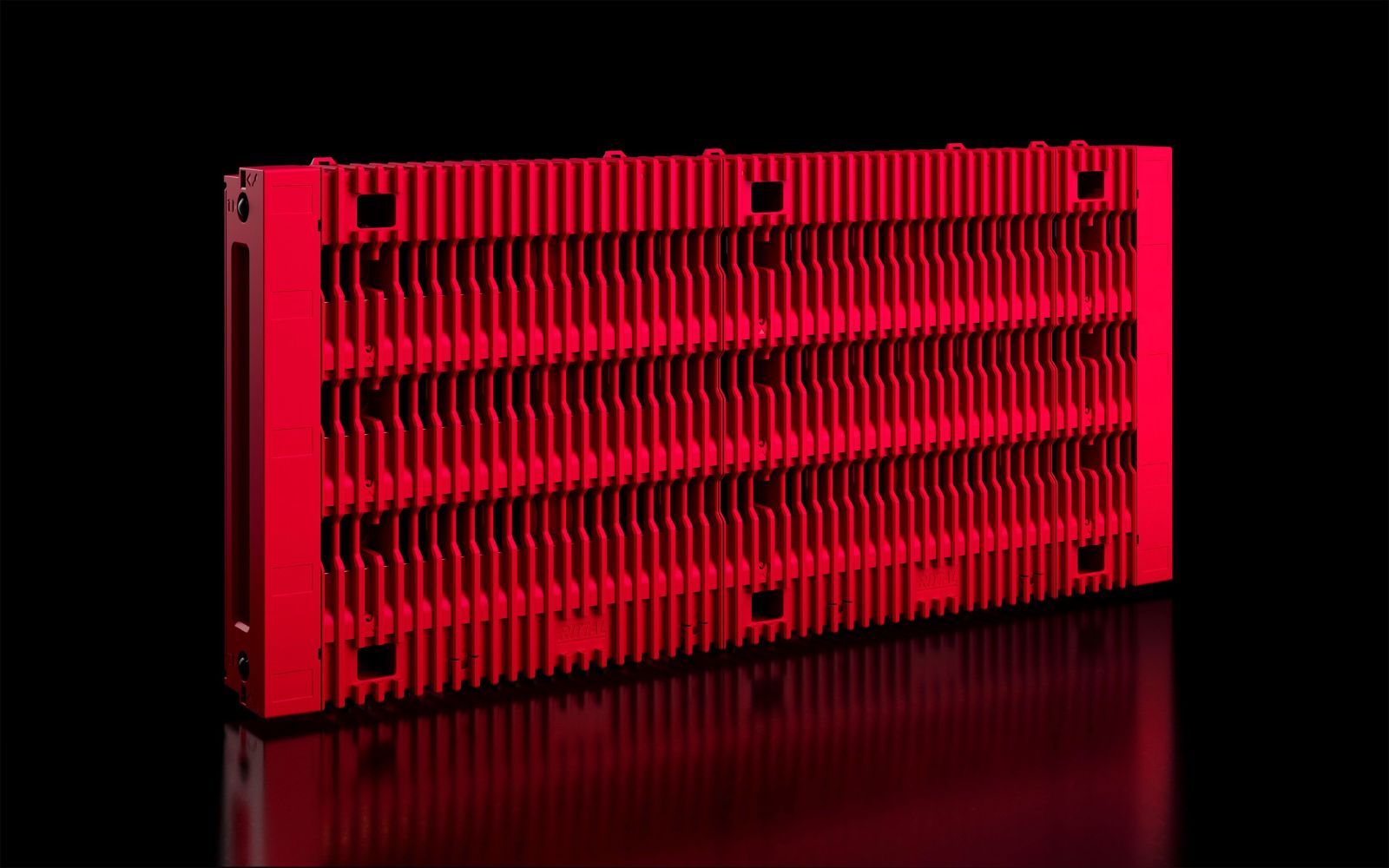

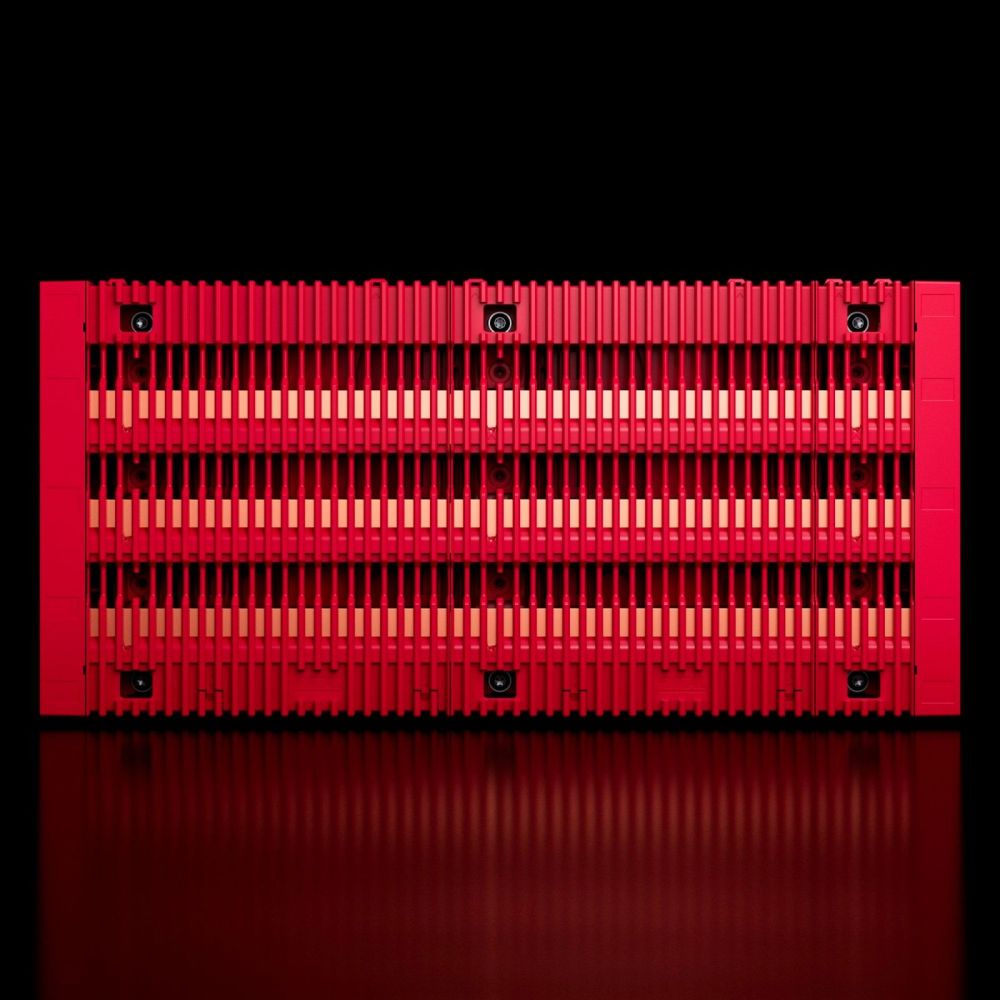

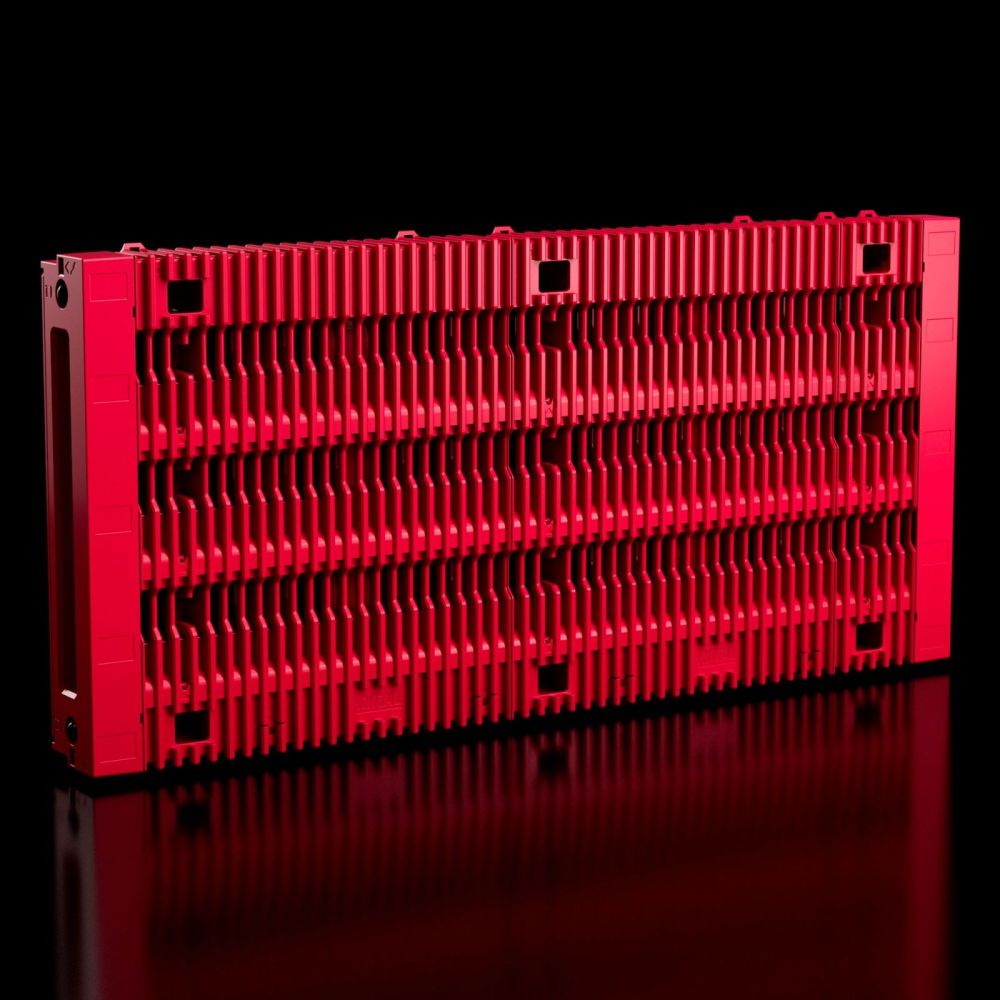

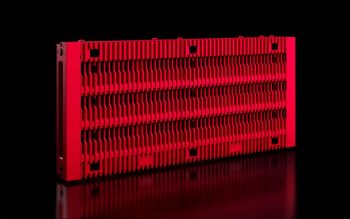

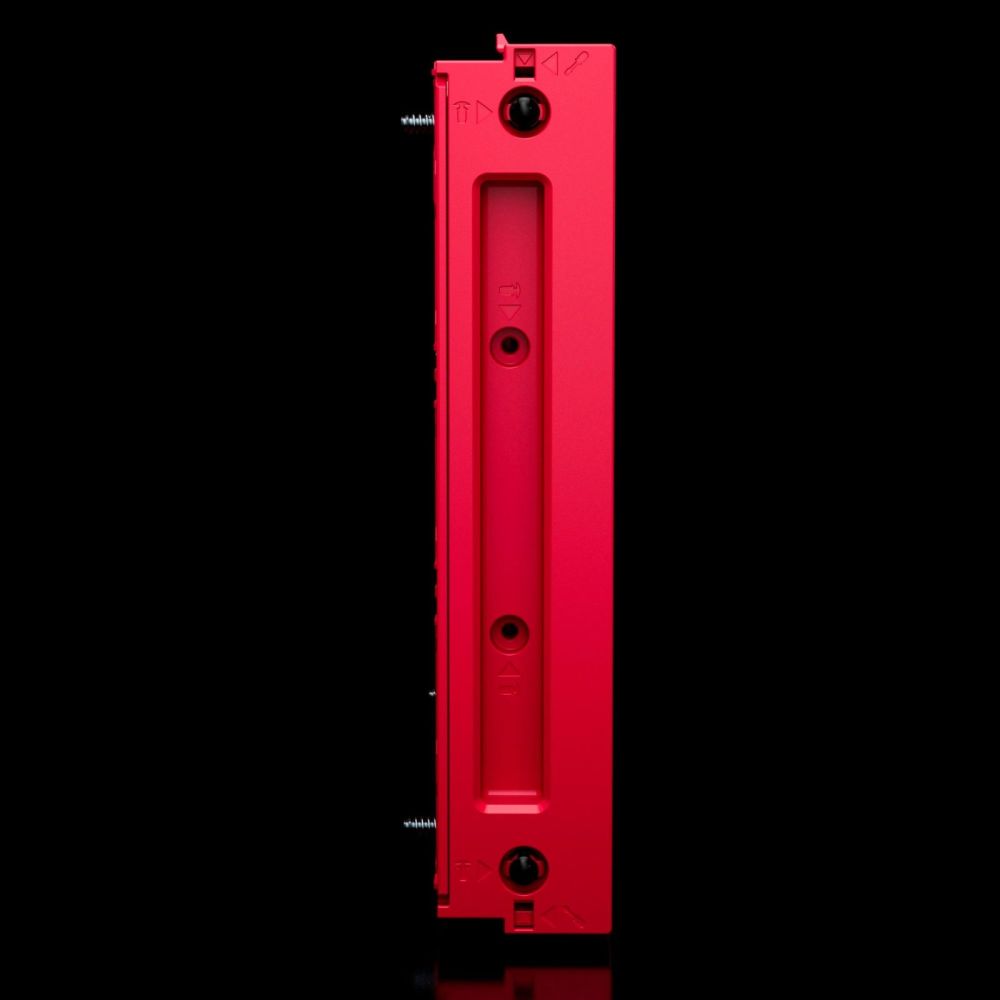

Rittal 9360064 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 505 mm

Your rating:
Average rating
product review for Rittal 9360064 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 505 mm
( 4.5 / 5 ) 2 ratings
Rittal 9360064
This image may differ from the desired article.
Rittal 9360064Rittal 9360064Rittal 9360064Rittal 9360064Rittal 9360064Rittal 9360064Rittal 9360064
174,02 EUR
incl. 18,77 EUR copper surcharge
( 207,08 EUR incl. VAT )
≈ £145.48  |  ≈ $192.29
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 4 pieces
1x Rittal 9360064 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 505 mm
Datasheet:file_download Download
Lieske Part No.:1571633
Mfg Part No: 9360064
UPC/EAN: 4028177997363
Weight:4.78 kg
Type:RX 9360064

Product information for Rittal 9360064:

The Rittal RiLineX complete board type RX 9360064 is a 3-pole power distribution module with a rated current of 550 A, specifically designed for use in industrial enclosures. It features integrated busbars with dimensions 30 mm x 5 mm and a center-to-center spacing of 60 mm, ensuring safe and efficient power distribution. The board is designed for enclosures with a width of 600 mm and has a length of 505 mm. It is made of polyamide (PA 6), classified according to UL 94 E-Cu, providing high flame resistance. The color is RAL 35745 and RAL 9005.

Applications

The RiLineX board is suitable for applications in alternating current up to 1,000 V AC and direct current up to 1,500 V DC. It is used in industrial electrical installations where reliable power distribution under high loads is required. Certification according to IEC 61 439-1/-2 and UL 508 makes it suitable for use in various regions worldwide. The tested short-circuit withstand capability up to 45 kA/500 ms ensures safe operation even under extreme conditions.

Functions and Equipment in Detail

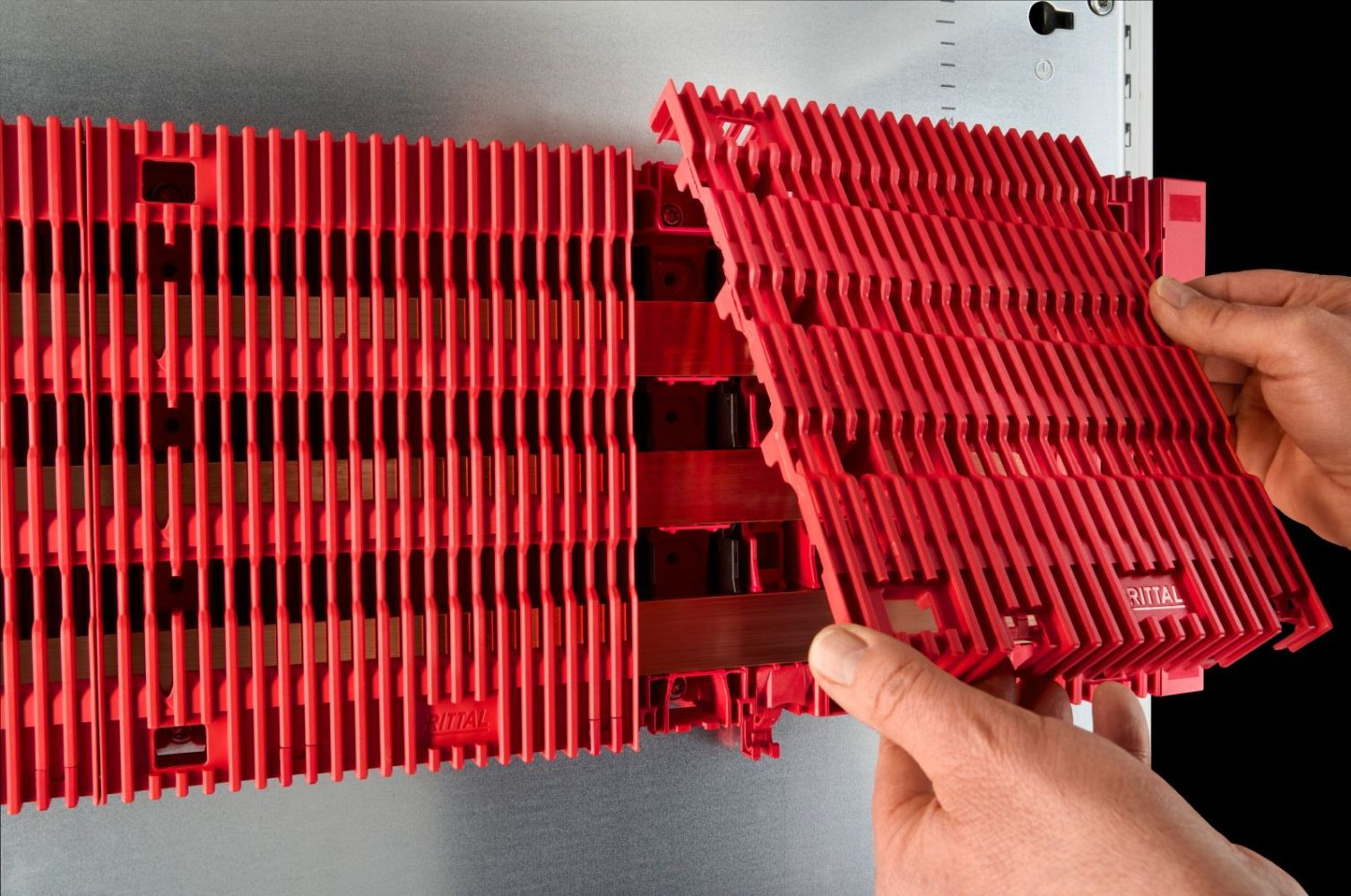

The board is pre-assembled and includes integrated busbars, reducing installation time in the enclosure. Cable routing can be done at the rear of the board, providing additional flexibility in system design. The touch protection class IP 2XB protects against direct contact with live parts, with an upgrade to IP 3X possible using additional cover strips. Fully digital product data enables time savings in planning and documentation.

Technology Explained Simply

The rated voltage is 1,000 V AC and 1,500 V DC, with the rated insulation voltage Ui also being 1,000 V AC and 1,500 V DC. The rated impulse voltage Uimp is 12 kV, ensuring the board’s ability to withstand overvoltages. The overvoltage category 4 and pollution degree 3 indicate that the board is designed for environments with high electrical stress and pollution risks. The rated impulse current withstand capability Ipk is 115.5 kA, highlighting its ability to handle high current surges.

Compatibility and Accessories

The RiLineX board can be mounted horizontally, vertically, or overhead, allowing flexible integration into existing enclosure configurations. Connecting multiple boards is done via RiLineX baying connectors, without reducing short-circuit withstand capability. Compatible accessories include the cover strip RX 9365020 for increasing touch protection class to IP 3X, and the baying set RX 9360000 for connecting multiple boards.

Installation and Mounting

Installation is done by simply inserting the board into the enclosure, with pre-mounted busbars immediately available. Cable routing at the rear facilitates integration of control wiring. The mounting position can be chosen as horizontal, vertical, or overhead depending on requirements, offering high flexibility in planning.

Operational Advantages

The RiLineX board offers high reliability through tested short-circuit withstand capability and secure power distribution. The pre-assembled design reduces installation time and minimizes error sources. Digital product data availability supports planning and documentation, saving time and resources. Compatibility with various mounting options and accessories enables flexible and scalable system design.

General
MaterialPolyamide (PA 6), flammability rating according to UL 94, E-Cu
ColourRAL 35745, RAL 9005
Scope of deliveryIncluding integrated busbars
Degree of protection IP according to IEC 60 529IP 2XB
StandardsIEC 61 439-1/-2, UL 508
Rated current max.550 A
Rated current (UL)540 A
Electrical values UL (SCCR)45 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Fuse Class L max. 1600 A, JDDZ/7, 100 kA - 600 V, Circuit Breaker max. 600 A, DIVQ/7, 100 kA - 480 V, Circuit Breaker max. 800 A, DIVQ/7, 65 kA - 600 V, Circuit Breaker max. 800 A, DIVQ/7
Center-to-center spacing of busbars60 mm
Rated impulse voltage Uimp12 kV
Rated voltage1.000 V AC, 1.500 V DC, 600 V AC (UL), 600 V DC (UL)
Rated insulation voltage Ui1.000 V AC, 1.500 V DC
Rated surge withstand current Ipk115,5 kA, 94,5 kA (UL)
Rated short-time withstand current / t45 kA/500 ms
Over voltage category4
Pollution degree3
Busbar dimensions30 mm x 5 mm
Number of poles3-pole
Frequency of fundamental wave50...60 Hz
Humidity (non-condensing)10...90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Width505 mm
Height246 mm
Depth49,2 mm
Fire load53,669 MJ/m²
Copper content (kg/piece)2,001
PCF/VE (Cradle-to-Gate)28,6


Please note...
This article contains a copper surcharge of 18,77 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9360064, EAN: 4028177997363

Questions & answers

What is the delivery time of Rittal 9360064 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 505 mm?

The article Rittal 9360064 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 505 mm is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9360064 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9360064 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 505 mm always at the best possible price. We can give you a discount of 2% on Rittal 9360064 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 505 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 9360064 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 505 mm

Rittal 9365020 RX cover strip, pack of 10 for RiLineX Board and base module Rittal LogoRittal 9365020 RX cover strip, pack of 10 for RiLineX Board and base module The Rittal RX 9365020 is a cover strip for RiLineX systems, specifically designed to cover unoccupied board segments in enclosures. It serves to increase the front-side shock protection from IP 2XB to ...

Lieske Part No.: 612137
Mfg Part No: 9365020
Type: RX 9365020
-7% 14,95 EUR 15,99 EUR
Rittal 9365020 plus VAT
≈ £12.50  |  ≈ $16.52
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Rittal 9360000 RX baying set with connector for RiLineX Board 3-pole Rittal LogoRittal 9360000 RX baying set with connector for RiLineX Board 3-pole The Rittal RiLineX baying set, type RX 9360000, is a 3-pole connection system for hole-free baying of complete boards between bayed enclosures. It is designed for secure and efficient electrical ...

Lieske Part No.: 1571621
Mfg Part No: 9360000
Type: RX 9360000
99,39 EUR 103,27 EUR
Rittal 9360000 plus VAT
≈ £83.09  |  ≈ $109.83
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
