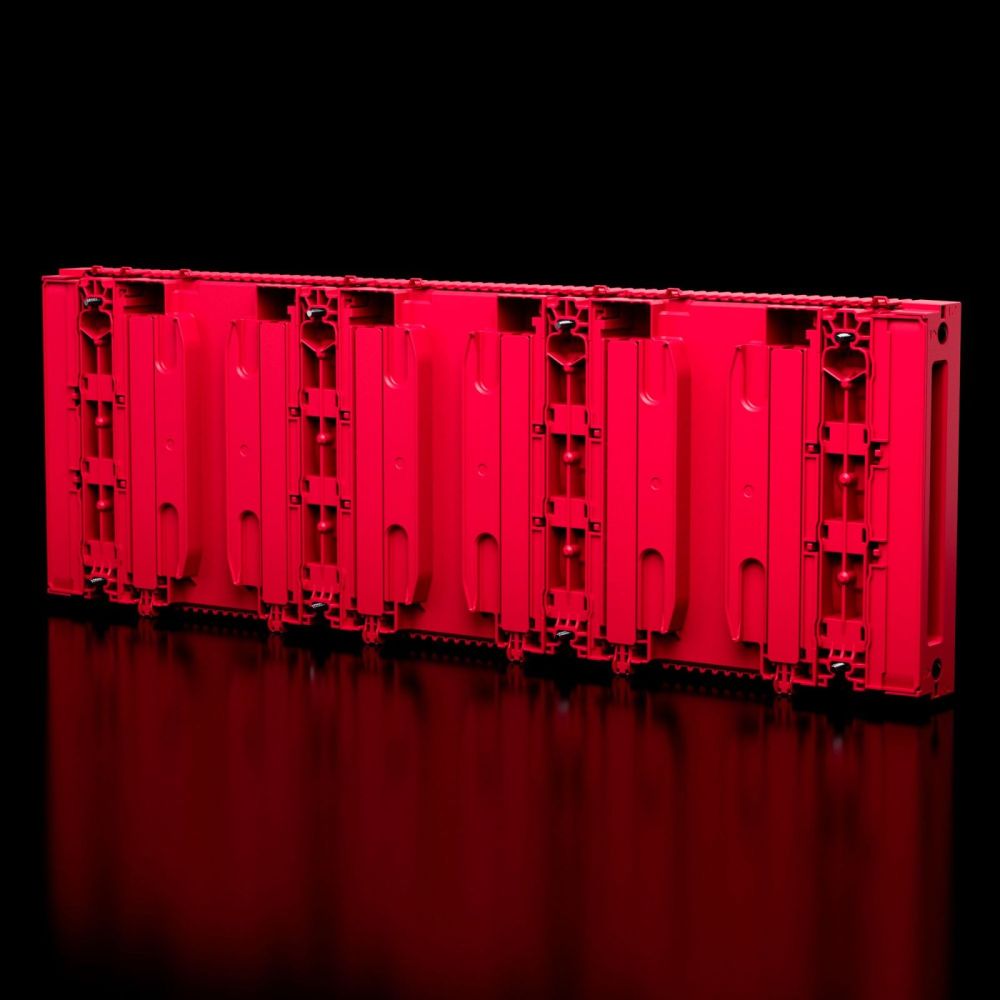

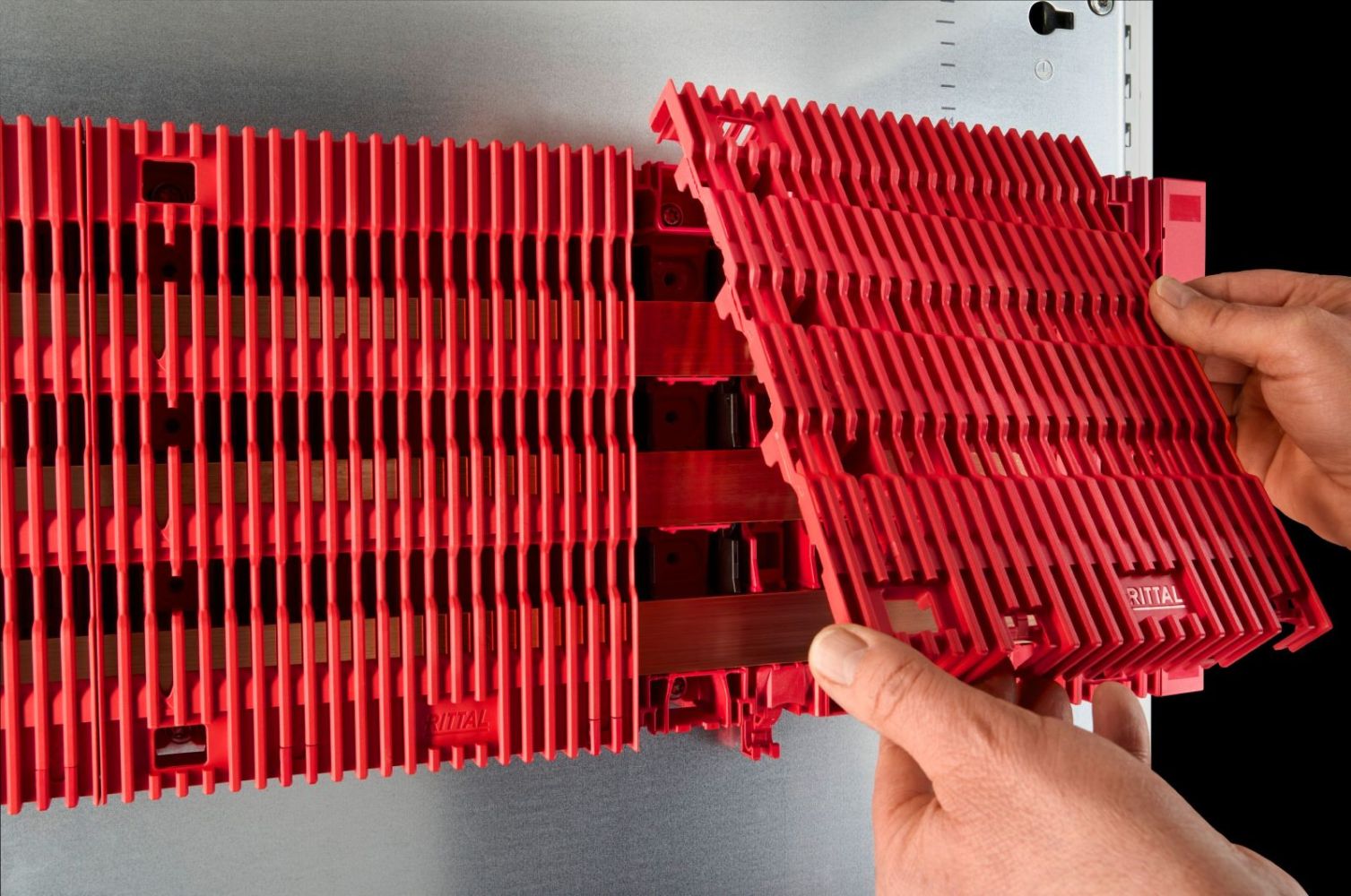

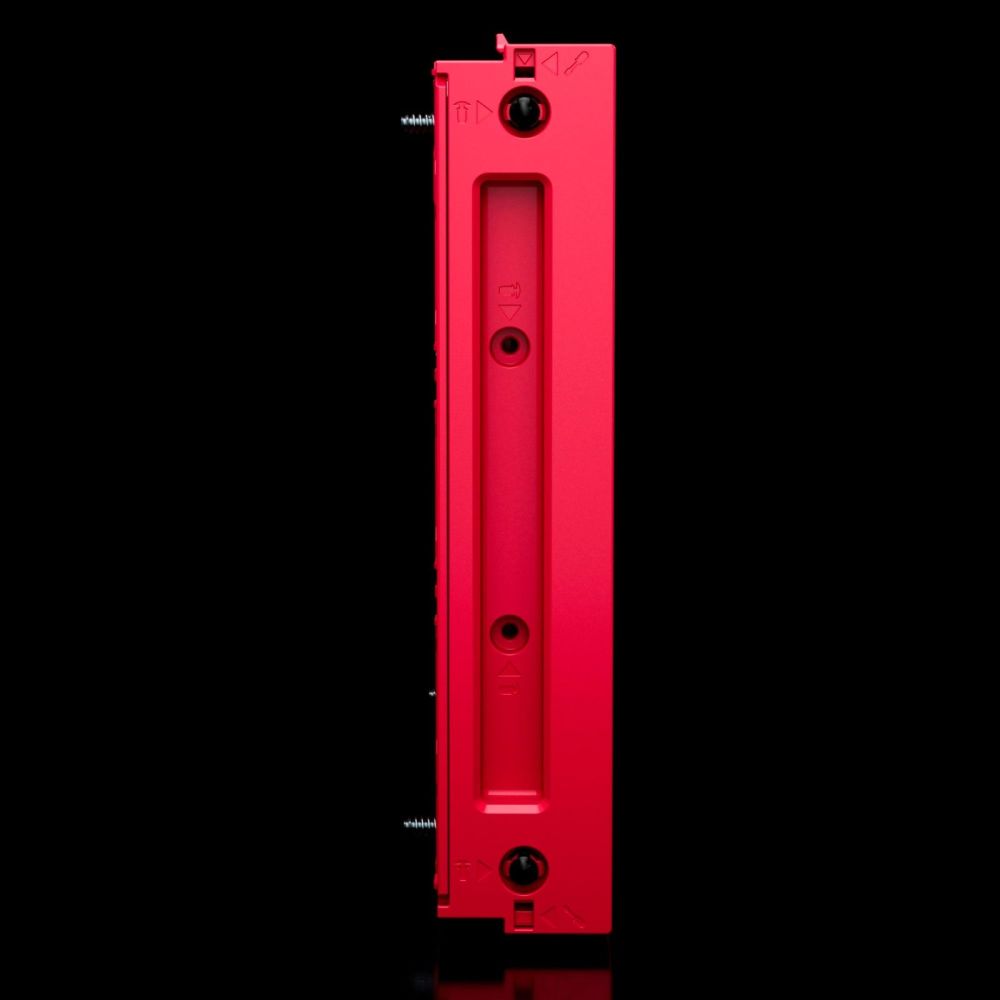

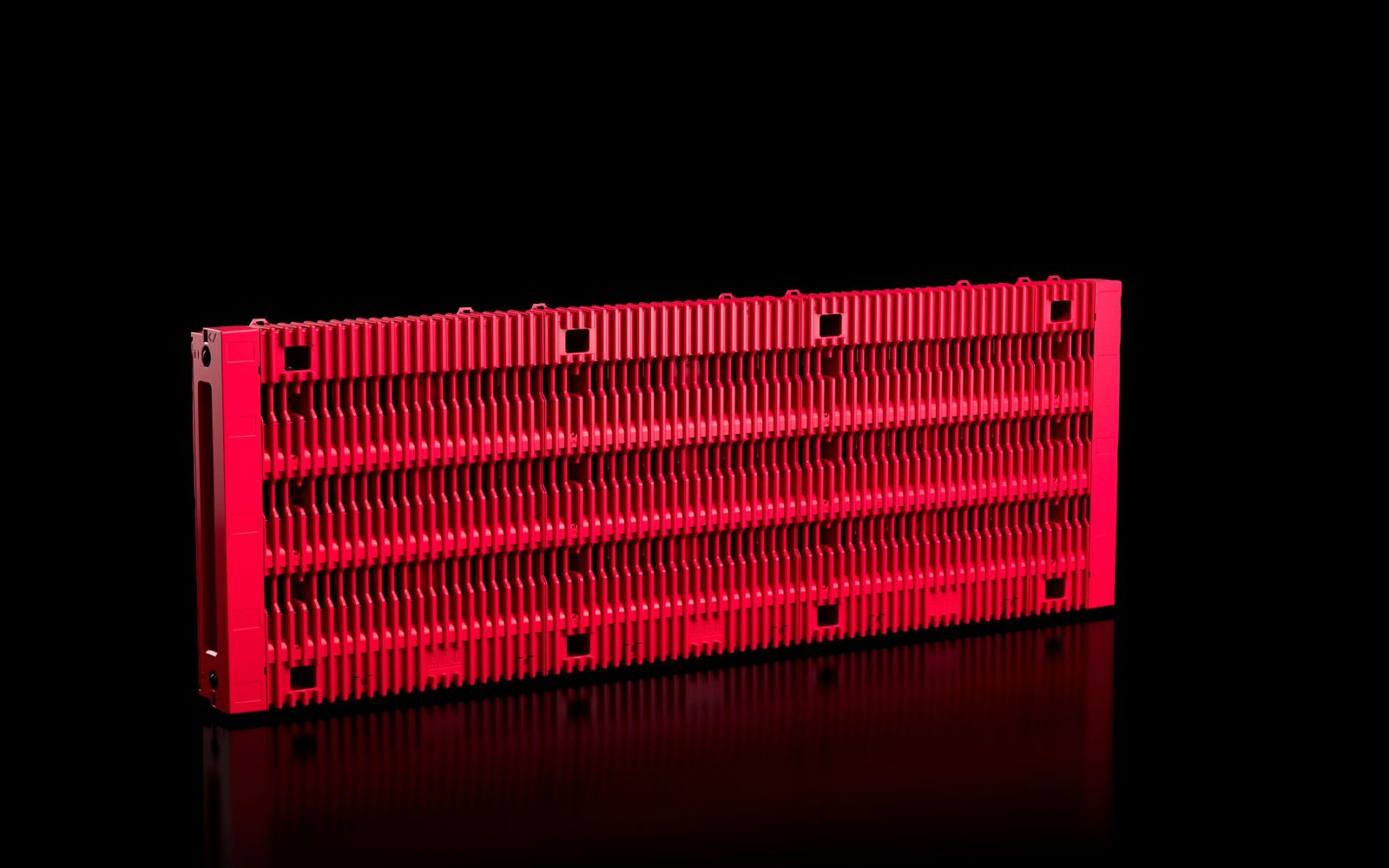

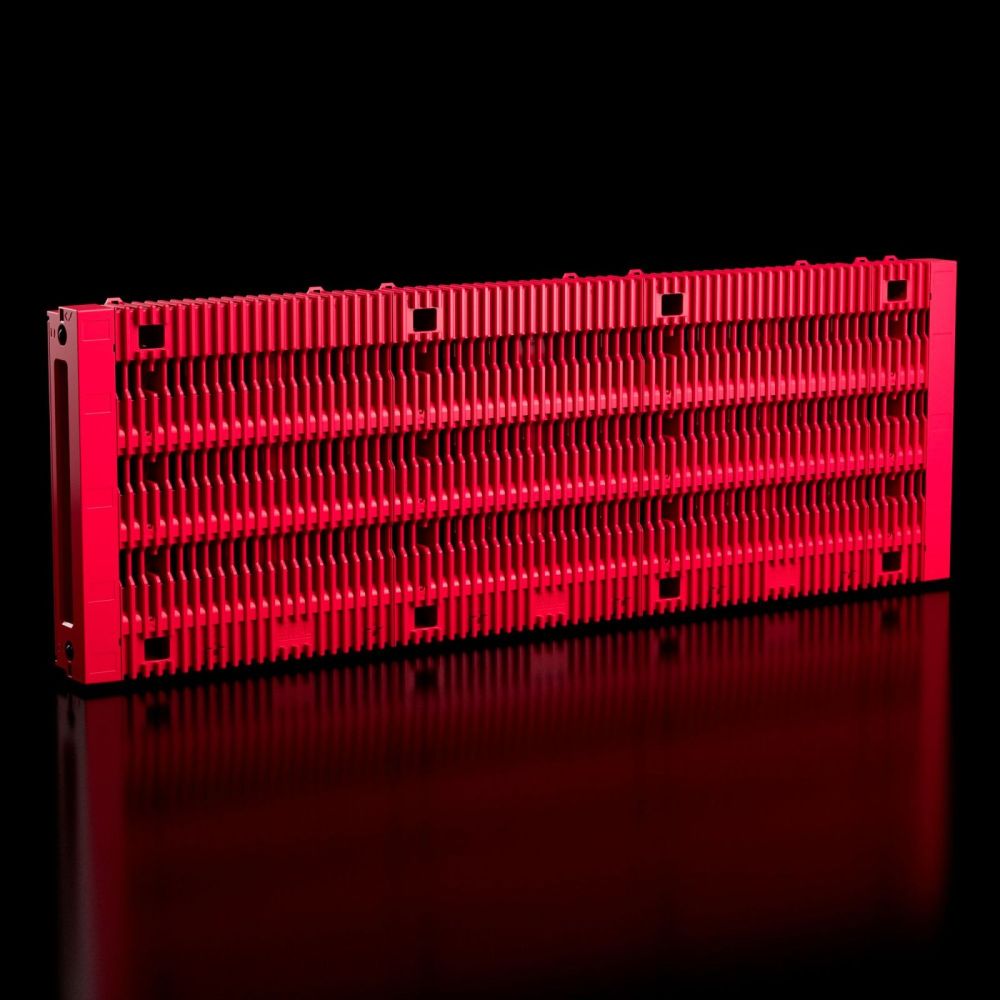

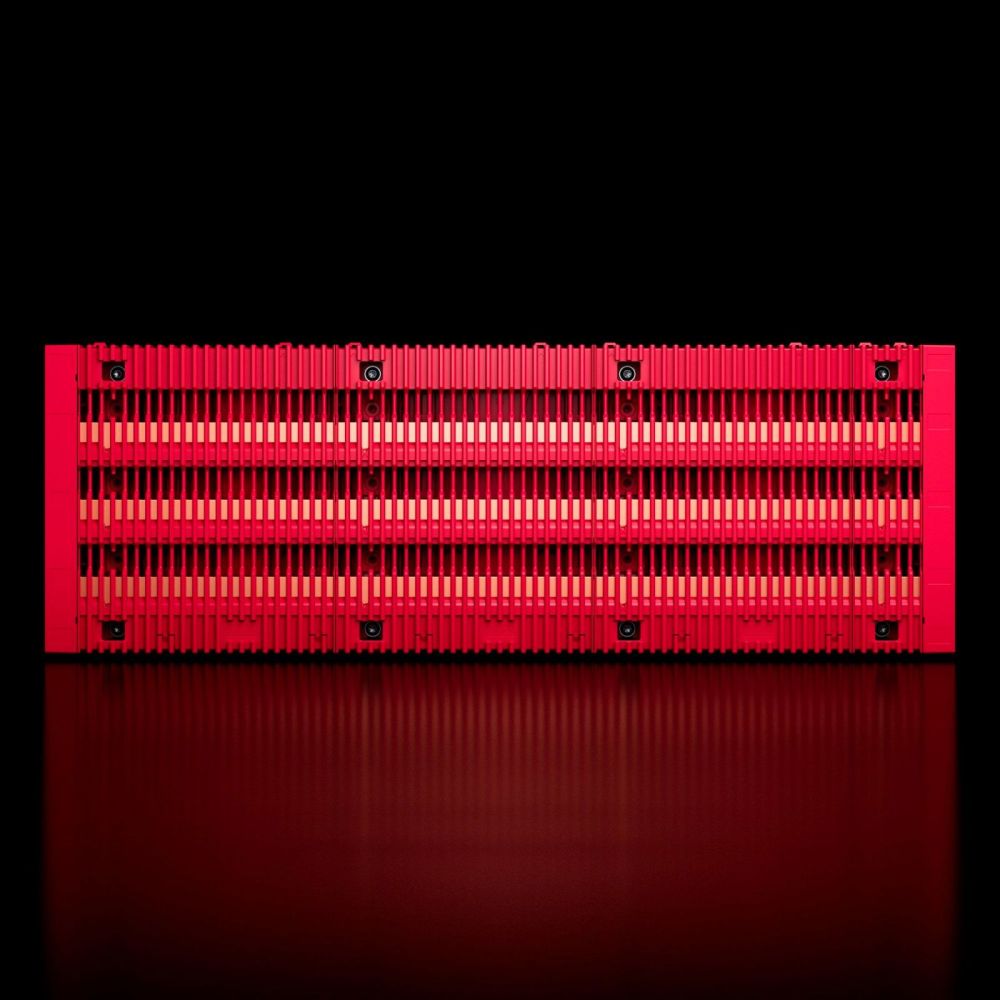

Rittal 9360088 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 705 mm

Your rating:
Average rating
product review for Rittal 9360088 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 705 mm
( 4.5 / 5 ) 8 ratings
Rittal 9360088
This image may differ from the desired article.
Rittal 9360088Rittal 9360088Rittal 9360088Rittal 9360088Rittal 9360088Rittal 9360088Rittal 9360088
322,89 EUR
incl. 52,64 EUR copper surcharge
( 384,24 EUR incl. VAT )
≈ £269.94  |  ≈ $356.79
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 9360088 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 705 mm
Datasheet:file_download Download
Lieske Part No.:1571745
Mfg Part No: 9360088
UPC/EAN: 4028177997332
Weight:9.395 kg
Type:RX 9360088

Product information for Rittal 9360088:

The Rittal RiLineX complete board type RX 9360088 is a 3-pole power distribution module with a rated current of 800 A, specifically designed for use in industrial enclosures. It features integrated busbars with dimensions 30 mm x 10 mm and a center-to-center spacing of 60 mm. The board is designed for enclosures with a width of 800 mm and has a length of 705 mm. It is made of polyamide (PA 6), classified according to UL 94 E-Cu, and is available in the colors RAL 35745 and RAL 9005. The construction provides complete shock protection up to IP 2XB, with an option to extend to IP 3X using additional cover strips. The module is suitable for use in electrical installations with alternating voltage up to 1,000 V AC and direct voltage up to 1,500 V DC. The rated insulation voltage is 1,000 V AC and 1,500 V DC, and the rated impulse voltage is 12 kV. The tested short-circuit withstand capability is 65 kA/500 ms, ensuring high safety during short-circuit events. The overvoltage category is 4, and the pollution degree is 3. The frequency of the fundamental wave is 50 to 60 Hz. The board can be mounted horizontally, vertically, and overhead, enabling flexible integration into various enclosure configurations. Cable routing at the rear of the board provides additional flexibility in system design. Certifications include IEC 61 439-1/-2 and UL 508, confirming compliance with international safety and quality standards. The operating temperature ranges from -5 °C to 55 °C, and the storage temperature ranges from -25 °C to 75 °C. The relative humidity (non-condensing) is 10 to 90 %. The pre-assembled board reduces installation time and allows for quick baying of additional boards using RiLineX baying connectors, without reducing short-circuit withstand capability. Fully digital product data support planning and documentation, resulting in time savings. Compatible accessories include the cover strip RX 9365020 and the baying set RX 9360000, which enables field baying. Electrical values according to UL (SCCR) include 65 kA at 600 V RMS, unprotected, as well as 100 kA at 600 V with fuse class L up to 1600 A (JDDZ/7) and 100 kA at 600 V with circuit breaker up to 600 A (DIVQ/7), and 100 kA at 480 V with circuit breaker up to 800 A (DIVQ/7). The rated impulse current withstand capability is 143 kA, both according to IEC and UL. The fire load is 74,304 MJ/m², and the copper content per piece is 5,613 kg. Product identification numbers include the manufacturer's number RX 9360088, the tariff code 85369010, and the EAN 4028177997332. The board is available in a packaging unit of 1 piece, with a net weight of 9 kg and a gross weight of 9.395 kg. The PCF/VE (Cradle-to-Gate) is 59.26. Dimensions are 705 mm (width) x 246 mm (height) x 49.2 mm (depth).

General
MaterialPolyamide (PA 6), flammability rating according to UL 94, E-Cu
ColourRAL 35745, RAL 9005
Scope of deliveryIncluding integrated busbars
Degree of protection IP according to IEC 60 529IP 2XB
StandardsIEC 61 439-1/-2, UL 508
Rated current max.800 A
Rated current (UL)800 A
Electrical values UL (SCCR)65 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Fuse Class L max. 1600 A, JDDZ/7, 100 kA - 600 V, Circuit Breaker max. 600 A, DIVQ/7, 100 kA - 480 V, Circuit Breaker max. 800 A, DIVQ/7
Center-to-center spacing of busbars60 mm
Rated impulse voltage Uimp12 kV
Rated voltage1.000 V AC, 1.500 V DC, 600 V AC (UL), 600 V DC (UL)
Rated insulation voltage Ui1.000 V AC, 1.500 V DC
Rated surge withstand current Ipk143 kA, 143 kA (UL)
Rated short-time withstand current / t65 kA/500 ms
Over voltage category4
Pollution degree3
Busbar dimensions30 mm x 10 mm
Number of poles3-pole
Frequency of fundamental wave50...60 Hz
Humidity (non-condensing)10...90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Width705 mm
Height246 mm
Depth49,2 mm
Fire load74,304 MJ/m²
Copper content (kg/piece)5,613
PCF/VE (Cradle-to-Gate)59,26


Please note...
This article contains a copper surcharge of 52,64 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9360088, EAN: 4028177997332

Questions & answers

What is the delivery time of Rittal 9360088 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 705 mm?

The article Rittal 9360088 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 705 mm is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9360088 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9360088 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 705 mm always at the best possible price. We can give you a discount of 2% on Rittal 9360088 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 705 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 9360088 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W: 705 mm

Rittal 9365020 RX cover strip, pack of 10 for RiLineX Board and base module Rittal LogoRittal 9365020 RX cover strip, pack of 10 for RiLineX Board and base module The Rittal RX 9365020 is a cover strip for RiLineX systems, specifically designed to cover unoccupied board segments in enclosures. It serves to increase the front-side shock protection from IP 2XB to ...

Lieske Part No.: 612137
Mfg Part No: 9365020
Type: RX 9365020
-7% 14,95 EUR 15,99 EUR
Rittal 9365020 plus VAT
≈ £12.50  |  ≈ $16.52
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Rittal 9360000 RX baying set with connector for RiLineX Board 3-pole Rittal LogoRittal 9360000 RX baying set with connector for RiLineX Board 3-pole The Rittal RiLineX baying set, type RX 9360000, is a 3-pole connection system for hole-free baying of complete boards between bayed enclosures. It is designed for secure and efficient electrical ...

Lieske Part No.: 1571621
Mfg Part No: 9360000
Type: RX 9360000
99,39 EUR 103,27 EUR
Rittal 9360000 plus VAT
≈ £83.09  |  ≈ $109.83
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
