Rittal 9360024 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W:1105

Your rating:
Average rating
product review for Rittal 9360024 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W:1105
( 4.5 / 5 ) 4 ratings
Rittal 9360024
This image may differ from the desired article.
Rittal 9360024Rittal 9360024Rittal 9360024Rittal 9360024Rittal 9360024Rittal 9360024Rittal 9360024
382,01 EUR
incl. 41,15 EUR copper surcharge
( 454,59 EUR incl. VAT )
≈ £319.36  |  ≈ $422.12
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 9360024 RX RiLineX Board 550 A 3-pole 60 mm with busbars 30x5 mm W:1105
Datasheet:file_download Download
Lieske Part No.:157163
Mfg Part No: 9360024
UPC/EAN: 4028177997400
Weight:10.2 kg
Type:RX 9360024

Product information for Rittal 9360024:

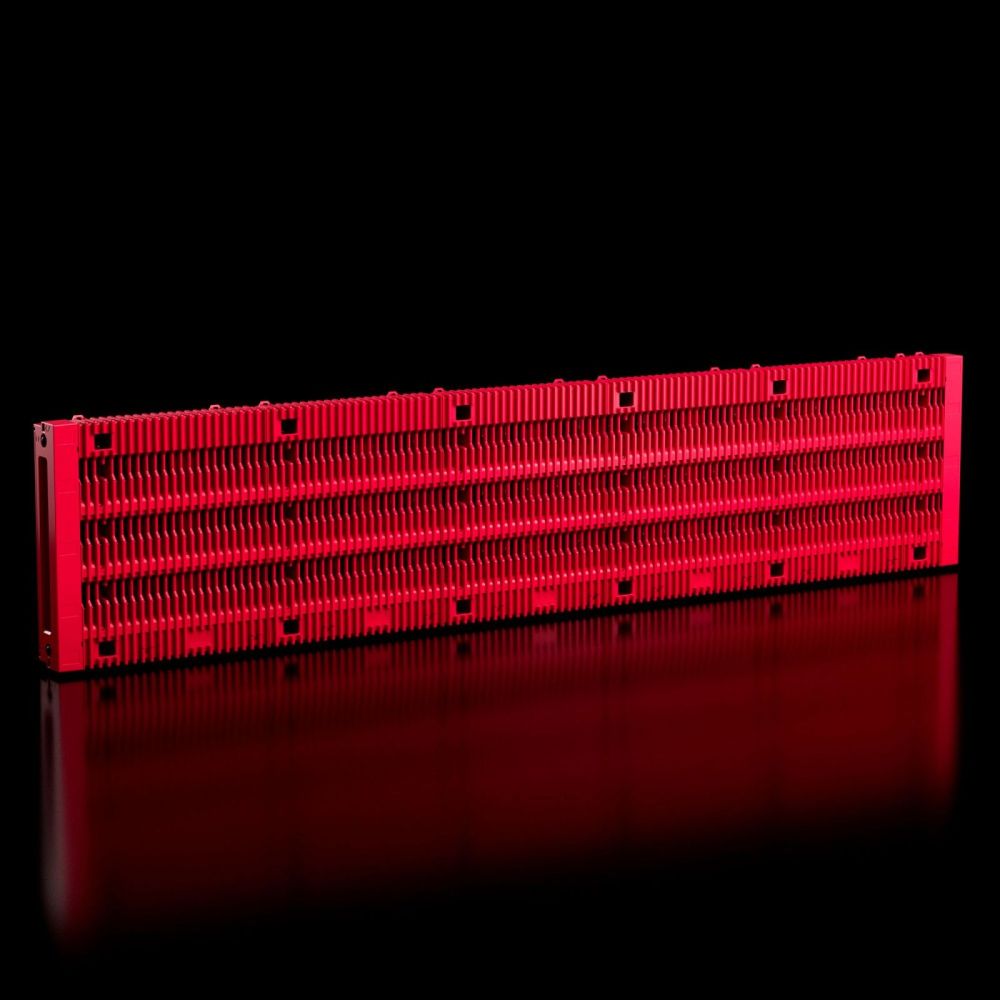

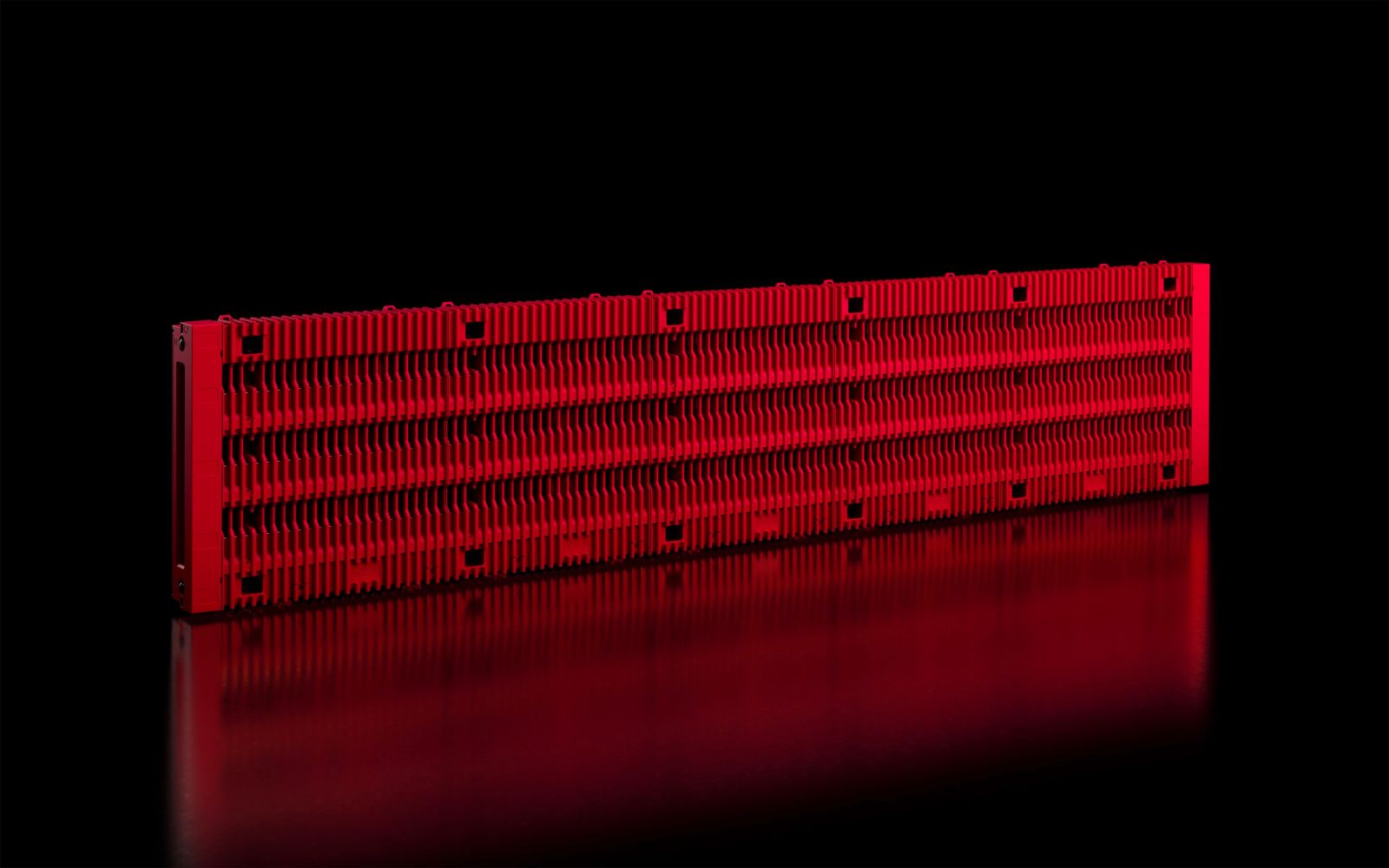

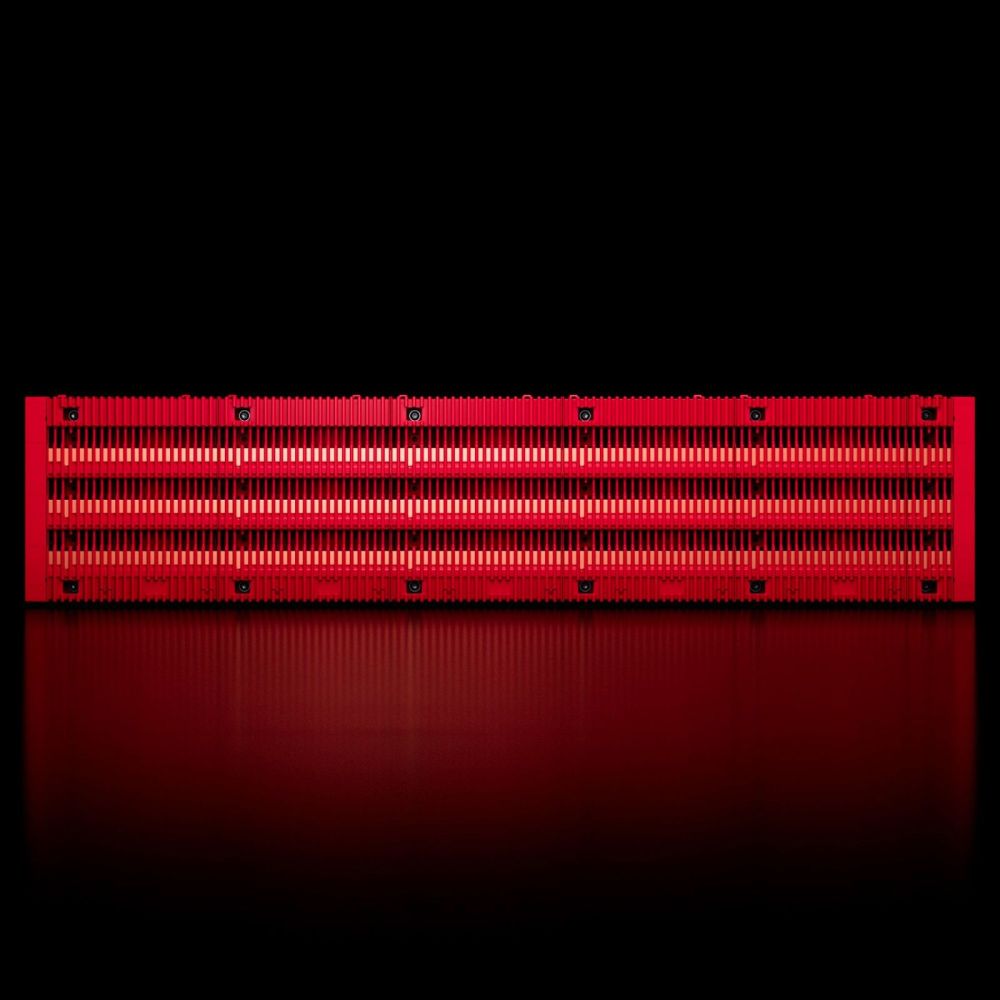

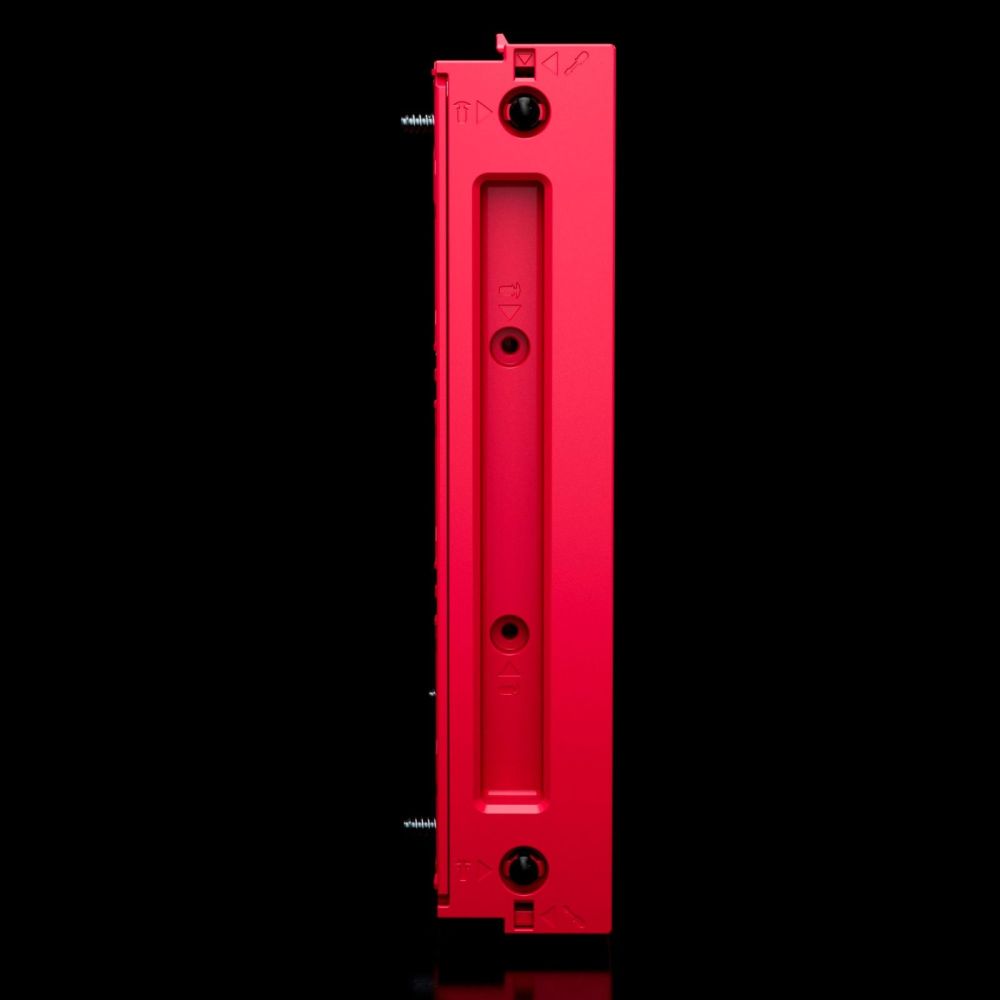

The Rittal RiLineX complete board type RX 9360024 is a 3-pole power distribution board with a rated current of 550 A, specifically designed for use in industrial enclosures. It is designed for enclosures with a width of 1200 mm and has a length of 1105 mm. The board is made of polyamide (PA 6), classified as UL 94 E-Cu, ensuring high flame retardancy. The integrated busbars have dimensions of 30 mm x 5 mm and are arranged with a center-to-center spacing of 60 mm. The delivery includes the pre-assembled board including the busbars, reducing installation time and enabling quick commissioning.

Applications
The RiLineX board is suitable for applications in the range of alternating current up to 1000 V AC and direct current up to 1500 V DC. It is used in industrial electrical installations where reliable power distribution with high short-circuit withstand capability is required. The overvoltage category 4 and pollution degree 3 make it suitable for environments with high electrical loads and pollution risks. The operating temperature ranges from -5 °C to 55 °C, and the storage temperature ranges from -25 °C to 75 °C.

Functions and Equipment in Detail

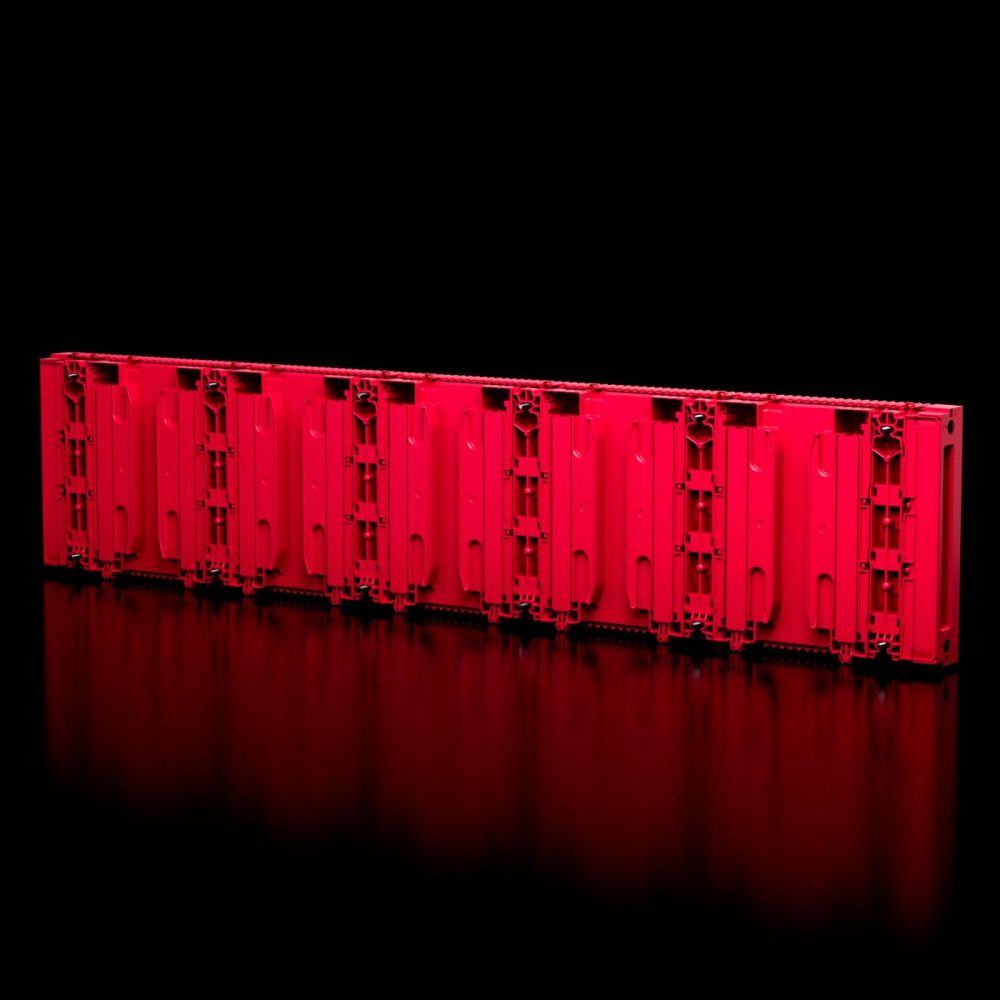

The board provides complete touch protection class up to IP 2XB according to IEC 60 529. By using cover strips (e.g. RX 9365020), an upgrade to IP 3X is possible. Cable routing at the rear of the board enables flexible system design, especially for control wiring. The baying of multiple boards is achieved using RiLineX baying connectors (e.g. RX 9360000), without impairing short-circuit withstand capability. The fully digital product data supports planning and documentation, resulting in time savings.

Technology Explained Simply
The rated short-time withstand current is 45 kA/500 ms, meaning the board can safely withstand short-term current surges up to this value. The rated impulse voltage Uimp is 12 kV, ensuring insulation capability against electrical overvoltages. The rated insulation voltage Ui is 1000 V AC and 1500 V DC, ensuring electrical safety at high voltages. The rated impulse current Ipk is 115.5 kA (115.5 kA according to UL), describing the board’s ability to withstand high current surges for a short period. The rated voltage includes 1000 V AC, 1500 V DC (IEC) as well as 600 V AC and 600 V DC (UL). The frequency of the fundamental wave is 50 to 60 Hz.

Compatibility and Accessories
The board is certified to IEC 61 439-1/-2 and UL 508, confirming compliance with international safety and quality standards. It can be mounted horizontally, vertically, and overhead, enabling flexible installation in various enclosure configurations. Compatible accessories include cover strips RX 9365020 to increase touch protection class and baying set RX 9360000 for connecting multiple boards.

Mounting and Installation

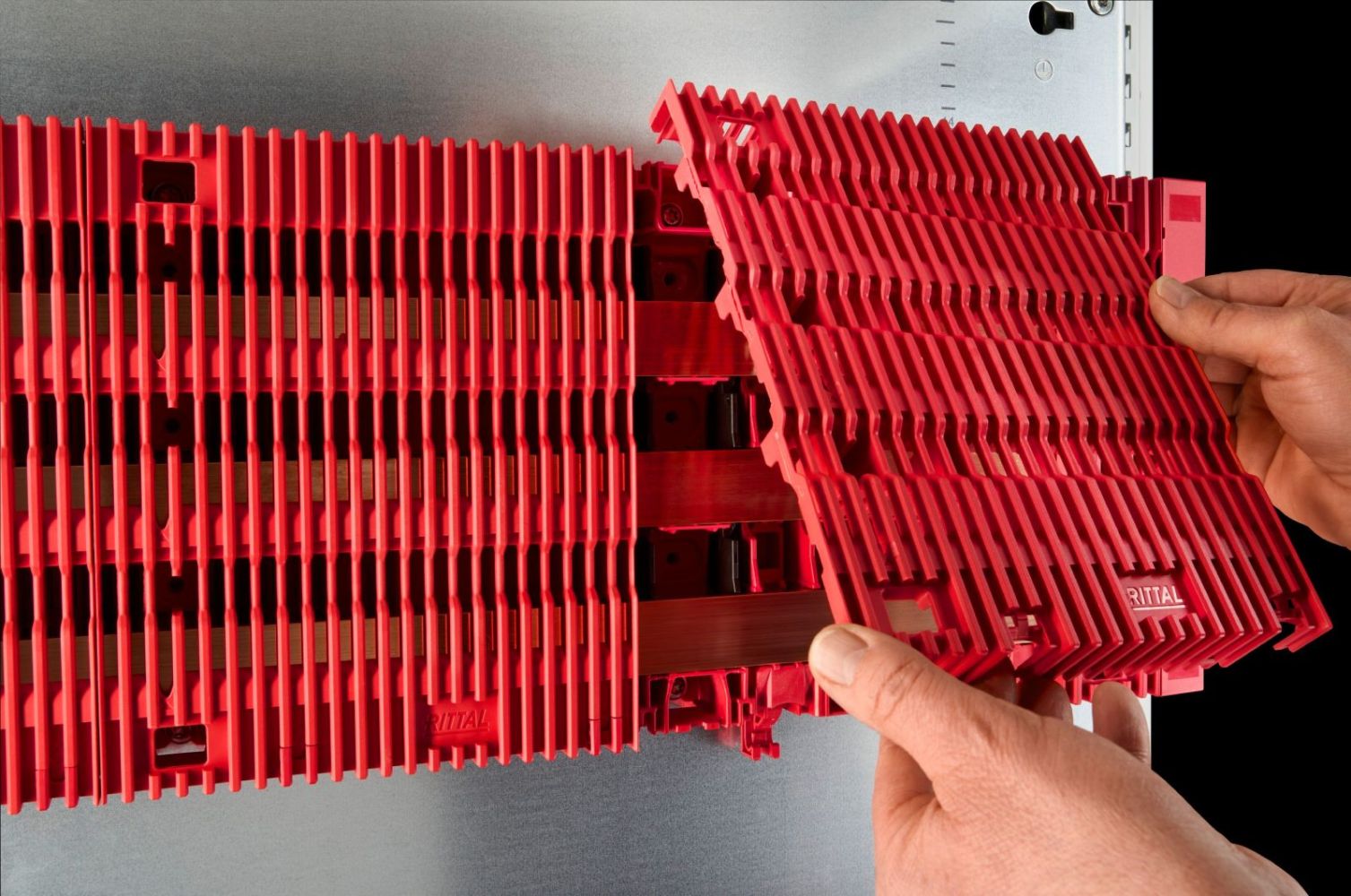

Mounting is done by direct fixation in the enclosure. The pre-assembled construction with integrated busbars reduces installation time. Cable routing at the rear enables clean and structured wiring. Baying is done using special connectors that maintain electrical safety and short-circuit withstand capability.

Operational Advantages
The RiLineX board offers high electrical safety through tested short-circuit withstand capability and touch protection. The digital product documentation supports planning and maintenance. The expandable system architecture allows flexible adaptation to growing requirements. The certification according to IEC and UL ensures use in international markets. The combination of robust material and precise construction ensures long service life and reliable performance in industrial environments.

General
MaterialPolyamide (PA 6), flammability rating according to UL 94, E-Cu
ColourRAL 35745, RAL 9005
Scope of deliveryIncluding integrated busbars
Degree of protection IP according to IEC 60 529IP 2XB
StandardsIEC 61 439-1/-2, UL 508
Rated current max.550 A
Rated current (UL)540 A
Electrical values UL (SCCR)45 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Fuse Class L max. 1600 A, JDDZ/7, 100 kA - 600 V, Circuit Breaker max. 600 A, DIVQ/7, 100 kA - 480 V, Circuit Breaker max. 800 A, DIVQ/7, 65 kA - 600 V, Circuit Breaker max. 800 A, DIVQ/7
Center-to-center spacing of busbars60 mm
Rated impulse voltage Uimp12 kV
Rated voltage1.000 V AC, 1.500 V DC, 600 V AC (UL), 600 V DC (UL)
Rated insulation voltage Ui1.000 V AC, 1.500 V DC
Rated surge withstand current Ipk115,5 kA, 94,5 kA (UL)
Rated short-time withstand current / t45 kA/500 ms
Over voltage category4
Pollution degree3
Busbar dimensions30 mm x 5 mm
Number of poles3-pole
Frequency of fundamental wave50...60 Hz
Humidity (non-condensing)10...90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Width1.105 mm
Height246 mm
Depth49,2 mm
Fire load115,574 MJ/m²
Copper content (kg/piece)4,419
PCF/VE (Cradle-to-Gate)62,17


Please note...
This article contains a copper surcharge of 41,15 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9360024, EAN: 4028177997400
