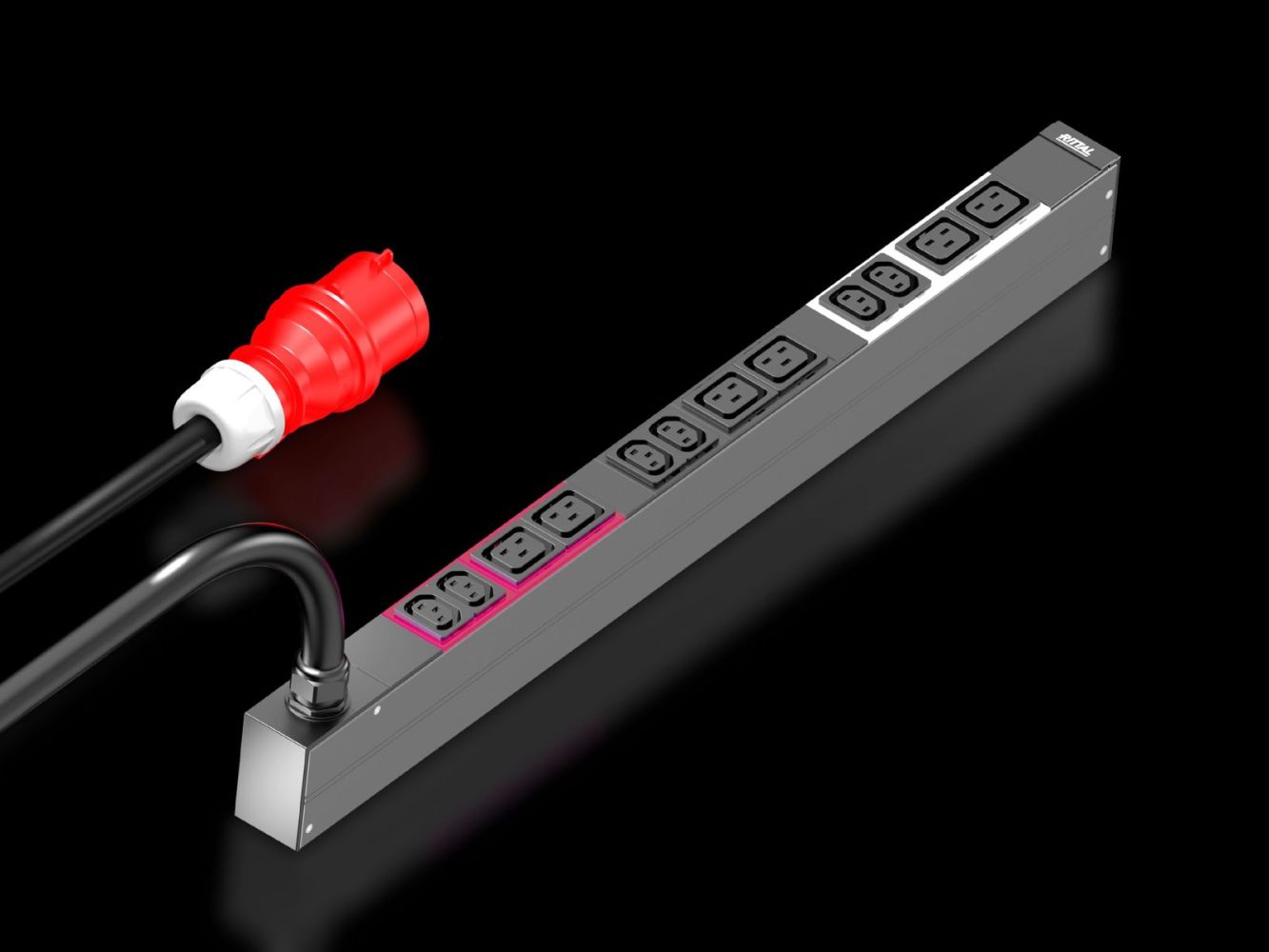

Rittal 7979132 PDU basic 16A/3P CEE 6xC13+6xC19

Your rating:
Average rating
product review for Rittal 7979132 PDU basic 16A/3P CEE 6xC13+6xC19
( 0 / 5 ) 0 ratings
Rittal 7979132
This image may differ from the desired article.
Rittal 7979132Rittal 7979132Rittal 7979132Rittal 7979132Rittal 7979132Rittal 7979132Rittal 7979132Rittal 7979132
-12% 161,00 EUR 183,07 EUR
( 191,59 EUR incl. VAT )
≈ £134.76  |  ≈ $176.94
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979132 PDU basic 16A/3P CEE 6xC13+6xC19
Datasheet:file_download Download
Lieske Part No.:1989417
Mfg Part No: 7979132
UPC/EAN: 4028177947481
Weight:3 kg
Type:DK 7979132

Product information for Rittal 7979132:

The Rittal DK 7979132 is a PDU Basic power distribution unit, specifically designed for use in IT server and network enclosures. It serves as a compact base power distribution unit, equipping any IT rack with a professional power supply. The unit is suitable for horizontal mounting in the 48,3 cm ( 19 inch ) plane or vertical mounting, even in Zero-U-Space. When mounted vertically, the PDU can be installed tool-free in Rittal VX IT or TS IT racks, for which a special Plug-&-Play mounting kit is included.

Applications

The PDU is designed for use in IT infrastructures, particularly in server and network enclosures, where reliable and structured power distribution is required. It is suitable for enclosure types with a cabinet frame or 48,3 cm ( 19 inch ) profile rails with a minimum length of 1,200 mm. The robust construction made of aluminium extrusion profile, anodized, ensures high mechanical stability and heat dissipation. The socket outlets are made of plastic and are fixed-mounted.

Functions and Equipment in Detail

The power distribution unit features a total of 12 socket outlets: 6 x IEC C13 and 6 x IEC C19, with two socket outlets per phase (L1, L2, L3). The phases are colour-coded (L1 = pink, L2 = black, L3 = white) to enable correct assignment and load distribution. The socket outlets can be secured with a socket lock for IEC C14 and C20 plugs to prevent accidental disconnection. Unused socket outlets can be covered with accessory covers available separately, to avoid unintentional overloading of individual phases.

Technology Explained Simply

The PDU is powered via a CEE supply cable with a length of 3 m. The rated operating voltage is 400 V (AC), the rated current (max.) is 16 A, corresponding to a rated power of 11 kW. Power supply is via three-phase input (3~). The unit complies with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6 and EN 62053-21, as well as directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. The operating temperature range is between 5 °C and 50 °C, and the relative humidity (non-condensing) is between 10 % and 95 %. The storage temperature range extends from -20 °C to 70 °C.

Compatibility and Accessories

The PDU is designed for Rittal VX IT enclosures with a minimum length of 1,200 mm. As accessories, socket outlet covers for C13 and C19 sockets, mounting adapters, CAN-Bus cable for the monitoring system CMC III, and a Type 3 surge protection module with replaceable discharge elements during operation are available. The surge protection module can be integrated into the PDU enclosure and features status monitoring. The PDU basic series offers a potential-free alarm contact for monitoring the surge protection.

Mounting and Installation

Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks using the included mounting hardware. Horizontal mounting is possible in the 48,3 cm ( 19 inch ) plane. The unit is immediately ready for use, as the supply cable with CEE plug is already installed.

Operational Advantages

The PDU provides structured and secure power distribution with clear phase marking, simplifying load distribution and maintenance. The tool-free mounting and socket locking enhance operational safety. The integrated option for a Type 3 surge protection module with status monitoring offers additional protection for connected devices. Compliance with relevant standards and directives ensures safety and reliability in operation.

General
ModelPDU Basic
MaterialAluminium extruded profile, anodized, socket positions: plastic
Scope of deliveryPlug lock for IEC C14, C20 plugs, including mounting hardware
OptionsSurge protection Type 3 with replaceable discharge devices during operation, with status monitoring, integrable in PDU enclosure, other enclosure colours available
Width44 mm
Depth70 mm
Length695 mm
Number of sockets and type6 x C13 / 6 x C19
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,200 mm, housing type: VX IT 19"-profile rails: ≥ 1,200 mm


Product data sheet
Datasheet for Rittal 7979132, EAN: 4028177947481
