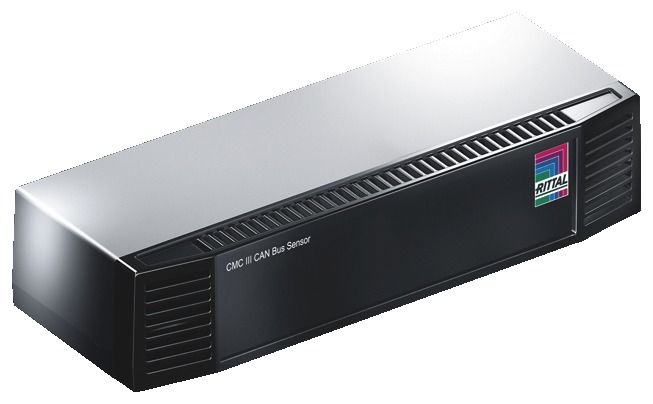

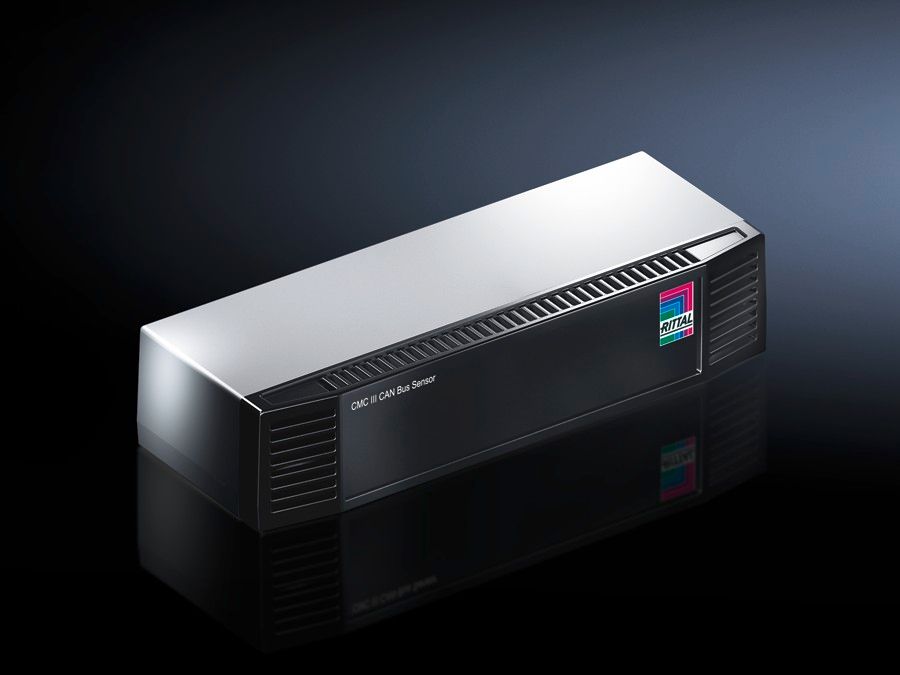

Rittal 7030100 DK CMC III CAN bus sensor, For connecting CMC-TC sensors, WHD: 110x30x40 mm, Interfaces: RJ12, 2xRJ45 CAN bus
|
-11% 87,29 EUR 98,60 EUR |
|
|
( 103,88 EUR incl. VAT ) ≈ £74.81 | ≈ $99.16 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 360252 |
| Mfg Part No: | 7030100 |
| UPC/EAN: | 4028177659476 |
| Weight: | 0.18 kg |
| Type: | DK 7030100 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 7030100:
With the CMC III CAN bus sensor, sensors of the previous system CMC-TC can be connected to the CMC III system. One CMC-TC sensor can be connected to each CMC III CAN bus sensor.
Benefits: Fast connection and automatic detection via plug & play
Power is supplied via the CAN-BUS interface.
Applications: Monitoring of enclosures in the areas of IT, industry and facility management
Function principle: Settings can be made via the CMC III Processing Unit
Status display via integral LED
The current measurements can be called up via the CMC III interface using the browser, SNMP or OPC-UA, and adjustments made
Automatic alarm messages by e-mail, text or SNMP trap when a limit value is exceeded
Material: Plastic
Front: Smooth
Enclosure: Textured
Colour: Enclosure: RAL 7035
Front: RAL 9005
Protection category IP to IEC 60 529: IP 30
Supply includes: CMC III CAN bus sensor
Installation and Short User's Guide
Assembly parts for mounting in the enclosure
Mounting clips for support rails
Assembly parts for surfaces
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177659476
Customs tariff number: 85311095
eCl@ss 5.1: 27189253
eCl@ss 7.0: 27189253
ETIM 6.0: EC002627
Design: For connecting 5 access sensors or one smoke detector, one motion detector, one voltage monitor 48 V DC or one leakage sensor.
Two CMC III CAN bus sensors are required for connecting the door control module
Dimensions: Width: 110 mm
Height: 30 mm
Depth: 40 mm
Maximum no. of users: CMC III Processing Unit Compact: 4
CMC III Processing Unit: 32
Operating temperature: Operation (environment): +0°C...+55°C
Ambient humidity (non-condensing): Operation (environment): 5 % - 95 %
Interfaces/connections: General: RJ12
Bus system: 2 x RJ45 CAN bus
Weight/pack: 0.18 kg
Benefits: Fast connection and automatic detection via plug & play
Power is supplied via the CAN-BUS interface.
Applications: Monitoring of enclosures in the areas of IT, industry and facility management
Function principle: Settings can be made via the CMC III Processing Unit
Status display via integral LED
The current measurements can be called up via the CMC III interface using the browser, SNMP or OPC-UA, and adjustments made
Automatic alarm messages by e-mail, text or SNMP trap when a limit value is exceeded
Material: Plastic
Front: Smooth
Enclosure: Textured
Colour: Enclosure: RAL 7035
Front: RAL 9005
Protection category IP to IEC 60 529: IP 30
Supply includes: CMC III CAN bus sensor
Installation and Short User's Guide
Assembly parts for mounting in the enclosure
Mounting clips for support rails
Assembly parts for surfaces
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177659476
Customs tariff number: 85311095
eCl@ss 5.1: 27189253
eCl@ss 7.0: 27189253
ETIM 6.0: EC002627
Design: For connecting 5 access sensors or one smoke detector, one motion detector, one voltage monitor 48 V DC or one leakage sensor.
Two CMC III CAN bus sensors are required for connecting the door control module
Dimensions: Width: 110 mm
Height: 30 mm
Depth: 40 mm
Maximum no. of users: CMC III Processing Unit Compact: 4
CMC III Processing Unit: 32
Operating temperature: Operation (environment): +0°C...+55°C
Ambient humidity (non-condensing): Operation (environment): 5 % - 95 %
Interfaces/connections: General: RJ12
Bus system: 2 x RJ45 CAN bus
Weight/pack: 0.18 kg
