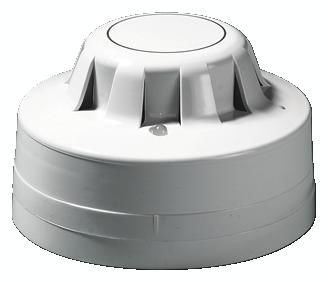

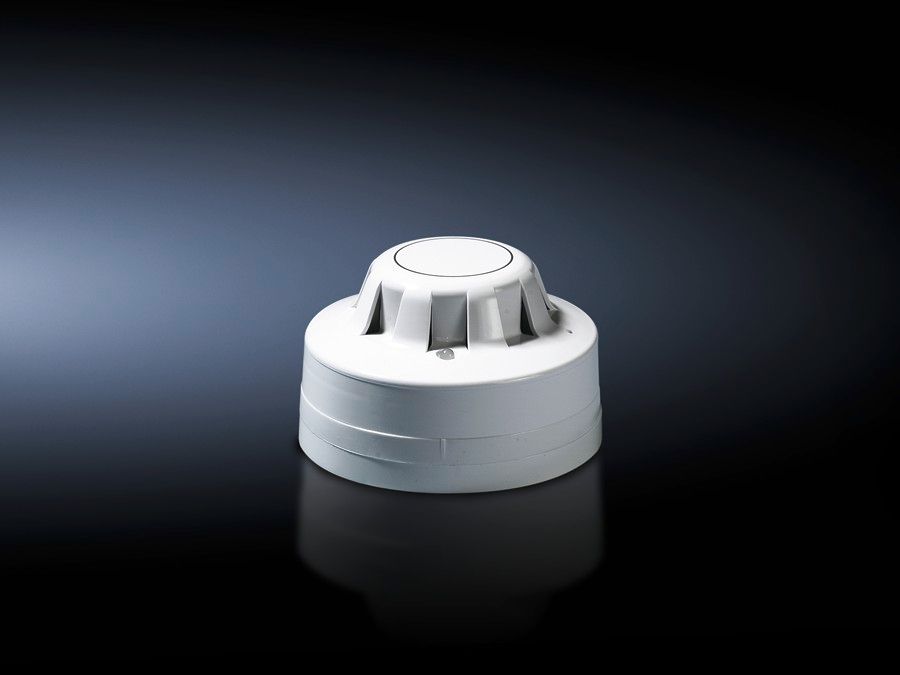

Rittal 7030400 DK CMC III Smoke alarm, H: 50 mm,Ø 100 mm, IP 30
|
-9% 296,47 EUR 325,63 EUR |
|
|
( 352,80 EUR incl. VAT ) ≈ £254.07 | ≈ $336.79 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 388365 |
| Mfg Part No: | 7030400 |
| UPC/EAN: | 4028177695818 |
| Weight: | 0.58 kg |
| Type: | DK 7030400 |
Further Fire & Gas Detectors from RittalFurther products in category Fire & Gas Detectors
All products of Rittal
Product information for Rittal 7030400:
CMC III sensors monitor the physical ambient conditions. Every sensor has a specific measuring or control task. Sensors starting with model numbers 7030... are equipped with a CAN bus interface and can be connected to Processing Unit III directly in the bus. Sensors starting with model numbers 7320... can be integrated into the bus using adaptor CAN bus sensor 7030.100.
Benefits: Fast connection and automatic detection via plug & play
Power is supplied via the CAN-BUS interface.
Applications: Monitoring of enclosures in the areas of IT, industry and facility management
Monitoring of enclosures, rooms and containers in the IT environment
Function principle: Settings can be made via the CMC III Processing Unit
The CMC III smoke detector is mounted in the top of the enclosure.
The sensor monitors the air in the enclosure for smoke particles.
Material: Plastic
Colour: Enclosure: white
Mounting bracket: RAL 9005
Protection category IP to IEC 60 529: IP 30
Supply includes: Sensor
Installation and Short User's Guide
Mounting bracket
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177695818
Customs tariff number: 85311095
eCl@ss 5.1: 27189253
eCl@ss 7.0: 27189253
ETIM 6.0: EC002627
Design: Smoke alarm
Dimensions: Height: 50 mm
Diameter: 100 mm
Connection to the CAN bus: Direct
Maximum no. of users: CMC III Processing Unit Compact: 4
CMC III Processing Unit: 32
Operating temperature: Operation (environment): +5°C...+45°C
Ambient humidity (non-condensing): Operation (environment): 5 % - 95 %
Measuring technique: Silicon PIN photodiode/GaAs infrared LED
Interfaces/connections: General: 2 x RJ45 CAN bus
Weight/pack: 0.58 kg
Benefits: Fast connection and automatic detection via plug & play
Power is supplied via the CAN-BUS interface.
Applications: Monitoring of enclosures in the areas of IT, industry and facility management
Monitoring of enclosures, rooms and containers in the IT environment
Function principle: Settings can be made via the CMC III Processing Unit
The CMC III smoke detector is mounted in the top of the enclosure.
The sensor monitors the air in the enclosure for smoke particles.
Material: Plastic
Colour: Enclosure: white
Mounting bracket: RAL 9005
Protection category IP to IEC 60 529: IP 30
Supply includes: Sensor
Installation and Short User's Guide
Mounting bracket
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177695818
Customs tariff number: 85311095
eCl@ss 5.1: 27189253
eCl@ss 7.0: 27189253
ETIM 6.0: EC002627
Design: Smoke alarm
Dimensions: Height: 50 mm
Diameter: 100 mm
Connection to the CAN bus: Direct
Maximum no. of users: CMC III Processing Unit Compact: 4
CMC III Processing Unit: 32
Operating temperature: Operation (environment): +5°C...+45°C
Ambient humidity (non-condensing): Operation (environment): 5 % - 95 %
Measuring technique: Silicon PIN photodiode/GaAs infrared LED
Interfaces/connections: General: 2 x RJ45 CAN bus
Weight/pack: 0.58 kg
