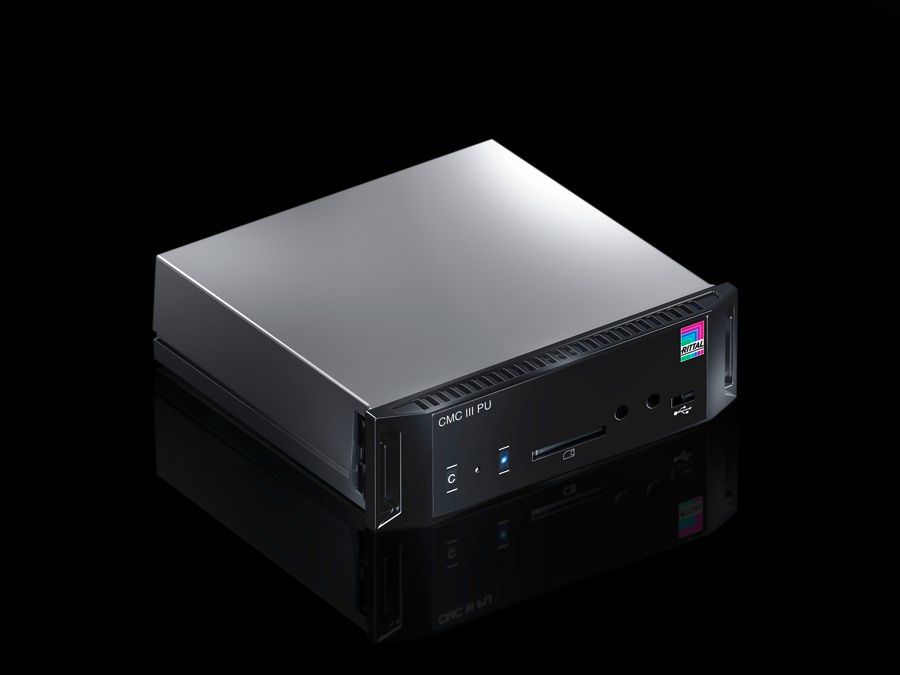

Rittal 7030000 DK CMC III Processing Unit, Central unit of the CMC III monitoring system, WHD: 138x40x132 mm, max. 32 sensors

The Processing Unit/Compact is the central unit of the CMC III monitoring system. Up to 32/4 external sensors/CAN bus connection units may be connected to the integral sensors. The units may be connected to the data network via Ethernet, configured via Web/USB, can send alarms via an e-mail server and connect to the Network Management System of a company via SNMP.
Benefits: High redundancy due to redundant power supply.
Cost saving due to optimised space utilisation and connection technique
High flexibility due to modular system.
High reliability due to permanent monitoring of the physical enclosure parameters.

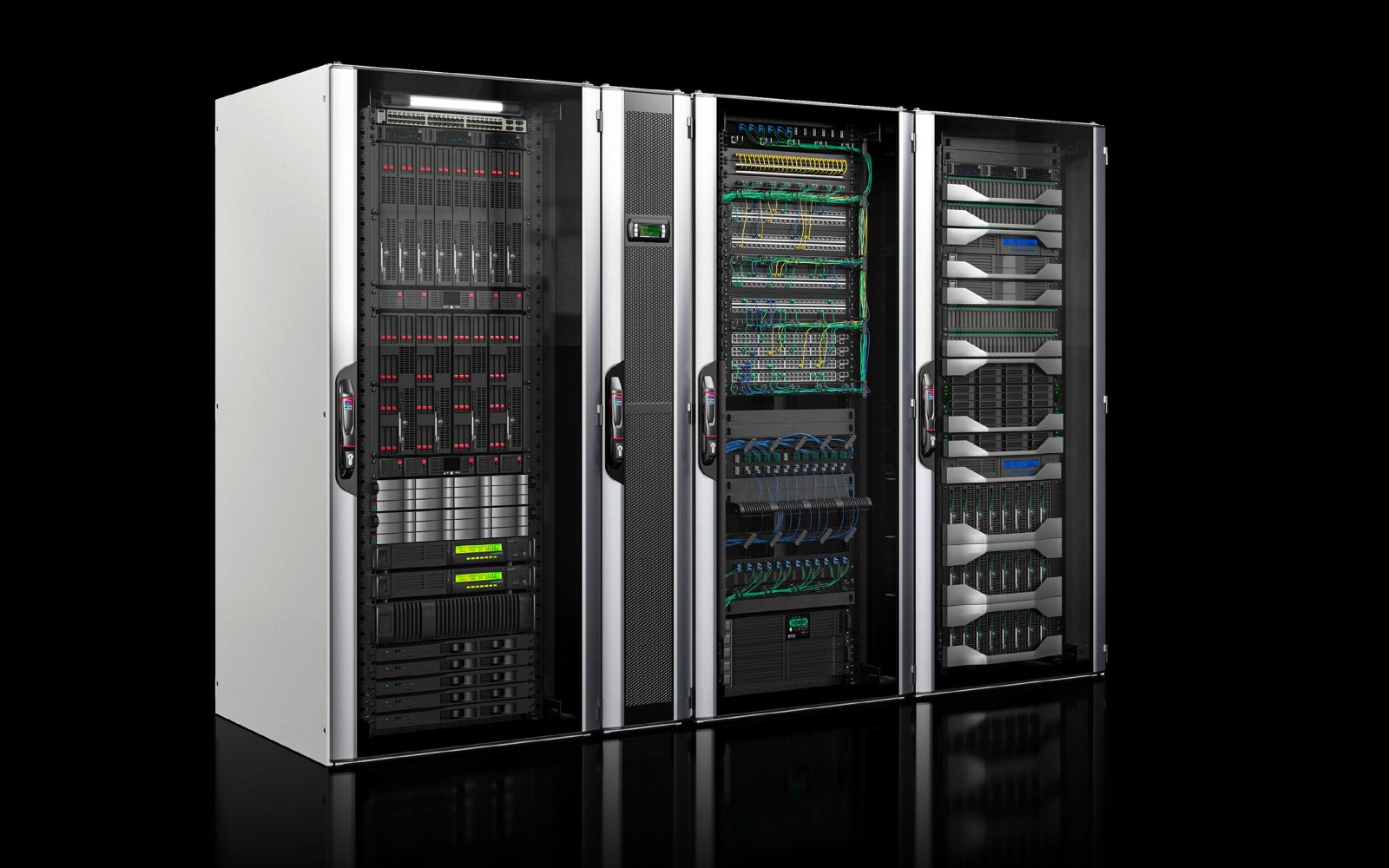

Applications: Monitoring of enclosures, rooms and containers in the IT environment
Monitoring of enclosures in the areas of IT, industry and facility management
Function principle: Central monitoring unit for the CMC III system.
Collates measurement data and alerts network management systems or control rooms when freely adjustable limit values are exceeded.
Automatic regulation of actuators and control of remote outputs.
Colour: Enclosure: RAL 7035
Front: RAL 9005
Protection category IP to IEC 60 529: IP 30
Supply includes: CMC III Processing Unit
Operating manual
Mounting accessories for mounting on surfaces
Packs of: 1 pc(s).
EAN: 4028177659322
Customs tariff number: 84159000
eCl@ss 5.1: 27189253
eCl@ss 7.0: 27189253
ETIM 6.0: EC002627

Number of sensors (max.): 32
Dimensions: Width: 138 mm
Height: 40 mm
Depth: 132 mm
Rated operating voltage: 24 V (DC)
Number of sensors (max.): 32
Installation dimensions: Installation depth: 120 mm
Build depth: 12 mm
Operating temperature: Operation (environment): +0°C...+45°C
Ambient humidity (non-condensing): Operation (environment): 5 % - 95 %
Equipment (electrical): Integral infrared access sensor (max. sensing distance 100 mm): yes
Integral temperature sensor: yes
Push-button: Reset
Push-button: Acknowledge
Audio display: Piezo signal generator
Protocols: TCP/IPv4
TCP/IPv6
SNMPv1
SNMPv2c
SNMPv3
Telnet
SSH
FTP
SFTP with SSL
HTTP
HTTPS with SSL
NTP
DHCP
DNS
SMTP
Syslog
LDAP
Radius
OPC-UA
Modbus/TCP
RS-232
Time function: Real-time clock with NTP
Equipment SSC: LED displays (front): Status
LED displays (rear): Network status
Interfaces/connections: General: Mini USB
General: 1 x USB
General: SD memory card slot (max. 32 GB)
General: 2 digital inputs
Network: Ethernet to IEEE 802.3 via 10/100BaseT full-duplex, 10/100 Mbit/s, PoE
Serial: RJ12
Bus system: 2 x RJ45 CAN bus
Length per CAN bus (max.): 50 m
Alarm relay output: Terminal up to 1.5 mm² (max. 24 V DC/1 A)
Redundant power supply: Terminal
Redundant power supply: Jack
Redundant power supply: PoE (Power over Ethernet)
Streaming: Axis network camera with VAPIX® version 3
Mobile website: For Android and Windows phones
Weight/pack: 0.6 kg
Type: DK 7030.000
