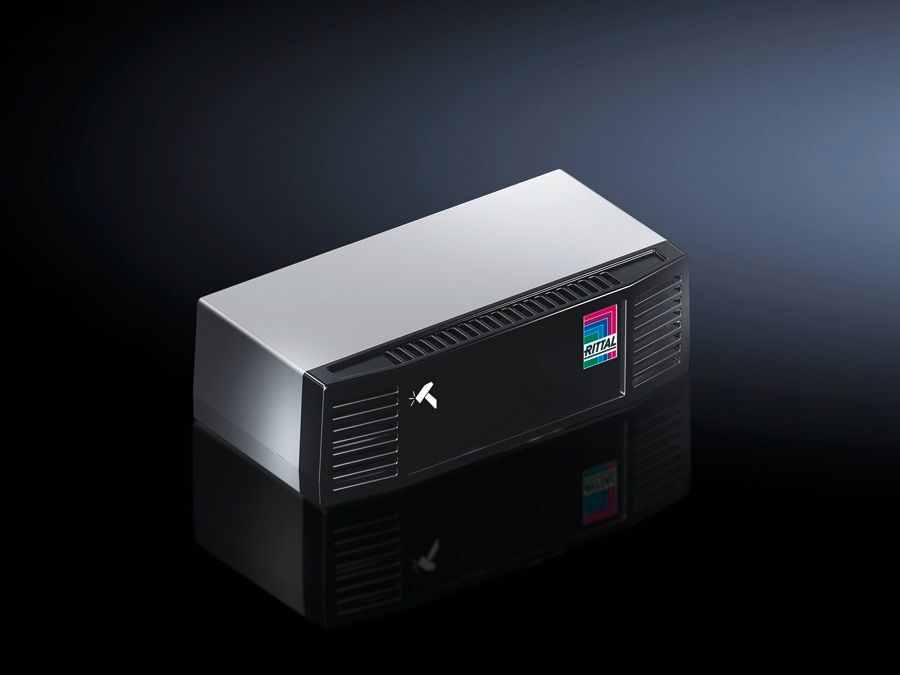

Rittal 7030130 DK CMC III Vandalism sensor, WHD: 80x28x40 mm content_copy

CMC III sensors monitor the physical ambient conditions. Every sensor has a specific measuring or control task. Sensors starting with model numbers 7030... are equipped with a CAN bus interface and can be connected to Processing Unit III directly in the bus. Sensors starting with model numbers 7320... can be integrated into the bus using adaptor CAN bus sensor 7030.100.
Benefits: Fast connection and automatic detection via plug & play
Power is supplied via the CAN-BUS interface.
Applications: Monitoring of enclosures in the areas of IT, industry and facility management

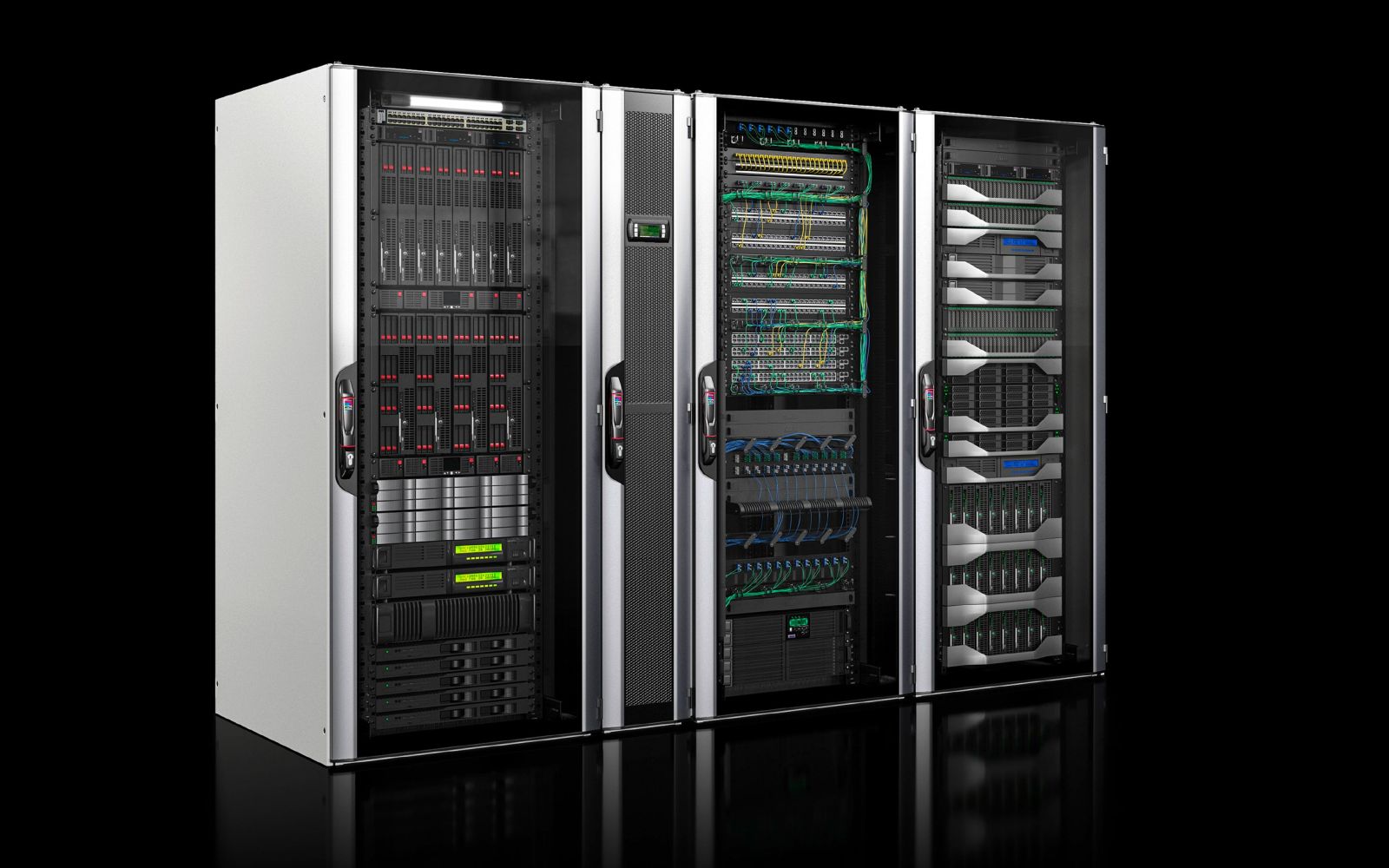

Monitoring of enclosures, rooms and containers in the IT environment
Function principle: Settings can be made via the CMC III Processing Unit
The CMC III vandalism sensor monitors the gravitational forces (G-forces) acting on the three x, y and z axes.
The sensor is mounted on the enclosure frame and vibrations acting on the enclosure are transmitted to the sensor.
Material: Plastic
Front: Smooth
Enclosure: Textured
Colour: Front: RAL 9005
Enclosure: RAL 7035
Protection category IP to IEC 60 529: IP 30
Supply includes: Sensor
Installation and Short User's Guide
Mounting bracket
Assembly parts
Mounting clips for support rails
Packs of: 1 pc(s).
EAN: 4028177659513
Customs tariff number: 85319085
eCl@ss 5.1: 27189253
eCl@ss 7.0: 27189253
ETIM 6.0: EC002627

Design: Vandalism sensor
Dimensions: Width: 80 mm
Height: 28 mm
Depth: 40 mm
Connection to the CAN bus: Direct
Maximum no. of users: CMC III Processing Unit Compact: 4
CMC III Processing Unit: 32
Operating temperature: Operation (environment): +0°C...+55°C
Ambient humidity (non-condensing): Operation (environment): 5 % - 95 %
Measuring technique: Acceleration measurement
Monitored axes: x, y, z
Measurement range: Acceleration: -7 g - 7 g
Interfaces/connections: General: 2 x RJ45 CAN bus
Weight/pack: 0.17 kg
