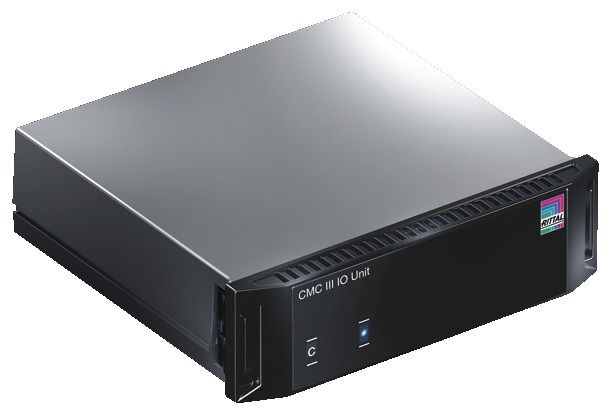

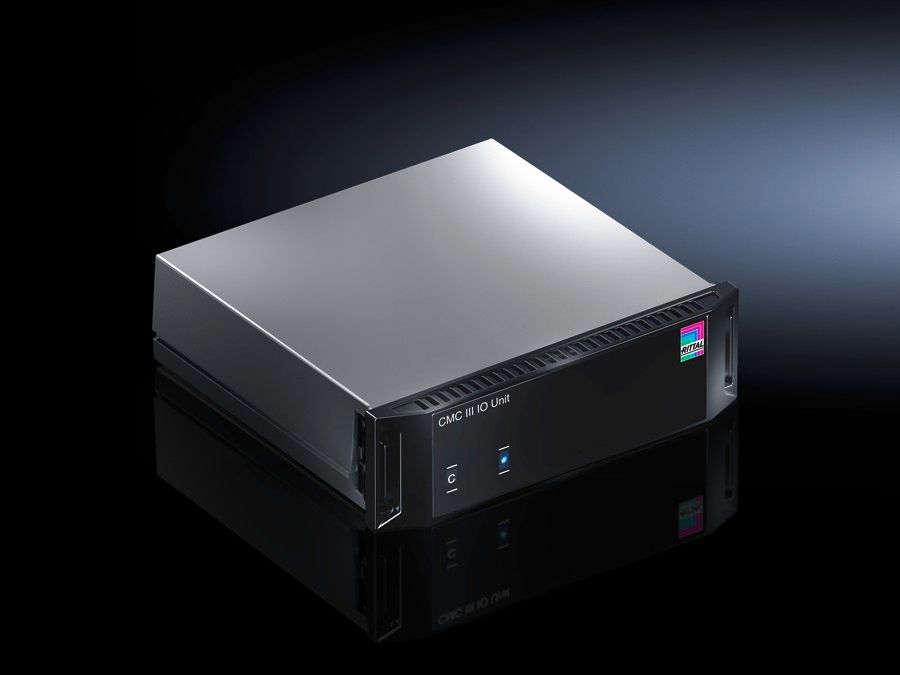

Rittal 7030040 DK CMC III I/O Unit, For signal receiving and passing on control commands, WHD: 138x40x132 mm, Monitoring: > 8 digital inputs, Control: > 4 Relais
|
-9% 296,47 EUR 325,63 EUR |
|
|
( 352,80 EUR incl. VAT ) ≈ £254.07 | ≈ $336.79 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 360227 |
| Mfg Part No: | 7030040 |
| UPC/EAN: | 4028177659360 |
| Weight: | 0.56 kg |
| Type: | DK 7030040 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 7030040:
Monitoring of up to eight digital inputs and control of up to four relays. In the software, the relays can be linked to measurement values so that they are actuated under certain circumstances. This allows devices to be controlled and messages to be forwarded.
Benefits: Fast connection and automatic detection via plug & play
Minimal space requirements due to high concentration of inputs and outputs.
Function principle: Automatic sensor detection by the Processing Unit with consecutive numbering of the sensors
Power is supplied via the CAN-BUS interface.

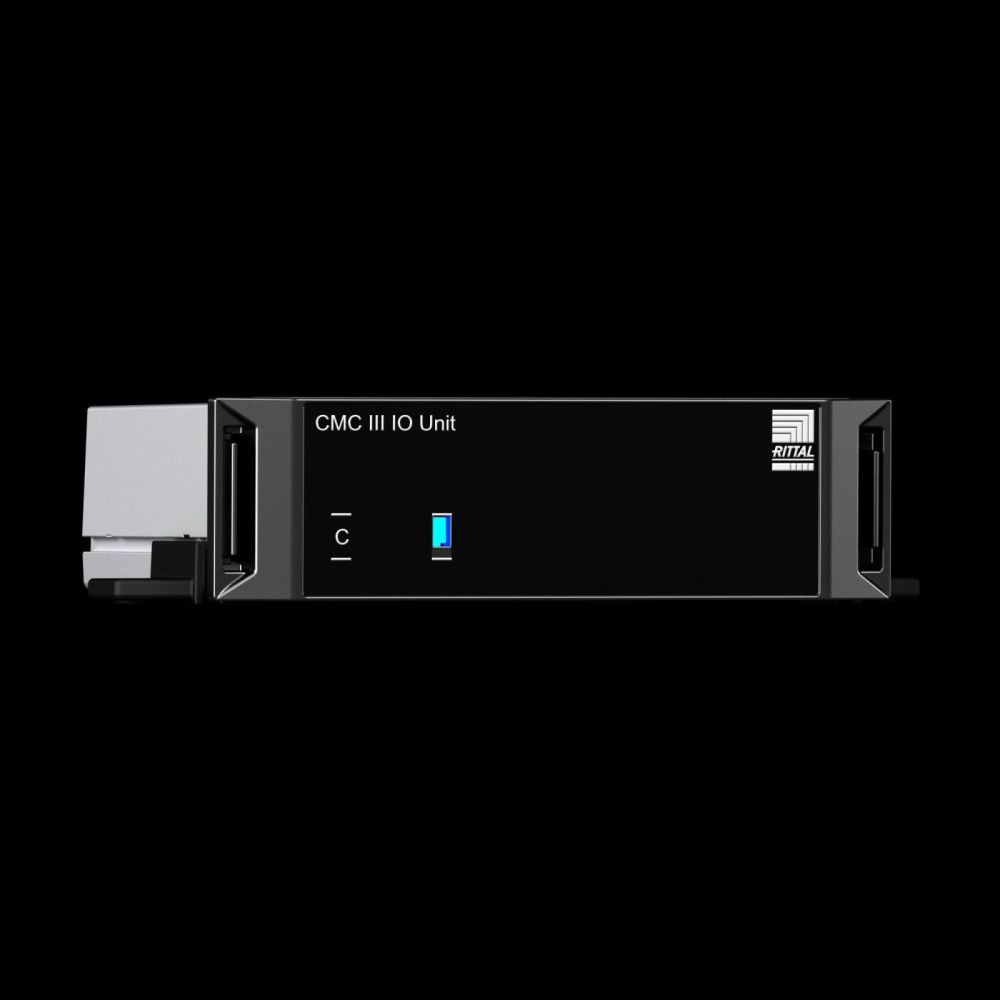

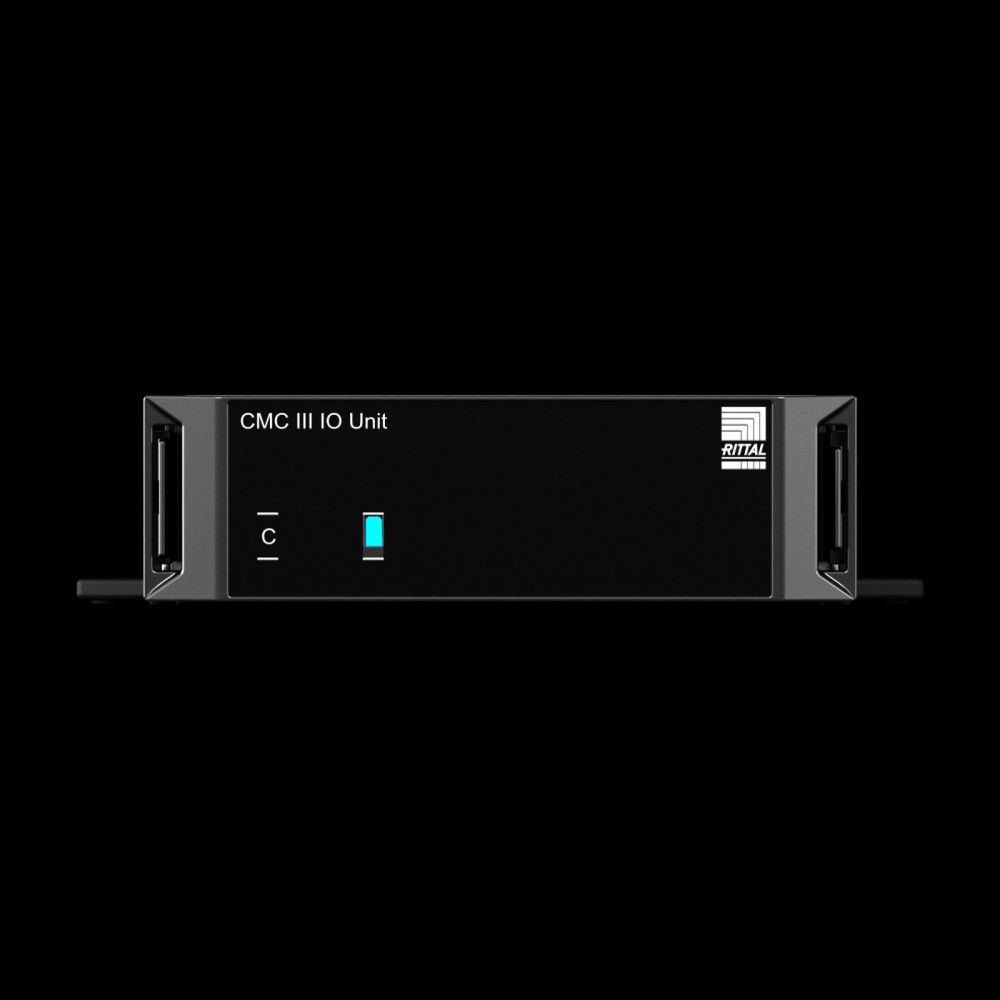

Status display via integral LED
Inputs for earth-free signals
Relay output (changeover contact) can handle loads of up to max. 24 V (DC)/1 A
Material: Plastic
Front: Smooth
Enclosure: Textured
Colour: Enclosure: RAL 7035
Front: RAL 9005
Protection category IP to IEC 60 529: IP 30
Supply includes: CMC III I/O Unit
Operating manual
Mounting accessories for mounting on surfaces
Packs of: 1 pc(s).
EAN: 4028177659360
Customs tariff number: 85311095
eCl@ss 5.1: 27189253
eCl@ss 7.0: 27189253
ETIM 6.0: EC002627
Dimensions: Width: 138 mm
Height: 40 mm
Depth: 132 mm
Maximum no. of users: CMC III Processing Unit: 16
Installation dimensions: Installation depth: 120 mm
Build depth: 12 mm
Operating temperature: Operation (environment): +0°C...+55°C
Ambient humidity (non-condensing): Operation (environment): 5 % - 95 %

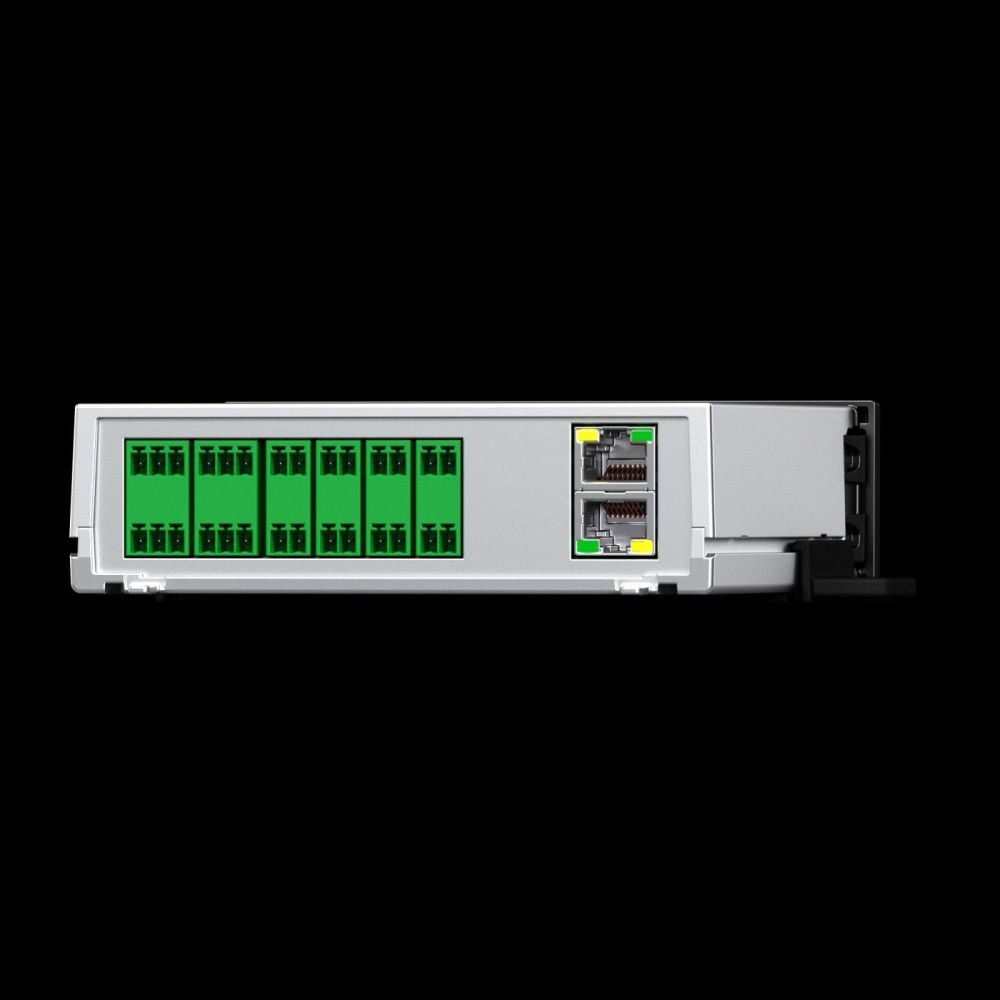

Interfaces/connections: General: 8 digital inputs
General: 4 relay outputs (max. 24 V DC/1 A)
Bus system: 2 x RJ45 CAN bus
Weight/pack: 0.56 kg
