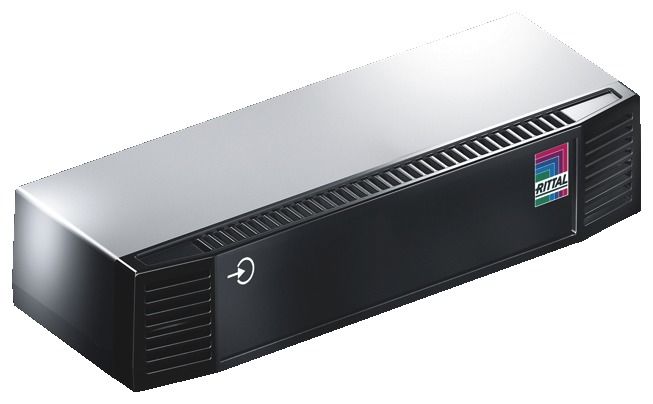

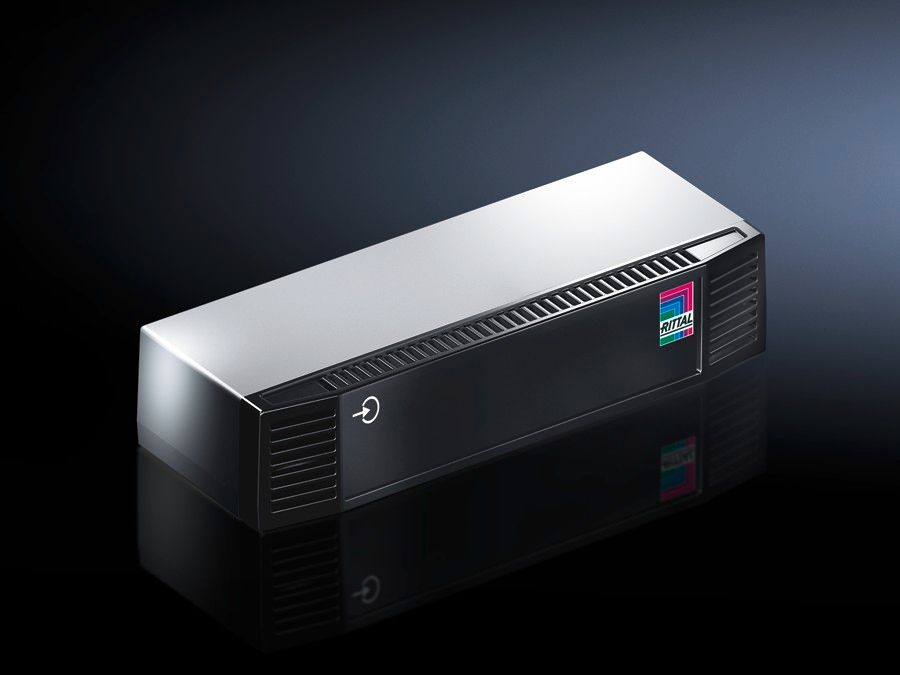

Rittal 7030190 DK CMC III Universal sensor, WHD: 110x30x40 mm content_copy

CMC III sensors monitor the physical ambient conditions. Every sensor has a specific measuring or control task. Sensors starting with model numbers 7030... are equipped with a CAN bus interface and can be connected to Processing Unit III directly in the bus. Sensors starting with model numbers 7320... can be integrated into the bus using adaptor CAN bus sensor 7030.100.
Benefits: Fast connection and automatic detection via plug & play
Power is supplied via the CAN-BUS interface.
Applications: Monitoring of enclosures in the areas of IT, industry and facility management
Monitoring of enclosures, rooms and containers in the IT environment
Function principle: Settings can be made via the CMC III Processing Unit
The sensor has two digital inputs and one analogue input, which can be configured as required for the application in question.
The digital inputs can be configured as 2x floating monitoring contacts, 2x S0 bus inputs (energy measuring instruments) or 1x Wiegand interface (external access systems). The analogue input can be used as a 4 - 20 mA interface.
Material: Plastic
Front: Smooth
Enclosure: Textured
Colour: Front: RAL 9005
Enclosure: RAL 7035
Protection category IP to IEC 60 529: IP 30
Supply includes: Sensor
Installation and Short User's Guide
Mounting bracket
Assembly parts
Mounting clips for support rails
Packs of: 1 pc(s).
EAN: 4028177659544
Customs tariff number: 85319085
eCl@ss 5.1: 27189253
eCl@ss 7.0: 27189253
ETIM 6.0: EC002627

Design: Universal sensor
Dimensions: Width: 110 mm
Height: 30 mm
Depth: 40 mm
Rated operating voltage: 24 V (DC)
Connection to the CAN bus: Direct
Maximum no. of users: CMC III Processing Unit Compact: 4
CMC III Processing Unit: 32
Operating temperature: Operation (environment): +0°C...+55°C
Ambient humidity (non-condensing): Operation (environment): 5 % - 95 %
Interfaces/connections: General: 2 x RJ45 CAN bus
General: analog, 4 – 20 mA
General: 2 digital inputs/S0 bus
Weight/pack: 0.19 kg
