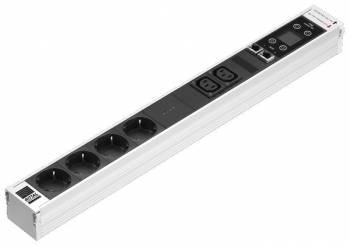

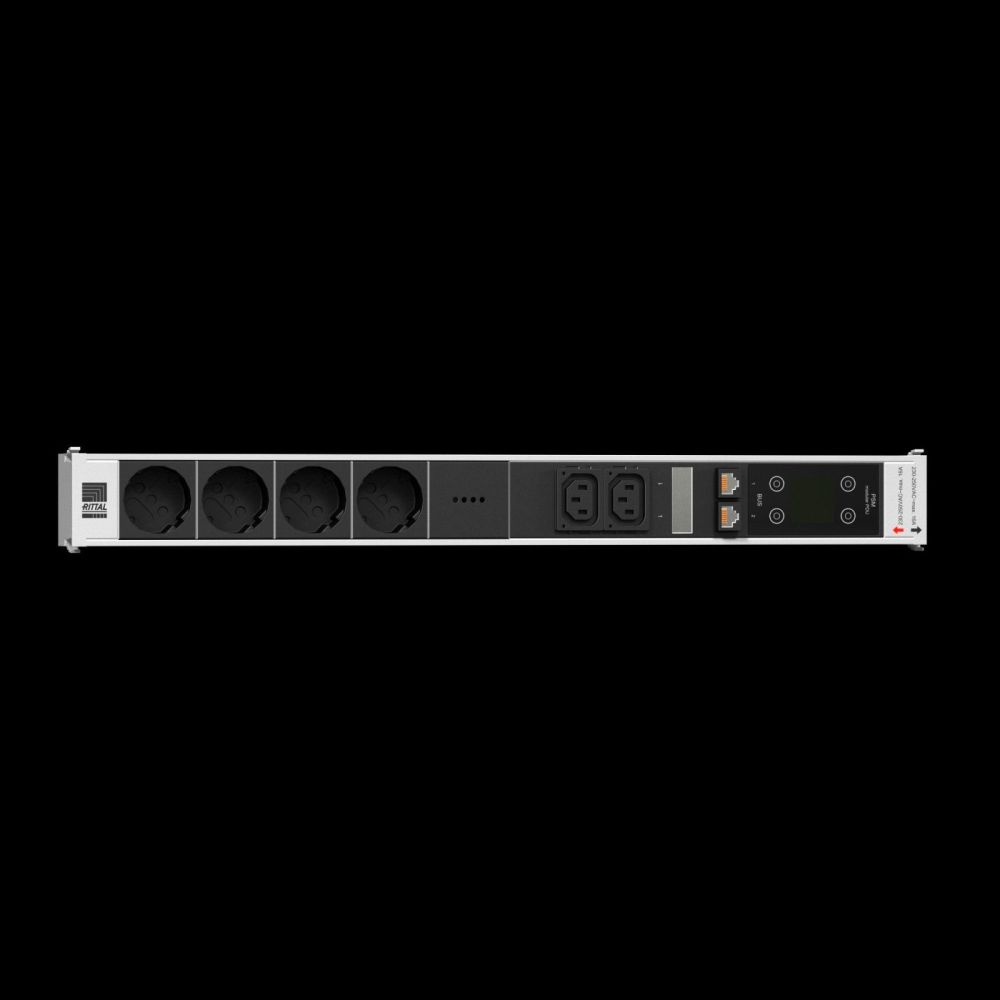

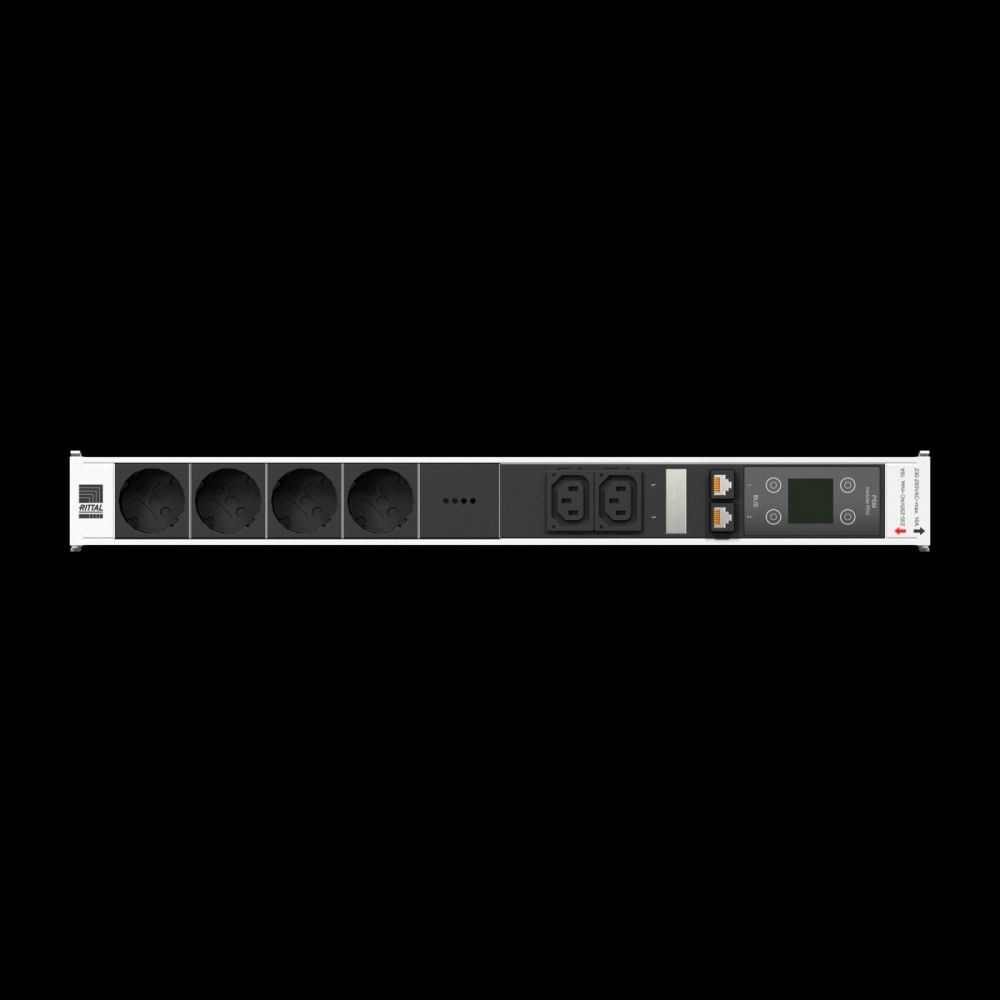

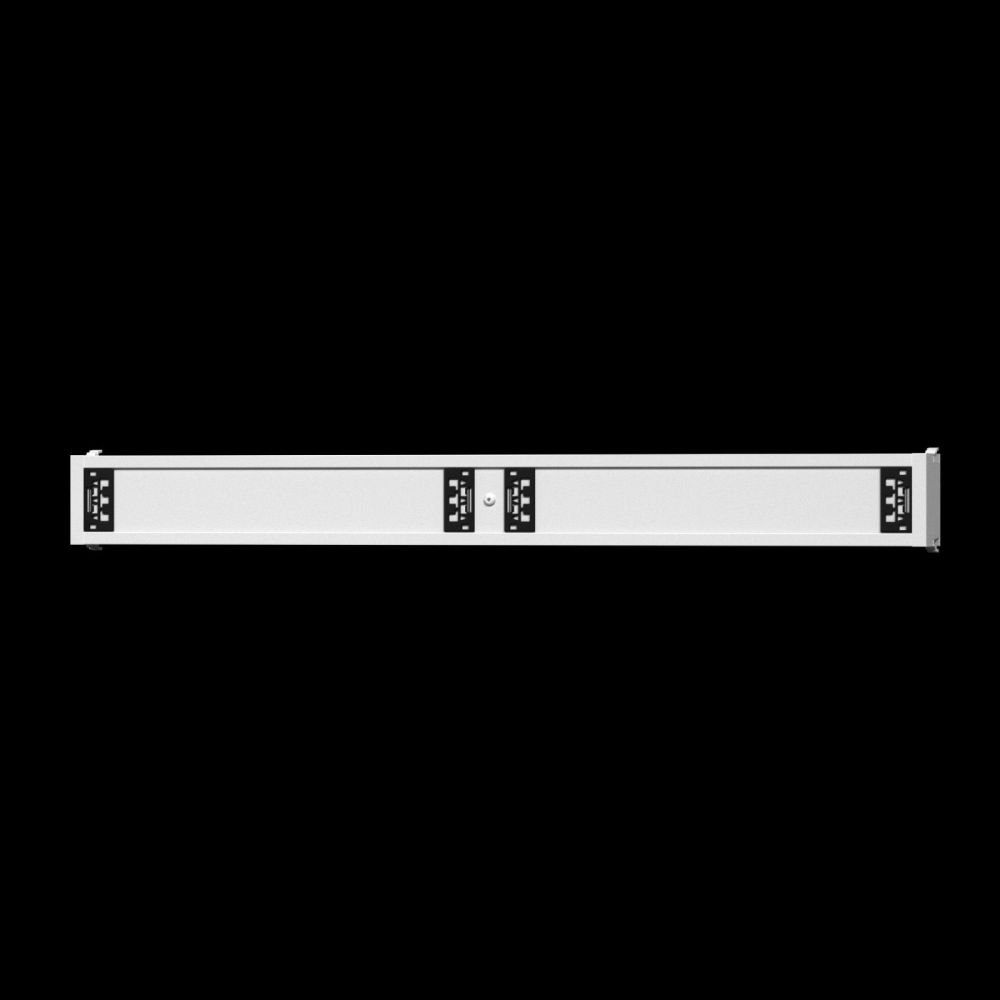

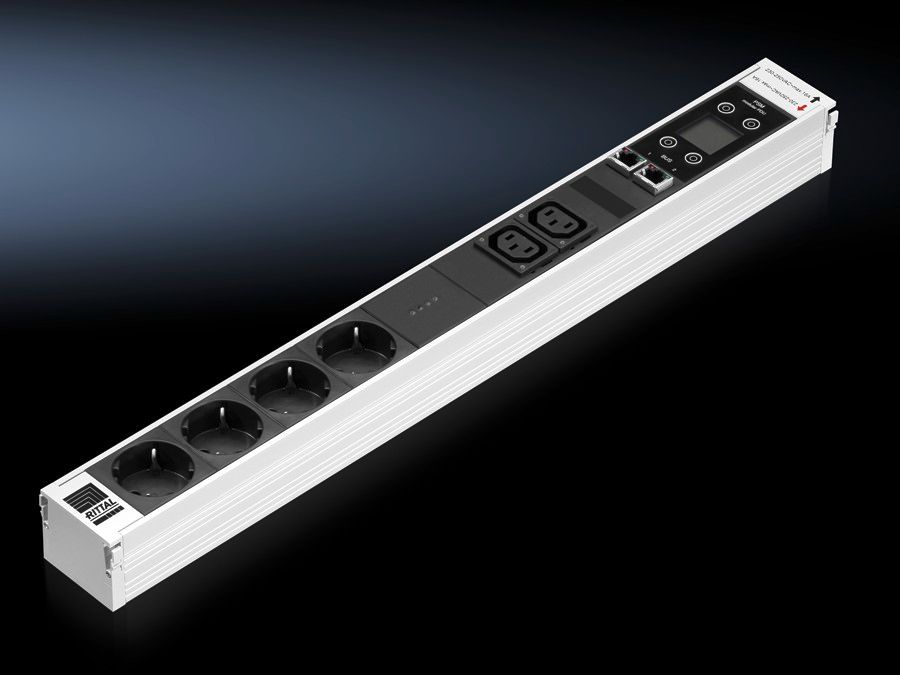

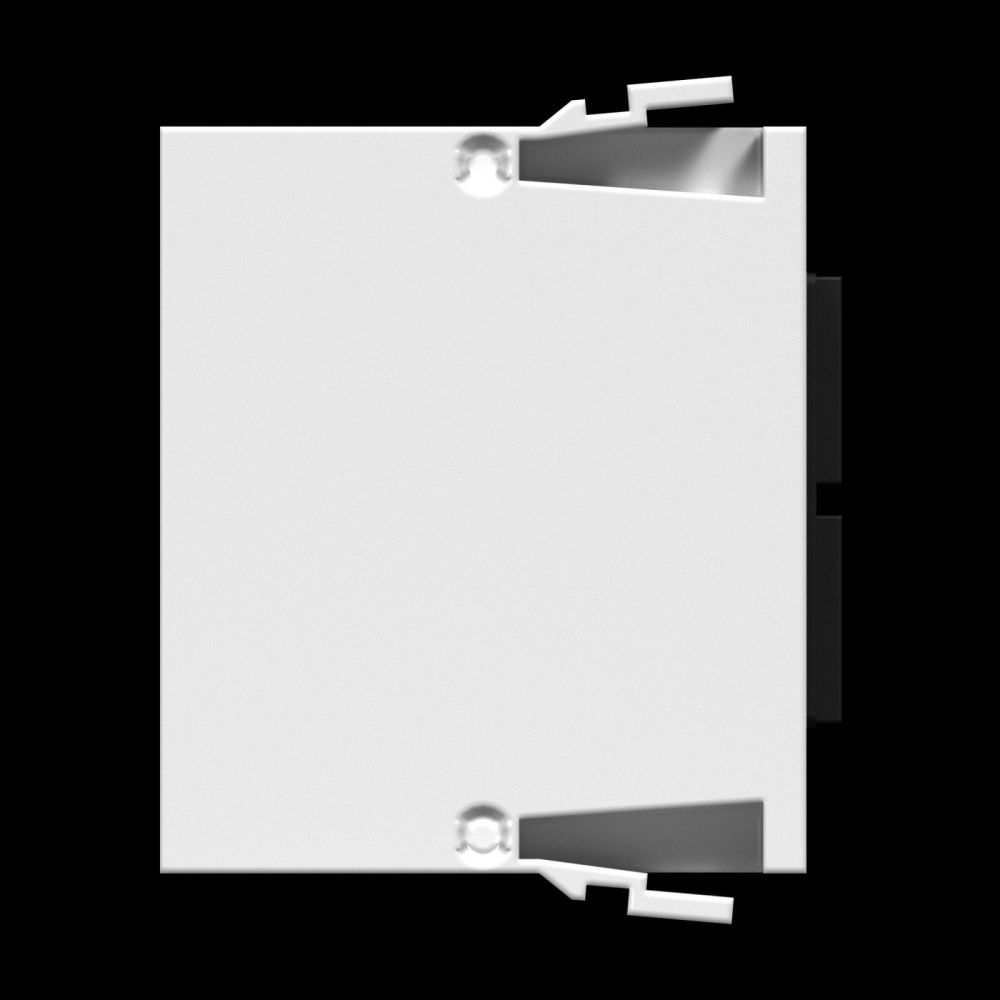

Rittal 7859430 PSM measurement modules with CAN bus for PSM busbars

Your rating:
Average rating
product review for Rittal 7859430 PSM measurement modules with CAN bus for PSM busbars
( 4.6 / 5 ) 53 ratings
Rittal 7859430
This image may differ from the desired article.
Rittal 7859430Rittal 7859430Rittal 7859430Rittal 7859430Rittal 7859430Rittal 7859430
633,65 EUR
( 754,04 EUR incl. VAT )
≈ £530.37  |  ≈ $696.38
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 7859430 PSM measurement modules with CAN bus for PSM busbars
Datasheet:file_download Download
Lieske Part No.:366274
Mfg Part No: 7859430
UPC/EAN: 4028177801868
Weight:1.02 kg
Type:DK 7859430

Product information for Rittal 7859430:

The Rittal DK 7859430 is a modular PSM measuring module for power distribution and measurement in server and IT infrastructures. It extends existing PSM power rails with the functions of energy measurement and switchability of output sockets. The module is designed for integration into systems with CMC III and enables central control and monitoring of connected consumers. It occupies two module slots in the power rail and is designed for use in server rooms, data centers, and other technical facilities where precise energy accounting and flexible power distribution are required.

Applications

The module is suitable for retrofitting existing PSM installations to capture energy data or to activate the switching function for connected devices. It supports the implementation of energy efficiency standards such as ISO 50001 and EN 50600-2-2. The modular design allows flexible adaptation to different requirements, for example, in distributing power to IT servers, network devices, or other electrical loads. The switching function can be controlled individually or in groups via the CMC III system, enabling centralized control of power supply.

Functions and Equipment in Detail

The module features six output sockets: four CEE 7/3 (Schuko) and two IEC 60320 C13. The distribution power is up to 3,680 W at a rated current of 16 A. The switching function is implemented via bistable double-coil relays, enabling a switching capacity of 4,000 VA. The measurement functions include voltage, current, frequency, active power, active energy, reactive power, reactive energy, apparent power, apparent energy, power factor, crest factor, and operating hour counter. The measurement accuracy is ± 1 %. The measured values can be displayed locally on a backlit LC display, which turns red if current or power limits are exceeded. The threshold values for voltage, current, and active power are freely configurable.

Technology Explained Simply

The module is powered via the CMC III system with an operating voltage of 18 V to 24 V DC. The input voltage is 230 V AC with a tolerance of ± 10 %. Communication takes place via two CAN bus interfaces, which are directly connected to the CMC III system. Additionally, two RJ45 connectors are available, also serving to connect to the CMC III system. The network functionality includes IPv4, IPv6, SNMPv3, Modbus/TCP, and OPC-UA, with the use of these protocols only possible in conjunction with the CMC III system. Monitoring is performed via the CMC III system, with alarms being sent via email or SMS. The switching status is visualized via the CMC III website and RiZone. Access rights management allows restriction of switching functions as needed.

Compatibility and Accessories

The module is compatible with the European PSM power rail program and can be integrated into existing systems. It is intended for use with CMC III systems, where up to 16 PSM modules can be connected to one PU (per IP address). A 1 m CAN bus connection cable is included in the delivery scope for connecting to the CMC III system. Suitable accessories include, for example, the PDU Metered 16A/1P IEC-C20 6xC13 (48,3 cm ( 19 inch )), which also serves power distribution in server environments.

Mounting and Installation

Installation is done via Plug & Play while the system is running, with the shock protection function ensuring safe handling. The module is easily mountable and demountable in the power rail, enabling flexible use at different locations. In redundant systems, the power circuit can be switched by rotating the module. Installation requires no additional tools, as the module is directly inserted into the power rail. Dimensions are 500 mm length, 53 mm width, and 45 mm depth.

Advantages in Operation

The module offers high measurement accuracy and enables detailed energy consumption analysis. The switching function allows centralized control of connected devices, simplifying maintenance and management of IT infrastructures. Integrated monitoring and alarm functions support process safety. Compatibility with the CMC III system enables seamless integration into existing infrastructures. The operating temperature range is between 5 °C and 60 °C, and the maximum altitude of use is 2,000 m above sea level. Humidity must not exceed 90 % (non-condensing). The protection rating IP 20 provides protection against contact with fingers and against solid foreign objects, but not against water or dust. Storage is possible in the range of -20 °C to 70 °C. Materials consist of plastic (PA6 GF 30 V1) for the socket inserts and anodized aluminum for the profile. The delivery includes the PSM measuring module with CAN bus and a 1 m long CAN bus connection cable.

General
MaterialSocket inserts: Plastic (PA6 GF 30 V1), Profile: Aluminium, anodised
Scope of deliveryPSM measurement modules with CAN-Bus, CAN-Bus connection cable, 1 m
Distribution power per module3.680 W
Switching power per relay4.000 VA
Length500 mm
Pollution degree2
Interface bus system2 x CAN-Bus interface to CMC III (max. 16 at PU/4 at PU Compact), 2 x RJ45 (connection to CMC)
Number1
Relay versionDouble coil, bistable
Rated operating voltage18 V (DC) - 24 V (DC), power supply via CMC III system
Input voltage230 V AC
Input voltage tolerance± 10 %
Nominal current16 A
Required module slots (number)2
Number of participants PU compact (max.)4
Number of participants PU (max.)16
PoliciesLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU
Degree of protection IP according to IEC 60 529IP 20
MonitoringAlarm management via CMC III (e.g. email or SMS), visualisation of switching status on CMC III website and RiZone, up to 16 PSM modules on one CMC III PU (per IP address), rights management via CMC III (e.g. restriction of switching functionality)
StandardsEN 50 600-2-2, EN 60950
Description of measurement functionsVoltage V, current A, frequency Hz, active power kW, active energy kWh, reactive power kVar, reactive energy kVarh, apparent power kVA, apparent energy kVAh, power factor cosPhi, crest factor (peak factor), operating hour counter d, h, min, measurement accuracy of ± 1 %, measurement functions resettable/reset via software/interval measurement: active energy kWh, operating hour counter h, thresholds (voltage, current, power) freely configurable
ProtocolsNetwork functionality (only in combination with CMC III system): IPv4, IPv6, SNMPv3, Modbus/TCP, OPC-UA
Width53 mm
Depth45 mm
Maximum operating altitude above sea level2.000 m
Operating temperature range5 °C...60 °C
Humidity (non-condensing)90 %
Socket outlets2 x C13 / 4 x CEE 7/3
Relative humidity (non-condensing)10 %
Storage temperature range-20 °C...70 °C
PCF/VE (Cradle-to-Gate)3.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 7859430, EAN: 4028177801868
