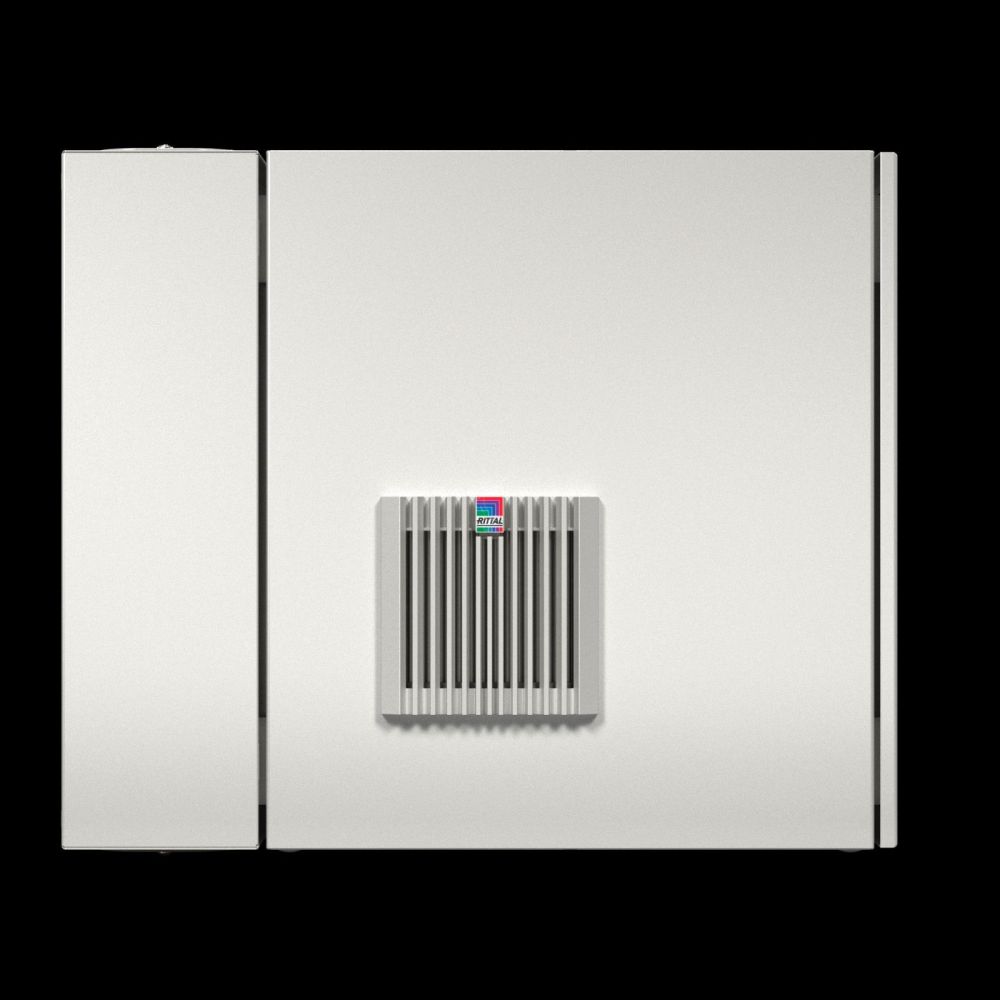

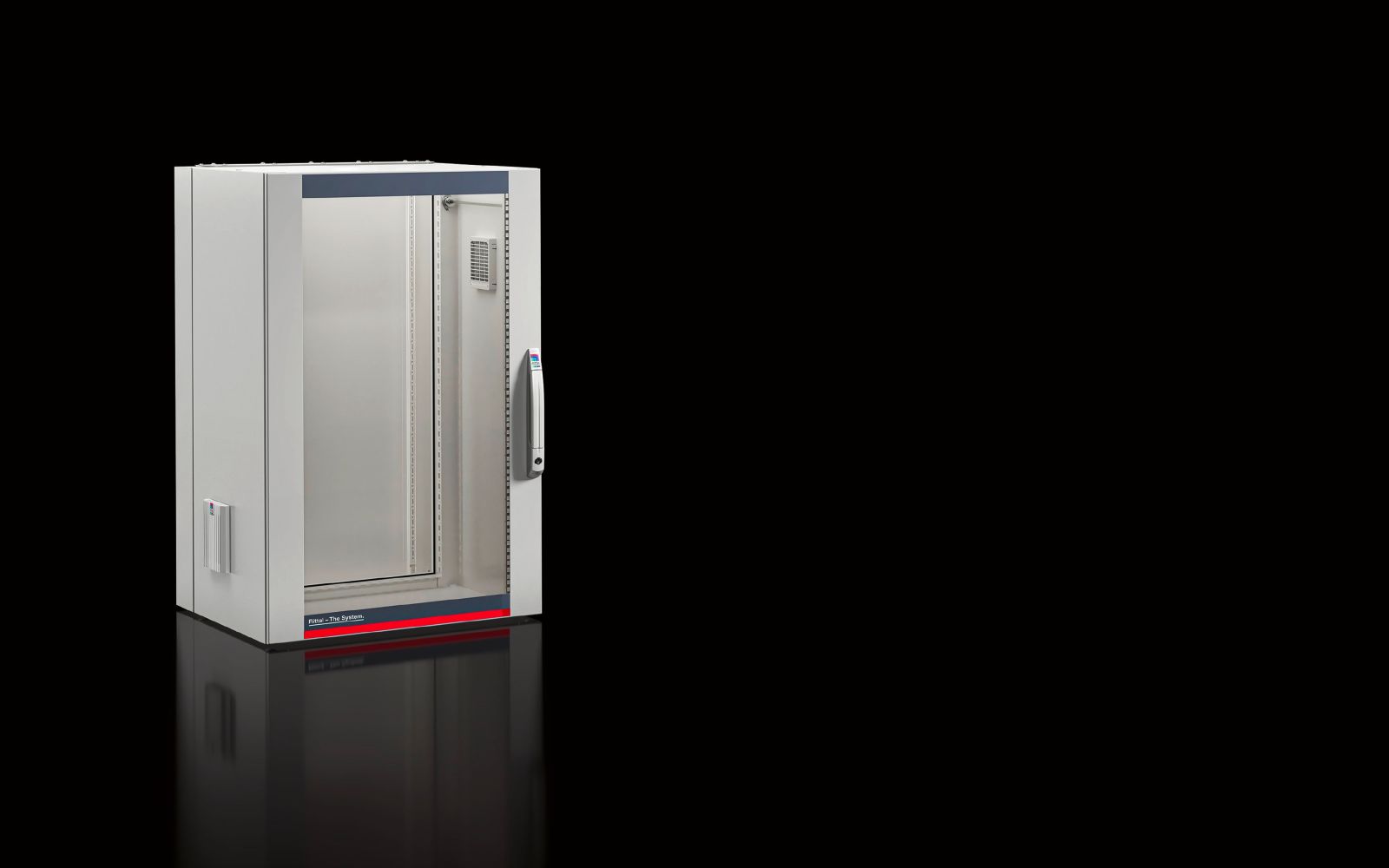

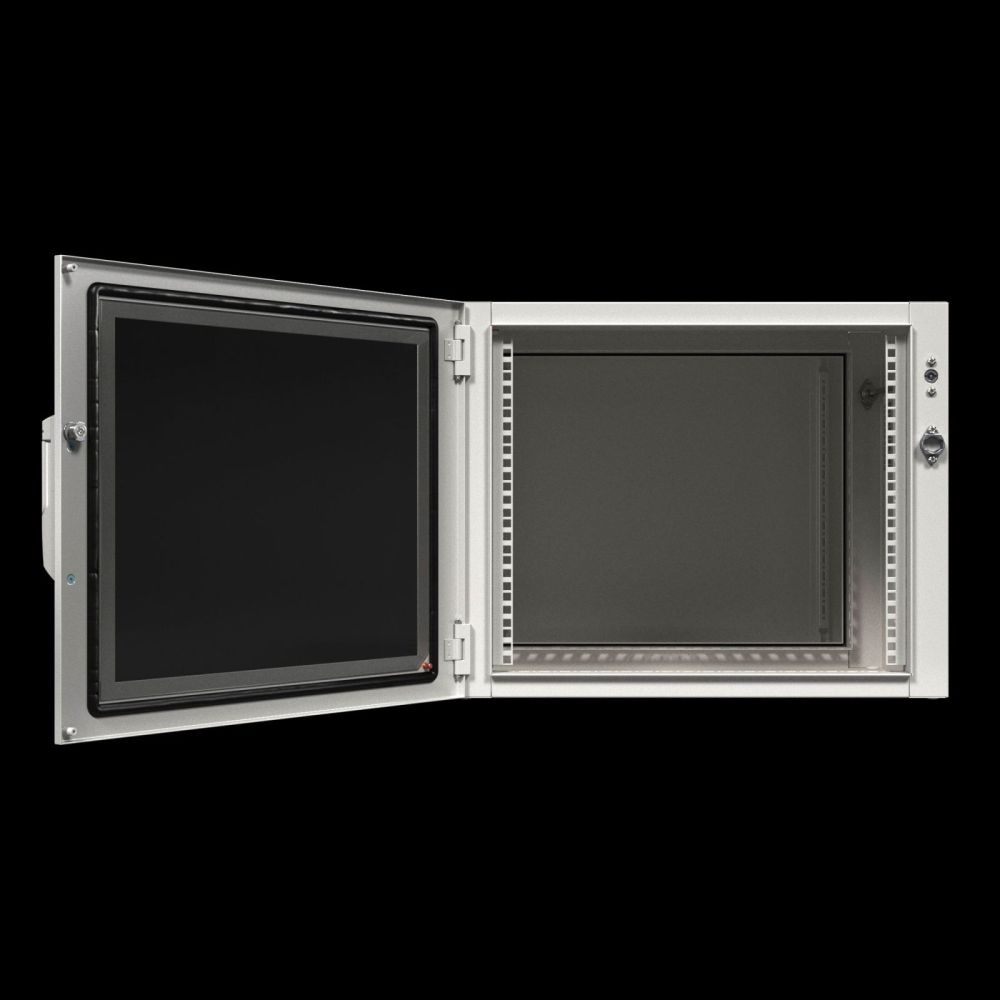

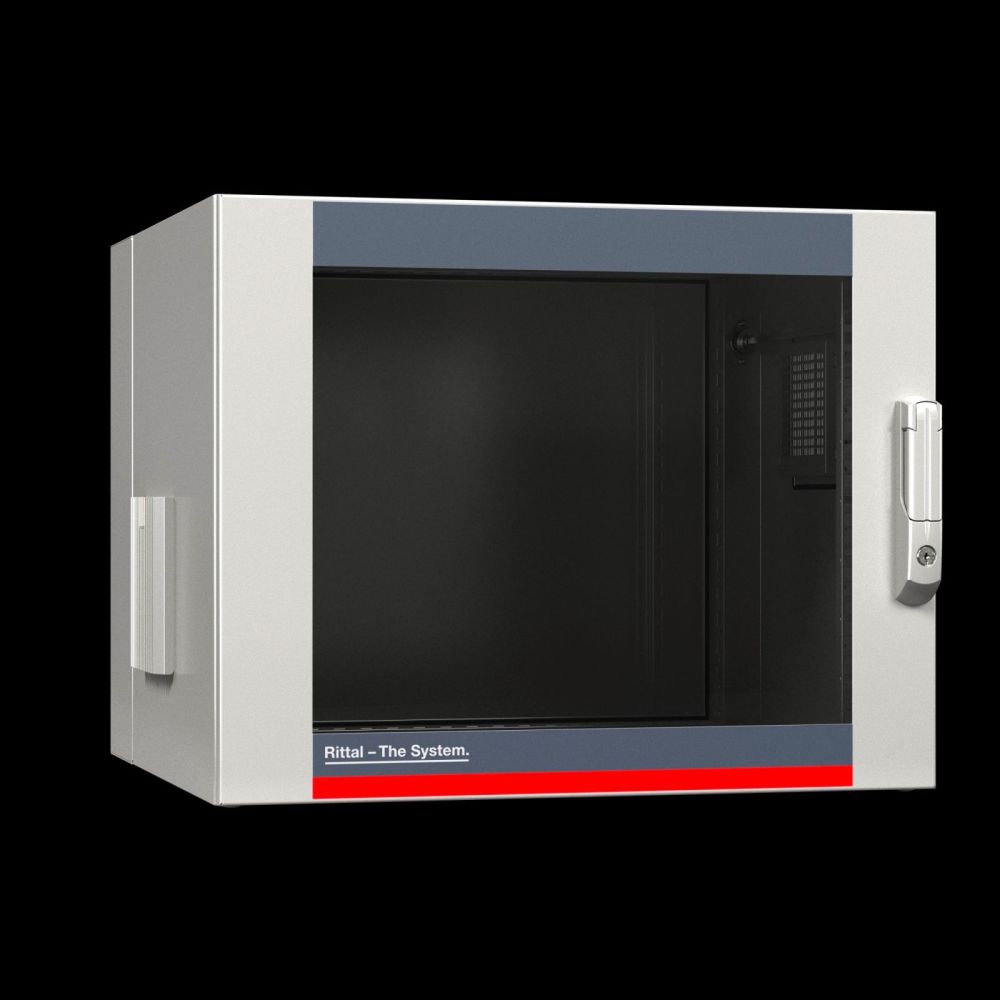

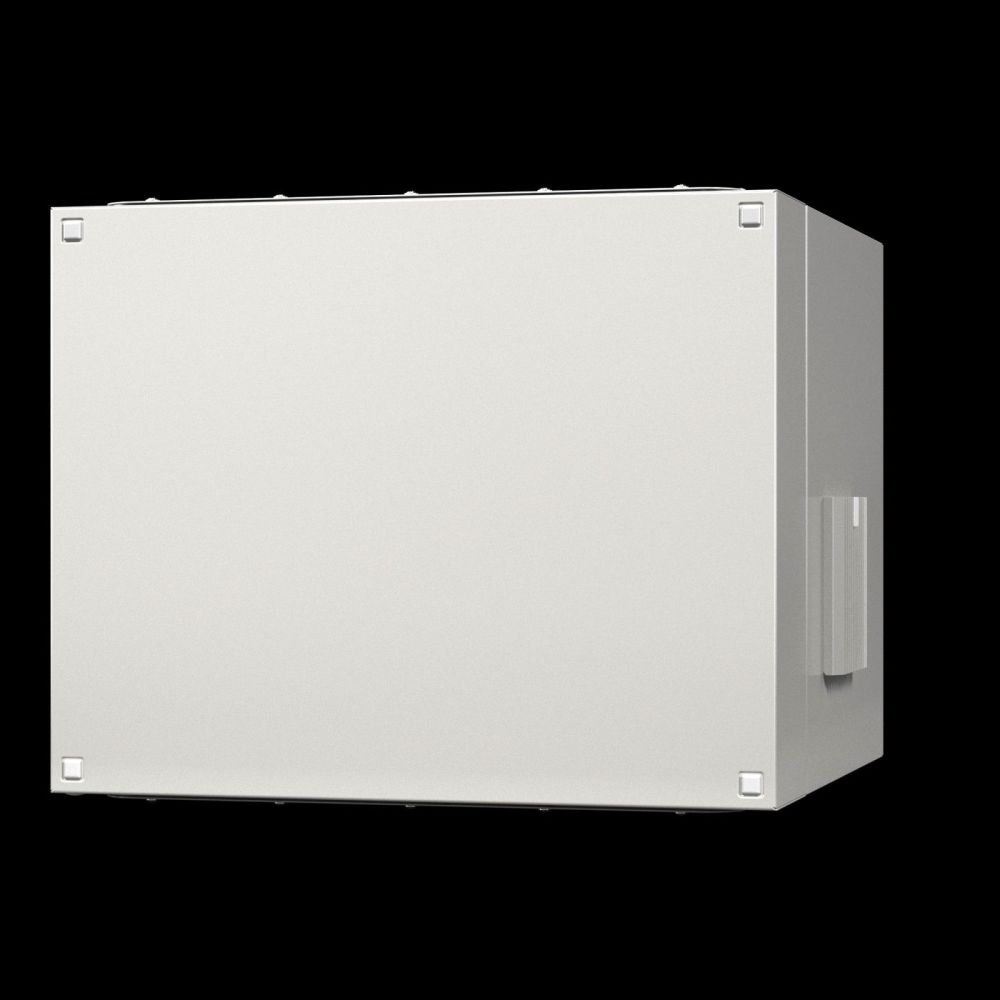

Rittal 2261565 wall-mounted enclosure AX 15 U 3-piece with Blue e+ outlet filter (freight shipping)

Your rating:
Average rating
product review for Rittal 2261565 wall-mounted enclosure AX 15 U 3-piece with Blue e+ outlet filter (freight shipping)
( 4.8 / 5 ) 4 ratings
Rittal 2261565
This image may differ from the desired article.
Rittal 2261565Rittal 2261565Rittal 2261565Rittal 2261565Rittal 2261565
850,72 EUR
( 1.012,36 EUR incl. VAT )
≈ £712.05  |  ≈ $934.94
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2261565 wall-mounted enclosure AX 15 U 3-piece with Blue e+ outlet filter (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1572143
Mfg Part No: 2261565
UPC/EAN: 4028177994065
Weight:45.5 kg
Type:AX2261565

Product information for Rittal 2261565:

The Rittal AX2261565 is a three-piece wall-mounted enclosure of the AX series, designed for use in IT and industrial applications. It features a total height of 745 mm, a width of 600 mm, and a depth of 673 mm, with an installation depth of 620 mm. The enclosure comprises 15 height units (HE) and is therefore suitable for mounting standard 48,3 cm ( 19 inch ) devices. The three-piece construction consists of a wall section, a swing section, and a design viewing door, ensuring easy access to installed components. The construction made of sheet steel with a thickness of 1.5 mm offers high mechanical stability, with the swing section statically loadable up to 750 N and the wall section up to 250 N. The surface is powder-coated, with the wall and swing sections in RAL 7035 (slate grey), while the viewing door features a two-tone design in RAL 7035/7015. The viewing panel is made of single-pane safety glass with a thickness of 3 mm.

Applications

The enclosure is designed for use in industrial environments as well as in IT infrastructures, where secure and accessible mounting of network and control technology is required. The three-piece structure enables flexible installation on walls and simultaneously provides a protected area for sensitive electronics. The IP rating 54, combined with closed gland plates at the top and bottom, protects against dust and splashing water, making it suitable for use in indoor environments with increased contamination risk. The IK code IK08 guarantees protection against mechanical impacts, such as shocks or vibrations, that may occur during operation.

Functions and Equipment in Detail

The swing section is equipped with a 25 mm hole raster in the front and rear frame, enabling flexible device mounting. Two 48,3 cm ( 19 inch ) profile rails are integrated in the front of the swing section to securely fasten standard IT and control units. The design viewing door provides a clear view of the installed components without needing to open the door. The door is fitted with a safety locking mechanism type 3524 E, ensuring secure closure. The middle section is secured with a 3 mm double bar. A mini comfort handle facilitates opening and closing the enclosure. Two Blue e+ outlet filters (type 3238.300) are supplied loose and serve to purify the air inside the enclosure, extending the lifespan of installed devices.

Technology Explained Simply

The enclosure’s construction is based on a modular system consisting of a wall section, a swing section, and a viewing door. The wall section is mounted to the wall and serves as a static base. The swing section can be pivoted around a horizontal axis to allow access to the devices. The clear width is 502 mm and the clear height is 684 mm, providing sufficient space for device mounting. The depth of the swing section is 516 mm, while the wall section has a depth of 135 mm. The IP rating 54 means the enclosure is protected against dust and splashing water, making it suitable for use in indoor environments with increased contamination risk. The IK code IK08 guarantees protection against mechanical impacts, such as shocks or vibrations, that may occur during operation.

Compatibility and Accessories

The enclosure is part of the AX/VX system kit and can be expanded with various accessories. These include, for example, 48,3 cm ( 19 inch ) fasteners, earthing rails, routing panels, component shelves, C-profile rails, fan extension kits, IT system lights, VX system chassis, wall mounting brackets, as well as mounting plates for terminal boxes and bus enclosures. These components allow individual adaptation of the enclosure to specific requirements, such as additional cooling, earthing, or mounting of special devices.

Mounting and Installation

Mounting is done on a wall, with the wall section secured using closed gland plates at the top and bottom. The swing and viewing door sections are attached to the wall section. The 48,3 cm ( 19 inch ) profile rails in the swing section enable mounting of standard devices. The installation depth of 620 mm must be considered during wall mounting planning to ensure a secure and stable installation. The static load capacity of the swing section (750 N) and the wall section (250 N) must be taken into account when selecting devices to be mounted.

Operational Advantages

The three-piece construction of the enclosure allows for easy and quick access to installed devices without having to open the entire enclosure. The IP rating 54 and IK code IK08 ensure high protection against environmental influences and mechanical stresses. The integrated 48,3 cm ( 19 inch ) profile rails and 25 mm hole raster offer flexible mounting options for various devices. The Blue e+ outlet filters contribute to air purification inside the enclosure, extending the lifespan of installed electronics. The powder-coated surface in RAL 7035 provides a robust and aesthetically pleasing design that fits well in industrial and IT environments.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swivel section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, design vision door lock: safety lock 3524 E, middle section lock: 3 mm double latch, 2 Blue e+ exit filters 3238.300 (loose), mini comfort handle
Height units15 HE
Width600 mm
Height745 mm
Depth673 mm
Built-in depth620 mm
Light dimensionsClear width: 502 mm, Clear height: 684 mm
Depth of swivel part516 mm
Depth of wall part135 mm
Number of locks1
IK codeIK08
Load capacity of swivel part (static)750 N
Load capacity wall part (static)250 N
Base materialsteel sheet
LockLocking system: Mini comfort handle, lock insert: Security lock insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 2261565, EAN: 4028177994065
