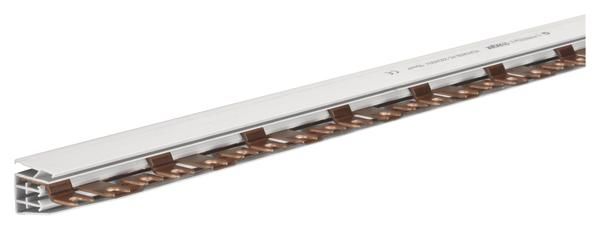

Hager phase KDN380B rail 16 mm ², 3-pole for 19 MCBs
|
81,41 EUR 84,84 EUR |
|||||||||||
|
( 96,88 EUR incl. VAT ) ≈ £68.87 | ≈ $91.02 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 804339 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | KDN380B | ||||||||||
| UPC/EAN: | 3250613741044 | ||||||||||
| Weight: | 0.712 kg | ||||||||||
| Type: | KDN380B | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from HagerFurther products in category Circuit breaker
All products of Hager
Product information for Hager KDN380B:
Compact busbars through the installation-friendly quick-connect terminal and bi-connect terminal is the terminal phase of the rail and the inflow and outflow performance problems. 3-pole miniature circuit breaker: for
Section 9:
6 mm ² Type: B KDN38 item:
ST.
Section 9:
6 mm ² Type: B KDN38 item:
ST.
| General | |
| Number of phases | 3 |
| Number of poles | 3 |
| Suitable for number of devices | 19 |
| Pitch dimensions | 17.8 mm |
| Cross section | 16 mm² |
| Length | 1000 mm |
| Rated permanent current Iu | 80 A |
| Type of electric connection | Fork |
| Rated surge voltage | 4.5 kV |
| Max. rated operation voltage Ue | 400 V |
| Colour | Grey |
| Width in number of modular spacings | 57 |
| Insulated | |
| Suitable for devices with N-busbar | |
| Suitable for devices with auxiliary switch | |
