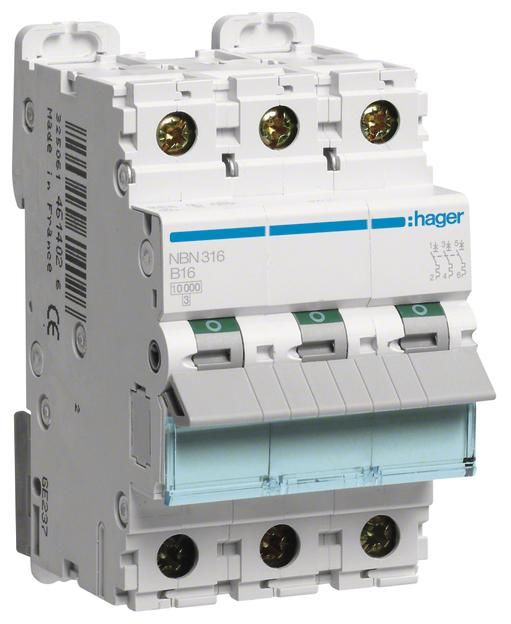

NBN316 Hager MCBs 3 pole, 16A 10kA B 3m 3PLE 83x52, 5X70MM
|
123,88 EUR 129,10 EUR |
|||||||||||
|
( 147,42 EUR incl. VAT ) ≈ £104.80 | ≈ $138.50 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 270856 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | NBN316 | ||||||||||
| UPC/EAN: | 3250614614026 | ||||||||||
| Weight: | 0.321 kg | ||||||||||
| Type: | NBN316 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from HagerFurther products in category Circuit breaker
All products of Hager
Product information for Hager NBN316:
Circuit breaker 3-pole 10kA/15kA B-16A 3M. Circuit breaker in accordance with DIN EN 60898-1 (VDE 0641-11) with time-delayed thermal release for overload protection and electromagnetic release for short-circuit protection. Suitable for the subsequent installation of additional devices. Labeling option directly on the device and individual removal from the phase busbar assembly by unlocking the quick-release top hat rail fastening.
| General | |
| Release characteristic | B |
| Number of poles (total) | 3 |
| Number of protected poles | 3 |
| Rated current | 16 A |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 10 kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 30 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 15 kA |
| Voltage type | AC |
| Frequency | 60 Hz |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 3 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 °C |
| Connectable conductor cross section multi-wired | 25 mm² |
| Connectable conductor cross section solid-core | 35 mm² |
| Power loss | 8.27 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
