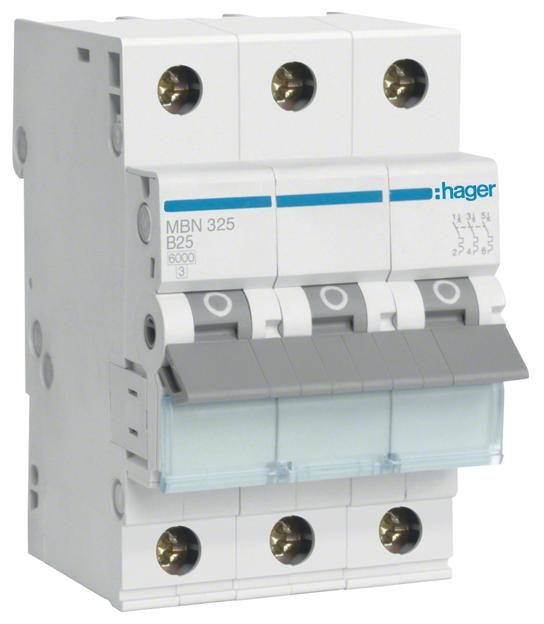

Hager built-out 3-pin B25 MBN325, 6kA 431042
|
87,59 EUR 91,28 EUR |
|||||||||||
|
( 104,23 EUR incl. VAT ) ≈ £74.10 | ≈ $97.93 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 543133 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | MBN325 | ||||||||||
| UPC/EAN: | 3250614310423 | ||||||||||
| Weight: | 0.315 kg | ||||||||||
| Type: | MBN325 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from HagerFurther products in category Circuit breaker
All products of Hager
Product information for Hager MBN325:
Circuit breaker switch rated capacity 6 kA characteristic B - Standard: DIN VDE 64
Part
/ 8.92 - limiting class 3 - Rated voltage 23/4 V ~ - single extraction possible from the phase rail network - With installation-friendly bi-connect terminal - suitable for retro-fitting of additional equipment (busbars, connectors, end caps) - Electric shock protection to DIN VDE
Part 6
Characteristic B, DIN VDE 64
Part
/ 8.92 Type: 3-pin current: 25 A Type: MBN325 item:
ST.
Part
/ 8.92 - limiting class 3 - Rated voltage 23/4 V ~ - single extraction possible from the phase rail network - With installation-friendly bi-connect terminal - suitable for retro-fitting of additional equipment (busbars, connectors, end caps) - Electric shock protection to DIN VDE
Part 6
Characteristic B, DIN VDE 64
Part
/ 8.92 Type: 3-pin current: 25 A Type: MBN325 item:
ST.
| General | |
| Release characteristic | B |
| Number of poles (total) | 3 |
| Number of protected poles | 3 |
| Rated current | 25 A |
| Rated voltage | 400 |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 6 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 10 kA |
| Voltage type | AC |
| Frequency | 60 |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 3 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 |
| Connectable conductor cross section multi-wired | 25 |
| Connectable conductor cross section solid-core | 35 |
| Power loss | 10.10 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Hager built-out 3-pin B25 MBN325, 6kA 431042?
The article Hager built-out 3-pin B25 MBN325, 6kA 431042 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager MBN325 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager built-out 3-pin B25 MBN325, 6kA 431042 always at the best possible price. We can give you a discount of 2% on Hager built-out 3-pin B25 MBN325, 6kA 431042 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Hager built-out 3-pin B25 MBN325, 6kA 431042 we can offer you a price of 79,71 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
