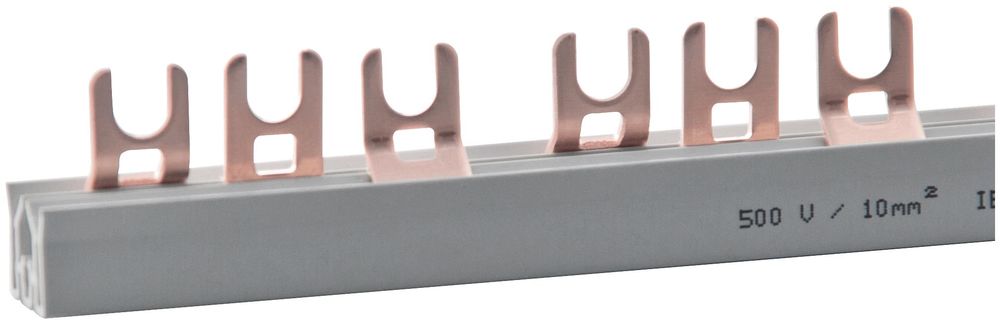

Doepke 09920300 Döpke phase rail 3-pole GM.3.57.100/10, 10sqmm
|
46,64 EUR |
|||||||||||
|
incl. 4,27 EUR copper surcharge ( 55,50 EUR incl. VAT ) ≈ £39.46 | ≈ $52.14 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 568391 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 09920300 | ||||||||||
| UPC/EAN: | 4014712134553 | ||||||||||
| Weight: | 0.463 kg | ||||||||||
| Type: | GM.3.57.100/10 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Meter Cabinets from DoepkeFurther products in category Meter Cabinets
All products of Doepke
Product information for Doepke 09920300:
These components for wiring circuit breakers in industrial, commercial and private electrical distribution boards significantly reduce the installation effort. These cut-to-length busbars are suitable for the supply-side connection of residual current circuit breakers, miniature circuit breakers and FI/LS combinations on the underside of the devices. The rails are fork-shaped and are available in a wide variety of versions in one to four-pole versions (some with space for auxiliary switches). Contact protection using end caps from the EK series is required. The EV-S BS contact protection covers unused connections. Properties: can be used to connect residual current circuit breakers, miniature circuit breakers and FI/LS combinations, wide variety of versions, high time savings when wiring, total length approx. 1000 mm, can be cut to length, insulation of the open ends using optional 'EK' end caps is recommended, type of installation: the rails are plugged into the upper or lower connection terminals of the devices to be connected. Areas of application: Busbars in this series are used in conjunction with RCCB, MCB and RCBO in power supplies for residential and commercial buildings as well as industrial plants. Notes: When feeding in circuit breakers from above in combination with Doepke residual current circuit breakers, the connecting bars EV-S G ANL (N left) or EV-S G ANR (N right) must be used.
Please note...
This article contains a copper surcharge of 4,27 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Doepke 09920300 Döpke phase rail 3-pole GM.3.57.100/10, 10sqmm?
The article Doepke 09920300 Döpke phase rail 3-pole GM.3.57.100/10, 10sqmm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Doepke 09920300 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Doepke 09920300 Döpke phase rail 3-pole GM.3.57.100/10, 10sqmm always at the best possible price. We can give you a discount of 2% on Doepke 09920300 Döpke phase rail 3-pole GM.3.57.100/10, 10sqmm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Doepke 09920300 Döpke phase rail 3-pole GM.3.57.100/10, 10sqmm we can offer you a price of 45,37 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
